Revision 6

#13202

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Applications:
W, W-S, IP, IF-IC, FC-FP

Reactivity:
All

Sensitivity:
Transfected Only

Source/Isotype:
Rabbit IgG

Product Usage Information

Application Dilution
Western Blotting 1:1000
Simple Western™ 1:10 - 1:50
Immunoprecipitation 1:50
Immunofluorescence (Immunocytochemistry) 1:500 - 1:2000
Flow Cytometry (Fixed/Permeabilized) 1:400 - 1:1600

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

For a carrier free (BSA and azide free) version of this product see product #58009.

Specificity/Sensitivity

V5-Tag (D3H8Q) Rabbit Monoclonal Antibody detects recombinant proteins containing the V5 epitope tag. This antibody recognizes the V5-tag fused to either the amino or carboxy terminus of targeted proteins in transfected cells. This antibody detects exogenously expressed V5-tagged proteins in cells expressed under a CMV promoter. Expression under other promoters has not been evaluated.

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic V5-tag peptide.

Background

Epitope tags are useful for the labeling and detection of proteins using immunoblotting, immunoprecipitation, and immunostaining techniques. Because of their small size, they are unlikely to affect the tagged protein’s biochemical properties.

The V5 tag is a 14 amino acid peptide derived from a small epitope (Pk) on the P and V proteins of simian virus 5 (SV5), a member of the paramyxovirus family (1). The V5 tag can be used to detect expression of recombinant proteins in bacteria, yeast, insects, and mammalian cell systems.

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Western Blot Buffer

IMPORTANT: For western blots, incubate membrane with diluted primary antibody in 5% w/v BSA, 1X TBS, 0.1% Tween® 20 at 4°C with gentle shaking, overnight.

Applications Key

W: Western Blotting W-S: Simple Western™ IP: Immunoprecipitation IF-IC: Immunofluorescence (Immunocytochemistry) FC-FP: Flow Cytometry (Fixed/Permeabilized)

Cross-Reactivity Key

All: All Species Expected

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

Alexa Fluor is a registered trademark of Life Technologies Corporation.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 6

Cell Signaling Technology Logo
Western blot analysis of extracts from COS-7 cells, untransfected (-) or transfected with V5-tag fusion protein (+), using V5-Tag (D3H8Q) Rabbit mAb and β-Actin (D6A8) Rabbit mAb #8457.
Western Blotting Image 1: V5-Tag (D3H8Q) Rabbit Monoclonal Antibody

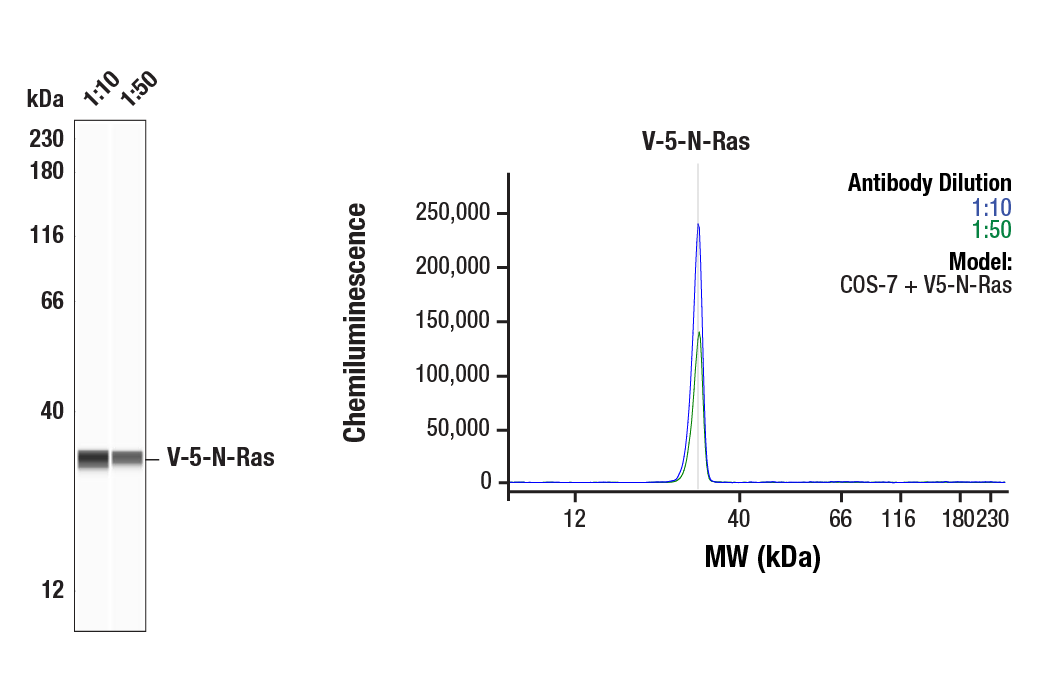

Simple Western™ analysis of lysates (0.1 mg/mL) from COS-7 +V5-N-Ras cells using V5-Tag (D3H8Q) Rabbit mAb #13202. The virtual lane view (left) shows the target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.

Western Blotting Image 1: V5-Tag (D3H8Q) Rabbit Monoclonal Antibody

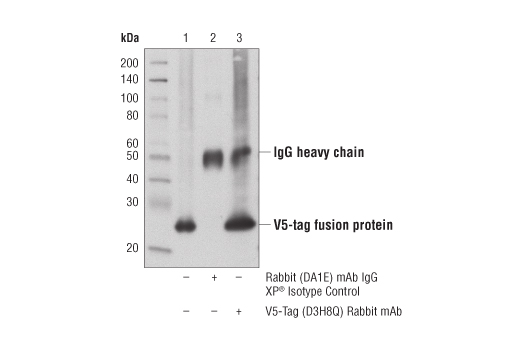

Immunoprecipitation of transfected V5-tag fusion protein from COS-7 cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or V5-Tag (D3H8Q) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using V5-Tag (D3H8Q) Rabbit mAb.
Immunoprecipitation Image 1: V5-Tag (D3H8Q) Rabbit Monoclonal Antibody
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 6

Cell Signaling Technology Logo

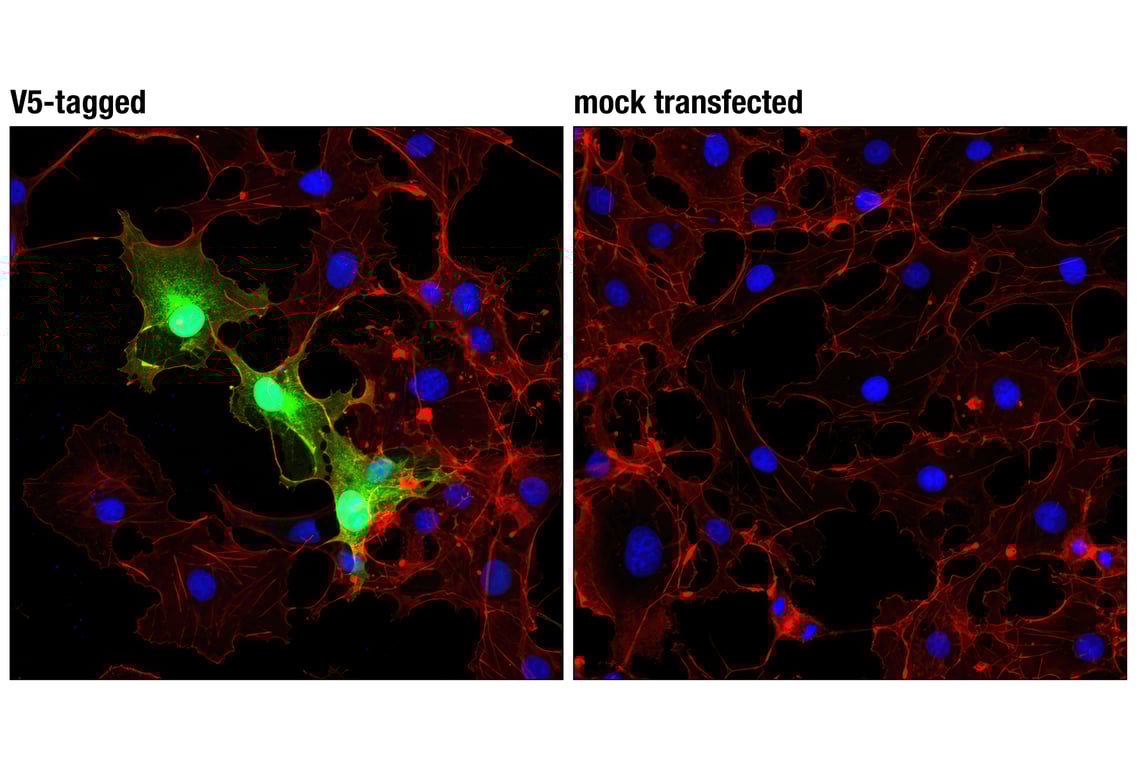

Confocal immunofluorescent analysis of COS-7 cells, transfected with a V5-tagged construct (left) or mock transfected (right), using V5-Tag (D3H8Q) Rabbit mAb (green), DyLight™ 554 Phalloidin #13054 (red), and DRAQ5® #4084 (blue pseudocolor).
Immunofluorescence Image 1: V5-Tag (D3H8Q) Rabbit Monoclonal Antibody

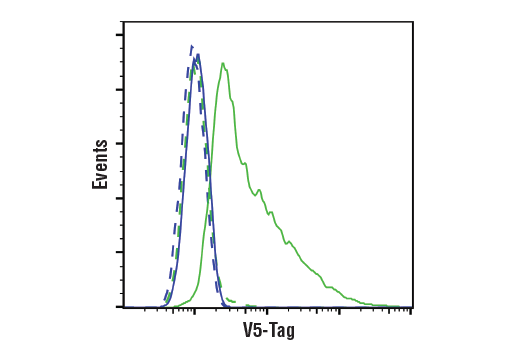

Flow cytometric analysis of 293T cells, mock transfected (blue) or transfected with a V5-tagged construct (green), using V5-Tag (D3H8Q) Rabbit mAb (solid lines) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
Flow Cytometry Image 1: V5-Tag (D3H8Q) Rabbit Monoclonal Antibody
