Revision 3

#27629

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Applications:
W, IP, FC-FP, FC-L

Reactivity:
H

Sensitivity:
Endogenous

MW (kDa):
55-70

Source/Isotype:
Rabbit IgG

UniProt ID:
#P43627

Entrez-Gene Id:
3803

Product Usage Information

Application Dilution
Western Blotting 1:1000
Immunoprecipitation 1:100
Flow Cytometry (Fixed/Permeabilized) 1:100 - 1:400
Flow Cytometry (Live) 1:100 - 1:400

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/mL BSA, 50% glycerol, and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Specificity/Sensitivity

KIR2DL2/KIR2DL3 (F1D9K) Rabbit Monoclonal Antibody recognizes endogenous levels of total KIR2DL2 and KIR2DL3 protein.

Source / Purification

Monoclonal antibody is produced by immunizing animals with recombinant protein specific to the extracellular domain of human KIR2DL2 protein.

Background

Killer cell immunoglobulin-like receptors (KIRs) are type 1 transmembrane glycoproteins expressed by natural killer (NK) cells and subsets of CD4, CD8, and γδ T cells (1-5). Analogous to the diversity of their human leukocyte antigen class I (HLA class I) ligands, the KIR genes are polymorphic and the content of the KIR gene cluster varies among haplotypes, although several "framework" genes are found in all haplotypes (6,7). The KIR proteins are characterized by the number of extracellular immunoglobulin-superfamily domains (2D or 3D) and by whether they have a long (L) or short (S) cytoplasmic domain (8-10). KIR proteins with the long cytoplasmic domain transduce inhibitory signals upon ligand binding via an immune tyrosine-based inhibitory motif (ITIM) (10), while KIR proteins with the short cytoplasmic domain lack an ITIM and instead transduce activating signals (11,12). KIR proteins play an important role in the regulation of the immune response. Combinations of KIR and HLA class I variants influence susceptibility to autoimmunity and infectious disease, as well as outcomes of haematopoietic stem cell transplantation (12-14).
KIR2DL2 and KIR2DL3, also referred to as CD158b1 and CD158b2, respectively, regulate NK cells by interacting with the human leukocyte antigen-C1 (HLA-C1) group of molecules (15). Upon receptor ligand interaction, KIR2DL2 and KIR2DL3 inhibit the activity of NK cells thus preventing target cell lysis (16-18).

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Western Blot Buffer

IMPORTANT: For western blots, incubate membrane with diluted primary antibody in 5% w/v BSA, 1X TBS, 0.1% Tween® 20 at 4°C with gentle shaking, overnight.

Applications Key

W: Western Blotting IP: Immunoprecipitation FC-FP: Flow Cytometry (Fixed/Permeabilized) FC-L: Flow Cytometry (Live)

Cross-Reactivity Key

H: Human

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 3

Cell Signaling Technology Logo
Western blot analysis of extracts from HuT 78, human natural killer (NK), and 293T cells using KIR2DL2/KIR2DL3 (F1D9K) Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower).
Western Blotting Image 1: KIR2DL2/KIR2DL3 (F1D9K) Rabbit Monoclonal Antibody

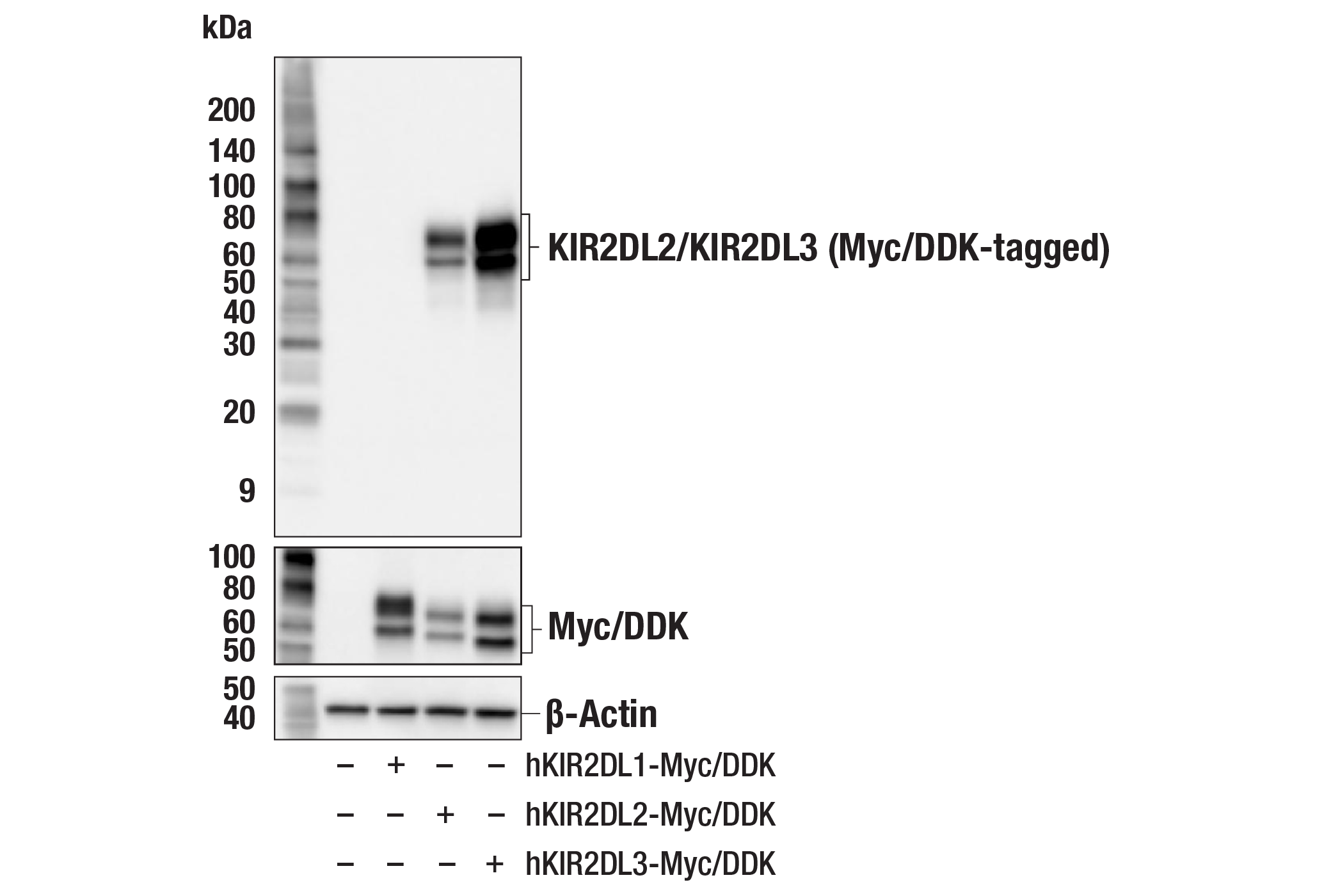

Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected (+) with constructs expressing Myc/DDK-tagged full-length human KIR2DL1 protein (hKIR2DL1-Myc/DDK), Myc/DDK-tagged full-length human KIR2DL2 protein (hKIR2DL2-Myc/DDK), or Myc/DDK-tagged full-length human KIR2DL3 protein (hKIR2DL3-Myc/DDK), using KIR2DL2/KIR2DL3 (F1D9K) Rabbit mAb (upper), Myc-Tag (71D10) Rabbit mAb #2278 (middle), or β-Actin (D6A8) Rabbit mAb #8457 (lower).
Western Blotting Image 2: KIR2DL2/KIR2DL3 (F1D9K) Rabbit Monoclonal Antibody

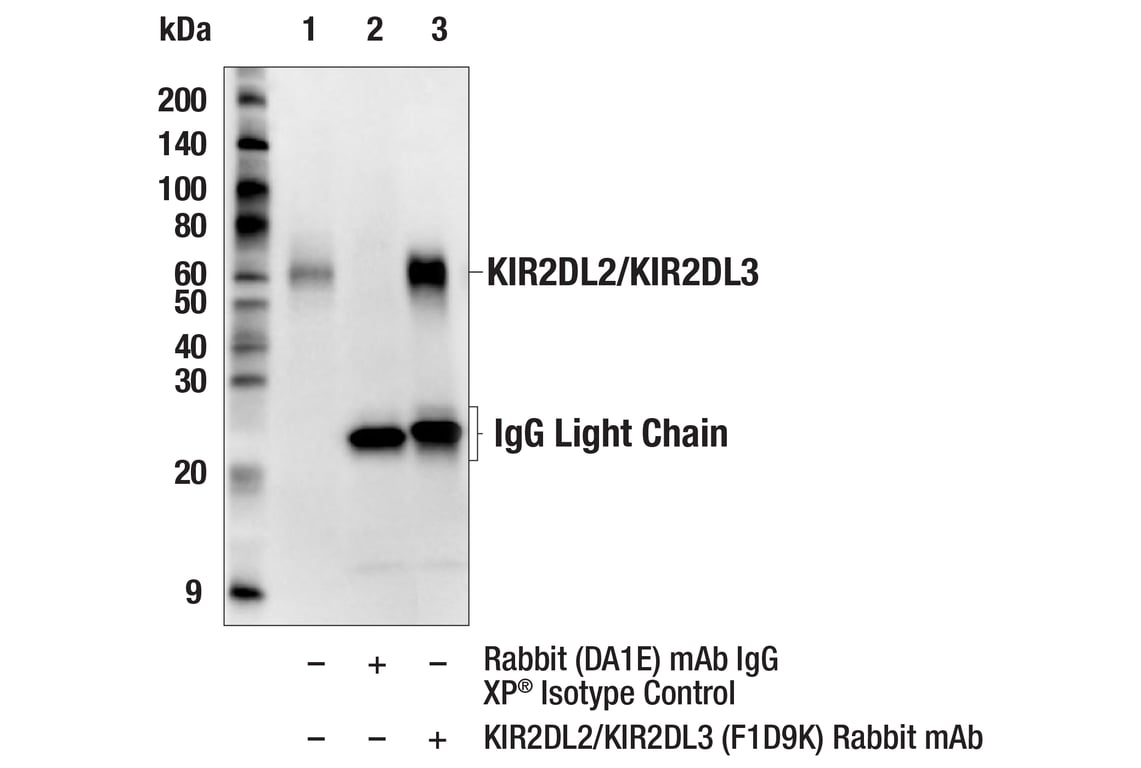

Immunoprecipitation of KIR2DL2/KIR2DL3 protein from HuT 78 cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is KIR2DL2/KIR2DL3 (F1D9K) Rabbit mAb. Western blot analysis was performed using KIR2DL2/KIR2DL3 (E7Y1V) Rabbit mAb #23183. Mouse Anti-Rabbit IgG (Light-Chain Specific) (D4W3E) mAb (HRP Conjugate) #93702 was used as a secondary antibody.
Immunoprecipitation Image 1: KIR2DL2/KIR2DL3 (F1D9K) Rabbit Monoclonal Antibody
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 3

Cell Signaling Technology Logo
Flow cytometric analysis of fixed/permeabilized Jurkat cells (blue, negative) and HuT 78 cells (green, positive) using KIR2DL2/KIR2DL3 (F1D9K) Rabbit mAb (solid lines) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
Flow Cytometry Image 1: KIR2DL2/KIR2DL3 (F1D9K) Rabbit Monoclonal Antibody
Flow cytometric analysis of live human peripheral blood mononuclear cells using KIR2DL2/KIR2DL3 (F1D9K) Rabbit mAb (right) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (left), and co-stained with NCAM1 (CD56) (MY31) Mouse mAb (APC Conjugate) #51997. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
Flow Cytometry Image 1: KIR2DL2/KIR2DL3 (F1D9K) Rabbit Monoclonal Antibody
