#96248

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Applications:
W, IF-IC

Reactivity:
H

Sensitivity:
Endogenous

MW (kDa):
150, 213

Source/Isotype:
Rabbit IgG

UniProt ID:
#P10586

Entrez-Gene Id:
5792

Product Usage Information

This product is the carrier free version of product #61611. All data were generated using the same antibody clone in the standard formulation which contains BSA and glycerol.

This formulation is ideal for use with technologies requiring specialized or custom antibody labeling, including fluorophores, metals, lanthanides, and oligonucleotides. It is not recommended for ChIP, ChIP-seq, CUT&RUN or CUT&Tag assays. If you require a carrier free formulation for chromatin profiling, please contact us. Optimal dilutions/concentrations should be determined by the end user.

BSA and Azide Free antibodies are quality control tested by size exclusion chromatography (SEC) to determine antibody integrity.

Formulation

Supplied in 1X PBS (10 mM Na2HPO4, 3 mM KCl, 2 mM KH2PO4, and 140 mM NaCl (pH 7.8)). BSA and Azide Free.

For standard formulation of this product see product #61611

Storage

Store at -20°C. This product will freeze at -20°C so it is recommended to aliquot into single-use vials to avoid multiple freeze/thaw cycles. A slight precipitate may be present and can be dissolved by gently vortexing. This will not interfere with antibody performance.

Specificity/Sensitivity

PTPRF/LAR (E6W4X) Rabbit Monoclonal Antibody (BSA and Azide Free) recognizes endogenous levels of total PTPRF/LAR protein. This antibody detects the E-subunit of the processed PTPRF/LAR protein.

Source / Purification

Monoclonal antibody is produced by immunizing animals with recombinant protein from a central region of the human PTPRF/LAR protein.

Background

Receptor type protein tyrosine phosphatase F (PTPRF, LAR) is a transmembrane PTP that helps to regulate insulin signaling, cell proliferation and cell migration. The PTPRF protein is composed of an extracellular segment that contains several Ig-like and fibronectin (Fn-III) domains, a transmembrane region and a pair of cytoplasmic phosphatase domains (1,2). Functional studies reveal that the membrane-associated D1 phosphatase domain is responsible for substrate dephosphorylation, while the D2 domain is important for substrate specificity (3). PTPRF negatively regulates insulin signaling through dephosphorylation of insulin receptor and insulin receptor substrate (4). This phosphatase activates the pro-apoptotic DAPK serine/threonine kinase by removing a phosphate at Tyr491/492, while the kinase Src replaces the phosphate to inactivate DAPK at the same time it down regulates PTPRF expression (5). PTPRF is commonly found at focal adhesions where it interacts with liprin, which localizes the phosphatase to the membrane, and the Rac/Rho family GTPase Trio (6). Localization of PTPRF at adherens junctions results in PTPRF modification of β-catenin, which inhibits cell migration by limiting the amount of available cytosolic β-catenin (7).

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Applications Key

W: Western Blotting IF-IC: Immunofluorescence (Immunocytochemistry)

Cross-Reactivity Key

H: Human

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using PTPRF/LAR (E6W4X) Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower). Data were generated using the standard formulation of this product.
Western Blotting Image 1: PTPRF/LAR (E6W4X) Rabbit Monoclonal Antibody (BSA and Azide Free)

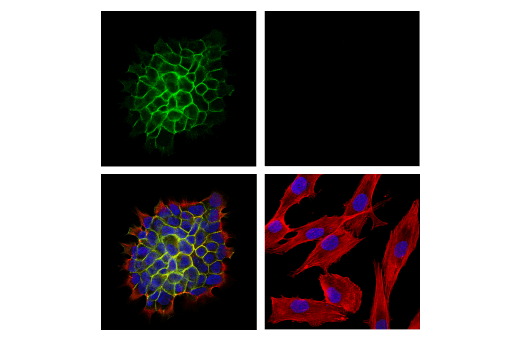

Confocal immunofluorescent analysis of RT4 cells (left, positive) or U-138 MG (right, negative) using LAR (E6W4X) Rabbit mAb (green). Actin filaments were labeled with DyLight™ 554 Phalloidin #13054 (red). Samples were mounted in ProLong® Gold Antifade Reagent with DAPI #8961 (blue). Data were generated using the standard formulation of this product.
Immunofluorescence Image 1: PTPRF/LAR (E6W4X) Rabbit Monoclonal Antibody (BSA and Azide Free)
