Applications:

IF-IC, FC-FP

:

:

:

:

Product Information

Product Usage Information

Each vial of MitoTracker® Green FM contains 50 µg lyophilized solid. To make a 1 mM stock solution, reconstitute the solid in 74.4 µl high quality DMSO. While the optimal staining concentration and incubation times can vary by application, typical results are obtained by diluting the stock solution directly into normal growth media at a concentration between 100-400 nM and incubating between 15-30 min at 37ºC. After incubation, the cells must be imaged live; DO NOT FIX!

To reduce background fluorescence of the media, phenol red free media can be substituted for normal media prior to imaging.

Storage

Store lyophilized solid at -20°C dessicated and protected from light. In lyophilized form, this reagent is stable for 12 months. Once reconstituted in DMSO, the solution should be stored at -20°C, protected from light, and must be used within 2 weeks. Avoid freeze-thaw cycles.

Product Description

MitoTracker® Green FM is recommended for live cell imaging only; fixation with aldehydes or alcohols will inhibit staining. Excitation: 490 nm, Emission: 516 nm, Molecular Weight: 671.88 g/mol

Background

MitoTracker® dyes are cell permeable probes that contain a mildly thiol-reactive chloromethyl moiety for mitochondrial labeling. To label mitochondria, cells are simply incubated with MitoTracker® probes, which passively diffuse across the plasma membrane and accumulate in active mitochondria.

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Applications Key

IF-IC: Immunofluorescence (Immunocytochemistry) FC-FP: Flow Cytometry (Fixed/Permeabilized)

Cross-Reactivity Key

H: human M: mouse R: rat Hm: hamster Mk: monkey Vir: virus Mi: mink C: chicken Dm: D. melanogaster X: Xenopus Z: zebrafish B: bovine Dg: dog Pg: pig Sc: S. cerevisiae Ce: C. elegans Hr: horse GP: Guinea Pig Rab: rabbit All: all species expected

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

Revision 6
#9074

MitoTracker® Green FM

Immunofluorescence Image 1: MitoTracker® Green FM Expand Image
Confocal analysis of HeLa cells using MitoTracker® Green FM (green) and DRAQ5® #4084 (blue psuedocolor).

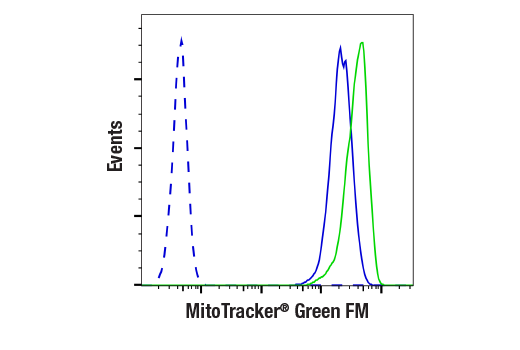

Flow Cytometry Image 1: MitoTracker® Green FM Expand Image
Flow cytometric analysis of live Jurkat cells, untreated (blue) or treated with CCCP (80 μM, 15 min; green) labeled with MitoTracker® Green FM (solid lines), compared to unlabeled Jurkat cells (dashed line).
