Revision 7

#7073

Store at +4C

PathScan® Phospho-IKK alpha (Ser176/180) Sandwich ELISA Kit

1 Kit

(96 assays)

Species Cross Reactivity:
H

UniProt ID:
#O15111

Entrez-Gene Id:
#1147

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Color Storage Temp
Phospho-IKK(S176/180) Rabbit mAb Coated Microwells1609296 tests+4C
IKKα Mouse Detection mAb322501 eaGreen (Lyophilized)+4C
Anti-mouse IgG, HRP-linked Antibody (ELISA Formulated)133041 eaRed (Lyophilized)+4C
Detection Antibody Diluent1333911 mlGreen+4C
HRP Diluent1351511 mlRed+4C
TMB Substrate700411 ml+4C
STOP Solution700211 ml+4C
Sealing Tape545032 ea+4C
ELISA Wash Buffer (20X)980125 ml+4C
ELISA Sample Diluent1108325 mlBlue+4C
PathScan® Sandwich ELISA Lysis Buffer (1X)701830 ml-20C

Kit contents scale proportionally with size, except sealing tape.
Example: The V1 kit contains 5X the listed quantities above, but will exclude the sealing tape.

For the “C” and “V” kits, the supplied 96-well strip plate consists of twelve 8-well strips in a support frame. This enables custom plate configurations.

Description

The PathScan® Phospho-IKKα (Ser176/180) Sandwich ELISA Kit is a solid phase sandwich enzyme-linked immunosorbent assay (ELISA) that detects endogenous levels of IKKα when phosphorylated at Ser176/180. A phospho-IKKα (Ser176/180) rabbit mAb has been coated onto the microwells. After incubation with cell lysates, phospho-IKKα (Ser176/180) protein is captured by the coated antibody. Following extensive washing, an IKKα mouse detection mAb is added to detect the captured IKKα protein. Anti-mouse IgG, HRP-linked antibody is then used to recognize the bound detection antibody. HRP substrate, TMB, is added to develop color. The magnitude of the absorbance for the developed color is proportional to the quantity of IKKα phosphorylated at Ser176/180.

*Antibodies in this kit are custom formulations specific to kit.

Specificity/Sensitivity

The PathScan® Phospho-IKK alpha (Ser176/180) Sandwich ELISA Kit detects endogenous levels of IKKα protein when phosphorylated at Ser176/180, as shown in Figure 1. This kit sensitivity is shown in Figure 2. This kit detects proteins from the indicated species, as determined through in-house testing, but may also detect homologous proteins from other species.

Background

The NF-κB/Rel transcription factors are present in the cytosol in an inactive state, complexed with the inhibitory IκB proteins (1-3). Most agents that activate NF-κB do so through a common pathway based on phosphorylation-induced, proteasome-mediated degradation of IκB (3-7). The key regulatory step in this pathway involves activation of a high molecular weight IκB kinase (IKK) complex whose catalysis is generally carried out by three tightly associated IKK subunits. IKKα and IKKβ serve as the catalytic subunits of the kinase and IKKγ serves as the regulatory subunit (8,9). Activation of IKK depends upon phosphorylation at Ser177 and Ser181 in the activation loop of IKKβ (Ser176 and Ser180 in IKKα), which causes conformational changes, resulting in kinase activation (10-13).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

PathScan is a registered trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo
Figure 1. Treatment of differentiated THP-1 cells with LPS stimulates phosphorylation of IKKα at Ser176/180 as detected by the PathScan® Phospho-IKKα (Ser176/180) Sandwich ELISA Kit #7073 but does not affect the levels of total IKKα detected by sandwich ELISA. Differentiated THP-1 cells were treated with 1 μg/ml LPS for 10 minutes. The absorbance readings at 450 nm are shown in the top figure, while the corresponding western blots using IKKα Antibody #2682 (left) or Phospho-IKKα/β (Ser176/180) (16A6) Rabbit mAb #2697 (right) are shown in the bottom figure.
ELISA Image 1: PathScan<sup>®</sup> Phospho-IKK alpha (Ser176/180) Sandwich ELISA Kit

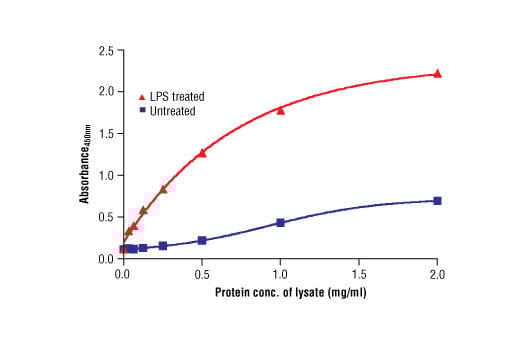

Figure 2. The relationship between the protein concentration of lysates from untreated and LPS-treated THP-1 cells and the absorbance at 450 nm using the PathScan® Phospho-IKKα (Ser176/180) Sandwich ELISA Kit is shown.
ELISA Image 2: PathScan<sup>®</sup> Phospho-IKK alpha (Ser176/180) Sandwich ELISA Kit
