Revision 4

#7953

Store at +4C

PathScan® Phospho-Src (Tyr416) Sandwich ELISA Kit

1 Kit

(96 assays)

Species Cross Reactivity:
H Dg

UniProt ID:
#P12931

Entrez-Gene Id:
#6714

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Color Storage Temp
Phospho-Src (Tyr416) Rabbit mAb Coated Microwells6279896 tests+4C
Src Mouse Detection mAb141671 eaGreen (Lyophilized)+4C
Anti-mouse IgG, HRP-linked Antibody (ELISA Formulated)133041 eaRed (Lyophilized)+4C
Detection Antibody Diluent1333911 mlGreen+4C
HRP Diluent1351511 mlRed+4C
TMB Substrate700411 ml+4C
STOP Solution700211 ml+4C
Sealing Tape545032 ea+4C
ELISA Wash Buffer (20X)980125 ml+4C
ELISA Sample Diluent1108325 mlBlue+4C
Cell Lysis Buffer (10X)980315 ml-20C

Kit contents scale proportionally with size, except sealing tape.
Example: The V1 kit contains 5X the listed quantities above, but will exclude the sealing tape.

For the “C” and “V” kits, the supplied 96-well strip plate consists of twelve 8-well strips in a support frame. This enables custom plate configurations.

Description

The PathScan® Phospho-Src (Tyr416) Sandwich ELISA Kit is a solid phase sandwich enzyme-linked immunosorbent assay (ELISA) that detects endogenous levels of phospho-Src (Tyr416). A phospho-Src rabbit antibody has been coated onto the microwells. After incubation with cell lysates, phospho-Src (Tyr416) is captured by the coated antibody. Following extensive washing, a Src mouse detection antibody is added to detect the captured phospho-Src (Tyr416). Anti-mouse, HRP-linked antibody is then used to recognize the bound detection antibody. The HRP substrate, TMB, is added to develop color. The magnitude of the absorbance for this developed color is proportional to the quantity of phospho-Src (Tyr416).

*Antibodies in this kit are custom formulations specific to kit.

Specificity/Sensitivity

The PathScan® Phospho-Src (Tyr416) Sandwich ELISA Kit detects endogenous levels of Src when phosphorylated at Tyr416, as shown in Figure 1. This kit does not cross-react with the Src family members Yes, Lck, Lyn or Hck. Other family members have not been tested. This kit sensitivity is shown in Figure 2. This kit detects proteins from the indicated species, as determined through in-house testing, but may also detect homologous proteins from other species.

Background

The Src family of protein tyrosine kinases, which includes Src, Lyn, Fyn, Yes, Lck, Blk, and Hck, are important in the regulation of growth and differentiation of eukaryotic cells (1). Src activity is regulated by tyrosine phosphorylation at two sites, but with opposing effects. While phosphorylation at Tyr416 in the activation loop of the kinase domain upregulates enzyme activity, phosphorylation at Tyr530 in the carboxy-terminal tail by Csk renders the enzyme less active (2).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

PathScan is a registered trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 4

Cell Signaling Technology Logo
Figure 1. Phosphorylation of Src at Tyr416 in H202 stimulated MDCK cells (3 mM for 3 min) and untreated Calu-3 cells is detected by the PathScan® Phospho-Src (Tyr416) Sandwich ELISA Kit. In contrast, a low level of phospho-Src (Tyr416) is detected in untreated MDCK cells and Calu-3 cells lysed in the presence of λ-phosphatase. The absorbance readings at 450 nm are shown in the top figure while western blots, using a Phospho-Src Family (Tyr416) (100F9) Rabbit mAb (upper) or Src (L4A1) Mouse mAb #2110 (lower), are shown in the bottom figure.
ELISA Image 1: PathScan<sup>®</sup> Phospho-Src (Tyr416) Sandwich ELISA Kit

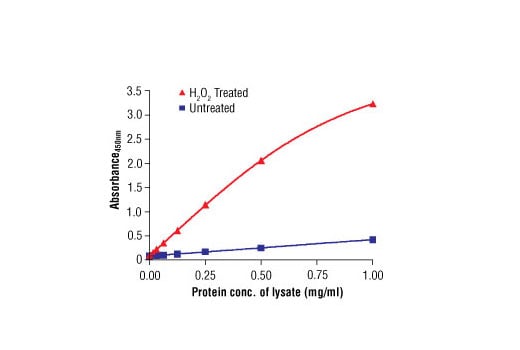

Figure 2. The relationship between lysate protein concentration from untreated and H202-treated MDCK cells and the absorbance at 450 nm is shown. MDCK cells were treated with H202 (3 mM) for 3 minutes at 37ºC and then lysed.
ELISA Image 2: PathScan<sup>®</sup> Phospho-Src (Tyr416) Sandwich ELISA Kit
