| Product Includes | Product # | Quantity | Color | Storage Temp |
|---|---|---|---|---|
| ACE2 Protein Coated Microwells | 30924 | 96 tests |
|
+4C |
| SARS-CoV-2 Spike RBD Protein, HRP-linked | 42530 | 1 ea |
|
+4C |
| Sample Diluent A | 71637 | 25 ml |
|
+4C |
| HRP Diluent | 13515 | 11 ml |
|
+4C |
| ELISA Wash Buffer (20X) | 9801 | 25 ml |
|
+4C |
| TMB Substrate | 7004 | 11 ml |
|
+4C |
| STOP Solution | 7002 | 11 ml |
|
+4C |
| Sealing Tape | 54503 | 2 ea |
|
+4C |
| ELISA Kit #69486 Positive Control | 70532 | 1 ea |
|
+4C |
| ELISA Kit #69486 Negative Control | 81889 | 1 ea |
|
+4C |
*The microwell plate is supplied as 12 8-well modules - Each module is designed to break apart for 8 tests.
Description
The SARS-CoV-2 Spike RBD-ACE2 Blocking Antibody Detection ELISA Kit allows for the detection of antibodies (or small molecules) that block the interaction between the host receptor-binding domain (RBD) of the SARS-CoV-2 spike protein and ACE2. In this assay, SARS-CoV-2 spike RBD protein linked to HRP (RBD-HRP) is pre-incubated with the sample and controls, allowing blocking antibodies present in the sample to bind to the RBD-HRP. These pre-incubated mixtures are then added to microwell plates coated with ACE2 protein. The RBD-HRP is captured by ACE2 in the well to varying degrees depending on the blocking activity present in each sample. The wells are then washed to remove unbound material. HRP substrate, TMB, is added to develop color. The magnitude of optical density for this developed color is inversely proportional to the ability of the sample to block the interaction between SARS-CoV-2 spike RBD and ACE2 proteins. For example, if no blocking activity is present in the sample, the RBD-HRP will be able to bind to ACE2 on the microwell plates, resulting in high signal. Conversely, samples with high blocking activity will prevent the RBD-HRP from binding to ACE2 on the microwell plates, resulting in low signal. This kit is designed to detect blocking antibodies present in human serum/plasma samples. However, this kit may also be used to assess the blocking activity of non-human antibodies and small molecules. In the latter scenarios (for non-human antibodies and small molecules), the user will have to determine the appropriate dilution/concentration of their samples to use, along with running the proper controls.

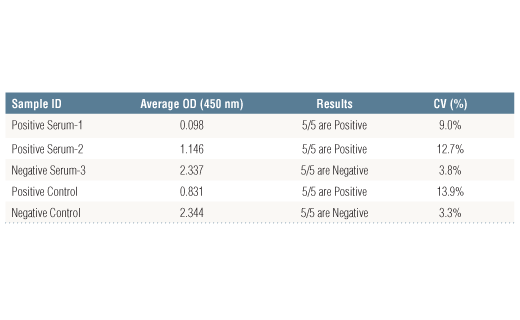

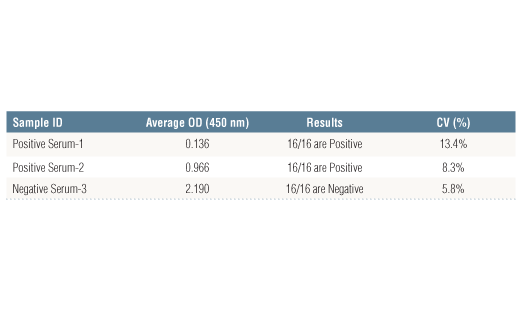

Specificity/Sensitivity
Background
The cause of the COVID-19 pandemic is a novel and highly pathogenic coronavirus, termed SARS-CoV-2 (severe acute respiratory syndrome coronavirus-2). SARS-CoV-2 is a member of the Coronaviridae family of viruses (1). The genome of SARS-CoV-2 is similar to other coronaviruses, and is comprised of four key structural proteins: S, the spike protein, E, the envelope protein, M, the membrane protein, and N, the nucleocapsid protein (2). Coronavirus spike proteins are class I fusion proteins and harbor an ectodomain, a transmembrane domain, and an intracellular tail (3,4). The highly glycosylated ectodomain projects from the viral envelope surface and facilitates attachment and fusion with the host cell plasma membrane. The ectodomain can be further subdivided into host receptor-binding domain (RBD) (S1) and membrane-fusion (S2) subunits, which are produced upon proteolysis by host proteases at S1/S2 and S2’ sites. S1 and S2 subunits remain associated after cleavage and assemble into crown-like homotrimers (2,4). In humans, both SARS-CoV and SARS-CoV-2 spike proteins utilize the angiotensin-converting enzyme 2 (ACE2) protein as a receptor for cellular entry (5-7). Spike protein subunits represent a key antigenic feature of coronavirus virions, and therefore represent an important target of vaccines, novel therapeutic antibodies, and small-molecule inhibitors (8,9).
- Zhou, P. et al. (2020) Nature 579, 270-3.
- Tortorici, M.A. and Veesler, D. (2019) Adv Virus Res 105, 93-116.
- Li, F. et al. (2006) J Virol 80, 6794-800.
- Li, F. (2016) Annu Rev Virol 3, 237-61.
- Shang, J. et al. (2020) Nature 581, 221-4.
- Wrapp, D. et al. (2020) Science 367, 1260-3.
- Yan, R. et al. (2020) Science 367, 1444-8.
- Yuan, Y. et al. (2017) Nat Commun 8, 15092.
- Amanat, F. and Krammer, F. (2020) Immunity 52, 583-9.
Background References
Cross-Reactivity Key
H: human M: mouse R: rat Hm: hamster Mk: monkey Vir: virus Mi: mink C: chicken Dm: D. melanogaster X: Xenopus Z: zebrafish B: bovine Dg: dog Pg: pig Sc: S. cerevisiae Ce: C. elegans Hr: horse GP: Guinea Pig Rab: rabbit All: all species expected
