Revision 4

#12828

Store at +4C

PathScan® Total FGF Receptor 1 Sandwich ELISA Kit

1 Kit

(96 assays)

Species Cross Reactivity:
H

UniProt ID:
#P11362

Entrez-Gene Id:
#2260

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Color Storage Temp
FGFR1 Rabbit mAb Coated Microwells3367896 tests+4C
FGF Receptor 1 Mouse Detection mAb129711 eaGreen (Lyophilized)+4C
Anti-mouse IgG, HRP-linked Antibody (ELISA Formulated)133041 eaRed (Lyophilized)+4C
Detection Antibody Diluent1333911 mlGreen+4C
HRP Diluent1351511 mlRed+4C
TMB Substrate700411 ml+4C
STOP Solution700211 ml+4C
Sealing Tape545032 ea+4C
ELISA Wash Buffer (20X)980125 ml+4C
ELISA Sample Diluent1108325 mlBlue+4C
Cell Lysis Buffer (10X)980315 ml-20C

Kit contents scale proportionally with size, except sealing tape.
Example: The V1 kit contains 5X the listed quantities above, but will exclude the sealing tape.

For the “C” and “V” kits, the supplied 96-well strip plate consists of twelve 8-well strips in a support frame. This enables custom plate configurations.

Description

PathScan® Total FGF Receptor 1 Sandwich ELISA Kit is a solid phase sandwich enzyme-linked immunosorbent assay (ELISA) that detects endogenous levels of FGFR1 protein. A FGFR1 rabbit mAb has been coated onto the microwells. After incubation with cell lysates, both phospho- and nonphospho-FGFR1 proteins are captured by the coated antibody. Following extensive washing, a FGFR1 mouse antibody is added to detect captured FGFR1 proteins. Anti-mouse IgG, HRP-linked antibody is then used to recognize the bound detection antibody. HRP substrate, TMB, is added to develop color. The magnitude of absorbance for the developed color is proportional to the quantity of FGFR1 protein.

*Antibodies in this kit are custom formulations specific to kit.

Specificity/Sensitivity

PathScan® Total FGF Receptor 1 Sandwich ELISA Kit detects endogenous levels of FGFR1 protein in human cells, as shown in Figure 1. This kit sensitivity is shown in Figure 2. This kit detects proteins from the indicated species, as determined through in-house testing, but may also detect homologous proteins from other species.

Background

Fibroblast growth factors (FGFs) produce mitogenic and angiogenic effects in target cells by signaling through cell surface receptor tyrosine kinases. There are four members of the FGF receptor family: FGFR1 (flg), FGFR2 (bek, KGFR), FGFR3, and FGFR4. Each receptor contains an extracellular ligand-binding domain, a transmembrane domain, and a cytoplasmic kinase domain (1). Following ligand binding and dimerization, the receptors are phosphorylated at specific tyrosine residues (2). Seven tyrosine residues in the cytoplasmic tail of FGFR1 can be phosphorylated: Tyr463, 583, 585, 653, 654, 730, and 766. Tyr653 and Tyr654 are important for catalytic activity of activated FGFR and are essential for signaling (3). The other phosphorylated tyrosine residues may provide docking sites for downstream signaling components, such as Crk and PLCγ (4,5).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

PathScan is a registered trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 4

Cell Signaling Technology Logo
Figure 1: Treatment of A-204 cells with Human Basic Fibroblast Growth Factor (hFGF basic/FGF2) stimulates tyrosine phosphorylation of FGFR1, as detected by the PathScan® Phospho-FGF Receptor 1 (panTyr) Sandwich ELISA Kit #12909, but does not affect the level of total FGFR1 detected by PathScan® Total FGF Receptor 1 Sandwich ELISA Kit. Absorbance at 450 nm is shown in the top figure while corresponding western blots using FGF Receptor 1 (D8E4) XP® Rabbit mAb #9740 (left) and Phospho-FGF Receptor (Tyr653/654) Antibody #3471 (right) are shown in the bottom figure.
ELISA Image 1: PathScan<sup>®</sup> Total FGF Receptor 1 Sandwich ELISA Kit

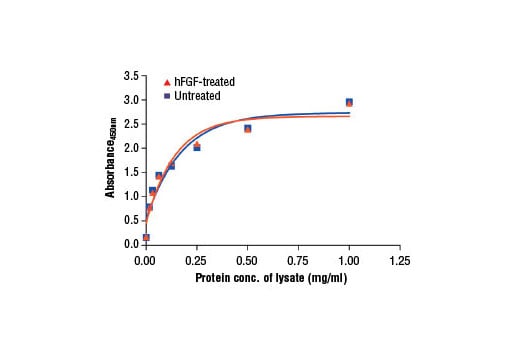

Figure 2: The relationship between protein concentration of lysates from untreated and hFGF basic-treated A-204 cells and the absorbance at 450 nm as detected by PathScan® Total FGF Receptor 1 Sandwich ELISA Kit is shown. Unstarved A-204 cells (85% confluence) were treated with Human Basic Fibroblast Growth Factor (hFGF basic/FGF2) (100 ng/ml) for 2-5 min at 37°C and then lysed.
ELISA Image 2: PathScan<sup>®</sup> Total FGF Receptor 1 Sandwich ELISA Kit
