Revision 5

#7245Store at +4C

1 Kit

(96 assays)

Species Cross Reactivity

H

UniProt ID:

#P46531

Entrez-Gene Id:

#4851

Cell Signaling Technology

Orders: 877-616-CELL (2355) [email protected]

Support: 877-678-TECH (8324)

Web: [email protected] cellsignal.com

3 Trask LaneDanversMassachusetts01923USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Product Includes Product # Quantity Color Storage Temp
Notch1 Rat mAb Coated Microwells 63575 96 tests +4C
Notch1 Rabbit Detection mAb 14266 1 ea Green (Lyophilized) +4C
Anti-rabbit IgG, HRP-linked Antibody (ELISA Formulated) 13272 1 ea Red (Lyophilized) +4C
Detection Antibody Diluent 13339 11 ml Green +4C
HRP Diluent 13515 11 ml Red +4C
TMB Substrate 7004 11 ml +4C
STOP Solution 7002 11 ml +4C
Sealing Tape 54503 2 ea +4C
ELISA Wash Buffer (20X) 9801 25 ml +4C
ELISA Sample Diluent 11083 25 ml Blue +4C
Cell Lysis Buffer (10X) 9803 15 ml -20C

*The microwell plate is supplied as 12 8-well modules - Each module is designed to break apart for 8 tests.

Description

PathScan® Total Notch1 Sandwich ELISA Kit from Cell Signaling Technology is a solid phase sandwich enzyme-linked immunosorbent assay (ELISA) that detects endogenous levels of Notch1. A Notch1 rat antibody has been coated onto the microwells. After incubation with cell lysates, Notch1 protein is captured by the coated antibody. Following extensive washing, a Notch1 rabbit antibody is added to detect the captured Notch1 protein. Anti-rabbit IgG, HRP-linked Antibody is then used to recognize the bound detection antibody. HRP substrate, TMB, is added to develop color. The magnitude of the absorbance for this developed color is proportional to the quantity of Notch1.

*Antibodies in this kit are custom formulations specific to kit.

Specificity/Sensitivity

PathScan® Total Notch1 Sandwich ELISA Kit #7245 detects endogenous levels of Notch1 protein as shown in Figure 1. The kit sensitivity is shown in Figure 2. This kit detects proteins from the indicated species, as determined through in-house testing, but may also detect homologous proteins from other species.

Background

Notch proteins (Notch1-4) are a family of transmembrane receptors that play important roles in development and the determination of cell fate (1). Mature Notch receptors are processed and assembled as heterodimeric proteins, with each dimer comprised of a large extracellular ligand-binding domain, a single-pass transmembrane domain, and a smaller cytoplasmic subunit (Notch intracellular domain, NICD) (2). Binding of Notch receptors to ligands of the Delta-Serrate-Lag2 (DSL) family triggers heterodimer dissociation, exposing the receptors to proteolytic cleavages; these result in release of the NICD, which translocates to the nucleus and activates transcription of downstream target genes (3,4).

  1. Artavanis-Tsakonas, S. et al. (1999) Science 284, 770-6.
  2. Chan, Y.M. and Jan, Y.N. (1998) Cell 94, 423-6.
  3. Schroeter, E.H. et al. (1998) Nature 393, 382-6.
  4. Rand, M.D. et al. (2000) Mol Cell Biol 20, 1825-35.

Background References

    Cross-Reactivity Key

    H: human M: mouse R: rat Hm: hamster Mk: monkey Vir: virus Mi: mink C: chicken Dm: D. melanogaster X: Xenopus Z: zebrafish B: bovine Dg: dog Pg: pig Sc: S. cerevisiae Ce: C. elegans Hr: horse GP: Guinea Pig Rab: rabbit All: all species expected

    Trademarks and Patents

    Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
    PathScan is a registered trademark of Cell Signaling Technology, Inc.
    All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

    Limited Uses

    Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

    Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

    Revision 5
    #7245

    PathScan® Total Notch1 Sandwich ELISA Kit

    PathScan® Total Notch1 Sandwich ELISA Kit: Image 1 Expand Image
    Figure 1. Both cleaved and noncleaved Notch1 can be detected by the PathScan® Total Notch1 Sandwich ELISA Kit #7245. Jurkat cells express cleaved Notch1 (Val1744) and γ secretase inhibitor inhibits the cleavage of Notch1. Jurkat cells were treated with 25 μM γ secretase inhibitor for 96 hours. The absorbance readings at 450 nm are shown on the top, while the corresponding western blots using Notch1 (D1E11) XP® Rabbit mAb #3608 (left panel) or Cleaved Notch1 (Val1744) Antibody #2421 (right panel) are shown on the bottom.
    PathScan® Total Notch1 Sandwich ELISA Kit: Image 2 Expand Image

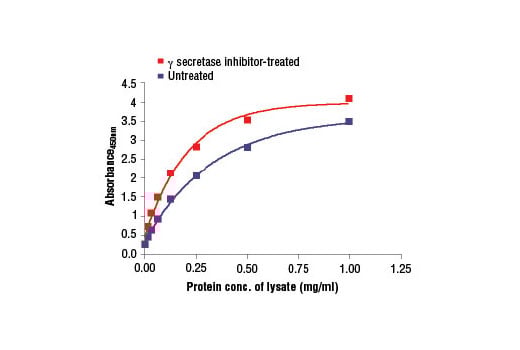

    Figure 2. The relationship between the protein concentration of lysates from Jurkat cells, untreated or treated with γ secretase inhibitor, and the absorbance at 450 nm using the PathScan® Total Notch1 Sandwich ELISA Kit #7245 is shown.
