Revision 2

#70751

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Mol. Wt Isotype/Source
PI3 Kinase Class III (D9A5) Rabbit Monoclonal Antibody426320 µl100 kDaRabbit
PIK3R4 Antibody1458020 µl153 kDaRabbit
Beclin-1 (D40C5) Rabbit Monoclonal Antibody349520 µl60 kDaRabbit IgG
Atg14 Antibody550420 µl65 kDaRabbit
UVRAG (D2Q1Z) Rabbit Monoclonal Antibody1311520 µl90 kDaRabbit IgG
Rubicon (D9F7) Rabbit Monoclonal Antibody846520 µl130 kDaRabbit IgG
Bif-1 Antibody446720 µl42 kDaRabbit
Atg9A (D4O9D) Rabbit Monoclonal Antibody1350920 µl100-110 kDaRabbit IgG
Anti-rabbit IgG, HRP-linked Antibody7074100 µlGoat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Autophagy Vesicle Nucleation Antibody Sampler Kit provides an economical means of detecting target proteins involved in autophagosome formation and maturation. The kit contains enough antibody to perform two western blot experiments per primary antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibodies.

Background

Autophagy is a catabolic process for the autophagosomic-lysosomal degradation of bulk cytoplasmic contents (1,2). Autophagy is generally activated by conditions of nutrient deprivation but is also associated with a number of physiological processes including development, differentiation, neurodegeneration, infection and cancer (3). The molecular machinery of autophagy was largely discovered in yeast and is directed by a number of autophagy-related (Atg) genes. These proteins are involved in the formation of autophagosomes, cytoplasmic vacuoles that are delivered to lysosomes for degradation. The PIK3R4/PI3K class III complex interacts with Beclin-1 to play a role during several stages of autophagy. Autophagosome formation is stimulated when Atg14 complexes with PIK3R4, PI3K class III, and Beclin-1. The UVRAG protein competes with Atg14 for Beclin-1 binding, forming a mutually exclusive complex with PIK3R4, PI3K class III, and Beclin-1 that regulates autophagosome maturation. Autophagosome maturation is impaired in the presence of the Beclin-1-binding protein Rubicon (4,5). Co-expression of PIK3R4 is required for PI3K class III activation and regulation by both Beclin-1/UVRAG and nutrient levels (6). Bif-1 directly binds to UVRAG, forming a complex with Beclin-1, resulting in increased PI3-kinase class III/Vps34 activity required for autophagosome maturation (7). Inhibition of GSK-3β, as seen during nutrient deprivation, results in increased expression of Bif-1, and can contribute to autophagic cell death (8). Atg9A is an integral membrane protein that is required for both the initiation and the expansion of the autophagosome (9,10). Recruitment of Atg9A to the autophagosomal membrane is dynamic and transient as Atg9A also cycles between autophagy-related structures known as omegasomes, the trans-Golgi network (TGN), and endosomes, and at no point becomes a stable component of the autophagosomal membrane (9,11). The precise regulation of Atg9A trafficking is not fully clarified, yet it is suggested to involve p38 mitogen-activated protein kinase (MAPK)-binding protein p38IP and the Beclin-1-binding protein Bif-1 (12,13).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

KARPAS cell line source: Dr. Abraham Karpas at the University of Cambridge.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using UVRAG (D2Q1Z) Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower). HCT 116 cells have been reported to contain a monoallelic frameshift mutation resulting in significantly reduced levels of endogenous UVRAG expression (11).
undefined Image 1: Autophagy Vesicle Nucleation Antibody Sampler Kit
Western blot analysis of extracts of various cell lines using Atg9A (D4O9D) Rabbit mAb.
undefined Image 2: Autophagy Vesicle Nucleation Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using PIK3R4 Antibody.
undefined Image 3: Autophagy Vesicle Nucleation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using Beclin-1 (D40C5) Rabbit mAb.
undefined Image 4: Autophagy Vesicle Nucleation Antibody Sampler Kit
Western blot analysis of extracts from mouse brain and C6 cells using PI3 Kinase Class III (D9A5) Rabbit mAb.
undefined Image 5: Autophagy Vesicle Nucleation Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using Bif-1 Antibody.
undefined Image 6: Autophagy Vesicle Nucleation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Western blot analysis of extracts from HeLa cells, transfected with 100 nM SignalSilence® Control siRNA (Unconjugated) #6568 (-), SignalSilence® Atg14 siRNA I #6286 (+) or SignalSilence® Atg14 siRNA II #6287 (+), using Atg14 Antibody #5504 (upper) or β-Tubulin (9F3) Rabbit mAb #2128 (lower). The Atg14 Antibody confirms silencing of Atg14 expression, while the β-Tubulin (9F3) Rabbit mAb is used as a loading control.
undefined Image 7: Autophagy Vesicle Nucleation Antibody Sampler Kit
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
undefined Image 8: Autophagy Vesicle Nucleation Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using Rubicon (D9F7) Rabbit mAb.
undefined Image 9: Autophagy Vesicle Nucleation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with a construct expressing human UVRAG (hUVRAG; +), using UVRAG (D2Q1Z) Rabbit mAb.
undefined Image 10: Autophagy Vesicle Nucleation Antibody Sampler Kit
Western blot analysis of extracts from RD cells, transfected with 100 nM SignalSilence® Control siRNA (Unconjugated) #6568 (-) or SignalSilence® Atg9A siRNA I #7051 (+), using Atg9A (D4O9D) Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower). The Atg9A (D4O9D) Rabbit mAb confirms silencing of Atg9A expression while the β-Actin (D6A8) Rabbit mAb is used as a loading control.
undefined Image 11: Autophagy Vesicle Nucleation Antibody Sampler Kit
Western blot analysis of extracts from HeLa cells, transfected with 100 nM SignalSilence® Control siRNA (Unconjugated) #6568 (-), SignalSilence® Beclin-1 siRNA I #6222 (+) or SignalSilence® Beclin-1 siRNA II (+), using Beclin-1 (D40C5) XP® Rabbit mAb #3495 (upper) or α-Tubulin (11H10) Rabbit mAb #2125 (lower). The Beclin-1 (D40C5) XP® Rabbit mAb confirms silencing of Beclin-1 expression, while the α-Tubulin (11H10) Rabbit mAb is used to control for loading and specificity of Beclin-1 siRNA.
undefined Image 12: Autophagy Vesicle Nucleation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo

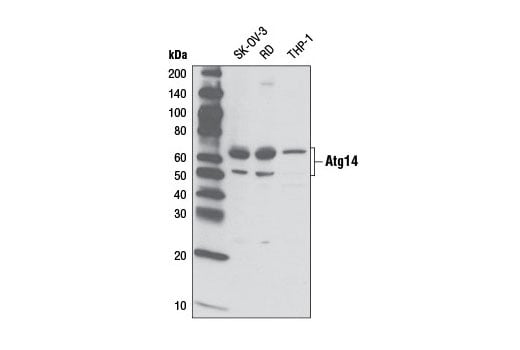

Western blot analysis of extract from various cell lines using Atg14 Antibody.
undefined Image 13: Autophagy Vesicle Nucleation Antibody Sampler Kit

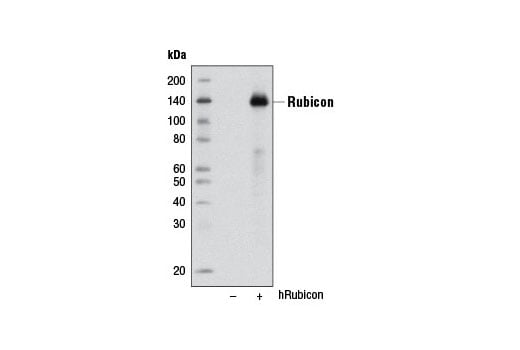

Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with human Rubicon (hRubicon, +), using Rubicon (D9F7) Rabbit mAb. Rubicon construct was kindly provided by Dr. Qing Zhong, University of California, Berkeley, CA.
undefined Image 14: Autophagy Vesicle Nucleation Antibody Sampler Kit
Immunoprecipitation of UVRAG from PANC-1 cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or UVRAG (D2Q1Z) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using UVRAG (D2Q1Z) Rabbit mAb.
undefined Image 15: Autophagy Vesicle Nucleation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Immunoprecipitation of Atg9A from Hep G2 cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype control #3900 (lane 2) or Atg9A (D4O9D) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using Atg9A (D4O9D) Rabbit mAb.
undefined Image 16: Autophagy Vesicle Nucleation Antibody Sampler Kit

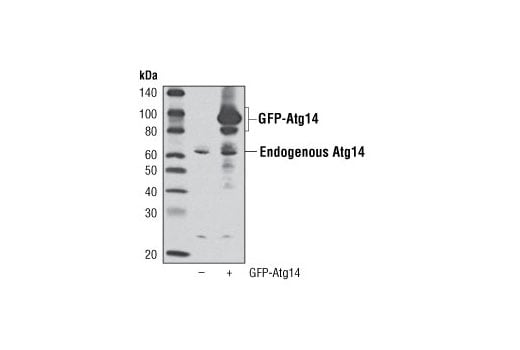

Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with a GFP-Atg14 construct (+), using Atg14 Antibody. GFP-Atg14 construct was kindly provided by Dr. Qing Zhong, University of California, Berkeley CA.
undefined Image 17: Autophagy Vesicle Nucleation Antibody Sampler Kit
