Revision 5

#80287

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Applications:
W, IHC-P, IF-IC, FC-FP, ELISA

Reactivity:
H Mk

Sensitivity:
Endogenous

MW (kDa):
138

Source/Isotype:
Rabbit IgG

UniProt ID:
#P30530

Entrez-Gene Id:
558

Product Usage Information

This product is the carrier free version of product #8661. All data were generated using the same antibody clone in the standard formulation which contains BSA and glycerol.

This formulation is ideal for use with technologies requiring specialized or custom antibody labeling, including fluorophores, metals, lanthanides, and oligonucleotides. It is not recommended for ChIP, ChIP-seq, CUT&RUN or CUT&Tag assays. If you require a carrier free formulation for chromatin profiling, please contact us. Optimal dilutions/concentrations should be determined by the end user.

BSA and Azide Free antibodies are quality control tested by size exclusion chromatography (SEC) to determine antibody integrity.

Formulation

Supplied in 1X PBS (10 mM Na2HPO4, 3 mM KCl, 2 mM KH2PO4, and 140 mM NaCl (pH 7.8)). BSA and Azide Free.

For standard formulation of this product see product #8661

Storage

Store at -20°C. This product will freeze at -20°C so it is recommended to aliquot into single-use vials to avoid multiple freeze/thaw cycles. A slight precipitate may be present and can be dissolved by gently vortexing. This will not interfere with antibody performance.

Specificity/Sensitivity

Axl (C89E7) Rabbit Monoclonal Antibody (BSA and Azide Free) detects endogenous levels of total Axl protein and does not cross-react with Tyro3.

Source / Purification

Monoclonal antibody is produced by immunizing animals with a recombinant human fragment of the Axl protein.

Background

Axl, Sky, and Mer are three members of a receptor tyrosine kinase (RTK) family that share a conserved intracellular tyrosine kinase domain and an extracellular domain similar to those seen in cell adhesion molecules. These RTKs bind the vitamin K-dependent protein growth-arrest-specific gene 6 (Gas6), which is structurally related to the protein S anticoagulation factor (1). Upon binding to its receptor, Gas6 activates phosphatidylinositol 3-kinase (PI3K) and its downstream targets Akt and S6K, as well as NF-κB (2,3). A large body of evidence supports a role for Gas6/Axl signaling in cell growth and survival in normal and cancer cells (4).

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Applications Key

W: Western Blotting IHC-P: Immunohistochemistry (Paraffin) IF-IC: Immunofluorescence (Immunocytochemistry) FC-FP: Flow Cytometry (Fixed/Permeabilized) ELISA: ELISA

Cross-Reactivity Key

H: Human Mk: Monkey

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

U.S. Patent No. 7,429,487, foreign equivalents, and child patents deriving therefrom.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 5

Cell Signaling Technology Logo
Western blot analysis of HeLa Cell Extracts, untreated (-) or Axl knock-out (+) using Axl (C89E7) Rabbit mAb, #8661 (upper) or GAPDH (D16H11) XP® Rabbit mAb, #5174 (lower). Data were generated using the standard formulation of this product.
Western Blotting Image 1: Axl (C89E7) Rabbit Monoclonal Antibody (BSA and Azide Free)

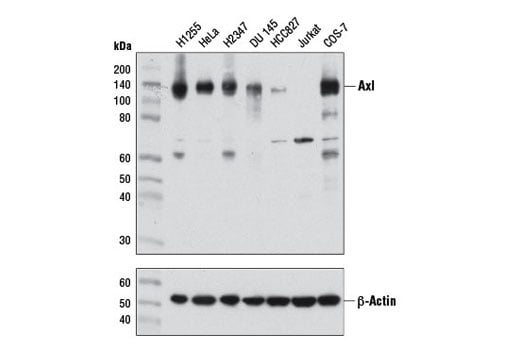

Western blot analysis of extracts from various cell lines using Axl (C89E7) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower). Data were generated using the standard formulation of this product.
Western Blotting Image 2: Axl (C89E7) Rabbit Monoclonal Antibody (BSA and Azide Free)
Immunohistochemical analysis of paraffin-embedded cell pellets, NCI-H1299 (left) or Jurkat (right), using Axl (C89E7) Rabbit mAb. Data were generated using the standard formulation of this product.
Immunohistochemistry Image 1: Axl (C89E7) Rabbit Monoclonal Antibody (BSA and Azide Free)
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 5

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human B-cell non-Hodgkin's lymphoma using Axl (C89E7) Rabbit mAb. Data were generated using the standard formulation of this product.
Immunohistochemistry Image 2: Axl (C89E7) Rabbit Monoclonal Antibody (BSA and Azide Free)
Immunohistochemical analysis of paraffin-embedded breast carcinoma using Axl (C89E7) Rabbit mAb. Note staining of infiltrating cells. Data were generated using the standard formulation of this product.
Immunohistochemistry Image 3: Axl (C89E7) Rabbit Monoclonal Antibody (BSA and Azide Free)
Immunohistochemical analysis of paraffin-embedded human renal cell carcinoma using Axl (C89E7) Rabbit mAb. Data were generated using the standard formulation of this product.
Immunohistochemistry Image 4: Axl (C89E7) Rabbit Monoclonal Antibody (BSA and Azide Free)
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 5

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human ovarian serous carcinoma using Axl (C89E7) Rabbit mAb. Data were generated using the standard formulation of this product.
Immunohistochemistry Image 5: Axl (C89E7) Rabbit Monoclonal Antibody (BSA and Azide Free)
Immunohistochemical analysis of paraffin-embedded metastatic lung carcinoma using Axl (C89E7) Rabbit mAb. Data were generated using the standard formulation of this product.
Immunohistochemistry Image 6: Axl (C89E7) Rabbit Monoclonal Antibody (BSA and Azide Free)
Confocal immunofluorescent analysis of DU 145 (left) and HCC827 (right) cells using Axl (C89E7) Rabbit mAb (green). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye). Data were generated using the standard formulation of this product.
Immunofluorescence Image 1: Axl (C89E7) Rabbit Monoclonal Antibody (BSA and Azide Free)
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 5

Cell Signaling Technology Logo

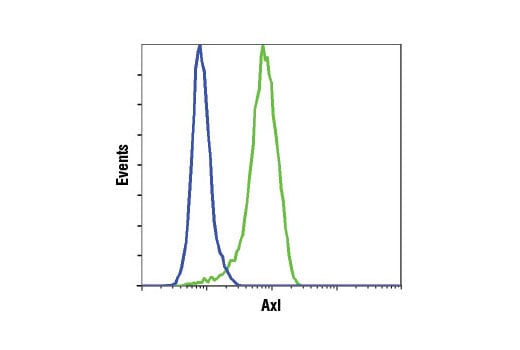

Flow cytometric analysis of fixed and permeabilized Jurkat cells (blue, negative) and DU145 cells (green, positive) using Axl (C89E7H4) Rabbit mAb. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody. Data were generated using the standard formulation of this product.
Flow Cytometry Image 1: Axl (C89E7) Rabbit Monoclonal Antibody (BSA and Azide Free)
Data using Phospho-Axl (Tyr702) Matched Antibody Pair #28837 are shown. The two antibodies function as a capture-target-detection sandwich (#80287 and #28451, respectively) to detect endogenous protein expression in positive and negative controls.
ELISA Image 1: Axl (C89E7) Rabbit Monoclonal Antibody (BSA and Azide Free)
Data using Phospho-Axl (panTyr) Matched Antibody Pair #34109 are shown. The two antibodies function as a capture-target-detection sandwich (#80287 and #80941, respectively) to detect endogenous protein expression in positive and negative controls.
ELISA Image 2: Axl (C89E7) Rabbit Monoclonal Antibody (BSA and Azide Free)
