Revision 2
#58214
Store at -20C
BAF Complex Antibody Sampler Kit II
1 Kit
(7 x 20 microliters)
Orders:
877-616-CELL (2355)
Support:
877-678-TECH (8324)
3 Trask Lane | Danvers | Massachusetts | 01923 | USA
For Research Use Only. Not for Use in Diagnostic Procedures.
| Product Includes | Product # | Quantity | Mol. Wt | Isotype/Source |
|---|---|---|---|---|
| ARID1A/BAF250A (D2A8U) Rabbit Monoclonal Antibody | 12354 | 20 µl | 270 kDa | Rabbit IgG |
| ARID1B/BAF250B (E9J4T) Rabbit Monoclonal Antibody | 92964 | 20 µl | 250, 280 kDa | Rabbit IgG |
| Brg1 (D1Q7F) Rabbit Monoclonal Antibody | 49360 | 20 µl | 220 kDa | Rabbit IgG |
| BRM (D9E8B) Rabbit Monoclonal Antibody | 11966 | 20 µl | 200 kDa | Rabbit IgG |
| SMARCC1/BAF155 (D7F8S) Rabbit Monoclonal Antibody | 11956 | 20 µl | 155 kDa | Rabbit IgG |
| SMARCC2/BAF170 (D8O9V) Rabbit Monoclonal Antibody | 12760 | 20 µl | 162, 170 kDa | Rabbit IgG |
| SMARCE1/BAF57 (E6H5J) Rabbit Monoclonal Antibody | 33360 | 20 µl | 57 kDa | Rabbit IgG |
| Anti-rabbit IgG, HRP-linked Antibody | 7074 | 100 µl | Goat |
Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.
Description
The BAF Complex Antibody Sampler Kit II provides an economical means of detecting levels of various BAF complex components. The kit contains enough primary antibodies to perform at least two western blot experiments.
Storage
Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.
Background
ATP-dependent chromatin remodeling complexes play an essential role in the regulation of various nuclear processes, such as gene expression, DNA replication, and repair (1,2). The SWI/SNF chromatin remodeling complex consists of more than 10 subunits with a single molecule of the ATPase catalytic subunit BRM or BRG1, but not both. The activities of these two subunits drive the disruption of histone-DNA contacts that lead to changes in accessibility of crucial regulatory elements within chromatin (2-5). The BRM/BRG1 containing SWI/SNF complexes are recruited to target promoters by transcription factors, such as nuclear receptors, p53, RB, and BRCA1 to regulate gene activation, cell growth, the cell cycle, and differentiation processes (1,6-9). BRM and BRG1 are also considered to be tumor suppressors and their expression levels are severely reduced in several cancer cell lines (10-13). SMARCC1/BAF155, SMARCC2/BAF170, and SMARCB1/BAF47 are members of the core subunits of the SWI/SNF complex, which is necessary for efficient nucleosome remodeling by BRG1 in vitro (14). ARID1A/BAF250A and ARID1B/BAF250B are DNA-binding members of the complex. They are highly homologous and mutually exclusive, with ARID1B/BAF250B being a critical vulnerability in ARID1A/BAF250A mutant cancers (15-17). SMARCC1, SMARCB1, and ARID1A are an essential part of the mouse embryonic stem cell specific SWI/SNF complex (esBAF). SMARCC1 is necessary for early embryogenesis, especially proper brain and visceral endoderm development (18-20). SMARCB1 is necessary for early embryogenesis and hepatocyte differentiation (21,22). ARID1A is critical for embryonic stem (ES) cell pluripotency and differentiation into mesoderm-derived cardiomyocytes and adipocytes (15). While SMARCC2 has been shown to be part of the SWI/SNF complex in non-pluripotent cells, it is absent in pluripotent ES cells. Expression of SMARCC2 has been shown to be up-regulated in neurons/neuronal progenitors upon differentiation of mouse ES cells with retinoic acid, and exogenous expression of SMARCC2 leads to loss of stem cell pluripotency and self renewal (23).
Background References
- Ho, L. and Crabtree, G.R. (2010) Nature 463, 474-84.
- Becker, P.B. and Hörz, W. (2002) Annu Rev Biochem 71, 247-73.
- Eberharter, A. and Becker, P.B. (2004) J Cell Sci 117, 3707-11.
- Bowman, G.D. (2010) Curr Opin Struct Biol 20, 73-81.
- Gangaraju, V.K. and Bartholomew, B. (2007) Mutat Res 618, 3-17.
- Lessard, J.A. and Crabtree, G.R. (2010) Annu Rev Cell Dev Biol 26, 503-32.
- Morettini, S. et al. (2008) Front Biosci 13, 5522-32.
- Wolf, I.M. et al. (2008) J Cell Biochem 104, 1580-6.
- Simone, C. (2006) J Cell Physiol 207, 309-14.
- Yamamichi, N. et al. (2005) Oncogene 24, 5471-81.
- Reisman, D.N. et al. (2002) Oncogene 21, 1196-207.
- Shen, H. et al. (2008) Cancer Res 68, 10154-62.
- Weissman, B. and Knudsen, K.E. (2009) Cancer Res 69, 8223-30.
- Phelan, M.L. et al. (1999) Mol Cell 3, 247-53.
- Wang, X. et al. (2004) Biochem J 383, 319-25.
- Helming, K.C. et al. (2014) Nat Med 20, 251-4.
- Gao, X. et al. (2008) Proc Natl Acad Sci U S A 105, 6656-61.
- Han, D. et al. (2008) Dev Biol 315, 136-46.
- Kim, J.K. et al. (2001) Mol Cell Biol 21, 7787-95.
- Schaniel, C. et al. (2009) Stem Cells 27, 2979-91.
- Klochendler-Yeivin, A. et al. (2000) EMBO Rep 1, 500-6.
- Gresh, L. et al. (2005) EMBO J 24, 3313-24.
- Ho, L. et al. (2009) Proc Natl Acad Sci U S A 106, 5181-6.
Trademarks and Patents
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.
Limited Uses
Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.
Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Western blot analysis of extracts from various cell lines using SMARCC1/BAF155 (D7F8S) Rabbit mAb.
CUT&Tag was performed with NCCIT cells and SMARCC1/BAF155 (D7F8S) Rabbit mAb, using CUT&Tag Assay Kit #77552. DNA library was prepared using CUT&Tag Dual Index Primers and PCR Master Mix for Illumina Systems #47415. The figure shows binding across SOX2.
Western blot analysis of extracts from control HeLa cells (Lane 1) or HeLa cells with a targeted mutation in the gene encoding BRM (Lane 2) using BRM (D9E8B) XP® Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower). The change in BRM molecular weight in the mutated HeLa cells confirms the specificity of the antibody for BRM.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Immunohistochemical analysis of paraffin-embedded human prostate carcinoma using BRM (D9E8B) XP(R) Rabbit mAb.
Western blot analysis of extracts from various cell lines using ARID1A/BAF250A (D2A8U) Rabbit mAb.
Chromatin immunoprecipitations were performed with cross-linked chromatin from NCCIT cells and ARID1A/BAF250A (D2A8U) Rabbit mAb, using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared using DNA Library Prep Kit for Illumina (ChIP-seq, CUT&RUN) #56795. The figure shows binding across Oct-4/POU5F1, a known target gene of ARID1A (see additional figure containing ChIP-qPCR data).
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Western blot analysis of extracts from various cell lines using SMARCC2/BAF170 (D8O9V) Rabbit mAb.
CUT&RUN was performed with MCF7 cells grown in phenol red free medium and 5% charcoal stripped FBS for 4 d followed by treatment with β-estradiol (10 nM, 45 min) and either SMARCC2/BAF170 (D8O9V) Rabbit mAb or SMARCB1/BAF47 (D8M1X) Rabbit mAb #91735, using CUT&RUN Assay Kit #86652. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across TMEM53, a known target gene of SMARCC2/BAF170 (see additional figure containing CUT&RUN-qPCR data).
Western blot analysis of extracts from various cell lines using SMARCE1/BAF57 (E6H5J) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower). BT-549 is a breast ductal carcinoma cell line that lacks expression of SMARCE1/BAF57.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
CUT&RUN was performed with MCF7 cells grown in phenol red-free medium and 5% charcoal-stripped FBS for 4 d followed by treatment with β-estradiol (10 nM, 45 min) and SMARCE1/BAF57 (E6H5J) Rabbit mAb, using CUT&RUN Assay Kit #86652. DNA library was prepared using DNA Library Prep Kit for Illumina Systems (ChIP-seq, CUT&RUN) #56795. The figure shows binding across MYB gene, a known target gene of SMARCE1 (see additional figure containing CUT&RUN-qPCR data).
Western blot analysis of extracts from various cell lines using Brg1 (D1Q7F) Rabbit mAb.
CUT&RUN was performed with NCCIT cells and Brg1 (D1Q7F) Rabbit mAb, using CUT&RUN Assay Kit #86652. DNA Library was prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across TNN gene.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
Western blot analysis of extracts from various cell lines using ARID1B/BAF250B (E9J4T) Rabbit mAb (upper) and α-Actinin (D6F6) Rabbit mAb #6487 (lower). MIA PaCa-2 cells do not express ARID1B/BAF250B protein.
Immunoprecipitation of SMARCC1/BAF155 from HeLa cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or SMARCC1/BAF155 (D7F8S) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using SMARCC1/BAF155 (D7F8S) Rabbit mAb.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
CUT&Tag was performed with NCCIT cells and SMARCC1/BAF155 (D7F8S) Rabbit mAb, using CUT&Tag Assay Kit #77552. DNA library was prepared using CUT&Tag Dual Index Primers and PCR Master Mix for Illumina Systems #47415. The figures show binding across chromosome 3 (upper), including SOX2 gene (lower).
Immunohistochemical analysis of paraffin-embedded human colon carcinoma using BRM (D9E8B) XP(R) Rabbit mAb.
Western blot analysis of extracts from various cell lines using BRM (D9E8B) XP® Rabbit mAb (upper) or Brg1 (A52) Antibody #3508 (lower).
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Western blot analysis of T-47D and Jurkat cell extracts using ARID1A/BAF250A (D2A8U) Rabbit mAb (upper) or ß-Actin (D6A8) Rabbit mAb #8457 (lower). Additional ARID1A/BAF250A degradation products may be detected in some cell extracts between 135kDa-250kDa, which are absent in the ARID1A/BAF250A negative T-47D cell line.
Chromatin immunoprecipitations were performed with cross-linked chromatin from NCCIT cells and ARID1A/BAF250A (D2A8U) Rabbit mAb, using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared using DNA Library Prep Kit for Illumina (ChIP-seq, CUT&RUN) #56795. The figure shows binding across chromosome 6 (upper), including Oct-4/POU5F1 (lower), a known target gene of ARID1A (see additional figure containing ChIP-qPCR data).
Immunoprecipitation of SMARCC2/BAF170 from PANC-1 cell extracts, using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or SMARCC2/BAF170 (D8O9V) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using SMARCC2/BAF170 (D8O9V) Rabbit mAb.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
CUT&RUN was performed with MCF7 cells grown in phenol red free medium and 5% charcoal stripped FBS for 4 d followed by treatment with β-estradiol (10 nM, 45 min) and either SMARCC2/BAF170 (D8O9V) Rabbit mAb or SMARCB1/BAF47 (D8M1X) Rabbit mAb #91735, using CUT&RUN Assay Kit #86652. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figures show binding across chromosome 1 (upper), including TMEM53 (lower), a known target gene of SMARCC2/BAF170 (see additional figure containing CUT&RUN-qPCR data).
Immunoprecipiation of SMARCE1/BAF57 from MCF7 cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is SMARCE1/BAF57 (E6H5J) Rabbit mAb. Western blot analysis was performed using SMARCE1/BAF57 (E6H5J) Rabbit mAb.
CUT&RUN was performed with MCF7 cells grown in phenol red-free medium and 5% charcoal-stripped FBS for 4 d followed by treatment with β-estradiol (10 nM, 45 min) and SMARCE1/BAF57 (E6H5J) Rabbit mAb, using CUT&RUN Assay Kit #86652. DNA library was prepared using DNA Library Prep Kit for Illumina Systems (ChIP-seq, CUT&RUN) #56795. The figures show binding across chromosome 6 (upper), including MYB (lower), a known target gene of SMARCE1 (see additional figure containing CUT&RUN-qPCR data).
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Western blot analysis of extracts from various cell lines using Brg1 (D1Q7F) Rabbit mAb (upper) or BRM (D9E8B) XP® Rabbit mAb (lower).
CUT&RUN was performed with NCCIT cells and Brg1 (D1Q7F) Rabbit mAb, using CUT&RUN Assay Kit #86652. DNA Library was prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figures show binding across chromosome 1 (upper), including TNN gene (lower).
Chromatin immunoprecipitations were performed with cross-linked chromatin from MCF7 cells grown in phenol red free medium and 5% charcoal stripped FBS for 4 d, followed by treatment with β-estradiol (10 nM, 45 min) and either SMARCC1/BAF155 (D7F8S) Rabbit mAb, SMARCB1/BAF47 (D8M1X) Rabbit mAb #91735, or SS18 (D6I4Z) Rabbit mAb #21792, using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. SMARCC1/BAF155, SMARCB1/BAF47, and SS18 are all subunits of SWI/SNF complex. The figure shows binding across pS2/TFF1, a known target gene of SWI/SNF complex (see additional figure containing ChIP-qPCR data).
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Immunohistochemical analysis of paraffin-embedded human clear cell adenocarcinoma of the ovary using BRM (D9E8B) XP(R) Rabbit mAb.
Chromatin immunoprecipitations were performed with cross-linked chromatin from NCCIT cells and either ARID1A/BAF250A (D2A8U) Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human Oct-4 Promoter Primers #4641, SimpleChIP® Human Sox2 Promoter Primers #4649, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
Immunohistochemical analysis of mouse colon using ARID1A/BAF250A (D2A8U) Rabbit mAb.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Chromatin immunoprecipitations were performed with cross-linked chromatin from MCF7 cells grown in phenol red-free medium and 5% charcoal-stripped FBS for 4 d followed by treatment with β-estradiol (10 nM, 45 min) and SMARCC2/BAF170 (D8O9V) Rabbit mAb, using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across ESR1, a known target gene of SMARCC2/BAF170 (see additional figure containing ChIP-qPCR data).
CUT&RUN was performed with MCF7 cells grown in phenol red free medium and 5% charcoal stripped FBS for 4 d followed by treatment with β-estradiol (10 nM, 45 min) and SMARCC2/BAF170 (D8O9V) Rabbit mAb or Rabbit (DA1E) mAb IgG XP® Isotype Control (CUT&RUN) #66362, using CUT&RUN Assay Kit #86652. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human pS2 Promoter Primers #9702, human TMEM53 promoter, SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
Chromatin immunoprecipitations were performed with cross-linked chromatin from MCF7 cells grown in phenol red-free medium and 5% charcoal-stripped FBS for 4 d followed by treatment with β-estradiol (10 nM, 45 min), and either SMARCE1/BAF57 (E6H5J) Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human pS2 Promoter Primers #9702, SimpleChIP® Human ESR1 Promoter Primers #9673, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
CUT&RUN was performed with MCF7 cells grown in phenol red-free medium and 5% charcoal-stripped FBS for 4 d followed by treatment with β-estradiol (10 nM, 45 min) and either SMARCE1/BAF57 (E6H5J) Rabbit mAb or Rabbit (DA1E) mAb IgG XP® Isotype Control (CUT&RUN) #66362, using CUT&RUN Assay Kit #86652. The enriched DNA was quantified by real-time PCR using human MYB promoter primers, human ARL3 promoter primers, and human MRLN promoter primers. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
Immunoprecipitation of Brg1 from NCCIT cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is Brg1 (D1Q7F) Rabbit mAb. Western blot analysis was performed using Brg1 (D1Q7F) Rabbit mAb.
CUT&RUN was performed with NCCIT cells and either Brg1 (D1Q7F) Rabbit mAb or Rabbit (DA1E) mAb IgG XP® Isotype Control (CUT&RUN) #66362, using CUT&RUN Assay Kit #86652. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human HoxA1 Intron 1 Primers #7707, SimpleChIP® Human HoxA2 Promoter Primers #5517, and human ITM2A upstream primers. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Chromatin immunoprecipitations were performed with cross-linked chromatin from MCF7 cells grown in phenol red free medium and 5% charcoal stripped FBS for 4 d, followed by treatment with β-estradiol (10 nM, 45 min) and either SMARCC1/BAF155 (D7F8S) Rabbit mAb, SMARCB1/BAF47 (D8M1X) Rabbit mAb #91735, or SS18 (D6I4Z) Rabbit mAb #21792, using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. SMARCC1/BAF155, SMARCB1/BAF47, and SS18 are all subunits of SWI/SNF complex. The figure shows binding across chromosome 21 (upper), including pS2/TFF1 (lower), a known target gene of SWI/SNF complex (see additional figure containing ChIP-qPCR data).
Immunohistochemical analysis of paraffin-embedded HeLa (left) and NCCIT (right) cell pellets using BRM (D9E8B) XP(R) Rabbit mAb.
Immunohistochemical analysis of paraffin-embedded cell pellets, COS-7 (left) or T-47D (right), using ARID1A/BAF250A (D2A8U) Rabbit mAb.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Chromatin immunoprecipitations were performed with cross-linked chromatin from MCF7 cells grown in phenol red-free medium and 5% charcoal-stripped FBS for 4 d followed by treatment with β-estradiol (10 nM, 45 min) and SMARCC2/BAF170 (D8O9V) Rabbit mAb, using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across chromosome 6 (upper), including ESR1 (lower), a known target gene of SMARCC2/BAF170 (see additional figure containing ChIP-qPCR data).
Chromatin immunoprecipitations were performed with cross-linked chromatin from MCF7 cells grown in phenol red free medium and 5% charcoal stripped FBS for 4 d followed by treatment with β-estradiol (10 nM, 45 min) and Brg1 (D1Q7F) XP® Rabbit mAb, using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across the ENSA gene.
Chromatin immunoprecipitations were performed with cross-linked chromatin from MCF7 cells, grown in phenol red-free medium and 5% charcoal-stripped FBS for 4 d followed by treatment with β-estradiol (10 nM, 45 min), and either SMARCC1/BAF155 (D7F8S) Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human ESR1 Promoter Primers #9673, SimpleChIP® Human pS2 Promoter Primers #9702, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Immunohistochemical analysis of paraffin-embedded human lung adenosquamous carcinoma using ARID1A/BAF250A (D2A8U) Rabbit mAb in the presence of control peptide (left) or antigen-specific peptide (right).
Chromatin immunoprecipitations were performed with cross-linked chromatin from MCF7 cells, grown in phenol red-free medium and 5% charcoal-stripped FBS for 4 d followed by treatment with β-estradiol (10 nM, 45 min), and either SMARCC2/BAF170 (D8O9V) Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human ESR1 Promoter Primers #9673, SimpleChIP® Human pS2 Promoter Primers #9702, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
Chromatin immunoprecipitations were performed with cross-linked chromatin from MCF7 cells grown in phenol red free medium and 5% charcoal stripped FBS for 4 d followed by treatment with β-estradiol (10 nM, 45 min) and Brg1 (D1Q7F) XP® Rabbit mAb, using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across ESR1 (upper), a known target gene of Brg1 (see additional figure containing ChIP-qPCR data), and ENSA gene (lower).
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
CUT&RUN was performed with NCCIT cells and SMARCC1/BAF155 (D7F8S) Rabbit mAb, using CUT&RUN Assay Kit #86652. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across Sox2, a known target gene of SMARCC1 (see additional figure containing CUT&RUN-qPCR data).
Chromatin immunoprecipitations were performed with cross-linked chromatin from MCF7 cells grown in phenol red free medium and 5% charcoal stripped FBS for 4 d followed by treatment with β-estradiol (10 nM, 45 min) and either Brg1 (D1Q7F) XP® Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human ESR1 Promoter Primers #9673, SimpleChIP® Human pS2 Promoter Primers #9702, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
CUT&RUN was performed with NCCIT cells and SMARCC1/BAF155 (D7F8S) Rabbit mAb, using CUT&RUN Assay Kit #86652. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figures show binding across chromosome 3 (upper), including Sox2 (lower), a known target gene of SMARCC1 (see additional figure containing CUT&RUN-qPCR data).
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Confocal immunofluorescent analysis of HeLa (positive, left) and NCCIT (negative, right) cells using BRM (D9E8B) XP® Rabbit mAb (green) and β-Actin (8H10D10) Mouse mAb #3700 (red).
CUT&RUN was performed with NCCIT cells and either SMARCC1/BAF155 (D7F8S) Rabbit mAb or Rabbit (DA1E) mAb IgG XP® Isotype Control (CUT&RUN) #66362, using CUT&RUN Assay Kit #86652. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human Oct-4 Promoter Primers #4641, SimpleChIP® Human Sox2 Promoter Primers #4649 and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
Chromatin immunoprecipitations were performed with cross-linked chromatin from MCF7 cells grown in phenol red free medium and 5% charcoal stripped FBS for 4 d followed by treatment with β-estradiol (10 nM, 45 min) and either BRM (D9E8B) XP® Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human ESR1 Promoter Primers #9673, SimpleChIP® Human pS2 Promoter Primers #9702, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Immunoprecipitation of BRM protein from HeLa cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is BRM (D9E8B) XP® Rabbit mAb. Western blot analysis was performed using BRM (D9E8B) XP® Rabbit mAb.
Simple Western™ analysis of lysates (1 mg/mL) from A549 cells using BRM (D9E8B) XP® Rabbit mAb #11966. The virtual lane view (left) shows the target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.

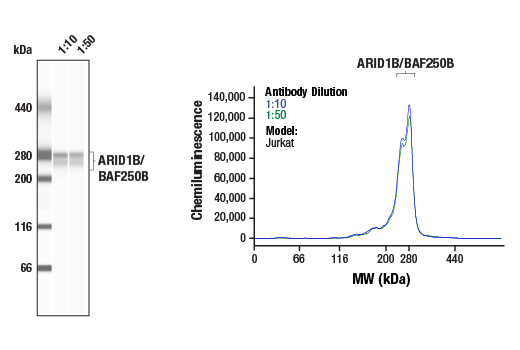

Simple Western™ analysis of lysates (0.1 mg/mL) from Jurkat cells using ARID1B/BAF250B (E9J4T) Rabbit mAb #92964. The virtual lane view (left) shows the target bands (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 66 – 440 kDa separation module.
