Revision 1

#93521Store at -20C

1 Kit

(9 x 20 microliters)

Cell Signaling Technology

Orders: 877-616-CELL (2355) [email protected]

Support: 877-678-TECH (8324)

Web: [email protected] cellsignal.com

3 Trask LaneDanversMassachusetts01923USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Product Includes Product # Quantity Mol. Wt Isotype/Source
CB1 Receptor (D5N5C) Rabbit mAb 93815 20 µl 60 kDa Rabbit IgG
Phospho-CREB (Ser133) (87G3) Rabbit mAb 9198 20 µl 43 kDa Rabbit IgG
CREB (48H2) Rabbit mAb 9197 20 µl 43 kDa Rabbit IgG
Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb 4060 20 µl 60 kDa Rabbit IgG
Akt (pan) (C67E7) Rabbit mAb 4691 20 µl 60 kDa Rabbit IgG
Phospho-mTOR (Ser2448) (D9C2) XP® Rabbit mAb 5536 20 µl 289 kDa Rabbit IgG
mTOR (7C10) Rabbit mAb 2983 20 µl 289 kDa Rabbit IgG
Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb 4370 20 µl 44, 42 kDa Rabbit IgG
Phospho-SAPK/JNK (Thr183/Tyr185) (81E11) Rabbit mAb 4668 20 µl 46, 54 kDa Rabbit IgG
Anti-rabbit IgG, HRP-linked Antibody 7074 100 µl Goat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit provides an economical means of detecting the activation of downstream cannabinoid receptor signaling pathways using phospho-specific and control antibodies. The kit includes enough antibodies to perform two western blot experiments with each primary antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibodies.

Background

Cannabinoid receptors mediate a number of physiological processes in the brain ranging from appetite regulation, pain, learning, and memory (1). The major cannabinoid receptors in the brain include CB1 and CB2 receptors, which are G-protein coupled receptors (GPCRs).  CB1 interacts with other GPCRs including metabotropic glutamate receptor 1, mGluR1 (2). Endogenous ligands, endocannabinoids, but also exogenously introduced compounds such as tetrahydrocannabinol (THC), activate cannabinoid receptors by promoting the exchange of GDP for GTP, leading to a cascade of signaling pathways that are activated to drive various functions. Some of these functions include neurite outgrowth, inflammation, and transcriptional control (3). Components of this kit are readouts for several downstream signaling components of CB1 receptor and they can also be used as a readout for CB1 activation and function. Cannabinoid receptor function is not limited to brain function but may modulate peripheral functions, including immune responses (4,5).

  1. Smith, T.H. et al. (2010) Br J Pharmacol 160, 454-66.
  2. Batista, E.M. et al. (2016) Mol Brain 9, 80.
  3. Lu, D. et al. (2019) Acta Pharmacol Sin 40, 324-35.
  4. Ruiz de Azua, I. et al. (2017) J Clin Invest 127, 4148-62.
  5. Mehrpouya-Bahrami, P. et al. (2017) Sci Rep 7, 15645.

Background References

    Trademarks and Patents

    Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
    XP is a registered trademark of Cell Signaling Technology, Inc.
    U.S. Patent No. 7,429,487, foreign equivalents, and child patents deriving therefrom.
    All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

    Limited Uses

    Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

    Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

    Revision 1
    #93521

    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit

    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 1 Expand Image
    Western blot analysis of extracts from various cell lines using mTOR (7C10) Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 2 Expand Image
    Simple Western™ analysis of lysates (0.1 mg/mL) from Hela cells using mTOR (7C10) Rabbit mAb #2983. The virtual lane view (left) shows a single target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 66-440 kDa separation module.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 3 Expand Image
    Simple Western™ analysis of lysates (0.1 mg/mL) from Jurkat cells treated with Calyculin A (100 uM, 30 min) using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb #4060. The virtual lane view (left) shows a single target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 4 Expand Image
    Simple Western™ analysis of lysates (0.1 mg/mL) from serum-starved HeLa cells treated with TPA (400 nM, 4 hours) using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb #4370. The virtual lane view (left) shows the target bands (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 5 Expand Image
    Simple Western™ analysis of lysates (1.0 mg/mL) from HEK 293 cells treated with UV (50 mJ, 30 min recovery) using Phospho-SAPK/JNK (Thr183/Tyr185) (81E11) Rabbit mAb #4668. The virtual lane view (left) shows two target bands (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 6 Expand Image
    Flow cytometric analysis of Jurkat cells using Akt (pan) (C67E7) Rabbit mAb (solid line) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype control #3900 (dashed line). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 7 Expand Image
    Western blot analysis of extracts from various cell lines using Akt (pan) (C67E7) Rabbit mAb #4691
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 8 Expand Image
    Simple WesternTM analysis of lysates (0.1 mg/mL) from MCF-7 cells treated with insulin (100nM, 10 minutes) using Phospho-mTOR (Ser2448) (D9C2) XP® Rabbit mAb #5536. The virtual lane view (left) shows a single target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the JessTM Simple Western instrument from ProteinSimple, a BioTechne brand, using the 66-440 kDa separation module.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 9 Expand Image
    CUT&RUN was performed with 293 cells treated with Forskolin #3828 (30 μM) for 1h and either CREB (48H2) Rabbit mAb or Phospho-CREB (Ser133) (87G3) Rabbit mAb #9198, using CUT&RUN Assay Kit #86652. DNA Libraries were prepared using SimpleChIP® ChIP-seq DNA Library Prep Kit for Illumina® #56795. The figure shows binding across NR4A3 gene.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 10 Expand Image
    Simple Western™ analysis of lysates (0.1 mg/mL) from SK-N-MC cells treated with Forskolin (30uM, 30min) and IBMX (0.5mM, 30 min) using Phospho-CREB (Ser133) (87G3) Rabbit mAb #9198. The virtual lane view (left) shows the target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. This antibody also detects the phosphorylated form of the CREB-related protein, ATF-1 (as indicated). The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ ​​​​​​​Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 11 Expand Image
    Immunoprecipitation of mTOR protein from MCF-7 cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is mTOR (7C10) Rabbit mAb. Western blot analysis was performed using mTOR (7C10) Rabbit mAb. Anti-rabbit IgG, HRP-linked Antibody #7074 was used as the secondary antibody.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 12 Expand Image
    Western blot analysis of extracts from PC-3 cells, untreated or LY294002/wortmannin-treated, and NIH/3T3 cells, serum-starved or PDGF-treated, using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb (upper) or Akt (pan) (C67E7) Rabbit mAb #4691 (lower).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 13 Expand Image
    Western blot analysis of extracts from COS cells, untreated or treated with either U0126 #9903 (10 µM for 1h) or TPA #4174 (200 nM for 10 m), using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb #4370 and p44/42 MAPK (Erk1/2) (3A7) Mouse mAb #9107.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 14 Expand Image
    Western blot analysis of extracts from 293 cells, untreated or UV-treated, NIH/3T3 cells, untreated or UV-treated and C6 cells, untreated or anisomycin-treated, using Phospho-SAPK/JNK (Thr183/Tyr185) (81E11) Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 15 Expand Image
    Western blot analysis of recombinant Akt1, Akt2 and Akt3 proteins, and extracts from various cell lines, using Akt (pan) (C67E7) Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 16 Expand Image
    Western blot analysis of extracts from serum-starved NIH/3T3 cells, untreated or insulin-treated (150 nM, 5 minutes), alone or in combination with λ-phosphatase, using Phospho-mTOR (Ser2448) (D9C2) XP® Rabbit mAb (upper) or mTOR (7C10) Rabbit mAb #2983.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 17 Expand Image
    After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 18 Expand Image
    Western Blot analysis of extracts from SK-N-MC, COS, NIH/3T3, C6 and Drosophila S2 cells, using CREB (48H2) Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 19 Expand Image
    Western blot analysis of extracts from SK-N-MC cells, untreated or forskolin- and FGF-treated, using Phospho-CREB (Ser133) (87G3) Rabbit mAb (upper) or CREB (48H2) Rabbit mAb #9197 (lower).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 20 Expand Image
    Western blot analysis of extracts from various tissues using CB1 Receptor (D5N5C) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 21 Expand Image
    Western blot analysis of extracts from HeLa cells, transfected with 100 nM SignalSilence® Control siRNA (Fluorescein Conjugate) #6201 (-) or SignalSilence® mTOR siRNA II (+), using mTOR (7C10) Rabbit mAb #2983 and α-Tubulin (11H10) Rabbit mAb #2125. mTOR (7C10) Rabbit mAb confirms silencing of mTOR expression, while the α-Tubulin (11H10) Rabbit mAb is used to control for loading and specificity of mTOR siRNA.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 22 Expand Image
    Immunoprecipitation of phospho-Akt (Ser473) from Jurkat extracts treated with Calyculin A #9902 (100nM, 30 min). Lane 1 is 10% input, lane 2 is Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb, and lane 3 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900. Western blot analysis was performed with Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb. Anti-rabbit IgG, HRP-linked Antibody #7074 was used as a secondary antibody.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 23 Expand Image
    Western blot analysis of extracts from 293, NIH/3T3 and C6 cells, treated with λ phosphatase or TPA #4174 as indicated, using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb (upper), or p44/42 MAPK (Erk1/2) (137F5) Rabbit mAb #4695 (lower).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 24 Expand Image
    Immunohistochemical analysis of paraffin-embedded human lung carcinoma using Phospho-SAPK/JNK (Thr183/Tyr185) (81E11) Rabbit mAb in the presence of control peptide (left) or Phospho-SAPK/JNK (Thr183/Tyr185) Blocking Peptide #1215 (right).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 25 Expand Image
    Immunohistochemical analysis of paraffin-embedded human melanoma using Akt (pan) (C67E7) Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 26 Expand Image
    Confocal immunofluorescent analysis of HeLa cells, rapamycin-treated (#9904, 10 nM for 2 hours, left), insulin-treated (150 nM for 6 minutes, middle) or insulin- and λ-phosphatase-treated (right), using Phospho-mTOR (Ser2448) (D9C2) XP® Rabbit mAb (green). Actin filaments were labeled with DY-554 phalloidin. Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 27 Expand Image
    Immunoprecipitation of CREB from SK-N-MC extracts. Lane 1 is CREB (48H2) Rabbit mAb, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is 10% input. Western blot analysis was perfomed using CREB (86B10) Mouse mAb #9104. Anti-mouse IgG, HRP-linked Antibody #7076 was used as a secondary antibody.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 28 Expand Image
    Immunohistochemical analysis of paraffin-embedded human lung carcinoma, showing nuclear staining, using Phospho-CREB (Ser133) (87G3) Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 29 Expand Image

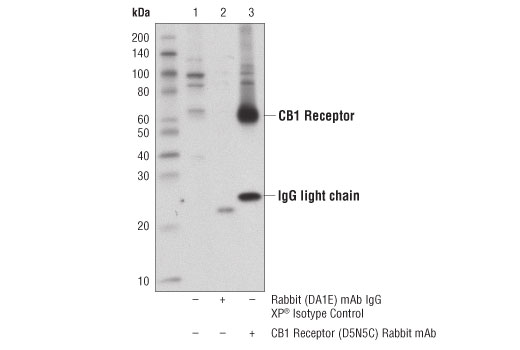

    Immunoprecipitation of CB1 Receptor from mouse brain extracts. Lane 1 is 10 % input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is CB1 Receptor (D5N5C) Rabbit mAb. Western blot analysis was performed using CB1 Receptor (D5N5C) Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 30 Expand Image
    Immunohistochemical analysis of paraffin-embedded human breast carcinoma, showing cytoplasmic localization using mTOR (7C10) Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 31 Expand Image
    Immunohistochemical analysis of paraffin-embedded human lung carcinoma using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 32 Expand Image
    Immunohistochemical analysis of paraffin-embedded human breast carcinoma using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 33 Expand Image
    Immunohistochemical analysis of paraffin-embedded 293T cells untreated (left) or UV-treated (right) using Phospho-SAPK/JNK (Thr183/Tyr185) (81E11) Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 34 Expand Image
    Immunohistochemical analysis of paraffin-embedded human breast carcinoma using Akt (pan) (C67E7) Rabbit mAb in the presence of control peptide (left) or Akt (pan) Blocking Peptide #1085 (right).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 35 Expand Image
    Immunohistochemical analysis of paraffin-embedded human astrocytoma, using CREB (48H2) Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 36 Expand Image
    Immunohistochemical analysis of paraffin-embedded mouse lung using Phospho-CREB (Ser133) (87G3) Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 37 Expand Image
    Immunohistochemical analysis of paraffin-embedded human lung carcinoma, using mTOR (7C10) Rabbit mAb in the presence of control peptide (left) or mTOR Blocking Peptide #1072 (right).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 38 Expand Image
    Immunohistochemical analysis of paraffin-embedded human breast carcinoma using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 39 Expand Image
    Immunohistochemical analysis of paraffin-embedded human lung carcinoma, untreated (left) or λ phosphatase-treated (right), using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 40 Expand Image
    Immunohistochemical analysis using Akt (pan) (C67E7) Rabbit mAb on SignalSlide (TM) Phospho-Akt (Ser473) IHC Controls #8101 (paraffin-embedded LNCaP cells, untreated (left) or LY294002-treated (right)).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 41 Expand Image
    Immunohistochemical analysis of paraffin-embedded human lung carcinoma, using CREB (48H2) Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 42 Expand Image
    Immunohistochemical analysis of paraffin-embedded human breast carcinoma, using Phospho-CREB (Ser133) (87G3) Rabbit mAb in the presence of control peptide (left) or Phospho-CREB (Ser133) Blocking Peptide #1090 (right).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 43 Expand Image
    Immunohistochemical analysis of paraffin-embedded mouse brain using mTOR (7C10) Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 44 Expand Image
    Immunohistochemical analysis of paraffin-embedded PTEN heterozygous mutant mouse endometrium using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb. (Tissue section courtesy of Dr. Sabina Signoretti, Brigham and Women's Hospital, Harvard Medical School, Boston, MA.)
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 45 Expand Image
    Immunohistochemical analysis using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb on SignalSlide Phospho-p44/42 MAPK (Thr202/Tyr204) IHC Controls #8103 (paraffin-embedded NIH/3T3 cells, treated with U0126 #9903 (left) or TPA #4174 (right).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 46 Expand Image
    Confocal immunofluorescent analysis of C2C12 cells, LY294002-treated (left) or insulin-treated (right), using Akt (pan) (C67E7) Rabbit mAb (green). Actin filaments have been labeled with Alexa Fluor® 555 phalloidin (red). Blue pseudocolor = DRAQ5 (fluorescent DNA dye).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 47 Expand Image
    Immunohistochemical analysis of paraffin-embedded human Non-Hodgkin's lymphoma, using CREB (48H2) Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 48 Expand Image
    Immunohistochemical analysis of paraffin-embedded SK-N-MC cells, untreated (left) or IBMX- and forskolin-treated (right), showing induced nuclear staining, using Phospho-CREB (Ser133) (87G3) Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 49 Expand Image
    Confocal immunofluorescent analysis of mouse embryonic fibroblast (MEF) cells using mTOR (7C10) Rabbit mAb (green). Actin filaments were labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 50 Expand Image
    Immunohistochemical analysis of paraffin-embedded MDA-MB-468 xenograft using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb (left) or PTEN (138G6) Rabbit mAb #9559 (right). Note the presence of P-Akt staining in the PTEN deficient MDA-MB-468 cells.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 51 Expand Image
    Confocal immunofluorescent analysis of Drosophila egg chambers, untreated (top) or λ phosphatase-treated (bottom), using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb #4370 (green) and S6 Ribosomal Protein (54D2) Mouse mAb #2317 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 52 Expand Image
    Immunohistochemical analysis of paraffin-embedded mouse brain, using CREB (48H2) Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 53 Expand Image
    Immunohistochemical analysis of paraffin-embedded human renal cell carcinoma, untreated (left) or lambda phosphatase-treated (right), using Phospho-CREB (Ser133) (87G3) Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 54 Expand Image
    Flow cytometric analysis of A549 cells using mTOR (7C10) Rabbit mAb (solid line) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed line). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 55 Expand Image
    Immunohistochemical analysis of paraffin-embedded human breast carcinoma comparing SignalStain® Antibody Diluent #8112 (left) to TBST/5% normal goat serum (right) using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb #4060.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 56 Expand Image
    Confocal immunofluorescent analysis of HT1080 cells, starved overnight then treated with U0126 #9903 (10 uM, 2 h; left) or PDBu (Phorbol 12,13-Dibutyrate) #12808 (100 nM, 15 m; right) using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb #4370 (green) and β-Actin (8H10D10) Mouse mAb #3700 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 57 Expand Image
    Immunohistochemical analysis of paraffin-embedded U-87MG xenograft, untreated (left) or lambda phosphatase-treated (right), using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 58 Expand Image
    Flow cytometric analysis of Jurkat cells, treated with U0126 (10 µM, 2 hrs; green) or treated with TPA #4174 (200 nM, 30 min; blue) using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb (solid lines) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 59 Expand Image
    Confocal immunofluorescent analysis of mouse cerebellum labeled with CREB (48H2) Rabbit mAb (red) and Neurofilament-L (DA2) Mouse mAb #2835 (green). Blue pseudocolor =DRAQ5® #4084 (fluorescent DNA dye).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 60 Expand Image
    Confocal immunofluorescent images of rat dentate gyrus, either sham-operated (left) or 15 min ischemia followed by 30 min (center) and 4 h (right) reperfusion, labeled with Phospho-CREB (Ser133) (87G3) Rabbit mAb (red), Neurofilament-L (DA2) Mouse mAb #2835 (blue) and Phospho-S6 Ribosomal Protein (Ser235/236) (2F9) Rabbit mAb (Alexa Fluor® 488 Conjugate) #4854.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 61 Expand Image
    Immunohistochemical analysis using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb on SignalSlide® Phospho-Akt (Ser473) IHC Controls #8101 (paraffin-embedded LNCaP cells, untreated (left) or LY294002-treated (right)).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 62 Expand Image
    Confocal immunofluorescent analysis of SK-N-MC cells showing nuclear stain with CREB (48H2) Rabbit mAb (A, red) compared to an isotype control (B). Blue pseudocolor =DRAQ5® (fluorescent DNA dye).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 63 Expand Image
    Confocal microscopic images of SK-N-MC cells showing nuclear stain after 25 minute treatment with Forskolin and IBMX using Phospho-CREB (Ser133) (87G3) Rabbit mAb (left, red) compared to untreated cells (right). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 64 Expand Image
    Flow cytometric analysis of Jurkat cells using CREB (48H2) Rabbit mAb (solid line) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed line). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 65 Expand Image
    Flow cytometric analysis of Jurkat cells, untreated (blue) or treated with TPA #4174 (500nM) and Ionomycin #9995 (1uM,4hrs;green) using Phospho-CREB (Ser133) (87G3) Rabbit mAb (solid lines) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 66 Expand Image
    Confocal immunofluorescent analysis of C2C12 cells, LY294002-treated (left) or insulin-treated (right), using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb (green). Actin filaments have been labeled with Alexa Fluor® 555 phalloidin #8953 (red). Blue pseudocolor = DRAQ5®#4084 (fluorescent DNA dye).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 67 Expand Image
    Flow cytometric analysis of Jurkat cells, untreated (green) or treated with LY294002 #9901, Wortmannin #9951, and U0126 #9903 (50 μM, 1 μM, and 10 μM, 2 hr; blue) using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb (solid lines) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 68 Expand Image
    Immunoprecipitation of Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) from 3T3 cell extracts. Cells were treated with TPA, (200 nM, 15 min). Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb. Western blot was performed using Phosphop44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb. Mouse Anti-rabbit IgG (Light-Chain Specific) (D4W3E) mAb #45262 was used as a secondary antibody.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 69 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from 293 cells treated with Forskolin #3828 (30 μM) for 1h and either Phospho-CREB (Ser133) (87G3) Rabbit mAb or CREB (48H2) Rabbit mAb (#9197), using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared using SimpleChIP® ChIP-seq DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across NR4A3, a known target gene of both Phospho-CREB and CREB (see additional figure containing ChIP-qPCR data).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 70 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from 293 cells, treated with Forskolin #3828 (30 μM) for 1h and either 10 μl of CREB (48H2) Rabbit mAb or 2 μl of Normal Rabbit IgG #2729, using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using human ALS2 exon 1 primers, SimpleChIP® Human NR4A3 Promoter Primers #4829, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 71 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from 293 cells treated with Forskolin #3828 (30 μM) for 1h and either Phospho-CREB (Ser133) (87G3) Rabbit mAb or CREB (48H2) Rabbit mAb (#9197), using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared using SimpleChIP® ChIP-seq DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across chromosome 9 (upper), including NR4A3 (lower), a known target gene of both Phospho-CREB and CREB (see additional figure containing ChIP-qPCR data).
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 72 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from 293 cells treated with Forskolin #3828 (30 μM) for 1h and either Phospho-CREB (Ser133) (87G3) Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using human ALS2 exon 1 primers, SimpleChIP® Human NR4A3 Promoter Primers #4829, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 73 Expand Image
    CUT&RUN was performed with 293 cells treated with Forskolin #3828 (30 μM) for 1h and Phospho-CREB (Ser133) (87G3) Rabbit mAb, using CUT&RUN Assay Kit #86652. DNA Libraries were prepared using SimpleChIP® ChIP-seq DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across NR4A3 gene.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 74 Expand Image
    CUT&RUN was performed with 293 cells treated with Forskolin #3828 (30 μM) for 1h and Phospho-CREB (Ser133) (87G3) Rabbit mAb, using CUT&RUN Assay Kit #86652. DNA Libraries were prepared using SimpleChIP® ChIP-seq DNA Library Prep Kit for Illumina® (ChIP-Seq, CUT&RUN) #56795. The figures show binding across chromosome 9 (upper), including NR4A3 (lower) gene.
    Cannabinoid Receptor 1 Downstream Signaling Antibody Sampler Kit: Image 75 Expand Image
    CUT&RUN was performed with 293 cells treated with Forskolin #3828 (30 μM) for 1h and either Phospho-CREB (Ser133) (87G3) Rabbit mAb or Rabbit (DA1E) mAb IgG XP® Isotype Control (CUT&RUN) #66362, using CUT&RUN Assay Kit #86652. The enriched DNA was quantified by real-time PCR using human ALS2 exon 1 primers and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
