Revision 1

#9917

Store at -20C

Cell Cycle/Checkpoint Antibody Sampler Kit

1 Kit

(6 x 20 microliters)

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Mol. Wt Isotype/Source
Phospho-cdc2 (Tyr15) (10A11) Rabbit mAb453920 µl34 kDaRabbit
Phospho-Chk1 (Ser345) (133D3) Rabbit mAb234820 µl56 kDaRabbit IgG
Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb219720 µl62 kDaRabbit IgG
Phospho-Rb (Ser807/811) (D20B12) XP® Rabbit mAb851620 µl110 kDaRabbit IgG
Phospho-Rb (Ser795) Antibody930120 µl110 kDaRabbit
Phospho-p53 (Ser15) (16G8) Mouse mAb928620 µl53 kDaMouse IgG1
Anti-rabbit IgG, HRP-linked Antibody7074100 µlGoat
Anti-mouse IgG, HRP-linked Antibody7076100 µlHorse

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Cell Cycle/Checkpoint Antibody Sampler Kit provides a fast and economical means of evaluating multiple proteins involved in the cell cyle and checkpoint control. The kit contains enough primary and secondary antibody to perform four Western blot experiments.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Background

The cell division cycle demands accuracy to avoid the accumulation of genetic damage. This process is controlled by molecular circuits called "checkpoints" that are common to all eukaryotic cells (1). Checkpoints monitor DNA integrity and cell growth prior to replication and division at the G1/S and G2/M transitions, respectively. The cdc2-cyclin B kinase is pivotal in regulating the G2/M transition (2,3). Cdc2 is phosphorylated at Thr14 and Tyr15 during G2-phase by the kinases Wee1 and Myt1, rendering it inactive. The tumor suppressor protein retinoblastoma (Rb) controls progression through the late G1 restriction point (R) and is a major regulator of the G1/S transition (4). During early and mid G1-phase, Rb binds to and represses the transcription factor E2F (5). The phosphorylation of Rb late in G1-phase by CDKs induces Rb to dissociate from E2F, permitting the transcription of S-phase-promoting genes. In vitro, Rb can be phosphorylated at multiple sites by cdc2, cdk2, and cdk4/6 (6-8). DNA damage triggers both the G2/M and the G1/S checkpoints. DNA damage activates the DNA-PK/ATM/ATR kinases, which phosphorylate Chk at Ser345 (9), Chk2 at Thr68 (10) and p53 (11). The Chk kinases inactivate cdc25 via phosphorylation at Ser216, blocking the activation of cdc2.

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

U.S. Patent No. 7,429,487, foreign equivalents, and child patents deriving therefrom.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from HeLa cells, untreated or UV-treated, using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb.
undefined Image 1: Cell Cycle/Checkpoint Antibody Sampler Kit
Western blot analysis of extracts from HeLa, COS, NIH/3T3 and C6 cells, untreated or UV-treated, using Phospho-Chk1 (Ser345) (133D30) Rabbit mAb.
undefined Image 2: Cell Cycle/Checkpoint Antibody Sampler Kit
Western blot analysis of extracts from C6 cells, untreated (-) or treated with Nocodazole (0.1 μg/ml, 18 hr; +), using Phospho-cdc2 (Tyr15) (10A11) Rabbit mAb (upper) or cdc2 Antibody #77055 (lower).
undefined Image 3: Cell Cycle/Checkpoint Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
undefined Image 4: Cell Cycle/Checkpoint Antibody Sampler Kit
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO* is added and emits light during enzyme catalyzed decomposition.
undefined Image 5: Cell Cycle/Checkpoint Antibody Sampler Kit
Western blot analysis of extracts from MCF7 cells, untreated (-) or treated with calf intestinal phosphatase (CIP) and λ phosphatase (+), using Phospho-Rb (Ser807/811) (D20B12) XP® Rabbit mAb (upper) or Rb (4H1) Mouse mAb #9309 (lower).
undefined Image 6: Cell Cycle/Checkpoint Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from HT29 cells, untreated or UV-treated (100 mJ/cm2, 1 hr), using Phospho-p53 (Ser15) (16G8) Mouse mAb (upper) or p53 (DO-7) Mouse mAb #48818 (lower).
undefined Image 7: Cell Cycle/Checkpoint Antibody Sampler Kit
Western blot analysis of extracts from human fibroblasts synchronized by serum deprivation, using Phospho-Rb (Ser795) Antibody. Cells were synchronized for 24 hours, then released by addition of serum and harvested at the times indicated. Cell cycle progression was verified by cyclin analysis and FACS. (Provided by John Boylan, Dupont/Merck, Delaware.)
undefined Image 8: Cell Cycle/Checkpoint Antibody Sampler Kit
Confocal immunofluorescent analysis of C2C12 cells, untreated (left) or UV-treated (right), using Phospho-Chk1 (Ser345) (133D3) Rabbit mAb (green). Actin filaments have been labeled with DY-554 phalloidin (red).
undefined Image 9: Cell Cycle/Checkpoint Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from HeLa cells, untreated or hydroxyurea treated for 20 hours, using Phospho-cdc2 (Tyr15) (10A11) Rabbit mAb.
undefined Image 10: Cell Cycle/Checkpoint Antibody Sampler Kit
Western blot analysis of extracts from WI-38 cells, serum-starved for 3 days (-) or serum-starved for 3 days followed by treatment with 10% serum for 2 days (+), using Phospho-Rb (Ser807/811) (D20B12) XP® Rabbit mAb.
undefined Image 11: Cell Cycle/Checkpoint Antibody Sampler Kit
Western blot analysis of Rb Control Protein #9303, using Phospho-Rb (Ser795) Antibody (upper) or Rb (4H1) mAb #9309 (lower).
undefined Image 12: Cell Cycle/Checkpoint Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human breast carcinoma using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb.
undefined Image 13: Cell Cycle/Checkpoint Antibody Sampler Kit
Flow cytometric analysis of HeLa cells, untreated (blue) and UV-treated (100 mJ/cm2, 1 hr recovery; green), using Phospho-Chk1 (Ser345) (133D3) Rabbit mAb.
undefined Image 14: Cell Cycle/Checkpoint Antibody Sampler Kit
Immunoprecipitation of phospho-Rb (Ser807/811) from Cos cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or Phospho-Rb (Ser807/811) (D20B12) XP® Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using Phospho-Rb (Ser807/811) (D20B12) XP® Rabbit mAb.
undefined Image 15: Cell Cycle/Checkpoint Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of HT-29 cells, untreated (left) or UV-treated (right), using Phospho-p53 (Ser15) (16G8) Mouse mAb (green). Actin filaments have been labeled with Alexa Fluor® 555 phalloidin (red).
undefined Image 16: Cell Cycle/Checkpoint Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human colon carcinoma, control (left) or λ phosphatase-treated (right), using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb.
undefined Image 17: Cell Cycle/Checkpoint Antibody Sampler Kit
Confocal immunofluorescent analysis of asynchronous HeLa cells labeled with Phospho-cdc2 (Tyr15) (10A11) Rabbit mAb (green) and Phospho-Histone H3 (Ser10) (6G3) Mouse mAb #9706 (red).
undefined Image 18: Cell Cycle/Checkpoint Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human lung carcinoma using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb.
undefined Image 19: Cell Cycle/Checkpoint Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human colon carcinoma using Phospho-Rb (Ser807/811) (D20B12) XP® Rabbit mAb.
undefined Image 20: Cell Cycle/Checkpoint Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human lung carcinoma, control (left) or λ phosphatase-treated (right), using Phospho-Rb (Ser807/811) (D20B12) XP® Rabbit mAb.
undefined Image 21: Cell Cycle/Checkpoint Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Flow cytometric analysis of Jurkat cells using Phospho-cdc2 (Tyr15) (10A11) Rabbit mAb (right) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (left), co-stained with Propidium Iodide (PI)/RNase Staining Solution #4087. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 22: Cell Cycle/Checkpoint Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded mouse spleen using Phospho-Rb (Ser807/811) (D20B12) XP® Rabbit mAb.
undefined Image 23: Cell Cycle/Checkpoint Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human ovarian serous adenocarcinoma using Phospho-Rb (Ser807/811) (D20B12) XP® Rabbit mAb in the presence of control peptide (left) or antigen-specific peptide (right).
undefined Image 24: Cell Cycle/Checkpoint Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of MCF7 (left) and BT-549 (right) cells, untreated (upper) or λ phosphatase-treated (lower) using Phospho-Rb (Ser807/Ser811) (D20B12) XP® Rabbit mAb (green). Actin filaments were labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 25: Cell Cycle/Checkpoint Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded HCT 116 cell pellets, control (top) or CRISPR/Cas9 Chk2 knockout (KO) (bottom), untreated (left) or UV-treated (100 mJ, 2 hr recovery, right) using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb.
undefined Image 26: Cell Cycle/Checkpoint Antibody Sampler Kit
Flow cytometric analysis of Jurkat cells using Phospho-Rb (Ser807/811) (D20B12) XP® Rabbit mAb and Propidium Iodide (PI/RNase Staining Solution #4087 to measure DNA content. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 27: Cell Cycle/Checkpoint Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Simple Western™ analysis of lysates (0.1 mg/mL) from HEK 293 cells treated with UV (50 mJ, 30 min recovery) using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb #2197. The virtual lane view (left) shows a single target band (as indicated) at 1:50 and 1:250 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:50 (blue line) and 1:250 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
undefined Image 28: Cell Cycle/Checkpoint Antibody Sampler Kit
Immunoprecipitation of Phospho-Chk2 (Thr68) from HeLa cell extracts. Cells were treated with Staurosporine (1uM, 3hrs.) Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb. Western blot analysis was performed using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb. Mouse Anti-rabbit IgG (Conformation Specific) (L27A9) mAb #3678 was used as a secondary antibody.
undefined Image 29: Cell Cycle/Checkpoint Antibody Sampler Kit
Simple Western™ analysis of lysates (0.1 mg/mL) from HeLa cells treated with UV (100mJ/cm2; 2 hour recovery) using Phospho-Chk1 (Ser345) (133D3) Rabbit mAb #2348. The virtual lane view (left) shows a single target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ ​​​​​​​ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
undefined Image 30: Cell Cycle/Checkpoint Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of fixed frozen mouse small intestine labeled with Phospho-Rb (Ser807/811) (D20B12) XP® Rabbit mAb (left, green) and co-labeled with DyLight™ 554 Phalloidin #13054 (right, red) and ProLong® Gold Antifade Reagent with DAPI #8961 (right, blue).
undefined Image 31: Cell Cycle/Checkpoint Antibody Sampler Kit
Confocal immunofluorescent analysis of fixed frozen mouse testis labeled with Phospho-Rb (Ser807/811) (D20B12) XP® Rabbit mAb (left, green) and co-labeled with DyLight™ 554 Phalloidin #13054 (right, red) and ProLong® Gold Antifade Reagent with DAPI #8961 (right, blue).
undefined Image 32: Cell Cycle/Checkpoint Antibody Sampler Kit
Confocal immunofluorescent analysis of fixed frozen mouse thymus labeled with Phospho-Rb (Ser807/811) (D20B12) XP® Rabbit mAb (left, green) and co-labeled with DyLight™ 554 Phalloidin #13054 (right, red) and ProLong® Gold Antifade Reagent with DAPI #8961 (right, blue).
undefined Image 33: Cell Cycle/Checkpoint Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Simple Western™ analysis of lysates (0.1 mg/mL) from MCF-7 cells using Phospho-Rb (Ser807/811) (D20B12) XP® Rabbit mAb #8516. The virtual lane view (left) shows the target band (as indicated) at 1:10 dilution of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 dilution of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
undefined Image 34: Cell Cycle/Checkpoint Antibody Sampler Kit
Western blot analysis of various cell lines using Phospho-Rb (Ser807/811) (D20B12) XP® Rabbit mAb.
undefined Image 35: Cell Cycle/Checkpoint Antibody Sampler Kit

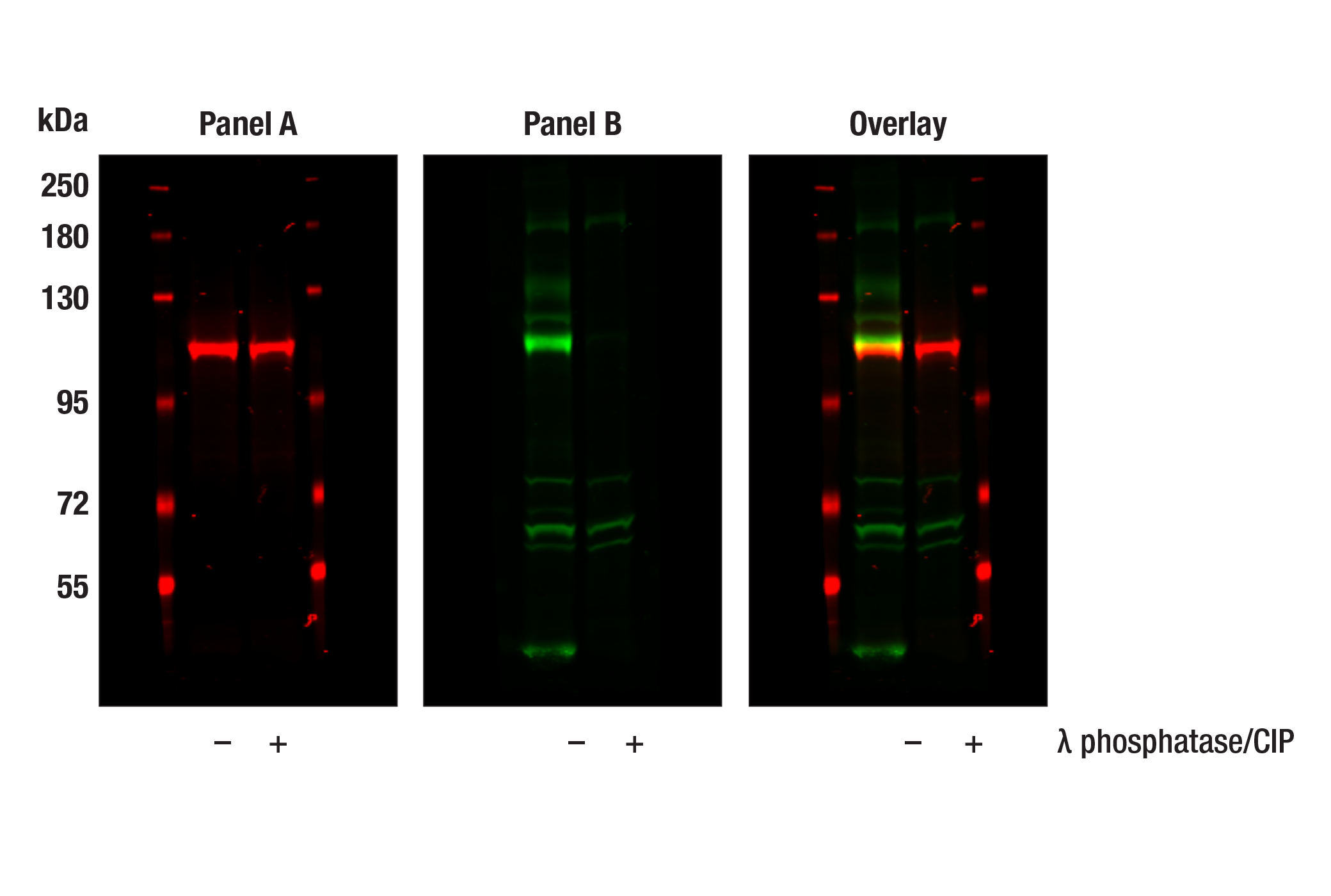

Western blot analysis of extracts from MCF-7 cells, untreated (-) or treated with λ phosphatase/calf intestinal phosphatase (CIP) (+), using Rb (4H1) Mouse mAb #9309 (Panel A) and Phospho-Rb (Ser807/811) (D20B12) XP® Rabbit mAb #8516 (Panel B). Anti-mouse IgG (H+L) (DyLight 680 Conjugate) #5470 (red) and Anti-rabbit IgG (H+L) (DyLight 800 4X PEG Conjugate) #5151 (green) were used as secondary antibodies.
undefined Image 36: Cell Cycle/Checkpoint Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Flow cytometric analysis of HT-29 cells, untreated (blue) or treated with UV (100 mJ/cm2, 2hr recovery; green) using Phospho-p53 (Ser15) (16G8) Mouse mAb (solid lines) or concentration-matched Mouse (G3A1) mAb IgG1 Isotype Control #5415 (dashed lines). Anti-mouse IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4408 was used as a secondary antibody.
undefined Image 37: Cell Cycle/Checkpoint Antibody Sampler Kit
