Revision 8

#3418Store at -20C

Cell Signaling Technology

Orders: 877-616-CELL (2355) [email protected]

Support: 877-678-TECH (8324)

Web: [email protected] cellsignal.com

3 Trask LaneDanversMassachusetts01923USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Applications:

WB, IP, IHC-P, IF-F, IF-IC, ChIP, ChIP-seq, C&R, C&T

REACTIVITY:

H M R Mk

SENSITIVITY:

Endogenous

MW (kDa):

140

Source/Isotype:

Rabbit IgG

UniProt ID:

#P49711

Entrez-Gene Id:

10664

Product Information

Product Usage Information

For optimal ChIP or ChIP-seq results, use 10 μl of antibody and 10 μg of chromatin (approximately 4 x 106 cells) per IP. This antibody has been validated using SimpleChIP® Enzymatic Chromatin IP Kits.

The CUT&RUN dilution was determined using CUT&RUN Assay Kit #86652.

The CUT&Tag dilution was determined using CUT&Tag Assay Kit #77552.

Application Dilution
Western Blotting 1:1000
Immunoprecipitation 1:50
Immunohistochemistry (Paraffin) 1:640 - 1:2560
Immunofluorescence (Frozen) 1:200 - 1:800
Immunofluorescence (Immunocytochemistry) 1:400 - 1:1600
Chromatin IP 1:50
Chromatin IP-seq 1:50
CUT&RUN 1:50
CUT&Tag 1:50

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

For a carrier free (BSA and azide free) version of this product see product #48859.

Specificity / Sensitivity

CTCF (D31H2) XP® Rabbit mAb detects endogenous levels of total CTCF protein. This antibody does not cross-react with BORIS. This antibody nonspecifically labels the lamina propria of small intestine in fixed frozen mouse tissue by immunofluorescence.

Species Reactivity:

Human, Mouse, Rat, Monkey

Species predicted to react based on 100% sequence homology

Bovine, Horse

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to the carboxy terminus of the human CTCF protein.

Background

CCCTC-binding factor (CTCF) and its paralog, the Brother of the Regulator of Imprinted Sites (BORIS), are highly conserved transcription factors that regulate transcriptional activation and repression, insulator function, and imprinting control regions (ICRs) (1-4). Although they have divergent amino and carboxy termini, both proteins contain 11 conserved zinc finger domains that work in combination to bind the same DNA elements (1). CTCF is ubiquitously expressed and contributes to transcriptional regulation of cell-growth regulated genes, including c-Myc, p19/ARF, p16/INK4A, BRCA1, p53, p27, E2F1, and TERT (1). CTCF also binds to and is required for the enhancer-blocking activity of all known insulator elements and ICRs, including the H19/IgF2, Prader-Willi/Angelman syndrome, and Inactive X-Specific Transcript (XIST) anti-sense loci (5-7). CTCF DNA-binding is sensitive to DNA methylation, a mark that determines selection of the imprinted allele (maternal vs. paternal) (1). The various functions of CTCF are regulated by at least two different post-translational modifications. Poly(ADP-ribosyl)ation of CTCF is required for insulator function (8). Phosphorylation of Ser612 by protein kinase CK2 facilitates a switch of CTCF from a transcriptional repressor to an activator at the c-Myc promoter (9). CTCF mutations or deletions have been found in many breast, prostate, and Wilms' tumors (10,11). Expression of BORIS is restricted to spermatocytes and is mutually exclusive of CTCF (3). In cells expressing BORIS, promoters of X-linked cancer-testis antigens like MAGE-A1 are demethylated and activated, but methylated and inactive in CTCF-expressing somatic cells (12). Like other testis specific proteins, BORIS is abnormally expressed in different cancers, such as breast cancer, and has a greater affinity than CTCF for DNA-binding sites, detracting from CTCF’s potential tumor suppressing activity (1,3,13,14).

  1. Klenova, E.M. et al. (2002) Semin Cancer Biol 12, 399-414.
  2. Klenova, E.M. et al. (1993) Mol Cell Biol 13, 7612-24.
  3. Loukinov, D.I. et al. (2002) Proc Natl Acad Sci USA 99, 6806-11.
  4. Mukhopadhyay, R. et al. (2004) Genome Res 14, 1594-602.
  5. Hark, A.T. et al. (2000) Nature 405, 486-9.
  6. Ohta, T. et al. (1999) Am J Hum Genet 64, 397-413.
  7. Chao, W. et al. (2002) Science 295, 345-7.
  8. Yu, W. et al. (2004) Nat Genet 36, 1105-10.
  9. El-Kady, A. and Klenova, E. (2005) FEBS Lett 579, 1424-34.
  10. Filippova, G.N. et al. (1998) Genes Chromosomes Cancer 22, 26-36.
  11. Filippova, G.N. et al. (2002) Cancer Res 62, 48-52.
  12. Vatolin, S. et al. (2005) Cancer Res 65, 7751-62.
  13. Hong, J.A. et al. (2005) Cancer Res 65, 7763-74.
  14. D'Arcy, V. et al. (2008) Br J Cancer 98, 571-9.

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Western Blot Buffer

IMPORTANT: For western blots, incubate membrane with diluted primary antibody in 5% w/v BSA, 1X TBS, 0.1% Tween® 20 at 4°C with gentle shaking, overnight.

Applications Key

WB: Western Blotting IP: Immunoprecipitation IHC-P: Immunohistochemistry (Paraffin) IF-F: Immunofluorescence (Frozen) IF-IC: Immunofluorescence (Immunocytochemistry) ChIP: Chromatin IP ChIP-seq: Chromatin IP-seq C&R: CUT&RUN C&T: CUT&Tag

Cross-Reactivity Key

H: human M: mouse R: rat Hm: hamster Mk: monkey Vir: virus Mi: mink C: chicken Dm: D. melanogaster X: Xenopus Z: zebrafish B: bovine Dg: dog Pg: pig Sc: S. cerevisiae Ce: C. elegans Hr: horse GP: Guinea Pig Rab: rabbit All: all species expected

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
XP is a registered trademark of Cell Signaling Technology, Inc.
All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

Revision 8
#3418

CTCF (D31H2) XP® Rabbit mAb

Western Blotting Image 1: CTCF (D31H2) XP® Rabbit mAb Expand Image
Western blot analysis of extracts from various cell lines using CTCF (D31H2) XP® Rabbit mAb.
No image available
Immunohistochemistry Image 1: CTCF (D31H2) XP® Rabbit mAb Expand Image
Immunohistochemical analysis of paraffin-embedded human breast carcinoma using CTCF (D31H2) XP® Rabbit mAb in the presence of control peptide (left) or antigen-specific peptide (right).
Immunohistochemistry Image 2: CTCF (D31H2) XP® Rabbit mAb Expand Image
Immunohistochemical analysis of paraffin-embedded human colon carcinoma using CTCF (D31H2) XP® Rabbit mAb.
Immunohistochemistry Image 3: CTCF (D31H2) XP® Rabbit mAb Expand Image
Immunohistochemical analysis of paraffin-embedded human lymphoma using CTCF (D31H2) XP® Rabbit mAb.
Immunofluorescence Image 1: CTCF (D31H2) XP® Rabbit mAb Expand Image
Confocal immunofluorescent analysis of HCT-116 cells using CTCF (D31H2) XP® Rabbit mAb (green). Actin filaments were labeled with DY-554 phalloidin (red).

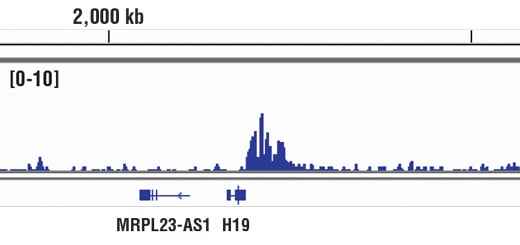

Chromatin Immunoprecipitation Image 1: CTCF (D31H2) XP® Rabbit mAb Expand Image
Chromatin immunoprecipitations were performed with cross-linked chromatin from Hela cells and CTCF (D31H2) XP® Rabbit mAb, using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across H19, a known target gene of CTCF (see additional figure containing ChIP-qPCR data). For additional ChIP-seq tracks, please download the product data sheet.

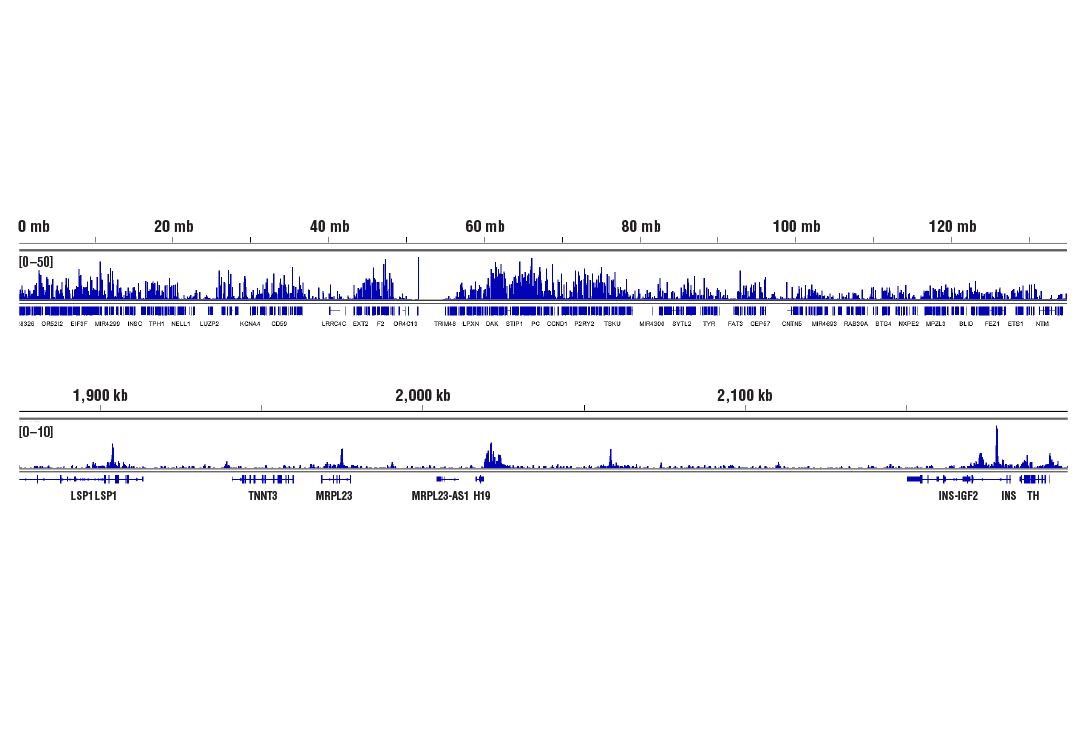

Chromatin Immunoprecipitation Image 2: CTCF (D31H2) XP® Rabbit mAb Expand Image
Chromatin immunoprecipitations were performed with cross-linked chromatin from Hela cells and CTCF (D31H2) XP® Rabbit mAb, using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across chromosome 11 (upper), including H19 (lower), a known target gene of CTCF (see additional figure containing ChIP-qPCR data).

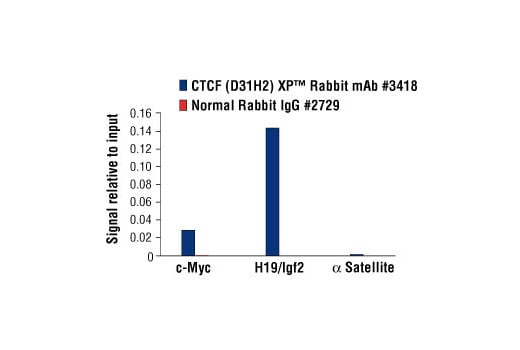

Chromatin Immunoprecipitation Image 3: CTCF (D31H2) XP® Rabbit mAb Expand Image
Chromatin immunoprecipitations were performed with cross-linked chromatin from HeLa cells, with either CTCF (D31H2) XP® Rabbit mAb or Normal Rabbit IgG #2729, using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using human c-Myc promoter primers, SimpleChIP® Human H19/Igf2 ICR Primers #5172, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.

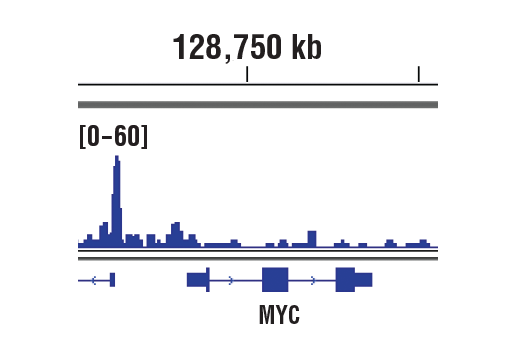

CUT and RUN Image 1: CTCF (D31H2) XP® Rabbit mAb Expand Image
CUT&RUN was performed with HCT 116 cells and CTCF (D31H2) XP® Rabbit mAb #3418, using CUT&RUN Assay Kit #86652. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across MYC, a known target gene of CTCF (see additional figure containing CUT&RUN-qPCR data).

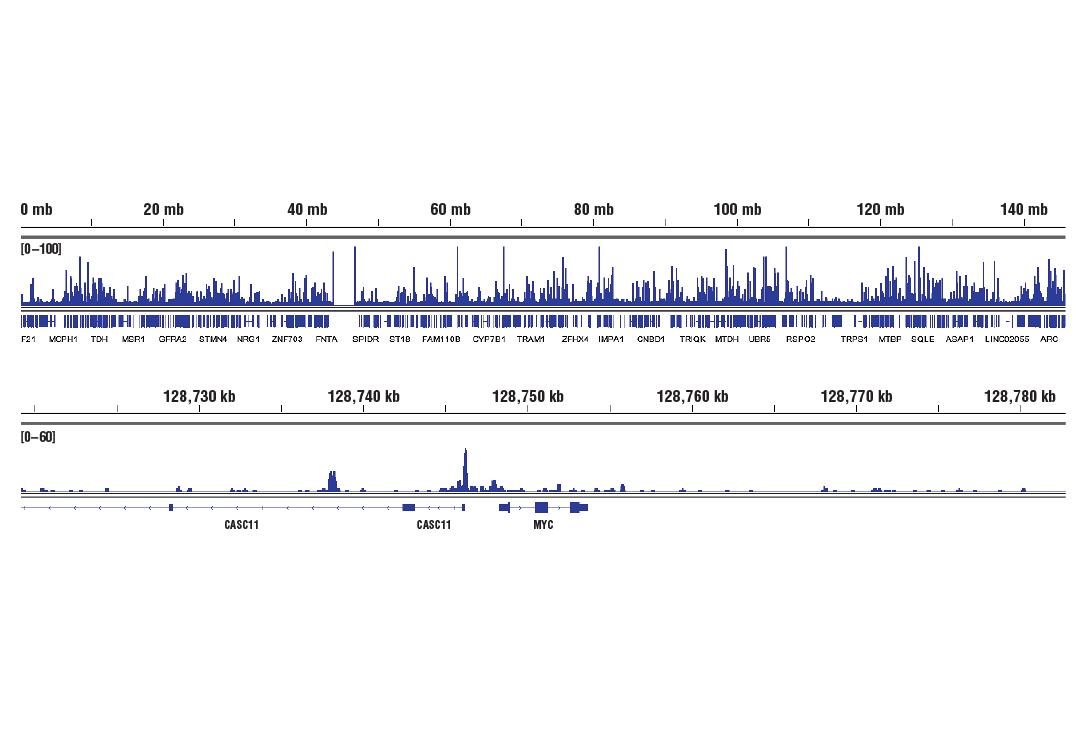

CUT and RUN Image 2: CTCF (D31H2) XP® Rabbit mAb Expand Image
CUT&RUN was performed with HCT 116 cells and CTCF (D31H2) XP® Rabbit mAb #3418, using CUT&RUN Assay Kit #86652. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figures show binding across chromosome 8 (upper), including MYC (lower), a known target gene of CTCF (see additional figure containing CUT&RUN-qPCR data).

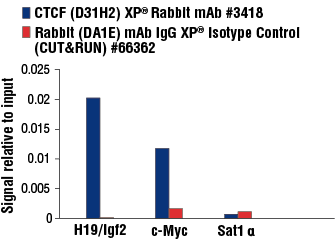

CUT and RUN Image 3: CTCF (D31H2) XP® Rabbit mAb Expand Image
CUT&RUN was performed with HCT 116 cells and CTCF (D31H2) XP® Rabbit mAb or Rabbit (DA1E) mAb IgG XP® Isotype Control (CUT & RUN) #66362, using CUT&RUN Assay Kit #86652. The enriched DNA was quantified by real-time PCR using human c-Myc promoter primers, SimpleChIP® Human H19/Igf2 ICR Primers #5172, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.

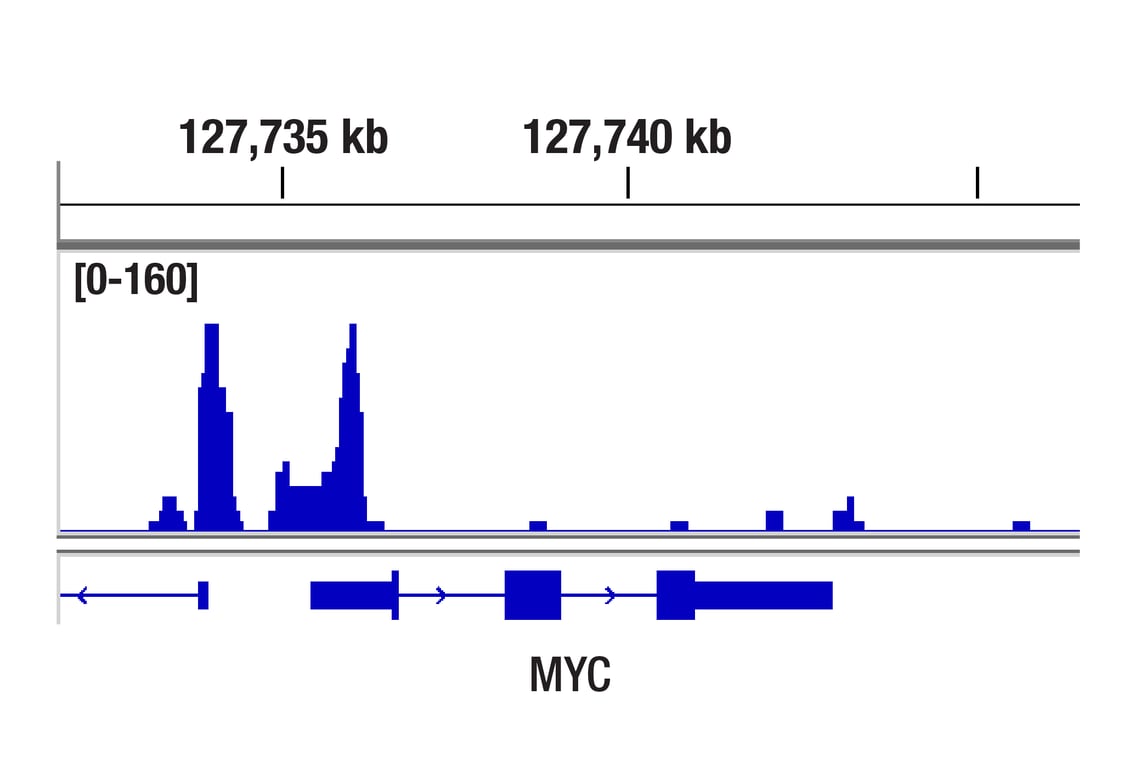

CUT and Tag Image 1: CTCF (D31H2) XP® Rabbit mAb Expand Image
CUT&Tag was performed with HCT 116 cells and CTCF (D31H2) XP® Rabbit mAb, using CUT&Tag Assay Kit #77552. DNA library was prepared using CUT&Tag Dual Index Primers and PCR Master Mix for Illumina Systems #47415. The figure shows binding across MYC, a known target gene of CTCF (see our ChIP-qPCR figure).

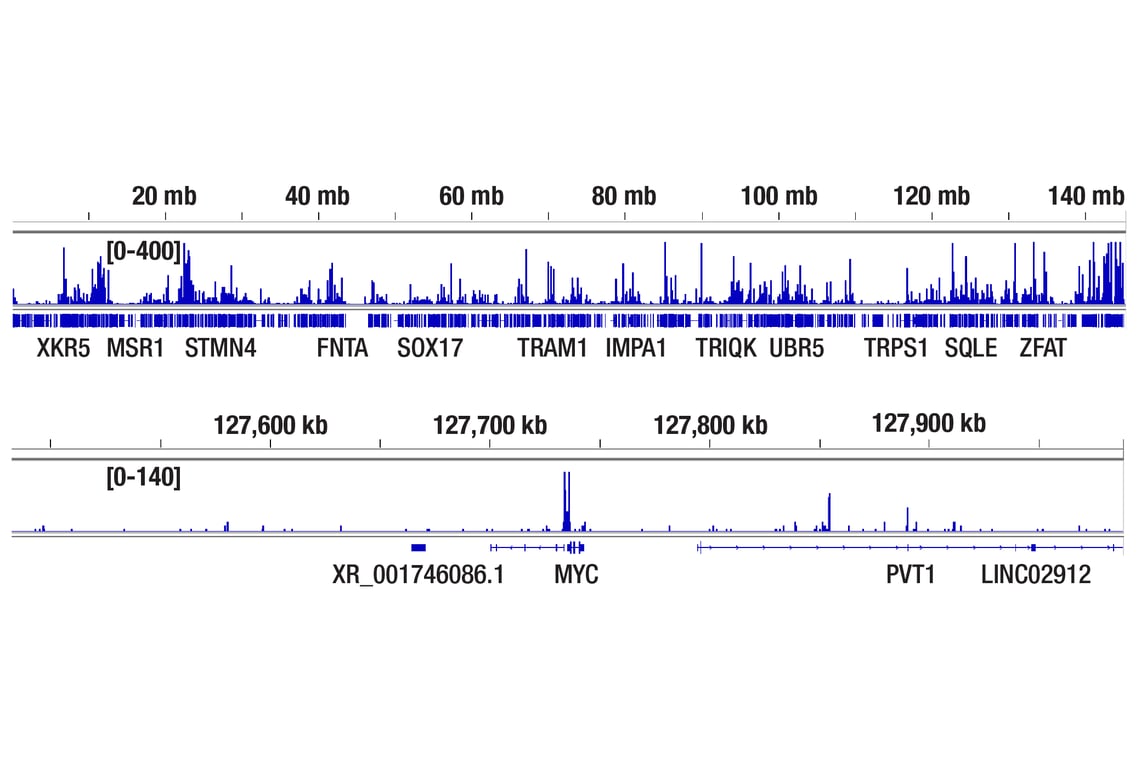

CUT and Tag Image 2: CTCF (D31H2) XP® Rabbit mAb Expand Image
CUT&Tag was performed with HCT 116 cells and CTCF (D31H2) XP® Rabbit mAb, using CUT&Tag Assay Kit #77552. DNA library was prepared using CUT&Tag Dual Index Primers and PCR Master Mix for Illumina Systems #47415. The figures show binding across chromosome 8 (upper), including MYC (lower), a known target gene of CTCF (see our ChIP-qPCR figure).
