Revision 2

#49398

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Mol. Wt Isotype/Source
Claudin-1 (D3H7C) Rabbit Monoclonal Antibody1399520 µl20 kDaRabbit IgG
E-Cadherin (24E10) Rabbit Monoclonal Antibody319520 µl135 kDaRabbit IgG
N-Cadherin (D4R1H) Rabbit Monoclonal Antibody1311620 µl140 kDaRabbit IgG
Slug (C19G7) Rabbit Monoclonal Antibody958520 µl30 kDaRabbit IgG
TWIST1 (E5G9Y) Rabbit Monoclonal Antibody9044520 µl26 kDaRabbit IgG
Vimentin (D21H3) Rabbit Monoclonal Antibody574120 µl57 kDaRabbit IgG
ZEB1 (E2G6Y) Rabbit Monoclonal Antibody7051220 µl200 kDaRabbit IgG
ZO-1 (D6L1E) Rabbit Monoclonal Antibody1366320 µl220 kDaRabbit IgG

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit provides an economical means to evaluate the expression of established markers of EMT by immunofluorescence (IF).

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibodies.

Background

Epithelial-mesenchymal transition (EMT) is an essential process during development whereby epithelial cells acquire mesenchymal, fibroblast-like properties and display reduced intracellular adhesion and increased motility. This is a critical feature of normal embryonic development, which is also utilized by malignant epithelial tumors to spread beyond their origin (1-3). This tightly regulated process is associated with a number of cellular and molecular events. EMT depends on a reduction in expression of cell adhesion molecules. Cadherins mediate calcium-dependent cell-cell adhesion and play critical roles in normal tissue development (4). E-cadherin is considered an active suppressor of invasion and growth of many epithelial cancers (4-6). Recent studies indicate that cancer cells have upregulated N-cadherin in addition to loss of E-cadherin. This change in cadherin expression is called the "cadherin switch" and downregulation of E-cadherin is one of the hallmarks of EMT (1). Tight junctions, or zonula occludens, form a continuous barrier to fluids across the epithelium and endothelium. They function in regulation of paracellular permeability and in the maintenance of cell polarity, blocking the movement of transmembrane proteins between the apical and the basolateral cell surfaces. Tight junctions are composed of claudin and occludin proteins, which join the junctions to the cytoskeleton (7,8). Zona occludens (ZO) proteins (e.g., ZO-1) are peripheral membrane adaptor proteins that link junctional transmembrane proteins such as occludin and claudin to the actin cytoskeleton (9). ZO proteins are required for tight junction formation and function (10,11); mutations in ZO-1 and claudin induce EMT (12). Vimentin is an intermediate filament of mesenchymal origin and is present at early developmental stages. Vimentin's dynamic structural changes and spatial re-organization in response to extracellular stimuli helps to coordinate various signaling pathways (13). Slug (SNAI2) is a widely expressed transcriptional repressor and member of the Snail family of zinc finger transcription factors (14,15). Similar to the related Snail protein, Slug binds to the E-cadherin promoter region to repress transcription during development (16). The binding of Slug to integrin promoter sequences represses integrin expression and results in reduced cell adhesion (17). ZEB family proteins (e.g., ZEB1) are zinc finger and homeobox domain containing transcription factors, whose targets of regulation include E-cadherin (1). TWIST1 is a basic helix-loop-helix (b-HLH) transcription factor that functions as a master regulator of embryonic morphogenesis, and plays essential roles in mesenchymal differentiation (18,19). TWIST is upregulated in various human tumors and has been suggested to be a driver of EMT and metastasis (20-21).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

U.S. Patent No. 7,429,487, foreign equivalents, and child patents deriving therefrom.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Western blot analysis of extracts from A172 and MCF7 cells using N-Cadherin (D4R1H) XP® Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 1: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using ZO-1 (D6L1E) Rabbit mAb (upper) and α-Actinin (D6F6) XP® Rabbit mAb #6487 (lower).
undefined Image 2: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Western blot analysis of extracts from IGROV-1, A549, and 293 cells using Claudin-1 (D3H7C) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 3: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines, using E-Cadherin (24E10) Rabbit mAb.
undefined Image 4: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human prostate adenocarcinoma using E-Cadherin (24E10) Rabbit mAb performed on the Leica BOND Rx.
undefined Image 5: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Western blot analysis of extracts from control HeLa cells (lane 1) or Vimentin knockout HeLa cells (lane 2) using Vimentin (D21H3) XP® Rabbit mAb #5741 (upper) or β-Actin (13E5) Rabbit mAb #4970 (lower). The absence of signal in the Vimentin knockout HeLa cells confirms specificity of the antibody for Vimentin.
undefined Image 6: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using ZEB1 (E2G6Y) XP® Rabbit mAb (upper) or GAPDH (D16H11) XP® Rabbit mAb #5174 (lower).
undefined Image 7: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Western blot analysis of extracts from SH-SY5Y, TOV-112D, and HeLa cells using TWIST1 (E5G9Y) Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower). Low or negative expression of TWIST1 protein in HeLa cells is consistent with the predicted expression pattern.
undefined Image 8: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Western blot analysis of extracts from A204, SKMEL5, and NIH/3T3 cells using Slug (C19G7) Rabbit mAb.
undefined Image 9: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human non-Hodgkin Lymphoma using N-Cadherin (D4R1H) XP® Rabbit mAb performed on the Leica® BOND™ Rx.
undefined Image 10: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Simple Western™ analysis of lysates (0.1 mg/mL) from A172 lysate using N-Cadherin (D4R1H) XP® Rabbit mAb #13116. The virtual lane view (left) shows the target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
undefined Image 11: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunoprecipitation of ZO-1 from MCF7 cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or ZO-1 (D6L1E) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot was performed using ZO-1 (D6L1E) Rabbit mAb.
undefined Image 12: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo

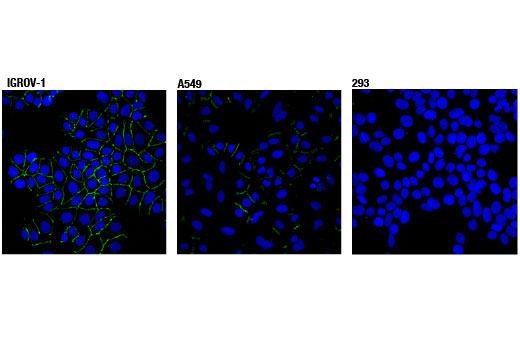

Confocal immunofluorescent analysis of IGROV-1 (positive, left), A549 (positive, center), and 293 (negative, right) cells using Claudin-1 (D3H7C) Rabbit mAb (green). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 13: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human papillary thyroid carcinoma using E-Cadherin (24E10) Rabbit mAb performed on the Leica BOND Rx.
undefined Image 14: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using Vimentin (D21H3) XP® Rabbit mAb.
undefined Image 15: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Immunoprecipitation of ZEB1 protein from Jurkat cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is ZEB1 (E2G6Y) XP® Rabbit mAb. Western blot analysis was performed using ZEB1 (E2G6Y) XP® Rabbit mAb. Anti-rabbit IgG, HRP-linked Antibody #7074 was used as the secondary antibody.
undefined Image 16: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human granulosa cell tumor of the ovary using N-Cadherin (D4R1H) XP® Rabbit mAb performed on the Leica® BOND™ Rx.
undefined Image 17: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Confocal immunofluorescent analysis of MCF7 (high-expressing, left) and MDA-MB-435 (low-expressing, right) cells, using ZO-1 (D6L1E) Rabbit mAb (green). Actin filaments were labeled with DyLight™ 554 Phalloidin #13054 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 18: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human lung carcinoma, using E-Cadherin (24E10) Rabbit mAb.
undefined Image 19: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Western blot analysis of extracts from HeLa and NIH/3T3 cells using Vimentin (D21H3) XP® Rabbit mAb #5741 (green), and α-Actinin (E7U1O) Mouse mAb #69758 (red). Anti-rabbit IgG (H+L) (DyLight 800 4X PEG Conjugate) #5151 (green) and Anti-mouse IgG (H+L) (DyLight 680 Conjugate) #5470 (red) were used as secondary antibodies.
undefined Image 20: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human ductal breast carcinoma using ZEB1 (E2G6Y) XP® Rabbit mAb performed on the Leica® BOND™ Rx.
undefined Image 21: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human gastric carcinoma using N-Cadherin (D4R1H) XP® Rabbit mAb performed on the Leica® BOND™ Rx.
undefined Image 22: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human metastatic adenocarcinoma in lymph node, using E-Cadherin (24E10) Rabbit mAb.
undefined Image 23: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Simple Western™ analysis of lysates (1 mg/mL) from HeLa cells using Vimentin (D21H3) XP ® Rabbit mAb #5741. The virtual lane view (left) shows a single target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
undefined Image 24: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human mucoepidermoid carcinoma of the larynx using ZEB1 (E2G6Y) XP® Rabbit mAb performed on the Leica® BOND™ Rx.
undefined Image 25: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Confocal immunofluorescent analysis of A204 cells (left) and PANC-1 cells (right) using Slug (C19G7) Rabbit mAb (green). Actin filaments have been labeled with DY554 phalloidin (red).
undefined Image 26: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human colon using N-Cadherin (D4R1H) XP® Rabbit mAb. Note staining of myenteric plexus.
undefined Image 27: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded mouse prostate using E-Cadherin (24E10) Rabbit mAb.
undefined Image 28: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human squamous cell lung carcinoma using Vimentin (D21H3) XP® Rabbit mAb performed on the Leica® BOND™ Rx.
undefined Image 29: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human ovarian serous carcinoma using ZEB1 (E2G6Y) XP® Rabbit mAb.
undefined Image 30: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Flow cytometric analysis of PANC-1 cells (blue) and A204 cells (green) using Slug (C19G7) Rabbit mAb (solid lines) or a concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 31: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human ovarian carcinoma using N-Cadherin (D4R1H) XP® Rabbit mAb.
undefined Image 32: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded mouse pancreas using E-Cadherin (24E10) Rabbit mAb.
undefined Image 33: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human endometrioid adenocarcinoma using Vimentin (D21H3) XP® Rabbit mAb performed on the Leica® BOND™ Rx.
undefined Image 34: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human colon adenocarcinoma using ZEB1 (E2G6Y) XP® Rabbit mAb.
undefined Image 35: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded A172 (positive, left) and MCF7 (negative, right) cell pellets using N-Cadherin (D4R1H) XP® Rabbit mAb.
undefined Image 36: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Confocal immunofluorescent images of MCF7 cells using E-Cadherin (24E10) Rabbit mAb (green, left) compared to an isotype control (right). Blue pseudocolor = DRAQ5® (fluorescent DNA dye).
undefined Image 37: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded mouse small intestine using E-Cadherin (24E10) Rabbit mAb.
undefined Image 38: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human breast carcinoma using Vimentin (D21H3) XP® Rabbit mAb.
undefined Image 39: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human prostate adenocarcinoma using ZEB1 (E2G6Y) XP® Rabbit mAb.
undefined Image 40: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Confocal immunofluorescent analysis of A172 (positive, left) and MCF7 (negative, right) cells using N-Cadherin (D4R1H) XP® Rabbit mAb (green). Blue pseudocolor= DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 41: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded mouse lung using E-Cadherin (24E10) Rabbit mAb.
undefined Image 42: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded mouse colon using Vimentin (D21H3) XP® Rabbit mAb.
undefined Image 43: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human endometrioid adenocarcinoma using ZEB1 (E2G6Y) XP® Rabbit mAb.
undefined Image 44: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded mouse stomach using E-Cadherin (24E10) Rabbit mAb.
undefined Image 45: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded rat colon using Vimentin (D21H3) XP® Rabbit mAb.
undefined Image 46: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human gastrointestinal stromal tumor using ZEB1 (E2G6Y) XP® Rabbit mAb (left) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (right).
undefined Image 47: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human breast carcinoma, using E-Cadherin (24E10) Rabbit mAb in the presence of control peptide (left) or E-Cadherin Blocking Peptide #1056 (right).
undefined Image 48: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Flow cytometric analysis of Jurkat cells (blue, negative) and MCF7 cells (green, positive) using E-Cadherin (24E10) Rabbit mAb (solid lines) or a concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')₂ Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 49: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded rhesus kidney using Vimentin (D21H3) XP® Rabbit mAb.
undefined Image 50: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded mouse lung using ZEB1 (E2G6Y) XP® Rabbit mAb.
undefined Image 51: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded Syrian hamster small intestine using Vimentin (D21H3) XP® Rabbit mAb.
undefined Image 52: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded 4T1 syngeneic mammary tumor using ZEB1 (E2G6Y) XP® Rabbit mAb.
undefined Image 53: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human tonsil using Vimentin (D21H3) XP® Rabbit mAb in the presence of control peptide (left) or antigen-specific peptide (right).
undefined Image 54: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo

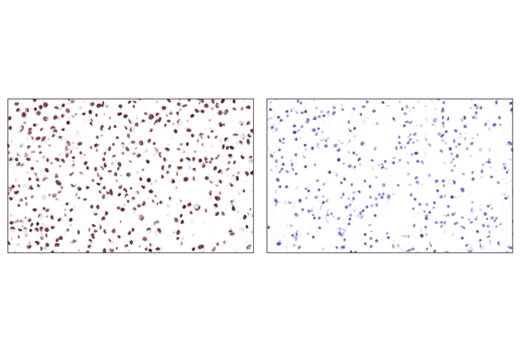

Immunohistochemical analysis of paraffin-embedded HT-1080 cell pellet (left, positive) or HCC1806 cell pellet (right, negative) using ZEB1 (E2G6Y) XP® Rabbit mAb.
undefined Image 55: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Confocal immunofluorescent analysis of fixed frozen mouse kidney labeled with Vimentin (D21H3) XP® Rabbit mAb (left, green) and co-labeled with F4/80 (BM8.1) Rat mAb (right, red), and ProLong® Gold Antifade Reagent with DAPI #8961 (right, blue).
undefined Image 56: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Confocal immunofluorescent analysis of HT-1080 cells (left, positive) and HCC1806 cells (right, negative) using ZEB1 (E2G6Y) XP® Rabbit mAb (green), Cytochrome c (6H2.B4) Mouse mAb #12963 (yellow), and Alexa Fluor® 647 Phalloidin #8940 (red). Slides were mounted with ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
undefined Image 57: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of fixed frozen mouse cerebellum labeled with Vimentin (D21H3) XP® Rabbit mAb (left, green) and co-labeled with F4/80 (BM8.1) Rat mAb (right, red), and ProLong® Gold Antifade Reagent with DAPI #8961 (right, blue).
undefined Image 58: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Flow cytometric analysis of HCC1806 cells (blue, negative) and HT-1080 cells (green, positive) using ZEB1 (E2G6Y) XP® Rabbit mAb (solid lines) or a concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 59: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Confocal immunofluorescent analysis of fixed frozen mouse colon using Vimentin (D21H3) XP® Rabbit mAb (green), F4/80 (BM8.1) Rat mAb (red), and ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
undefined Image 60: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of SNB19 cells using Vimentin (D21H3) Rabbit mAb (green). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 61: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Flow cytometric analysis of MCF7 cells (blue, negative) and HeLa cells (green, positive) using Vimentin (D21H3) XP® Rabbit mAb(solid lines) or a concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 62: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Confocal immunofluorescent analysis of fixed frozen mouse liver labeled with N-Cadherin (D4R1H) XP® Rabbit mAb (green), DyLight 554 Phalloidin #13054 (red) and ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
undefined Image 63: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of fixed frozen mouse choroid plexus labeled with N-Cadherin (D4R1H) XP® Rabbit mAb (green) and ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
undefined Image 64: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Confocal immunofluorescent analysis of fixed frozen mouse heart labeled with N-Cadherin (D4R1H) XP® Rabbit mAb (green), DyLight 554 Phalloidin #13054 (red) and ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
undefined Image 65: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Simple Western™ analysis of lysates (0.1 mg/mL) from MCF-7 cells using E-Cadherin (24E10) Rabbit mAb #3195. The virtual lane view (left) shows a single target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
undefined Image 66: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of fixed frozen mouse small intestine using E-Cadherin (24E10) Rabbit mAb (green) and ProLong Gold Antifade Reagent with DAPI #8961 (blue).
undefined Image 67: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Confocal immunofluorescent analysis of fixed frozen mouse pancreas using E-Cadherin (24E10) Rabbit mAb (green) and ProLong Gold Antifade Reagent with DAPI #8961 (blue).
undefined Image 68: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Western blot analysis of extracts from CT26.WT, MC38, and LL/2 (LLC1) cells using TWIST1 (E5G9Y) Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 69: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo

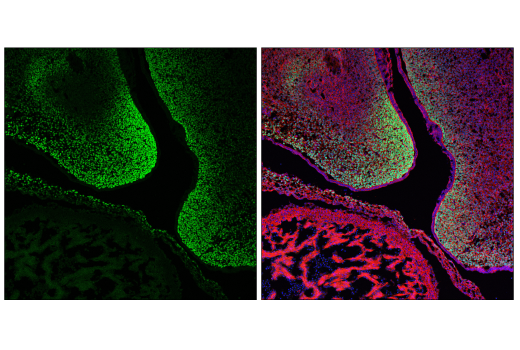

Confocal immunofluorescent analysis of fixed frozen E12.5 mouse embryo labeled with TWIST1 (E5G9Y) Rabbit mAb (green), DyLight™ 554 Phalloidin #13054 (red), and ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
undefined Image 70: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Confocal immunofluorescent analysis of fixed frozen E12.5 mouse embryo labeled with TWIST1 (E5G9Y) Rabbit mAb (green), DyLight™ 554 Phalloidin #13054 (red), and ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
undefined Image 71: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit

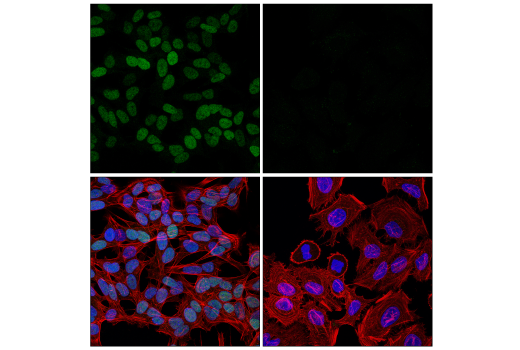

Confocal immunofluorescent analysis of SH-SY5Y cells (left, positive) and HeLa cells (right, negative) using TWIST1 (E5G9Y) Rabbit mAb (green), DyLight™ 650 Phalloidin #12956 (red), and DAPI #4083 (blue).
undefined Image 72: Epithelial-Mesenchymal Transition (EMT) IF Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
