Revision 1

#56612Store at -20C

1 Kit

(7 x 20 microliters)

Cell Signaling Technology

Orders: 877-616-CELL (2355) [email protected]

Support: 877-678-TECH (8324)

Web: [email protected] cellsignal.com

3 Trask LaneDanversMassachusetts01923USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Product Includes Product # Quantity Mol. Wt Isotype/Source
YAP (D8H1X) XP® Rabbit mAb 14074 20 µl 65-78 kDa Rabbit IgG
TAZ (D3I6D) Rabbit mAb 70148 20 µl 50 kDa Rabbit IgG
Ajuba (D4D8P) Rabbit mAb 34648 20 µl 55 kDa Rabbit IgG
PTPN14 (D5T6Y) Rabbit mAb 13808 20 µl 160 kDa Rabbit IgG
Merlin (D3S3W) Rabbit mAb 12888 20 µl 70 kDa Rabbit IgG
MST1 (D8B9Q) Rabbit mAb 14946 20 µl 60 kDa Rabbit IgG
FRMD6 (D8X3R) Rabbit mAb 14688 20 µl 78 kDa Rabbit IgG
Anti-rabbit IgG, HRP-linked Antibody 7074 100 µl Goat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Hippo Pathway Proteins Antibody Sampler Kit provides an economical means of detecting proteins that have been identified as upstream regulators of the Hippo Signaling Pathway. The kit provides enough antibody to perform two western blot experiments with each primary antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Background

The Hippo Signaling Pathway is an evolutionarily conserved signaling cascade that regulates cell, tissue and organ growth in response to diverse environmental cues, including cell density, mechanical stress, growth factors and cytokines, and metabolic signaling (1,2). In mammals, the core components of this pathway are YAP and TAZ, transcriptional co-activators that regulate the expression of target genes that control cell proliferation and survival (3). The transcriptional control of YAP/TAZ target genes is regulated through a complex kinase cascade involving mammalian sterile-20-like kinases (MST1/2), LATS1/2 kinases and key adaptor proteins. Phosphorylation of YAP and TAZ by LATS kinases results in cytoplasmic sequestration of YAP and TAZ, inhibiting transcriptional activation of their target genes. A number of proteins have been identified that function upstream of MST1/2 and LATS1/2 to influence LATS-mediated phosphorylation of YAP/TAZ. These include the tumor suppressor protein Merlin (4), the FERM-domain containing protein 6 (FRMD6/Willin) (5), the LIM-domain containing adaptor protein Ajuba (6,7), and the protein tyrosine phosphatase PTPN14 (8).

  1. Meng, Z. et al. (2016) Genes Dev 30, 1-17.
  2. Watt, K.I. et al. (2017) Front Physiol 8, 942.
  3. Fu, V. et al. (2017) Curr Opin Cell Biol 49, 99-107.
  4. Su, T. et al. (2017) Dev Cell 40, 478-490.
  5. Angus, L. et al. (2012) Oncogene 31, 238-50.
  6. Das Thakur, M. et al. (2010) Curr Biol 20, 657-62.
  7. Reddy, B.V. and Irvine, K.D. (2013) Dev Cell 24, 459-71.
  8. Liu, X. et al. (2013) Oncogene 32, 1266-73.

Background References

    Trademarks and Patents

    Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
    XP is a registered trademark of Cell Signaling Technology, Inc.
    All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

    Limited Uses

    Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

    Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

    Revision 1
    #56612

    Hippo Pathway: Upstream Signaling Antibody Sampler Kit

    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 1 Expand Image
    Flow cytometric analysis of RL cells (blue) and A-204 cells (green) using YAP (D8H1X) XP® Rabbit mAb. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 2 Expand Image
    Simple Western™ analysis of lysates (1 mg/mL) from MCF-7 cells using YAP (D8H1X) XP® Rabbit mAb #14074. The virtual lane view (left) shows the target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 3 Expand Image
    Confocal immunofluorescent analysis of fixed frozen mouse small intestine labeled with YAP (D8H1X) XP® Rabbit mAb (left, green) and co-labeled with ProLong® Gold Antifade Reagent with DAPI #8961 (right, blue).
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 4 Expand Image
    Confocal immunofluorescent analysis of fixed frozen mouse kidney labeled with YAP (D8H1X) XP® Rabbit mAb (left, green) and co-labeled with ProLong® Gold Antifade Reagent with DAPI #8961 (right, blue).
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 5 Expand Image
    Confocal immunofluorescent analysis of fixed frozen mouse cerebellum labeled with YAP (D8H1X) XP® Rabbit mAb (left, green) and co-labeled with ProLong® Gold Antifade Reagent with DAPI #8961 (right, blue).
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 6 Expand Image

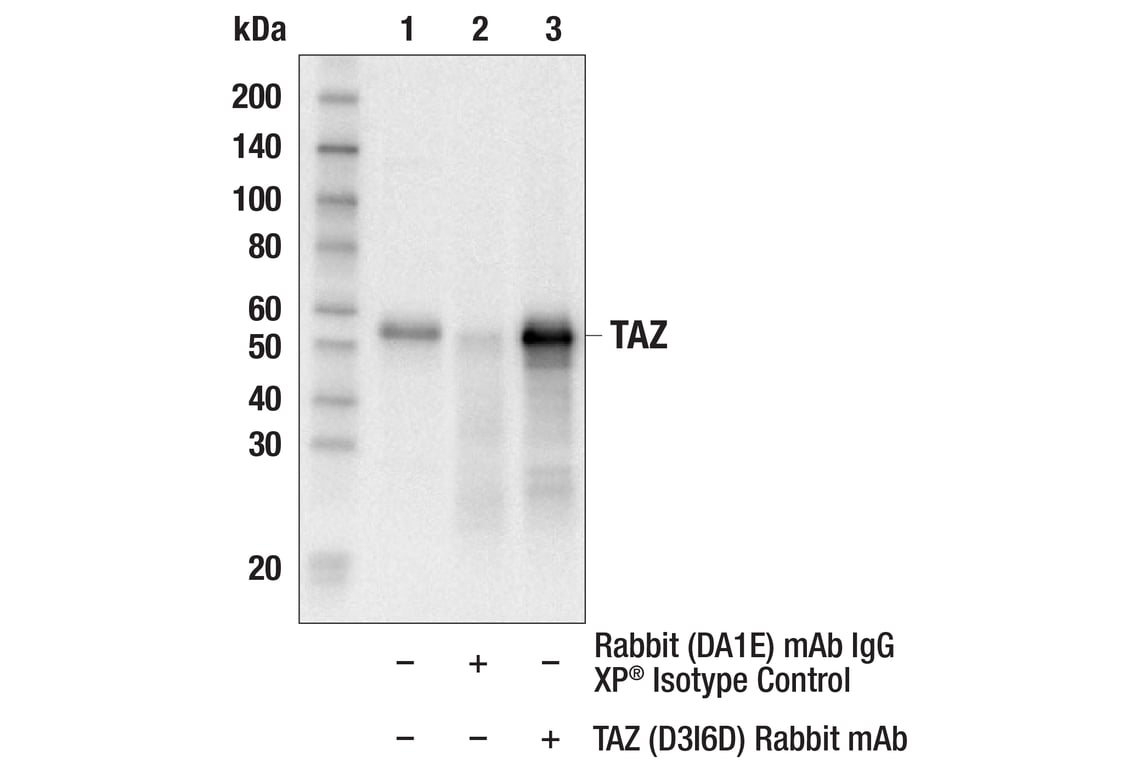

    Immunoprecipitation of TAZ protein from HeLa cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is TAZ (D3I6D) Rabbit mAb. Western blot analysis was performed using TAZ (D3I6D) Rabbit mAb. Mouse Anti-rabbit IgG (Conformation Specific) (L27A9) mAb #3678 was used for detection to avoid cross-reactivity with IgG.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 7 Expand Image
    Western blot analysis of extracts from PC-3 cells, and both wild type and Nf2 (-/-) mouse embryonic fibroblasts (MEFs) using Merlin (D3S3W) Rabbit mAb (upper), Ezrin/Radixin/Moesin Antibody #3142 (middle), and β-Actin (D6A8) Rabbit mAb #8457 (lower). (MEF wt and MEF Nf2 (-/-) cells were kindly provided by Dr. Andrea McClatchey and Dr. Andrew Gladden, MGH Cancer Center and Harvard Medical School, Charlestown MA).
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 8 Expand Image
    Western blot analysis of extracts from various cell lines using PTPN14 (D5T6Y) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower).
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 9 Expand Image
    Western blot analysis of extracts from control HeLa cells (Lane 1) or YAP knockout HeLa cells (Lane 2) using YAP (D8H1X) XP® Rabbit mAb (upper) or β-actin (13E5) Rabbit mAb #4970 (lower). The absence of signal in the YAP knockout HeLa cells confirms the specificity of the antibody for YAP.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 10 Expand Image
    Western blot analysis of extracts from various cell lines using FRMD6 (D8X3R) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower).
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 11 Expand Image
    Western blot analysis of extracts from various cell lines using MST1 (D8B9Q) Rabbit mAb.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 12 Expand Image
    Western blot analysis of extracts from various cell lines using Ajuba (D4D8P) Rabbit mAb.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 13 Expand Image
    Western blot analysis of extracts from various cells using TAZ (D3I6D) Rabbit mAb (upper) and GAPDH (D16H11) XP® #5174 (lower). As expected, Raji cells are negative for TAZ.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 14 Expand Image
    After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 15 Expand Image
    Immunoprecipitation of merlin from mouse embryonic fibroblasts (MEF) cell extracts, using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or Merlin (D3S3W) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using Merlin (D3S3W) Rabbit mAb.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 16 Expand Image
    Western blot analysis of extracts from various cell lines using YAP (D8H1X) XP® Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower). As expected, RL cells are negative for YAP protein expression.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 17 Expand Image
    Western blot analysis of extracts from HeLa cells, serum-starved overnight and then vehicle treated (-) or treated with Staurosporine #9953 (1 μM, 4 hr; +), using MST1 (D8B9Q) Rabbit mAb. Staurosporine induces caspase-mediated cleavage of full-length MST1, yielding a 37 kDa amino-terminal fragment detected by this antibody, and an undetected 18 kDa carboxy-terminal fragment.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 18 Expand Image

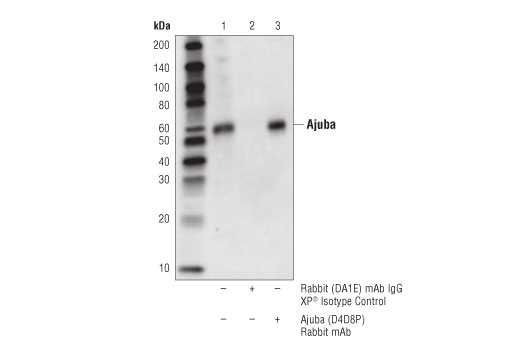

    Immunoprecipitation of Ajuba protein from PANC-1 cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb XP® Isotype Control #3900, and lane 3 is Ajuba (D4D8P) Rabbit mAb. Western blot analysis was performed using Ajuba (D4D8P) Rabbit mAb.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 19 Expand Image

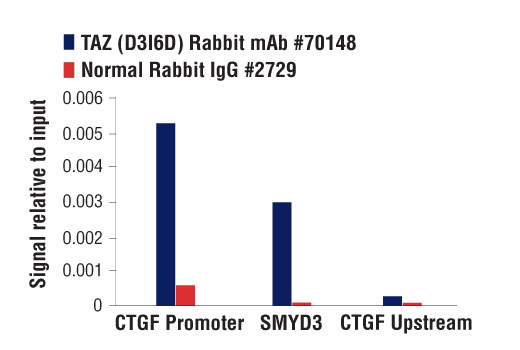

    Chromatin immunoprecipitations were performed with cross-linked chromatin from NCI-H2052 cells and TAZ (D3I6D) Rabbit mAb, using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared using SimpleChIP® ChIP-seq DNA Library Prep Kit for Illumina® #56795. The figure shows binding across SMYD3, a known target gene of TAZ (see additional figure containing ChIP-qPCR data). For additional ChIP-seq tracks, please download the product datasheet.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 20 Expand Image
    Confocal immunofluorescent analysis of PC-3 cells using Merlin (D3S3W) Rabbit mAb (green). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 21 Expand Image
    Immunoprecipitation of YAP protein from A-204 cell extracts using Rabbit (DA1E) mAb XP® Isotype Control #3900 (lane 2) or YAP (D8H1X) XP® Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using YAP (D8H1X) XP® Rabbit mAb. Mouse Anti-rabbit IgG (Conformation Specific) (L27A9) mAb #3678 was used as a secondary antibody.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 22 Expand Image
    Immunoprecipitation of MST1 from Ramos cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or MST1 (D8B9Q) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using MST1 (D8B9Q) Rabbit mAb.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 23 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from NCI-H2052 cells and TAZ (D3I6D) Rabbit mAb, using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared using SimpleChIP® ChIP-seq DNA Library Prep Kit for Illumina® #56795. The figure shows binding across chromosome 1 (upper), including SMYD3 (lower), a known target gene of TAZ (see additional figure containing ChIP-qPCR data).
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 24 Expand Image
    Immunohistochemical analysis of paraffin-embedded human non-Hodgkin lymphoma using YAP (D8H1X) XP® Rabbit mAb performed on the Leica® BOND Rx.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 25 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from NCI-H2052 cells and either TAZ (D3I6D) Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human CTGF Promoter Primers #14927, human SMYD3 intron 2 primers, and SimpleChIP® Human CTGF Upstream Primers #14928. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 26 Expand Image
    Immunohistochemical analysis of paraffin-embedded human endometrioid adenocarcinoma using YAP (D8H1X) XP® Rabbit mAb performed on the Leica® BOND Rx.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 27 Expand Image
    Immunohistochemical analysis of paraffin-embedded human breast adenocarcinoma using YAP (D8H1X) XP® Rabbit mAb.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 28 Expand Image
    Immunohistochemical analysis of paraffin-embedded human breast adenocarcinoma using YAP (D8H1X) XP® Rabbit mAb.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 29 Expand Image
    Immunohistochemical analysis of paraffin-embedded human ovarian serous carcinoma using YAP (D8H1X) XP® Rabbit mAb.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 30 Expand Image
    Immunohistochemical analysis of paraffin-embedded human non-small cell lung carcinoma (left), colon carcinoma case 1 (middle) or colon carcinoma case 2 (right), using YAP (D8H1X) XP® Rabbit mAb (top) or TAZ (E9J5A) XP® Rabbit mAb #72804 (bottom).
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 31 Expand Image
    Immunohistochemical analysis of paraffin-embedded human benign prostatic hyperplasia using YAP (D8H1X) XP® Rabbit mAb.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 32 Expand Image
    Immunohistochemical analysis of paraffin-embedded mouse small intesine using YAP (D8H1X) XP® Rabbit mAb (left) or YAP Antibody (right). These two antibodies detect unique, non-overlapping epitopes on YAP protein. The similar staining patterns obtained with both antibodies help to confirm the specificity of the staining.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 33 Expand Image
    Immunohistochemical analysis of paraffin-embedded BEN cell pellet, untransfected (left, YAP/TAZ low), YAP-transfected (middle) or TAZ-transfected (right), using YAP (D8H1X) XP® Rabbit mAb (top) or TAZ (E9J5A) XP® Rabbit mAb #72804 (bottom).
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 34 Expand Image
    Immunohistochemical analysis of paraffin-embedded 293T cell pellet, wild-type (left, positive) or YAP/TAZ knockout (right, negative), using YAP (D8H1X) XP® Rabbit mAb.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 35 Expand Image
    Immunohistochemical analysis of paraffin-embedded PANC-1 (left) and RL (right) cell pellets using YAP (D8H1X) XP® Rabbit mAb.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 36 Expand Image
    Confocal immunofluorescent analysis of low confluence MCF 10A cells (left), high confluence MCF 10A (center), and YAP negative RL cells (right) using YAP (D8H1X) XP® Rabbit mAb (green). Blue pseudocolor in lower images = DRAQ5® #4084 (fluorescent DNA dye). Increased nuclear localization of YAP protein is seen in low confluence (proliferating) cells.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 37 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from NCI-H2052 cells and YAP (D8H1X) XP® Rabbit mAb, using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across CTGF, a known target gene of YAP (see additional figure containing ChIP-qPCR data).
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 38 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from NCI-H2052 cells and YAP (D8H1X) XP® Rabbit mAb, using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across chromosome 6 (upper), including CTGF (lower), a known target gene of YAP (see additional figure containing ChIP-qPCR data).
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 39 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from NCI-2052 cells and either YAP (D8H1X) XP® Rabbit mAb, or Normal Rabbit IgG #2729, using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human CTGF Promoter Primers #14927, human SMYD3 intron 2 primers, and SimpleChIP® Human CTGF Upstream Primers #14928. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 40 Expand Image

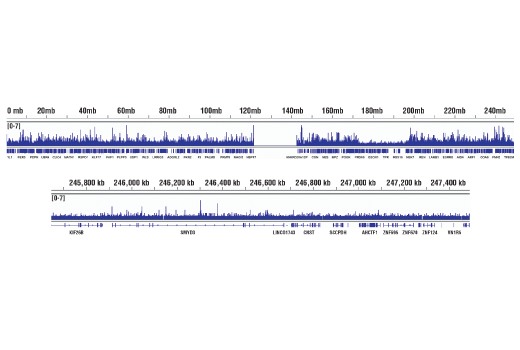

    CUT&RUN was performed with NCI-H2052 cells and YAP (D8H1X) XP® Rabbit mAb, using CUT&RUN Assay Kit #86652. DNA libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figure shows binding around TSPAN2, a known target gene of YAP (see additional figure containing CUT&RUN-qPCR data).
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 41 Expand Image
    CUT&RUN was performed with NCI-H2052 cells and YAP (D8H1X) XP® Rabbit mAb, using CUT&RUN Assay Kit #86652. DNA libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figures show binding across across chromosome 1 (upper), including TSPAN2 (lower), a known target gene of YAP (see additional figure containing CUT&RUN-qPCR data).
    Hippo Pathway: Upstream Signaling Antibody Sampler Kit: Image 42 Expand Image
    CUT&RUN was performed with NCI-H2052 cells and either YAP (D8H1X) XP® Rabbit mAb or Rabbit (DA1E) mAb IgG XP® Isotype Control (CUT&RUN) #66362, using CUT&RUN Assay Kit #86652. The enriched DNA was quantified by real-time PCR using human C1D downstream primers, human TSPAN2 upstream primers, and human ITM2A upstream primers. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
