Revision 1

#25620Store at -20C

1 Kit

(8 x 20 microliters)

Cell Signaling Technology

Orders: 877-616-CELL (2355) [email protected]

Support: 877-678-TECH (8324)

Web: [email protected] cellsignal.com

3 Trask LaneDanversMassachusetts01923USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Product Includes Product # Quantity Mol. Wt Isotype/Source
NLRP3 (D4D8T) Rabbit mAb 15101 20 µl 110 kDa Rabbit IgG
AIM2 (D5X7K) Rabbit mAb 12948 20 µl 40 kDa Rabbit IgG
NLRC4 (D5Y8E) Rabbit mAb 12421 20 µl 110 kDa Rabbit IgG
Caspase-1 (D7F10) Rabbit mAb 3866 20 µl 48, 20 kDa Rabbit IgG
ASC/TMS1 (E1E3I) Rabbit mAb 13833 20 µl 22, 19, 15 kDa Rabbit IgG
Cleaved Caspase-1 (Asp297) (D57A2) Rabbit mAb 4199 20 µl 20, 22 kDa Rabbit IgG
Cleaved-IL-1β (Asp116) (D3A3Z) Rabbit mAb 83186 20 µl 17 kDa Rabbit IgG
IL-1β (D3U3E) Rabbit mAb 12703 20 µl 17, 31 kDa Rabbit IgG
Anti-rabbit IgG, HRP-linked Antibody 7074 100 µl Goat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Human Reactive Inflammasome Antibody Sampler Kit II provides an economical means of detecting multiple inflammasome components. The kit contains enough primary antibodies to perform at least two western blot experiments.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Background

The innate immune system works as the first line of defense in protection from pathogenic microbes and host-derived signals of cellular distress. One way in which these “danger” signals trigger inflammation is through activation of inflammasomes, which are multiprotein complexes that assemble in the cytosol after exposure to pathogen-associated molecular patterns (PAMPs) or danger-associated molecular patterns (DAMPs) and result in the activation of caspase-1 and subsequent cleavage of proinflammatory cytokines IL-1β and IL-18 (Reviewed in 1-6). Inflammasome complexes typically consist of a cytosolic pattern recognition receptor (PRR; a nucleotide-binding domain and leucine-rich-repeat [NLR] or AIM2-like receptor [ALR] family member), an adaptor protein (ASC/TMS1), and pro-caspase-1. A number of distinct inflammasome complexes have been identified, each with a unique PRR and activation triggers. The best characterized is the NLRP3 complex, which contains NLRP3, ASC/TMS1, and pro-caspase-1. The NLRP3 inflammasome is activated in a two-step process. First, NF-κB signaling is induced through PAMP- or DAMP-mediated activation of TLR4 or TNFR, resulting in increased expression of NLRP3, pro-IL-1β, and pro-IL-18 (priming step, signal 1). Next, indirect activation of NLRP3 occurs by a multitude of signals (whole pathogens, PAMPs/DAMPs, potassium efflux, lysosomal-damaging environmental factors [uric acid, silica, alum] and endogenous factors [amyloid-β, cholesterol crystals], and mitochondrial damage), leading to complex assembly and activation of caspase-1 (signal 2). The complex inflammasome structure is built via domain interactions among the protein components. Other inflammasomes are activated by more direct means: double-stranded DNA activates the AIM2 complex, anthrax toxin activates NLRP1, and bacterial flagellin activates NLRC4. Activated caspase-1 induces secretion of proinflammatory cytokines IL-1β and -18, but also regulates metabolic enzyme expression, phagosome maturation, vasodilation, and pyroptosis, an inflammatory programmed cell death. Inflammasome signaling contributes to the onset of a number of diseases, including atherosclerosis, type II diabetes, Alzheimer’s disease, and autoimmune disorders.

  1. Broz, P. and Dixit, V.M. (2016) Nat Rev Immunol 16, 407-20.
  2. Guo, H. et al. (2015) Nat Med 21, 677-87.
  3. Jo, E.K. et al. (2016) Cell Mol Immunol 13, 148-59.
  4. Rathinam, V.A. and Fitzgerald, K.A. (2016) Cell 165, 792-800.
  5. Shao, B.Z. et al. (2015) Front Pharmacol 6, 262.
  6. Schroder, K. and Tschopp, J. (2010) Cell 140, 821-32.

Background References

    Trademarks and Patents

    Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
    All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

    Limited Uses

    Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

    Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

    Revision 1
    #25620

    Human Reactive Inflammasome Antibody Sampler Kit II

    Human Reactive Inflammasome Antibody Sampler Kit II: Image 1 Expand Image
    Simple Western™ analysis of lysates (0.1 mg/mL) from THP-1 cells treated with TPA (80nM, O/N) + LPS (1 µg/ml 15min) using IL-1β (D3U3E) Rabbit mAb #12703. The virtual lane view (left) shows the target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 2 Expand Image
    Simple Western️ analysis of lysates (1mg/mL) from THP-1 cells using ASC/TMS1 (E1E3I) Rabbit mAb #13833. The virtual lane view (left) shows the target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess️ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12 – 230 kDa separation module.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 3 Expand Image
    Simple Western™ analysis of lysates (0.1 mg/mL) from THP-1 cells using NLRP3 (D4D8T) Rabbit mAb #15101. The virtual lane view (left) shows the target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 4 Expand Image
    Western blot analysis of extracts from THP-1 and MUTZ-3 cells using NLRC4 (D5Y8E) Rabbit mAb.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 5 Expand Image
    Western blot analysis of extracts from THP-1 cells, untreated (-) or LPS-treated (100 ng/ml, 3 hr; +), using IL-1β (D3U3E) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower).
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 6 Expand Image
    Western blot analysis of extracts from Daudi, KARPAS-299, and L-540 cell lines using AIM2 (D5X7K) Rabbit mAb.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 7 Expand Image
    Western blot analysis of extracts from various cell lines using ASC/TMS1 (E1E3I) Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower). As expected, Jurkat cells do not express ASC/TMS1.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 8 Expand Image
    Western blot analysis of extracts from mouse bone marrow-derived dendritic cells (BMDC) and various cell lines using NLRP3 (D4D8T) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower).
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 9 Expand Image
    Western blot analysis of extracts from THP-1 and NK-92 cells using Caspase-1 (D7F10) Rabbit mAb.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 10 Expand Image
    Western blot analysis of extracts from COS-7 cells, untransfected (-) or transfected with construct overexpressing human caspase-1 (+), using Cleaved Caspase-1 (Asp297) (D57A2) Rabbit mAb (upper) or Caspase-1 (D7F10) Rabbit mAb #3866 (lower).
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 11 Expand Image
    After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 12 Expand Image
    Western blot analysis of recombinant Human Interleukin-1β (hIL-1β) #8900 using Cleaved-IL-1β (Asp116) (D3A3Z) Rabbit mAb.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 13 Expand Image

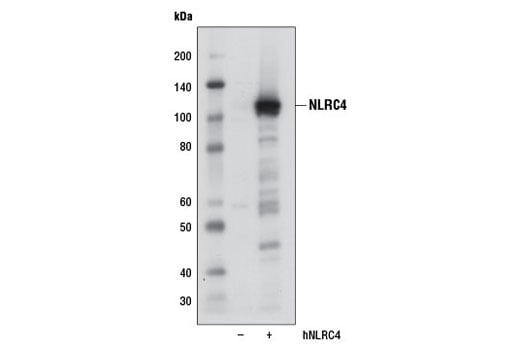

    Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with a construct expressing full-length human NLRC4 (hNLRC4; +), using NLRC4 (D5Y8E) Rabbit mAb.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 14 Expand Image
    Western blot analysis of recombinant Human Interleukin-1β (hIL-1β) #8900 using IL-1β (D3U3E) Rabbit mAb.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 15 Expand Image

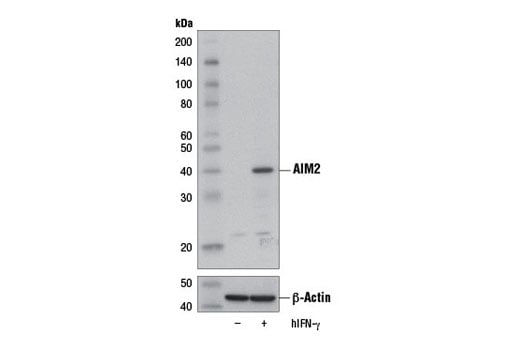

    Western blot analysis of extracts from HL-60 cells, serum-starved and either untreated (-) or treated overnight with Human Interferon-γ (hIFN-γ) #8901 (100 ng/ml; +), using AIM2 (D5X7K) Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower).
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 16 Expand Image

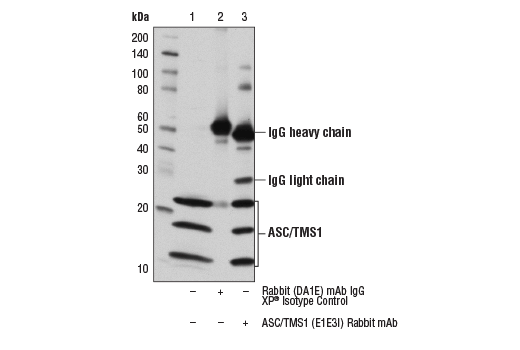

    Immunoprecipitation of ASC/TMS1 from THP-1 cell extracts using Rabbit (D1AE) mAb XP® Isotype Control #3900 (lane 2) or ASC/TMS1 (E1E3I) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot was performed using ASC/TMS1 (E1E3I) Rabbit mAb.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 17 Expand Image
    Immunoprecipitation of NLRP3 from J774A.1 cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or NLRP3 (D4D8T) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using NLRP3 (D4D8T) Rabbit mAb.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 18 Expand Image
    Western blot analysis of extracts from COS cells, untransfected or transfected with human caspase-1, using Caspase-1 (D7F10) Rabbit mAb.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 19 Expand Image
    Western blot analysis of extracts from the media of THP-1 cells, differentiated with TPA #9905 (80 nM, overnight) followed by treatment with LPS (1 ug/ml, 8 hours), using Cleaved Caspase-1 (Asp297) (D57A2) Rabbit mAb.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 20 Expand Image
    Western blot analysis of extracts from cells or media collected from THP-1 cells, differentiated with TPA #4147 (80 nM, overnight) and subsequently treated with (+) or without (-) Lipopolysaccharides (LPS) #14011 (1 μg/ml, 6 hr), using Cleaved-IL-1β (Asp116) (D3A3Z) Rabbit mAb.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 21 Expand Image

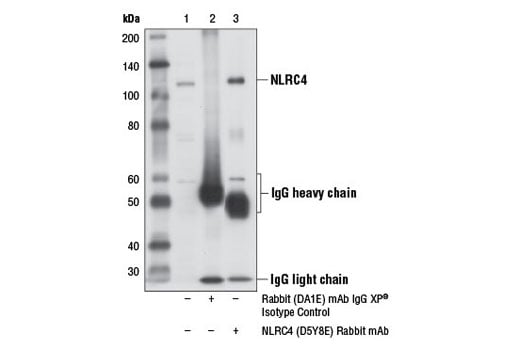

    Immunoprecipitation of NLRC4 from MUTZ-3 cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or NLRC4 (D5Y8E) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using NLRC4 (D5Y8E) Rabbit mAb.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 22 Expand Image
    Confocal immunofluorescent analysis of THP-1 cells, untreated (left) or LPS-treated (500 ng/ml, 2 hr; right), using IL-1β (D3U3E) Rabbit mAb (green). Actin filaments were labeled with DY-554 phalloidin (red).
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 23 Expand Image

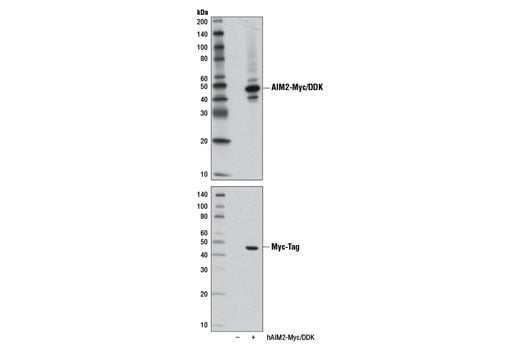

    Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with a construct expressing Myc-DDK tagged human AIM2 (hAIM2-Myc/DDK; +), using AIM2 (D5X7K) Rabbit mAb (upper) and Myc-Tag (71D10) Rabbit mAb #2278 (lower).
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 24 Expand Image
    Immunohistochemical analysis of paraffin-embedded human ductal breast carcinoma using ASC/TMS1 (E1E3I) Rabbit mAb.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 25 Expand Image
    Flow cytometric analysis of THP-1, untreated (blue, negative) or treated with LPS #14011 (100 ng/ml, 3 hr; green, positive) using IL-1β (D3U3E) Rabbit mAb (solid lines) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')₂ Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 26 Expand Image

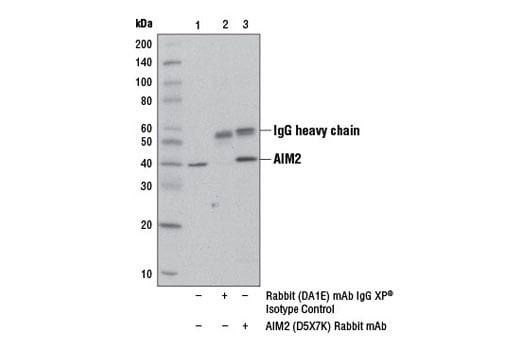

    Immunoprecipitation of AIM2 from HL-60 cell extracts treated with Human Interferon-γ (hIFN-γ) #8901 (100 ng/ml, overnight) using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or AIM2 (D5X7K) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot was performed using AIM2 (D5X7K) Rabbit mAb.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 27 Expand Image
    Immunohistochemical analysis of paraffin-embedded THP-1 cell pellet (left, positive) or Jurkat cell pellet (right, negative) using ASC/TMS1 (E1E3I) Rabbit mAb.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 28 Expand Image
    Confocal immunofluorescent analysis of THP-1 cells, differentiated with TPA #4174 (80 nM, 24 hr) and subsequently treated with (right) or without (left) Lipopolysaccharides (LPS) #14011 (1 μg/ml, 6 hr), using Cleaved-IL-1β (Asp116) (D3A3Z) Rabbit mAb (green). Actin filaments were labeled with DyLight 554 Phalloidin #13054 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 29 Expand Image
    Immunohistochemical analysis of paraffin-embedded human colon carcinoma using ASC/TMS1 (E1E3I) Rabbit mAb (left) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (right).
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 30 Expand Image
    Immunohistochemical analysis of paraffin-embedded human renal cell carcinoma using ASC/TMS1 (E1E3I) Rabbit mAb.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 31 Expand Image
    Immunohistochemical analysis of paraffin-embedded human T-cell lymphoma using ASC/TMS1 (E1E3I) Rabbit mAb.
    Human Reactive Inflammasome Antibody Sampler Kit II: Image 32 Expand Image
    Immunohistochemical analysis of paraffin-embedded human spleen using ASC/TMS1 (E1E3I) Rabbit mAb.
