Revision 1

#43698Store at -20C

1 Kit

(6 x 20 microliters)

Cell Signaling Technology

Orders: 877-616-CELL (2355) [email protected]

Support: 877-678-TECH (8324)

Web: [email protected] cellsignal.com

3 Trask LaneDanversMassachusetts01923USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Product Includes Product # Quantity Mol. Wt Isotype/Source
MED1 Antibody 51613 20 µl 220 kDa Rabbit
MED12 (D9K5J) Rabbit mAb 14360 20 µl 240 kDa Rabbit IgG
MED26 (D4B1X) Rabbit mAb 14950 20 µl 70 kDa Rabbit IgG
CDK8 (D6M3J) Rabbit mAb 17395 20 µl 53 kDa Rabbit IgG
Cyclin C (E6V4Z) Rabbit mAb 68179 20 µl 30 kDa Rabbit IgG
Rpb1 NTD (D8L4Y) Rabbit mAb 14958 20 µl 250 kDa Rabbit IgG
Anti-rabbit IgG, HRP-linked Antibody 7074 100 µl Goat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Mediator Complex Antibody Sampler Kit provides an economical means of evaluating total levels of Mediator Complex proteins. The kit includes enough antibodies to perform two western blot experiments with each primary antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibodies.

Background

The mammalian Mediator complex is a multi-subunit protein complex that acts to relay signals from transcription factors to RNA polymerase II (Pol II) and the basal transcription machinery. In other words, Mediator acts as a centralized hub or integrator for transcriptional regulation (reviewed in 1,2). Multiple studies have shown that Mediator functions include epigenetic regulation, transcriptional elongation, transcription termination, mRNA processing, non-coding RNA activation, and super-enhancer formation. Through these functions, Mediator contributes to the regulation of many biological processes, including insulin signaling (3), NF-κB-dependent signaling (4), stem cell pluripotency and self-renewal (5,6), and proliferation of colon cancer cells (7,8). The Mediator complex consists of 31 protein subunits and can be divided into four distinct modules: the head, middle, tail, and CDK8 kinase module. The CDK8 kinase module contains the CDK8, cyclin C, MED12, and MED13 subunits and is thought to act as a molecular switch, phosphorylating the C-terminal domain (CTD) of Rpb1, the large subunit of Pol II, to inhibit Pol II recruitment and transcription initiation (9,10).

  1. Malik, S. and Roeder, R.G. (2005) Trends Biochem Sci 30, 256-63.
  2. Soutourina, J. (2018) Nat Rev Mol Cell Biol 19, 262-274.
  3. Wang, W. et al. (2009) Dev Cell 16, 764-71.
  4. van Essen, D. et al. (2009) PLoS Biol 7, e73.
  5. Tutter, A.V. et al. (2009) J Biol Chem 284, 3709-18.
  6. Varelas, X. et al. (2008) Nat Cell Biol 10, 837-48.
  7. Firestein, R. et al. (2008) Nature 455, 547-51.
  8. Morris, E.J. et al. (2008) Nature 455, 552-6.
  9. Knuesel, M.T. et al. (2009) Mol Cell Biol 29, 650-61.
  10. Knuesel, M.T. et al. (2009) Genes Dev 23, 439-51.

Background References

    Trademarks and Patents

    Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
    All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

    Limited Uses

    Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

    Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

    Revision 1
    #43698

    Mediator Complex Antibody Sampler Kit

    Mediator Complex Antibody Sampler Kit: Image 1 Expand Image
    Western blot analysis of extracts from various cell lines using MED12 (D9K5J) Rabbit mAb.
    Mediator Complex Antibody Sampler Kit: Image 2 Expand Image
    Western blot analysis of extracts from Raji, HeLa, and Daudi cells using MED26 (D4B1X) Rabbit mAb.
    Mediator Complex Antibody Sampler Kit: Image 3 Expand Image
    Western blot analysis of extracts from HeLa, KNRK, and COS-7 cells using Rpb1 NTD (D8L4Y) Rabbit mAb.
    Mediator Complex Antibody Sampler Kit: Image 4 Expand Image
    Western blot analysis of extracts from HeLa, Raw 264.7, and COS-7 cell lines using CDK8 (D6M3J) Rabbit mAb.
    Mediator Complex Antibody Sampler Kit: Image 5 Expand Image
    Western blot analysis of extracts from various cell lines using MED1 Antibody.
    Mediator Complex Antibody Sampler Kit: Image 6 Expand Image
    Western blot analysis of extracts from various cell lines using Cyclin C (E6V4Z) Rabbit mAb.
    Mediator Complex Antibody Sampler Kit: Image 7 Expand Image
    Confocal immunofluorescent analysis of control HCT 116 cells (left) or CRISPR/Cas9 Cyclin C knockout (KO) HCT 116 cells (right) using Cyclin C (E6V4Z) Rabbit mAb #68179 (green), DyLight 650 Phalloidin #12956 (red), and DAPI #4083 (blue).
    Mediator Complex Antibody Sampler Kit: Image 8 Expand Image
    After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
    Mediator Complex Antibody Sampler Kit: Image 9 Expand Image

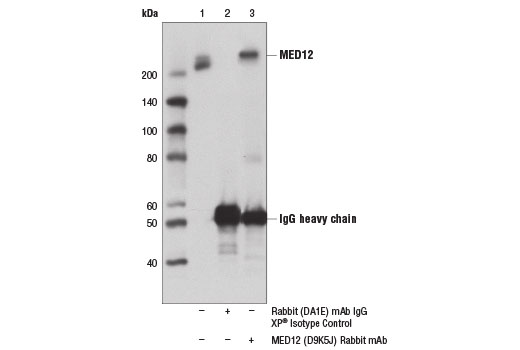

    Immunoprecipitation of MED12 from Jurkat cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or MED12 (D9K5J) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using MED12 (D9K5J) Rabbit mAb.
    Mediator Complex Antibody Sampler Kit: Image 10 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from Hela cells and Rpb1 NTD (D8L4Y) Rabbit mAb, using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. DNA Libraries were prepared using DNA Library Prep Kit for Illumina Systems (ChIP-seq, CUT&RUN) #56795. The figure shows binding across the ZNF740 gene on chromosome 12. For additional ChIP-seq tracks, please download the product datasheet.
    Mediator Complex Antibody Sampler Kit: Image 11 Expand Image
    Immunoprecipitation of CDK8 from HeLa cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb XP® Isotype Control #3900, and lane 3 is CDK8 (D6M3J) Rabbit mAb. Western blot analysis was performed using CDK8 (D6M3J) Rabbit mAb.

    Mouse Anti-rabbit IgG (Conformation Specific) (L27A9) mAb (HRP Conjugate) #5127 was used as a secondary antibody.

    Mediator Complex Antibody Sampler Kit: Image 12 Expand Image
    Immunoprecipitation of MED1 from HeLa cell extracts. Lane 1 is 10% input, lane 2 is Normal Rabbit IgG #2729, and lane 3 is MED1 Antibody. Western blot analysis was performed using MED1 Antibody.
    Mediator Complex Antibody Sampler Kit: Image 13 Expand Image

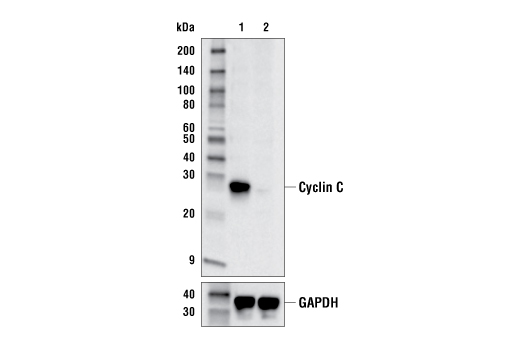

    Western blot analysis of extracts from control HCT 116 cells (lane 1) or cyclin C knockdown HCT 116 cells (lane 2) using Cyclin C (E6V4Z) Rabbit mAb (upper) or GAPDH (D16H11) XP® Rabbit mAb #5174 (lower). The reduction in signal in the cyclin C knockdown HCT 116 cells confirms specificity of the antibody for cyclin C.
    Mediator Complex Antibody Sampler Kit: Image 14 Expand Image

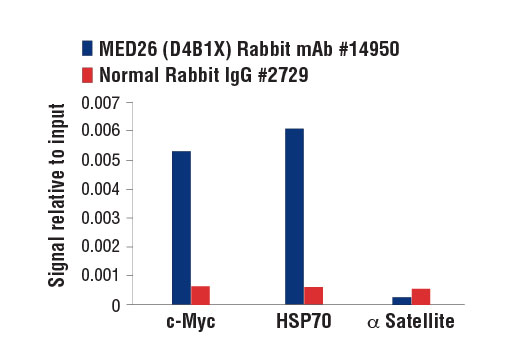

    Chromatin immunoprecipitations were performed with cross-linked chromatin from HeLa cells heat shocked for 1 hr and either MED26 (D4B1X) Rabbit mAb or of Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human c-Myc Intron 1 Primers #14905, SimpleChIP® Human HSP70 Intron 1 Primers #14023, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
    Mediator Complex Antibody Sampler Kit: Image 15 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from Hela cells and Rpb1 NTD (D8L4Y) Rabbit mAb, using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. DNA Libraries were prepared using DNA Library Prep Kit for Illumina Systems (ChIP-seq, CUT&RUN) #56795. The figure shows binding across chromosome 7 (upper), including ACTB (medium), a known target gene of Rpb1-NTD (see additional figure containing ChIP-qPCR data), and ZNF740 gene on chromosome 12 (lower).
    Mediator Complex Antibody Sampler Kit: Image 16 Expand Image
    Immunoprecipitation of cyclin C protein from HCT 116 cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is Cyclin C (E6V4Z) Rabbit mAb. Western blot analysis was performed using Cyclin C (E6V4Z) Rabbit mAb. Anti-rabbit IgG, HRP-linked Antibody #7074 was used as the secondary antibody.
    Mediator Complex Antibody Sampler Kit: Image 17 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from HeLa cells and either Rpb1 NTD (D8L4Y) Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human GAPDH Exon 1 Primers #5516, SimpleChIP® Human γ-Actin Promoter Primers #5037, SimpleChIP® Human AFM1 Intron 1 Primers #5098, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
    Mediator Complex Antibody Sampler Kit: Image 18 Expand Image

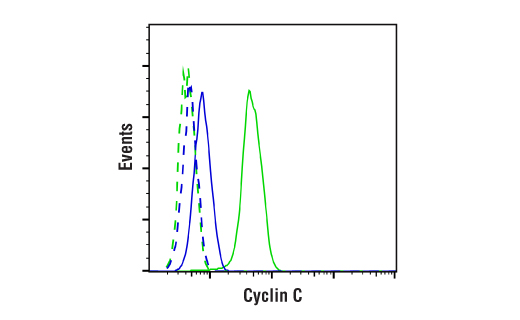

    Flow cytometric analysis of HCT 116 cells, either wild-type (green) or cyclin C knockdown (blue), using Cyclin C (E6V4Z) Rabbit mAb (solid lines) or a concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
