Revision 1

#3019

Store at -20C

Met Signaling Antibody Sampler Kit

1 Kit

(6 x 20 microliters)

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Mol. Wt Isotype/Source
Phospho-Gab1 (Tyr307) Antibody323420 µl115 kDaRabbit
Gab1 Antibody323220 µl110 kDaRabbit
Phospho-Met (Tyr1003) (13D11) Rabbit Monoclonal Antibody313520 µl145 kDaRabbit IgG
Phospho-Met (Tyr1234/1235) (D26) Rabbit Monoclonal Antibody307720 µl145 kDaRabbit
Phospho-Met (Tyr1349) (130H2) Rabbit Monoclonal Antibody313320 µl145 kDaRabbit
Met (D1C2) Rabbit Monoclonal Antibody819820 µl140, 170 kDaRabbit IgG
Anti-rabbit IgG, HRP-linked Antibody7074100 µlGoat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Met Signaling Antibody Sampler Kit provides an economical means to investigate Met signaling. The kit contains primary and secondary antibodies to perform two western blots with each antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Background

Met, a high affinity tyrosine kinase receptor for hepatocyte growth factor (HGF, also known as scatter factor), is a disulfide-linked heterodimer made of 45 kDa α- and 145 kDa β-subunits (1,2). The α-subunit and the amino-terminal region of the β-subunit form the extracellular domain. The remainder of the β-chain spans the plasma membrane and contains a cytoplasmic region with tyrosine kinase activity. Interaction of Met with HGF results in autophosphorylation at multiple tyrosines, which recruit several downstream signaling components, including Gab1, c-Cbl and PI3 kinase (3). These fundamental events are important for all of the biological functions involving Met kinase activity. Addition of a phosphate at cytoplasmic Tyr1003 is essential for ubiquitination and Met protein degradation (4). Phosphorylation of Tyr1234/1235 in the Met kinase domain is critical to kinase activation. Phosphorylation of Tyr1349 in the Met cytoplasmic domain provides a direct binding site for Gab1 (5). Altered Met levels and/or tyrosine kinase activities are found in several types of tumors, including renal, colon and breast cancers. Thus, Met is an attractive cancer therapeutic and diagnostic target (6).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of cell extracts from HeLa cells, untreated or stimulated with HGF, using Phospho-Met (Tyr1234/1235) (D26) XP® Rabbit mAb (upper) and Met (25H2) Mouse mAb #3127 (lower).
undefined Image 1: Met Signaling Antibody Sampler Kit
Western blot analysis of cell lysates of H4IIE cells untreated or treated with HGF, using Phospho-Met (Tyr1349) (130H2) Rabbit mAb (upper), or Met (25H2) Mouse mAb #3127 (lower).
undefined Image 2: Met Signaling Antibody Sampler Kit
Western blot analysis of extracts from A431 cells, untreated or HGF-treated using Phospho-Met (Tyr1003) (13D11) Rabbit mAb (upper and middle) and Met (25H2) Mouse mAb #3127 (lower). The middle blot was treated with CIP phosphatase before antibody probing.
undefined Image 3: Met Signaling Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from HEK293, 3T3-L1, C6 and COS cells, using Gab1 Antibody.
undefined Image 4: Met Signaling Antibody Sampler Kit
Western blot analysis of extracts from HEK293 cells, untreated or treated with In1B for indicated times, using Phospho-Gab1 (Tyr307) Antibody (upper) or Gab1 Antibody #3232 (lower).
undefined Image 5: Met Signaling Antibody Sampler Kit
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
undefined Image 6: Met Signaling Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from HT-29 (Met+), SK-BR-3 (Met-), and T-47D (Met-) cells using Met (D1C2) XP® Rabbit mAb (upper) or β-Actin Antibody #4967 (lower).
undefined Image 7: Met Signaling Antibody Sampler Kit

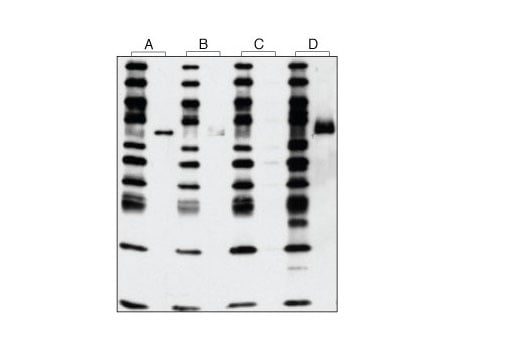

Western blot analysis of purified active Ron kinase using a Phospho-Ron (Ser1394) Antibody (A), a Phospho-Ron (Tyr1238/1239) Antibody (B), Phospho-Met (Tyr1234/1235) (D26) XP® Rabbit mAb (C) and Phospho-Tyrosine Mouse mAb (P-Tyr-100) #9411 (D). This demonstrates that Phospho-Met (Tyr1234/1235) (D26) XP® Rabbit mAb does not cross-react with phospho-Ron by western analysis.
undefined Image 8: Met Signaling Antibody Sampler Kit

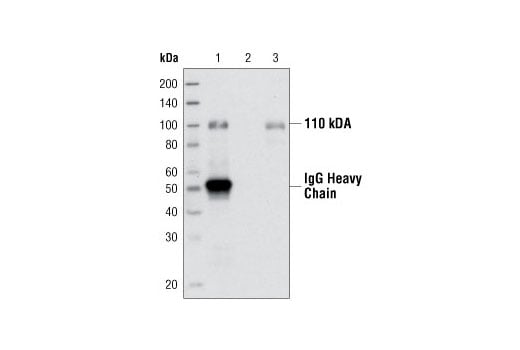

Immunoprecipitation of Gab 1 from insulin treated Cos cell extracts using Gab 1 antibody (Lane 1). Lane 2: No antibody control. Lane 3: Input control.
undefined Image 9: Met Signaling Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

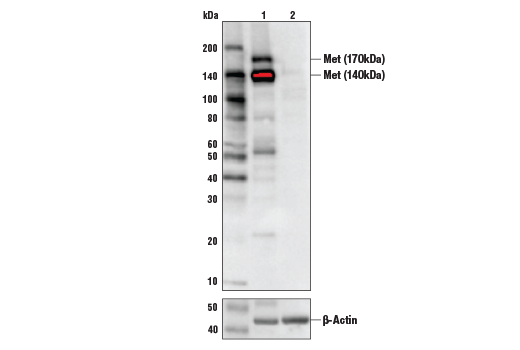

Western blot analysis of extracts from control HeLa cells (lane 1) or Met knockout HeLa cells (lane 2) using Met (D1C2) XP® Rabbit mAb #8198. The absence of signal in the Met knockout HeLa cells confirms specificity of the antibody for Met.
undefined Image 10: Met Signaling Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human lung carcinoma, untreated (left) or λ phosphatase-treated (right), using Phospho-Met (Tyr1234/1235) (D26) XP® Rabbit mAb.
undefined Image 11: Met Signaling Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human colon adenocarcinoma using Met (D1C2) XP® Rabbit mAb performed on the Leica® Bond™ Rx.
undefined Image 12: Met Signaling Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded xenografts from 3T3-Met (left) and 3T3-Ron cells (right) using Phospho-Met (Tyr1234/1235) (D26) XP® Rabbit mAb, indicating that this antibody does not cross-react with activated Ron by immunohistochemistry. Image courtesy of Pfizer, Inc.
undefined Image 13: Met Signaling Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human non-small cell lung carcinoma using Met (D1C2) XP® Rabbit mAb performed on the Leica® Bond™ Rx.
undefined Image 14: Met Signaling Antibody Sampler Kit
Immunohistochemical analysis on Src-transfected NIH/3T3 cells, using a Phospho-Src Family (Tyr416) Antibody (left) or Phospho-Met (Tyr1234/1235) (D26) XP® Rabbit mAb (right), indicating that the antibody does not cross-react with Src phosphorylated at Tyr416 via immunohistochemistry.
undefined Image 15: Met Signaling Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

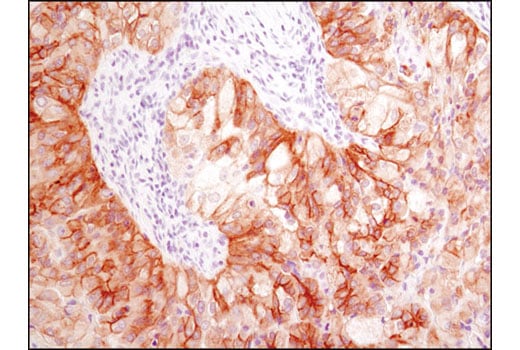

Immunohistochemical analysis of paraffin-embedded human metastatic lung carcinoma using Met (D1C2) XP® Rabbit mAb.
undefined Image 16: Met Signaling Antibody Sampler Kit
Immunohisochemical analysis of paraffin-embedded HCC827 xenograft using Phospho-Met (Tyr1234/1235) (D26) XP® Rabbit mAb.
undefined Image 17: Met Signaling Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human hepatocellular carcinoma using Met (D1C2) XP® Rabbit mAb.
undefined Image 18: Met Signaling Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis using Phospho-Met (Tyr1234/1235) (D26) XP® Rabbit mAb on SignalSlide™ Phospho-Met (1234/1235) IHC Controls #8118 [MKN45 cells, untreated (left) or SU11274-treated (right)].
undefined Image 19: Met Signaling Antibody Sampler Kit

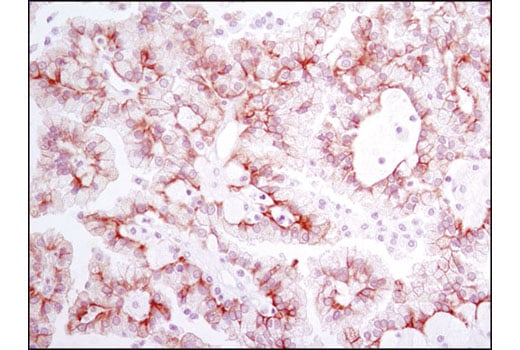

Immunohistochemical analysis of paraffin-embedded human papillary renal cell carcinoma using Met (D1C2) XP® Rabbit mAb.
undefined Image 20: Met Signaling Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded papillary renal cell carcinoma using Phospho-Met (Tyr1234/1225) (D26) XP® Rabbit mAb.
undefined Image 21: Met Signaling Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded cell pellets, MKN-45 (left) and T-47D (right), using Met (D1C2) XP® Rabbit mAb.
undefined Image 22: Met Signaling Antibody Sampler Kit
Confocal immunofluorescence analysis of MKN45 cells, untreated (left) or treated with SU11274 (1 μM, 3 hours; right), using Phospho-MET (Tyr1234/Tyr1235) (D26) XP® Rabbit mAb. Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 23: Met Signaling Antibody Sampler Kit
Confocal immunofluorescent analysis of HT-29 and T-47D cells using Met (D1C2) XP® Rabbit mAb (green). Actin filaments were labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 24: Met Signaling Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

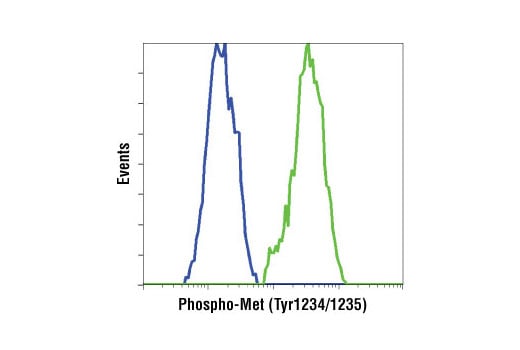

Flow cytometric analysis of MKN-45 cells, untreated (green) or treated with SU11274 (blue).
undefined Image 25: Met Signaling Antibody Sampler Kit

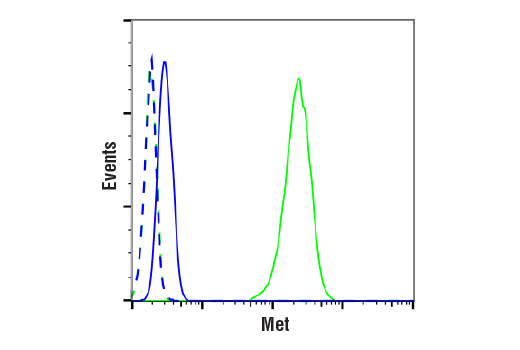

Flow cytometric analysis of fixed and permeabilized Ramos cells (blue, negative) and MKN-45 cells (green, positive) using Met (D1C2) XP® Rabbit mAb (solid lines) or a concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 26: Met Signaling Antibody Sampler Kit
Simple Western™ analysis of lysates (0.1 mg/mL) from HT-29 untreated cells using Met (D1C2) XP® Rabbit mAb #8198 lane view (left) shows a single target band (as indicated) at 1:50 and 1:250 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:50 (blue line) and 1:250 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
undefined Image 27: Met Signaling Antibody Sampler Kit
