Revision 4

#4750

Store at -20C

PAK 1/2/3 Antibody Sampler Kit

1 Kit

(8 x 20 microliters)

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Mol. Wt Isotype/Source
Phospho-PAK1 (Ser144)/PAK2 (Ser141) Antibody260620 µl61 to 67 (PAK2), 68 to 74 (PAK1/3) kDaRabbit
Phospho-PAK1 (Ser199/204)/PAK2 (Ser192/197) Antibody260520 µl61 to 67 (PAK2), 68 to 74 (PAK1/3) kDaRabbit
Phospho-PAK1 (Thr423)/PAK2 (Thr402) Antibody260120 µl61 to 67 (PAK2), 68 to 74 (PAK1/3) kDaRabbit
Phospho-PAK2 (Ser20) Antibody260720 µl61 to 67 kDaRabbit
PAK1 Antibody260220 µl68 kDaRabbit
PAK2 Antibody260820 µl61 kDaRabbit
PAK3 Antibody260920 µl65 kDaRabbit
PAK1/2/3 Antibody260420 µl61 (PAK2), 68 (PAK1/3) kDaRabbit
Anti-rabbit IgG, HRP-linked Antibody7074100 µlGoat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The PAK antibody sampler kit provides and economical means to evaluate the activation status of PAK1, 2, and 3. This kit includes enough primary and secondary antibodies to perform two western blots with each antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA and 50% glycerol. Store at –20°C. Do not aliquot the antibody.

Background

The p21-activated kinase (PAK) family of serine/threonine kinases is engaged in multiple cellular processes, including cytoskeletal reorganization, MAPK signaling, apoptotic signaling, control of phagocyte NADPH oxidase and growth factor-induced neurite outgrowth (1,2). Several mechanisms that induce PAK activity have been reported. Binding of Rac/cdc42 to the CRIB (or PBD) domain near the amino terminus of PAK causes autophosphorylation and conformational changes in PAK (1). Phosphorylation of PAK1 at Thr423 by PDK induces activation of PAK1 (3). Several autophosphorylation sites have been identified, including serines 199 and 204 of PAK1 and serines 192 and 197 of PAK2 (4,5). Because the autophosphorylation sites are located in the amino-terminal inhibitory domain, it has been hypothesized that modification in this region prevents the kinase from reverting to an inactive conformation (6). Research indicates that phosphorylation of Ser144 of PAK1 or Ser139 of PAK3 (located in the kinase inhibitory domain) affects kinase activity (7). Phosphorylation of Ser21 of PAK1 or Ser20 of PAK2 regulates binding with the adaptor protein Nck (8).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 4

Cell Signaling Technology Logo
Western blot analysis of extracts from guinea pig neutrophils stimulated with 1 µM fMLP for indicated times, using Phospho-PAK1 (Thr423)/PAK2 (Thr402) Antibody (Provided by Drs. Qian Zhan and John Badwey, Dept. of Biological Chemistry and Molecular Pharmacology, Harvard Medical School, Massachusetts.)
undefined Image 1: PAK 1/2/3 Antibody Sampler Kit
Western blot analysis of extracts from SH-SY5Y, C6 and NIH/3T3 cells, using PAK1 Antibody.
undefined Image 2: PAK 1/2/3 Antibody Sampler Kit
Western blot analysis of extracts from SH-SY5Y, C6 and NIH/3T3 cells, using PAK1/2/3 Antibody.
undefined Image 3: PAK 1/2/3 Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 4

Cell Signaling Technology Logo
Western blot analysis of extracts from guinea pig neutrophils stimulated with fMLP (1 µM ) for the indicated times, using Phospho-PAK1 (Ser199/204)/PAK2 (Ser192/197) Antibody.
undefined Image 4: PAK 1/2/3 Antibody Sampler Kit
Western blot analysis of extracts from COS cells cotransfected with activated cdc42 and GST-PAK2 (lane 1), transfected with GST-PAK2 alone (lane 2) or activated cdc42 alone (lane 3), using Phospho-PAK1 (Ser144)/PAK2 (Ser141) Antibody (upper) or PAK1/2/3 Antibody #2604 (lower). This antibody detects GST-PAK2 signal only when it is cotransfected with activated cdc42, indicating that this antibody is phospho-specific.
undefined Image 5: PAK 1/2/3 Antibody Sampler Kit
Western blot analysis of extracts from guinea pig neutrophils stimulated with fMLP for the indicated times, using Phospho-PAK2 (Ser20) Antibody (upper) or PAK1/2/3 Antibody #2604 (lower).
undefined Image 6: PAK 1/2/3 Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 4

Cell Signaling Technology Logo
Western blot analysis of extracts from HeLa, NIH/3T3, C6, COS, guinea pig neutrophils (GPN) and HEK293 cells, using PAK2 Antibody.
undefined Image 7: PAK 1/2/3 Antibody Sampler Kit
Western blot analysis of mouse brain extract and recombinant GST-PAK3, using PAK3 Antibody.
undefined Image 8: PAK 1/2/3 Antibody Sampler Kit
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
undefined Image 9: PAK 1/2/3 Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 4

Cell Signaling Technology Logo

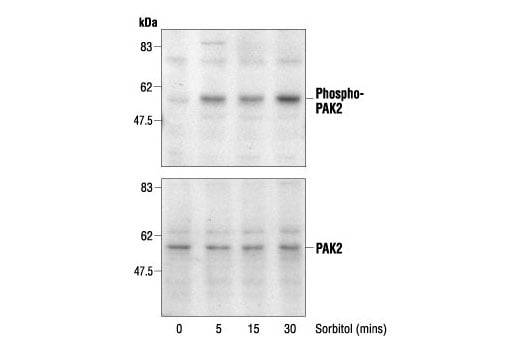

Western blot analysis of extracts from HeLa cells treated with 0.4 M sorbitol for indicted times, using Phospho-PAK1 (Thr423)/PAK2 (Thr402) Antibody (upper) or PAK2 antibody (lower).
undefined Image 10: PAK 1/2/3 Antibody Sampler Kit
Western blot analysis of extracts from HeLa cells transfected with 100 nM control siRNA #6201 (-) or PAK1 siRNA, using PAK1 Antibody #2602 and p42 MAP Kinase (Erk2) Antibody #9108. The PAK1 Antibody confirms silencing of PAK1 expression, and p42 MAP Kinase (Erk2) Antibody is used to control for loading and specificity of PAK1 siRNA.
undefined Image 11: PAK 1/2/3 Antibody Sampler Kit
Western blot analysis of extracts from guinea pig neutrophils stimulated with fMLP for indicated times, using Phospho-PAK1 (Ser144)/PAK2 (Ser141) Antibody (upper) and PAK1/2/3 Antibody #2604 (lower).
undefined Image 12: PAK 1/2/3 Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 4

Cell Signaling Technology Logo
Immunoprecipitation of PAK3 from mouse brain extract, using PAK3 Antibody, followed by Western blot analysis using PAK3 Antibody (left), PAK1 Antibody #2602 (middle) or PAK2 Antibody #2608 (right).
undefined Image 13: PAK 1/2/3 Antibody Sampler Kit
Immunoprecipitation of PAK1 from C6 and SH-SY5Y cells followed by Western blot analysis, using PAK1 Antibody.
undefined Image 14: PAK 1/2/3 Antibody Sampler Kit
