Applications:

WB, IF-IC, FC-FP

REACTIVITY:

H

SENSITIVITY:

Endogenous

MW (kDa):

81

Source/Isotype:

Rabbit IgG

UniProt ID:

#Q14765

Entrez-Gene Id:

6775

Product Information

Product Usage Information

This product is the carrier free version of product #4134. All data were generated using the same antibody clone in the standard formulation which contains BSA and glycerol.

This formulation is ideal for use with technologies requiring specialized or custom antibody labeling, including fluorophores, metals, lanthanides, and oligonucleotides. It is not recommended for ChIP, ChIP-seq, CUT&RUN or CUT&Tag assays. If you require a carrier free formulation for chromatin profiling, please contact us. Optimal dilutions/concentrations should be determined by the end user.

Formulation

Supplied in 1X PBS, BSA and Azide Free.

For standard formulation of this product see product #4134

Storage

Store at -20°C. This product will freeze at -20°C so it is recommended to aliquot into single-use vials to avoid multiple freeze/thaw cycles. A slight precipitate may be present and can be dissolved by gently vortexing. This will not interfere with antibody performance.

Specificity / Sensitivity

Phospho-Stat4 (Tyr693) (D2E4) Rabbit mAb (BSA and Azide Free) recognizes endogenous levels of Stat4 protein only when phosphorylated at Tyr693.

Species Reactivity:

Human

Species predicted to react based on 100% sequence homology

Mouse, Rat, Monkey, Pig

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to residues surrounding Tyr693 of human Stat4 protein.

Background

The Jak-Stat signaling pathway is utilized by a large number of cytokines, growth factors, and hormones (1). Receptor-mediated tyrosine phosphorylation of Jak family members triggers phosphorylation of Stat proteins, resulting in their nuclear translocation, binding to specific DNA elements, and subsequent activation of transcription. The remarkable range and specificity of responses regulated by the Stats is determined, in part, by the tissue-specific expression of different cytokine receptors, Jaks, and Stats, as well as by the combinatorial coupling of various Stat members to different receptors (2). Stat4 is predominantly expressed in the spleen, thymus, and testis and has been most extensively investigated as the mediator of IL-12 responses (3-8). Activation of Stat4 is associated with phosphorylation at Tyr693 (9).
Stat4 is activated in response to IL-2 in natural killer (NK) cells, but not in T cells (10).

  1. Darnell, J.E. et al. (1994) Science 264, 1415-1421.
  2. Leonard, W.J. and O'Shea, J.J. (1998) Annu. Rev. Immunol. 16, 293-322.
  3. Zhong, Z. et al. (1994) Proc. Natl. Acad. Sci. USA 91, 4806-4810.
  4. Yamamoto, K. et al. (1994) Mol. Cell Biol. 14, 4342-4349.
  5. Jacobson, N.G. et al. (1995) J. Exp. Med. 181, 1755-1762.
  6. Bacon, C.M. et al. (1995) Proc. Natl. Acad. Sci. USA 92, 7307-7311.
  7. Thierfelder, W.E. et al. (1996) Nature 382, 171-174.
  8. Kaplan, M.H. et al. (1996) Nature 382, 174-177.
  9. Visconti, R. et al. (2000) Blood 96, 1844-52.
  10. Wang, K.S. et al. (1999) J Immunol 162, 299-304.

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Applications Key

WB: Western Blotting IF-IC: Immunofluorescence (Immunocytochemistry) FC-FP: Flow Cytometry (Fixed/Permeabilized)

Cross-Reactivity Key

H: human M: mouse R: rat Hm: hamster Mk: monkey Vir: virus Mi: mink C: chicken Dm: D. melanogaster X: Xenopus Z: zebrafish B: bovine Dg: dog Pg: pig Sc: S. cerevisiae Ce: C. elegans Hr: horse GP: Guinea Pig Rab: rabbit All: all species expected

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

Revision 2
#42353

Phospho-Stat4 (Tyr693) (D2E4) Rabbit mAb (BSA and Azide Free)

Western Blotting Image 1: Phospho-Stat4 (Tyr693) (D2E4) Rabbit mAb (BSA and Azide Free) Expand Image
Western blot analysis of extracts from NK-92 cells, untreated (-) or treated (+) with Human Interleukin-2 (hIL-2) #8907 (10 ng/ml, 15 min) or human interleukin-12 (hIL-12, 50 ng/ml, 15 min), using Phospho-Stat4 (Tyr693) (D2E4) Rabbit mAb (upper) and Stat4 (C46B10) Rabbit mAb #2653 (lower). Data were generated using the standard formulation of this product.
Immunofluorescence Image 1: Phospho-Stat4 (Tyr693) (D2E4) Rabbit mAb (BSA and Azide Free) Expand Image
Confocal immunofluorescent analysis of NK-92 cells, starved of IL-2 (5 hr) and then either untreated (upper) or IL-12-treated (50 ng/mL, 15 min; lower), using Phospho-Stat4 (Tyr693) (D2E4) Rabbit mAb (green) and β-Actin (8H10D10) Mouse mAb #3700 (red). Data were generated using the standard formulation of this product.

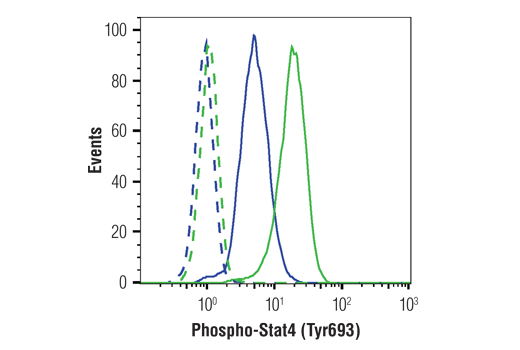

Flow Cytometry Image 1: Phospho-Stat4 (Tyr693) (D2E4) Rabbit mAb (BSA and Azide Free) Expand Image
Flow cytometric analysis of NK-92 cells serum starved of Human Interleukin-2 #8907 (5 hr), untreated (blue) or treated with IL-12 (50ng/mL, 1 hr; green), using Phospho-Stat4 (Tyr693) (D2E4) Rabbit mAb (solid lines) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as the secondary antibody. Data were generated using the standard formulation of this product.
