Revision 4

#15108Store at -20C

Cell Signaling Technology

Orders: 877-616-CELL (2355) [email protected]

Support: 877-678-TECH (8324)

Web: [email protected] cellsignal.com

3 Trask LaneDanversMassachusetts01923USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Applications:

WB, IP, IHC-P, IF-F, IF-IC, FC-FP

REACTIVITY:

H M R

SENSITIVITY:

Endogenous

MW (kDa):

21

Source/Isotype:

Rabbit IgG

UniProt ID:

#Q9NR28

Entrez-Gene Id:

56616

Product Information

Product Usage Information

Application Dilution
Western Blotting 1:1000
Immunoprecipitation 1:50
Immunohistochemistry (Paraffin) 1:500 - 1:2000
Immunofluorescence (Frozen) 1:100 - 1:400
Immunofluorescence (Immunocytochemistry) 1:100 - 1:400
Flow Cytometry (Fixed/Permeabilized) 1:200 - 1:800

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Specificity / Sensitivity

Smac/Diablo (D5S3R) Rabbit mAb recognizes endogenous levels of total Smac/Diablo protein.

Species Reactivity:

Human, Mouse, Rat

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to residues near the carboxy terminus of human Smac/Diablo protein.

Background

Smac/Diablo is a 21 kDa mammalian mitochondrial protein that functions as a regulatory component during apoptosis (1,2). Upon mitochondrial stress, Smac/Diablo is released from mitochondria and competes with caspases for binding of IAPs (inhibitor of apoptosis proteins) (1,2). The interaction of Smac/Diablo with IAPs relieves the inhibitory effect of the IAPs on caspases (3,4). This interaction involves mainly the amino-terminal residues of Smac/Diablo with the BIR3 region of XIAP, supplemented with several other hydrophobic interactions between the helical structures of Smac/Diablo and other areas of BIR3 (5,6).

  1. Du, C. et al. (2000) Cell 102, 33-42.
  2. Verhagen, A.M. et al. (2000) Cell 102, 43-53.
  3. Srinivasula, S.M. et al. (2001) Nature 410, 112-6.
  4. Srinivasula, S.M. et al. (2000) J Biol Chem 275, 36152-7.
  5. Liu, Z. et al. (2000) Nature 408, 1004-8.
  6. Wu, G. et al. (2000) Nature 408, 1008-12.

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Western Blot Buffer

IMPORTANT: For western blots, incubate membrane with diluted primary antibody in 5% w/v BSA, 1X TBS, 0.1% Tween® 20 at 4°C with gentle shaking, overnight.

Applications Key

WB: Western Blotting IP: Immunoprecipitation IHC-P: Immunohistochemistry (Paraffin) IF-F: Immunofluorescence (Frozen) IF-IC: Immunofluorescence (Immunocytochemistry) FC-FP: Flow Cytometry (Fixed/Permeabilized)

Cross-Reactivity Key

H: human M: mouse R: rat Hm: hamster Mk: monkey Vir: virus Mi: mink C: chicken Dm: D. melanogaster X: Xenopus Z: zebrafish B: bovine Dg: dog Pg: pig Sc: S. cerevisiae Ce: C. elegans Hr: horse GP: Guinea Pig Rab: rabbit All: all species expected

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
Alexa Fluor is a registered trademark of Life Technologies Corporation.
All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

Revision 4
#15108

Smac/Diablo (D5S3R) Rabbit mAb

Western Blotting Image 1: Smac/Diablo (D5S3R) Rabbit mAb Expand Image
Western blot analysis of extracts from various cell lines using Smac/Diablo (D5S3R) Rabbit mAb.

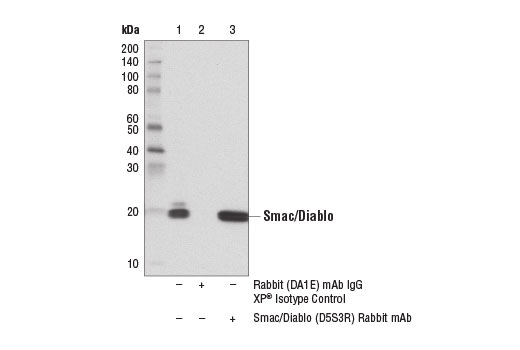

Immunoprecipitation Image 1: Smac/Diablo (D5S3R) Rabbit mAb Expand Image
Immunoprecipitation of Smac/Diablo from Jurkat cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or Smac/Diablo (D5S3R) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot was performed using Smac/Diablo Mouse mAb #2954.
Immunohistochemistry Image 1: Smac/Diablo (D5S3R) Rabbit mAb Expand Image
Immunohistochemical analysis of paraffin-embedded colon carcinoma using Smac/Diablo (D5S3R) Rabbit mAb.
Immunohistochemistry Image 2: Smac/Diablo (D5S3R) Rabbit mAb Expand Image
Immunohistochemical analysis of paraffin-embedded lung carcinoma using Smac/Diablo (D5S3R) Rabbit mAb.
Immunohistochemistry Image 3: Smac/Diablo (D5S3R) Rabbit mAb Expand Image
Immunohistochemical analysis of paraffin-embedded prostate carcinoma using Smac/Diablo (D5S3R) Rabbit mAb.
Immunofluorescence Image 1: Smac/Diablo (D5S3R) Rabbit mAb Expand Image
Confocal immunofluorescent analysis within the white matter of mouse cerebellum using Smac/Diablo (D5S3R) Rabbit mAb #15108 (green) and GFAP (GA5) Mouse mAb #3670 (red). Samples were mounted in ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
Immunofluorescence Image 2: Smac/Diablo (D5S3R) Rabbit mAb Expand Image
Confocal immunofluorescent tile scan of mouse brain using Smac/Diablo (D5S3R) Rabbit mAb #15108 (green) and GFAP (GA5) Mouse mAb #3670 (red). Samples were mounted in ProLong® Gold Antifade Reagent with DAPI #8961 (blue). Insets A – E are shown at higher resolution in subsequent figures.
Immunofluorescence Image 3: Smac/Diablo (D5S3R) Rabbit mAb Expand Image
Inset A from mouse brain (cortex) using Smac/Diablo (D5S3R) Rabbit mAb #15108 (green) and GFAP (GA5) Mouse mAb #3670 (red). Samples were mounted in ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
Immunofluorescence Image 4: Smac/Diablo (D5S3R) Rabbit mAb Expand Image
Inset B from mouse brain (striatum) using Smac/Diablo (D5S3R) Rabbit mAb #15108 (green) and GFAP (GA5) Mouse mAb #3670 (red). Samples were mounted in ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
Immunofluorescence Image 5: Smac/Diablo (D5S3R) Rabbit mAb Expand Image
Inset C from mouse brain (hippocampus) using Smac/Diablo (D5S3R) Rabbit mAb #15108 (green) and GFAP (GA5) Mouse mAb #3670 (red). Samples were mounted in ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
Immunofluorescence Image 6: Smac/Diablo (D5S3R) Rabbit mAb Expand Image
Inset D from mouse brain (thalamus) using Smac/Diablo (D5S3R) Rabbit mAb #15108 (green) and GFAP (GA5) Mouse mAb #3670 (red). Samples were mounted in ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
Immunofluorescence Image 7: Smac/Diablo (D5S3R) Rabbit mAb Expand Image
Inset E from mouse brain (brainstem) using Smac/Diablo (D5S3R) Rabbit mAb #15108 (green) and GFAP (GA5) Mouse mAb #3670 (red). Samples were mounted in ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
Immunofluorescence Image 1: Smac/Diablo (D5S3R) Rabbit mAb Expand Image
Confocal immunofluorescent analysis of HeLa cells, untreated (left) or treated with Z-VAD (50 μM, 3 hr) and Staurosporine #9953 (1 μM, 3 hr; right), using Smac/Diablo (D5S3R) Rabbit mAb. Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).

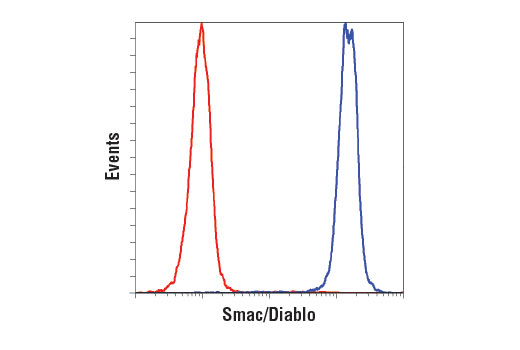

Flow Cytometry Image 1: Smac/Diablo (D5S3R) Rabbit mAb Expand Image
Flow cytometric analysis of Jurkat cells using Smac/Diablo (D5S3R) Rabbit mAb (blue) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (red). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
