Revision 1

#9783Store at -20C

1 Kit

(6 x 20 microliters)

Cell Signaling Technology

Orders: 877-616-CELL (2355) [email protected]

Support: 877-678-TECH (8324)

Web: [email protected] cellsignal.com

3 Trask LaneDanversMassachusetts01923USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Product Includes Product # Quantity Mol. Wt Isotype/Source
Tri-Methyl-Histone H3 (Lys4) (C42D8) Rabbit mAb 9751 20 µl 17 kDa Rabbit IgG
Tri-Methyl-Histone H3 (Lys9) (D4W1U) Rabbit mAb 13969 20 µl 17 kDa Rabbit IgG
Tri-Methyl-Histone H3 (Lys27) (C36B11) Rabbit mAb 9733 20 µl 17 kDa Rabbit IgG
Tri-Methyl-Histone H3 (Lys36) (D5A7) XP® Rabbit mAb 4909 20 µl 17 kDa Rabbit IgG
Tri-Methyl-Histone H3 (Lys79) Antibody 4260 20 µl 17 kDa Rabbit
Histone H3 (D1H2) XP® Rabbit mAb 4499 20 µl 17 kDa Rabbit IgG
Anti-rabbit IgG, HRP-linked Antibody 7074 100 µl Goat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

Tri-Methyl Histone H3 Antibody Sampler Kit offers an economical means to evaluate the tri-methylation of Histone H3 on multiple residues. The kit contains enough primary antibody to perform two western blot experiments per primary.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Background

The nucleosome, made up of four core histone proteins (H2A, H2B, H3, and H4), is the primary building block of chromatin. Originally thought to function as a static scaffold for DNA packaging, histones have now been shown to be dynamic proteins, undergoing multiple types of post-translational modifications, including acetylation, phosphorylation, methylation, and ubiquitination (1). Histone methylation is a major determinant for the formation of active and inactive regions of the genome and is crucial for the proper programming of the genome during development (2,3). Arginine methylation of histones H3 (Arg2, 17, 26) and H4 (Arg3) promotes transcriptional activation and is mediated by a family of protein arginine methyltransferases (PRMTs), including the co-activators PRMT1 and CARM1 (PRMT4) (4). In contrast, a more diverse set of histone lysine methyltransferases has been identified, all but one of which contain a conserved catalytic SET domain originally identified in the Drosophila Su(var)3-9, Enhancer of zeste, and Trithorax proteins. Lysine methylation occurs primarily on histones H3 (Lys4, 9, 27, 36, 79) and H4 (Lys20) and has been implicated in both transcriptional activation and silencing (4). Methylation of these lysine residues coordinates the recruitment of chromatin modifying enzymes containing methyl-lysine binding modules such as chromodomains (HP1, PRC1), PHD fingers (BPTF, ING2), tudor domains (53BP1), and WD-40 domains (WDR5) (5-8). The discovery of histone demethylases, such as PADI4, LSD1, JMJD1, JMJD2, and JHDM1, has shown that methylation is a reversible epigenetic marker (9).

  1. Peterson, C.L. and Laniel, M.A. (2004) Curr Biol 14, R546-51.
  2. Kubicek, S. et al. (2006) Ernst Schering Res Found Workshop, 1-27.
  3. Lin, W. and Dent, S.Y. (2006) Curr Opin Genet Dev 16, 137-42.
  4. Lee, D.Y. et al. (2005) Endocr Rev 26, 147-70.
  5. Daniel, J.A. et al. (2005) Cell Cycle 4, 919-26.
  6. Shi, X. et al. (2006) Nature 442, 96-9.
  7. Wysocka, J. et al. (2006) Nature 442, 86-90.
  8. Wysocka, J. et al. (2005) Cell 121, 859-72.
  9. Trojer, P. and Reinberg, D. (2006) Cell 125, 213-7.

Background References

    Trademarks and Patents

    Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
    U.S. Patent No. 7,429,487, foreign equivalents, and child patents deriving therefrom.
    All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

    Limited Uses

    Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

    Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

    Revision 1
    #9783

    Tri-Methyl Histone H3 Antibody Sampler Kit

    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 1 Expand Image
    Western blot analysis of extracts from various cell lines using Tri-Methyl-Histone H3 (Lys9) (D4W1U) Rabbit mAb.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 2 Expand Image
    Western blot analysis of extracts from various cell lines using Tri-Methyl-Histone H3 (Lys79) Antibody.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 3 Expand Image
    Western blot analysis of extracts from various cell lines using Histone H3 (D1H2) XP® Rabbit mAb.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 4 Expand Image
    Immunohistochemical analysis of paraffin-embedded human breast carcinoma using Histone H3 (D1H2) XP® Rabbit mAb.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 5 Expand Image
    Western blot analysis of extracts from various cell lines using Tri-Methyl-Histone H3 (Lys36) (D5A7) XP® Rabbit mAb.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 6 Expand Image
    CUT&RUN was performed with HeLa cells and Tri-Methyl-Histone H3 (Lys36) (D5A7) XP® Rabbit mAb, using CUT&RUN Assay Kit #86652. DNA Library was prepared using DNA Library Prep Kit for Illumina (ChIP-seq, CUT&RUN) #56795. The figure shows binding across JTB, a known target gene of H3K36me3 (see additional figure containing CUT&RUN-qPCR data).
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 7 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from HeLa cells and Tri-Methyl-Histone H3 (Lys36) (D5A7) XP® Rabbit mAb, using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared using SimpleChIP® ChIP-seq DNA Library Prep Kit for Illumina® #56795. The figure shows binding across ACTG1/γ-Actin, a known target gene of H3K36me3 (see additional figure containing ChIP-qPCR data).
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 8 Expand Image
    Flow cytometric analysis of A498 cells (blue) and 786-O cells (green) using Tri-Methyl-Histone H3 (Lys36) (D5A7) XP® Rabbit mAb (solid lines) or a concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 9 Expand Image
    After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 10 Expand Image
    Western blot analysis of various cell lines using Tri-Methyl-Histone H3 (Lys27) (C36B11) Rabbit mAb.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 11 Expand Image
    Immunohistochemical analysis of paraffin-embedded human endometrioid adenocarcinoma using Tri-Methyl-Histone H3 (Lys27) (C36B11) Rabbit mAb performed on the Leica® BOND Rx.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 12 Expand Image
    CUT&Tag was performed with NCCIT cells and Tri-Methyl-Histone H3 (Lys27) (C36B11) Rabbit mAb, using CUT&Tag Assay Kit #77552. DNA library was prepared using CUT&Tag Dual Index Primers and PCR Master Mix for Illumina Systems #47415. The figure shows binding across the HOXA gene cluster.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 13 Expand Image
    Western blot analysis of various cell types using Tri-Methyl Histone H3 (Lys4) (C42D8) Rabbit mAb.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 14 Expand Image

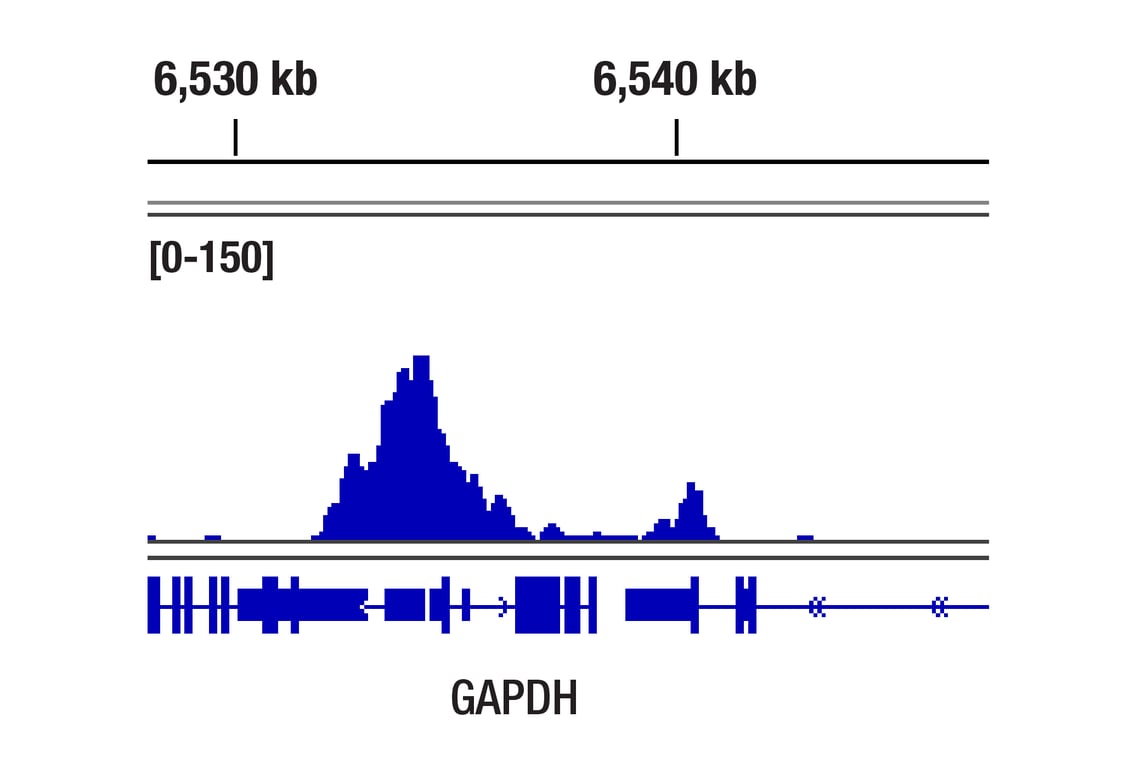

    CUT&Tag was performed with HCT 116 cells and Tri-Methyl-Histone H3 (Lys4) (C42D8) Rabbit mAb, using CUT&Tag Assay Kit #77552. DNA library was prepared using CUT&Tag Dual Index Primers and PCR Master Mix for Illumina Systems #47415. The figure shows binding across GAPDH, a known target gene of H3K4me3 (see our ChIP-qPCR figure).

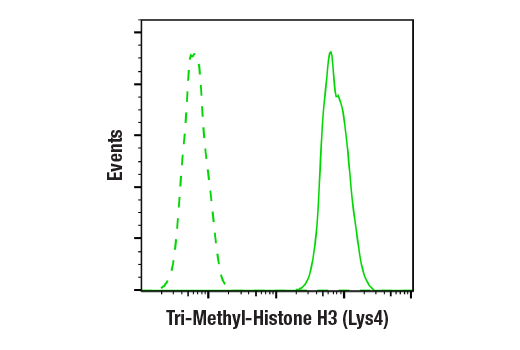

    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 15 Expand Image
    Flow cytometric analysis of HeLa cells using Tri-Methyl-Histone H3 (Lys4) (C42D8) Rabbit mAb (solid line) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed line). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 16 Expand Image
    Antibody specificity was determined by western blotting. HeLa and NIH/3T3 cell lysates were probed with Tri-Methyl-Histone H3 (Lys9) (D4W1U) Rabbit mAb (Panel A) or Tri-Methyl-Histone H3 (Lys9) (D4W1U) Rabbit mAb pre-adsorbed with 1.5 μM of various competitor peptides (panels B-M). As shown, only the tri-methyl histone H3 (Lys9) peptide (panel E) competed away binding of the antibody.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 17 Expand Image
    Immunohistochemical analysis of paraffin-embedded 4T1 syngeneic mammary tumor using Histone H3 (D1H2) XP® Rabbit mAb.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 18 Expand Image
    Immunohistochemical analysis of paraffin-embedded human papillary carcinoma of the breast using Tri-Methyl-Histone H3(K36) (D5A7) XP(R) Rabbit mAb.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 19 Expand Image
    CUT&RUN was performed with HeLa cells and Tri-Methyl-Histone H3 (Lys36) (D5A7) XP® Rabbit mAb, using CUT&RUN Assay Kit #86652. DNA Library was prepared using DNA Library Prep Kit for Illumina (ChIP-seq, CUT&RUN) #56795. The figures show binding across ATCG1 gene (upper) and JTB (lower), a known target gene of H3K36me3 (see additional figure containing CUT&RUN-qPCR data).
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 20 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from HeLa cells and Tri-Methyl-Histone H3 (Lys36) (D5A7) XP® Rabbit mAb, using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared using SimpleChIP® ChIP-seq DNA Library Prep Kit for Illumina® #56795. The figure shows binding across chromosome 17 (upper) and ACTG1/γ-Actin (lower), a known target gene of H3K36me3 (see additional figure containing ChIP-qPCR data).
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 21 Expand Image
    Immunohistochemical analysis of paraffin-embedded human colon adenocarcinoma using Tri-Methyl-Histone H3 (Lys27) (C36B11) Rabbit mAb performed on the Leica® BOND Rx.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 22 Expand Image
    CUT&Tag was performed with NCCIT cells and Tri-Methyl-Histone H3 (Lys27) (C36B11) Rabbit mAb, using CUT&Tag Assay Kit #77552. DNA library was prepared using CUT&Tag Dual Index Primers and PCR Master Mix for Illumina Systems #47415. The figures show binding across the HOXA gene cluster (upper), and HOXD gene cluster (lower).
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 23 Expand Image

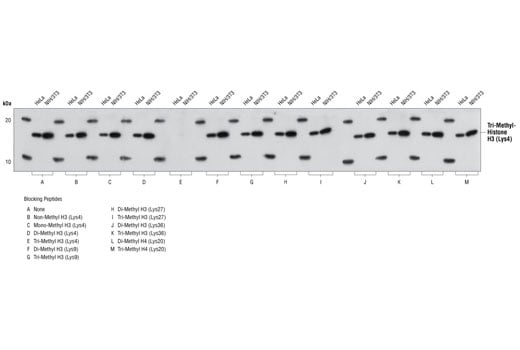

    Antibody specificity was determined by Western blotting. HeLa and NIH/3T3 cell lysates were probed with Tri-Methyl Histone H3 (Lys4) (C42D8) Rabbit mAb (Panel A) or Tri-Methyl Histone H3 (Lys4) Rabbit mAb pre-adsorbed with 1.5 μM of various competitor peptides (Panels B-M). As shown, only the tri-methyl histone H3 (Lys4) peptide competed away binding of the antibody.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 24 Expand Image

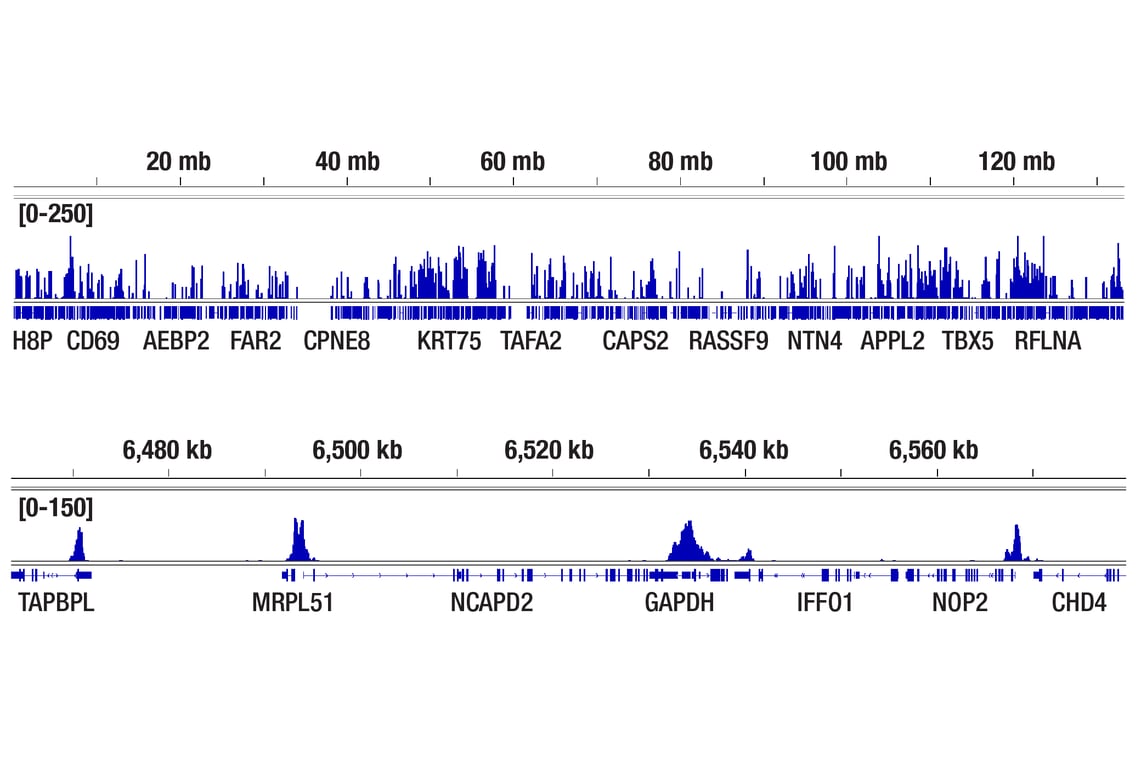

    CUT&Tag was performed with HCT 116 cells and Tri-Methyl-Histone H3 (Lys4) (C42D8) Rabbit mAb, using CUT&Tag Assay Kit #77552. DNA library was prepared using CUT&Tag Dual Index Primers and PCR Master Mix for Illumina Systems #47415. The figures show binding across chromosome 12 (upper), including GAPDH (lower), a known target gene of H3K4me3 (see our ChIP-qPCR figure).
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 25 Expand Image
    Confocal immunofluorescent analysis of interphase (left) or mitotic (right) HeLa cells, untreated (upper) or λ phosphatase-treated (lower), using Tri-Methyl-Histone H3 (Lys9) (D4W1U) Rabbit mAb (green) and β-Actin (8H10D10) Mouse mAb #3700 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye). As shown, this antibody does not detect tri-methyl histone H3 Lys9 in mitotic cells when the adjacent Ser10 residue is phosphorylated.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 26 Expand Image
    Confocal immunofluorescent analysis of HeLa cells using Histone H3 (D1H2) XP® Rabbit mAb (green) and β-Tubulin (9F3) Rabbit mAb (Alexa Fluor® 555 Conjugate) #2116 (red).
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 27 Expand Image
    Immunohistochemical analysis of paraffin-embedded LL/2 syngeneic tumor using Histone H3 (D1H2) XP® Rabbit mAb.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 28 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from HeLa cells and either Tri-Methyl-Histone H3 (Lys36) (D5A7) XP® Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human γ-Actin Promoter Primers #5037, SimpleChIP® Human γ-Actin Intron 3 Primers #5047, SimpleChIP® Human GAPDH Promoter Primers #4471, and SimpleChIP® Human GAPDH Intron 2 Primers #4478. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 29 Expand Image
    Immunohistochemical analysis of paraffin-embedded human colon carcinoma using Tri-Methyl-Histone H3(K36) (D5A7) XP(R) Rabbit mAb.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 30 Expand Image
    CUT&RUN was performed with HeLa cells and either Tri-Methyl-Histone H3 (Lys36) (D5A7) XP® Rabbit mAb or Rabbit (DA1E) mAb IgG XP® Isotype Control (CUT&RUN) #66362, using CUT&RUN Assay Kit #86652. The enriched DNA was quantified by real-time PCR using human JTB exon 1 and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 31 Expand Image
    Immunohistochemical analysis of paraffin-embedded mouse lung using Tri-Methyl-Histone H3 (Lys27) (C36B11) Rabbit mAb.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 32 Expand Image
    Immunohistochemical analysis of paraffin-embedded human colon using Tri-Methyl-Histone H3 (K4) (C42D8) Rabbit mAb in the presence of non-methyl peptide (left) or K4 tri-methyl peptide (right).
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 33 Expand Image
    Flow cytometric analysis of HeLa cells using Tri-Methyl-Histone H3 (Lys9) (D4W1U) Rabbit mAb (solid line) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed line). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 34 Expand Image
    Flow cytometric analysis of HeLa cells using Histone H3 (D1H2) XP® Rabbit mAb (solid line) or a concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed line). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 35 Expand Image
    Immunohistochemical analysis of paraffin-embedded mouse brain using Histone H3 (D1H2) XP® Rabbit mAb.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 36 Expand Image
    Immunohistochemical analysis of paraffin-embedded 786-O cell pellet (left, positive) or A498 cell pellet (right, negative) using Tri-Methyl-Histone H3(K36) (D5A7) XP(R) Rabbit mAb. Note that the A498 cell line harbors a SETD2 mutation.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 37 Expand Image
    Immunohistochemical analysis of paraffin-embedded mouse thymus using Tri-Methyl-Histone H3 (Lys27) (C36B11) Rabbit mAb.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 38 Expand Image
    Immunohistochemical analysis of paraffin-embedded rhesus monkey liver using Histone H3 (D1H2) XP® Rabbit mAb.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 39 Expand Image
    Immunohistochemical analysis of paraffin-embedded human serous papillary carcinoma of the ovary using Tri-Methyl-Histone H3(K36) (D5A7) XP(R) Rabbit mAb in the presence of non-methyl peptide (left) or K36 tri-methyl peptide (right).
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 40 Expand Image
    Immunohistochemical analysis of paraffin-embedded human lymphoma using Tri-Methyl-Histone H3 (Lys27) (C36B11) Rabbit mAb in the presence of non-methyl peptide (left) or K27 tri-methyl peptide (right).
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 41 Expand Image
    Confocal immunofluorescent analysis of HeLa cells using Tri-Methyl-Histone H3 (Lys27) (C36B11) Rabbit mAb (green). Actin filaments have been labeled with DY-554 phalloidin (red).
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 42 Expand Image
    Immunohistochemical analysis of paraffin-embedded human prostate carcinoma using Tri-Methyl-Histone H3(K36) (D5A7) XP(R) Rabbit mAb.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 43 Expand Image
    Flow cytometric analysis of Jurkat cells using Tri-Methyl-Histone H3 (Lys27) (C36B11) Rabbit mAb (solid line) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed line). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 44 Expand Image
    Confocal immunofluorescent analysis of HeLa cells using Tri-Methyl-Histone H3 (Lys4) (C42D8) Rabbit mAb (green). Actin filaments have been labeled with Alexa Fluor® 555 phalloidin (red).
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 45 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from HeLa cells and either Tri-Methyl-Histone H3 (Lys9) (D4W1U) Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human GAPDH Exon 1 Primers #5516, SimpleChIP® Human AFM Intron 1 Primers #5098, SimpleChIP® Human MYT-1 Exon 1 Primers #4493, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 46 Expand Image
    Confocal immunofluorescent analysis of HeLa cells using Tri-Methyl-Histone H3 (Lys36) (D5A7) XP® Rabbit mAb (green) and COX IV (4D11-B3-E8) Mouse mAb #11967 (red).
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 47 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from Hela cells and either Ezh2 (D2C9) XP® Rabbit mAb #5246 or Tri-Methyl-Histone H3 (Lys27) (C36B11) Rabbit mAb, using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. EZH2 and H3K27me3 are known to associate with each other on chromatin. The figure shows binding of both EZH2 and H3K27me3 across MYT1, a known target gene of H3K27me3 (see additional figure containing ChIP-qPCR data).
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 48 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from HCT116 cells and Tri-Methyl-Histone H3 (Lys4) (C42D8) Rabbit mAb, using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across RPL30, a known target gene of H3K4me3 (see additional figure containing ChIP-qPCR data).
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 49 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from Hela cells and either Ezh2 (D2C9) XP® Rabbit mAb #5246 or Tri-Methyl-Histone H3 (Lys27) (C36B11) Rabbit mAb, using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. EZH2 and H3K27me3 are known to associate with each other on chromatin. The figure shows binding of both EZH2 and H3K27me3 across chromosome 20 (upper), including MYT1 (lower), a known target gene of H3K27me3 (see additional figure containing ChIP-qPCR data).
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 50 Expand Image

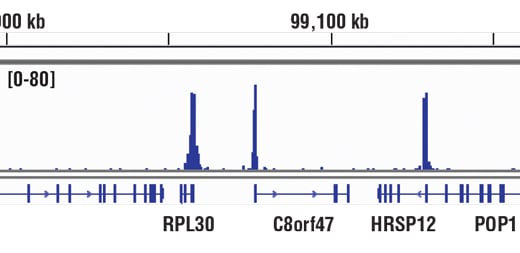

    Chromatin immunoprecipitations were performed with cross-linked chromatin from HCT116 cells and Tri-Methyl-Histone H3 (Lys4) (C42D8) Rabbit mAb, using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across chromosome 8 (upper), including RPL30 (lower), a known target gene of H3K4me3 (see additional figure containing ChIP-qPCR data).
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 51 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from HeLa cells and either Tri-Methyl-Histone H3 (Lys27) (C36B11) Rabbit mAb, or Normal Rabbit IgG #2729, using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human GAPDH Exon 1 Primers #5516, SimpleChIP® Human RPL30 Exon 3 Primers #7014, SimpleChIP® Human MyoD1 Exon 1 Primers #4490, and SimpleChIP® Human MYT-1 Exon 1 Primers #4493. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 52 Expand Image
    Chromatin immunoprecipitations were performed with cross-linked chromatin from HeLa cells and either Tri-Methyl-Histone H3 (Lys4) (C42D8) Rabbit mAb or Normal Rabbit IgG #2729, using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human RPL30 Exon 3 Primers #7014, SimpleChIP® Human GAPDH Exon 1 Primers #5516, SimpleChIP® Human MyoD1 Exon 1 Primers #4490, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 53 Expand Image
    CUT&RUN was performed with HeLa cells and Tri-Methyl-Histone H3 (Lys27) (C36B11) Rabbit mAb, using CUT&RUN Assay Kit #86652. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across TCEA2 gene.

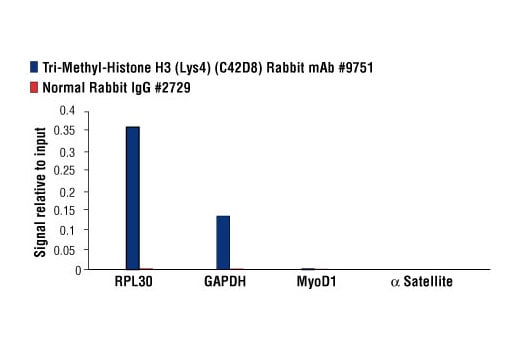

    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 54 Expand Image
    CUT&RUN was performed with HCT 116 cells and Tri-Methyl-Histone H3 (Lys4) (C42D8) Rabbit mAb, using CUT&RUN Assay Kit #86652. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figures show binding across GAPDH, a known target gene of H3K4me3 (see additional figure containing CUT&RUN-qPCR data).
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 55 Expand Image
    CUT&RUN was performed with HeLa cells and Tri-Methyl-Histone H3 (Lys27) (C36B11) Rabbit mAb, using CUT&RUN Assay Kit #86652. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figures show binding across chromosome 20 (upper), including TCEA2 gene (lower).
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 56 Expand Image
    CUT&RUN was performed with HCT 116 cells and Tri-Methyl-Histone H3 (Lys4) (C42D8) Rabbit mAb, using CUT&RUN Assay Kit #86652. DNA Libraries were prepared using DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795. The figures show binding across chromosome 12 (upper), including GAPDH (lower), a known target gene of H3K4me3 (see additional figure containing CUT&RUN-qPCR data).
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 57 Expand Image
    CUT&RUN was performed with HeLa cells and either Tri-Methyl-Histone H3 (Lys27) (C36B11) Rabbit mAb or Rabbit (DA1E) mAb IgG XP® Isotype Control (CUT&RUN) #66362, using CUT&RUN Assay Kit #86652. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human MYT-1 Exon 1 Primers, SimpleChIP® Human MyoD1 Exon 1 Primers, and SimpleChIP® Human GAPDH Exon 1 Primers. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
    Tri-Methyl Histone H3 Antibody Sampler Kit: Image 58 Expand Image
    CUT&RUN was performed with HCT 116 cells and Tri-Methyl-Histone H3 (Lys4) (C42D8) Rabbit mAb or Rabbit (DA1E) mAb IgG XP® Isotype Control (CUT & RUN) #66362, using CUT&RUN Assay Kit #86652. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human GAPDH Exon 1 Primers #5516 and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
