Revision 4

#71652

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Storage Temp
PTMScan® Phospho-PKC Substrate Motif [(R/K)(R/K)X(S/T)X(R/X)] Immunoaffinity Beads6443510 x 80 µl-20C
PTMScan® IAP Buffer (10X)999310 x 600 µl-20C

Description

PTMScan® Technology employs a proprietary methodology from Cell Signaling Technology (CST) for peptide enrichment by immunoprecipitation using a specific bead-conjugated antibody in conjunction with liquid chromatography (LC) tandem mass spectrometry (MS/MS) for quantitative profiling of post-translational modification (PTM) sites in cellular proteins. These include phosphorylation (PhosphoScan®), ubiquitination (UbiScan®), acetylation (AcetylScan®), and methylation (MethylScan®), among others. PTMScan® Technology enables researchers to isolate, identify, and quantitate large numbers of post-translationally modified cellular peptides with a high degree of specificity and sensitivity, providing a global overview of PTMs in cell and tissue samples without preconceived biases about where these modified sites occur. For more information on PTMScan® Proteomics Services, please visit https://www.cellsignal.com/services/index.html.

Storage

Antibody beads supplied in IAP buffer containing 50% glycerol. Store at -20°C. Do not aliquot the antibody.

Background

Protein kinase C (PKC) family members are involved in a number of signal transduction processes including secretion, gene expression, proliferation, and muscle contraction and many PKC substrates continue to be unidentified (1,2). Isozymes of PKC are subdivided into conventional PKCs (cPKC), novel PKCs (nPKC), and atypical PKCs (aPKC). PKCα, βI, βII, and γ isoforms belong to the cPKC group (1). When activated, cPKC isozymes phosphorylate substrates containing Ser or Thr, with Arg or Lys at the -3, -2, and +2 positions, and a hydrophobic amino acid at position +1 (1-3).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

AcetylScan is a registered trademark of Cell Signaling Technology, Inc.

MethylScan is a registered trademark of Cell Signaling Technology, Inc.

PhosphoScan is a registered trademark of Cell Signaling Technology, Inc.

UbiScan is a registered trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 4

Cell Signaling Technology Logo
The chart shows the underlying motif distribution in a PhosphoScan® LC-MS/MS experiment using 431 nonredundant Lys-C digested peptides generated from mouse embryo and immunoprecipitated using PTMScan® Phospho-PKC Substrate Motif [(R/K)(R/K)Xp(S/T)X(R/X)] Immunoaffinity Beads. Peptides containing phospho-threonine comprised 30% of the data set while phospho-serine contributed 70%.
PTMScan Image 1: PTMScan<sup>®</sup> Phospho-PKC Substrate Motif [(R/K)(R/K)Xp(S/T)X(R/X)] Kit

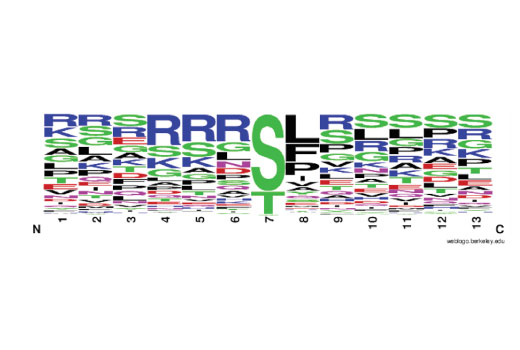

The Motif Logo was generated from 431 unique peptides identified in a PhosphoScan® LC-MS/MS experiment using Lys-C digested peptides derived from mouse embryo and immunoprecipitated with PTMScan® Phospho-PKC Substrate Motif [(R/K)(R/K)Xp(S/T)X(R/X)] Immunoaffinity Beads. The logo depicts the relative frequency of amino acids in each position surrounding the central phosphorylated residue.
PTMScan Image 2: PTMScan<sup>®</sup> Phospho-PKC Substrate Motif [(R/K)(R/K)Xp(S/T)X(R/X)] Kit
