Revision 2

#4445Store at -20C

1 Kit

(7 x 20 microliters)

Cell Signaling Technology

Orders: 877-616-CELL (2355) [email protected]

Support: 877-678-TECH (8324)

Web: [email protected] cellsignal.com

3 Trask LaneDanversMassachusetts01923USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Product Includes Product # Quantity Mol. Wt Isotype/Source
Beclin-1 (D40C5) Rabbit mAb 3495 20 µl 60 kDa Rabbit IgG
LC3A/B (D3U4C) XP® Rabbit mAb 12741 20 µl 14, 16 kDa Rabbit IgG
Atg5 (D5F5U) Rabbit mAb 12994 20 µl 55 kDa Rabbit IgG
Atg12 (D88H11) Rabbit mAb 4180 20 µl 16, 55 kDa Rabbit IgG
Atg16L1 (D6D5) Rabbit mAb 8089 20 µl 66, 68 kDa Rabbit IgG
Atg7 (D12B11) Rabbit mAb 8558 20 µl 78 kDa Rabbit IgG
Atg3 Antibody 3415 20 µl 40 kDa Rabbit
Anti-rabbit IgG, HRP-linked Antibody 7074 100 µl Goat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Autophagy Antibody Sampler Kit provides an economical means to investigate the molecular machinery of autophagy within the cell. The kit contains enough primary and secondary antibodies to perform two Western blot experiments.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Background

Autophagy is a catabolic process for the autophagosomic-lysosomal degradation of bulk cytoplasmic contents (1,2). Autophagy is generally activated by conditions of nutrient deprivation but has also been associated with a number of physiological processes including development, differentiation, neurodegeneration, infection, and cancer (3). The molecular machinery of autophagy was largely discovered in yeast and referred to as autophagy-related (Atg) genes. Formation of the autophagosome involves a ubiquitin-like conjugation system in which Atg12 is covalently bound to Atg5 and targeted to autophagosome vesicles (4-6). This conjugation reaction is mediated by the ubiquitin E1-like enzyme Atg7 and the E2-like enzyme Atg10 (7,8).

  1. Reggiori, F. and Klionsky, D.J. (2002) Eukaryot Cell 1, 11-21.
  2. Codogno, P. and Meijer, A.J. (2005) Cell Death Differ 12 Suppl 2, 1509-18.
  3. Levine, B. and Yuan, J. (2005) J Clin Invest 115, 2679-88.
  4. Mizushima, N. et al. (1998) J Biol Chem 273, 33889-92.
  5. Mizushima, N. et al. (1998) Nature 395, 395-8.
  6. Suzuki, K. et al. (2001) EMBO J 20, 5971-81.
  7. Tanida, I. et al. (1999) Mol Biol Cell 10, 1367-79.
  8. Shintani, T. et al. (1999) EMBO J 18, 5234-41.

Background References

    Trademarks and Patents

    Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
    All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

    Limited Uses

    Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

    Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

    Revision 2
    #4445

    Autophagy Antibody Sampler Kit

    Autophagy Antibody Sampler Kit: Image 1 Expand Image

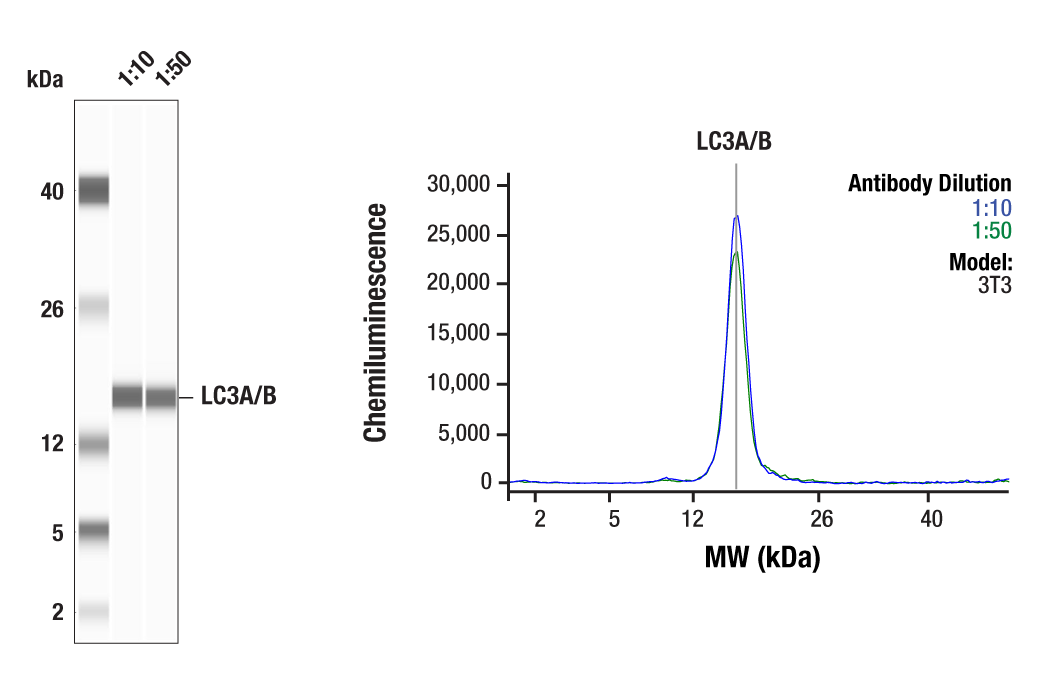

    Simple Western™ analysis of lysates (0.1 mg/mL) from 3T3 cells using LC3A/B (D3U4C) XP® Rabbit mAb #12741. The virtual lane view (left) shows the target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ ​​​​​​​ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 2 - 40 kDa separation module.

    Autophagy Antibody Sampler Kit: Image 2 Expand Image

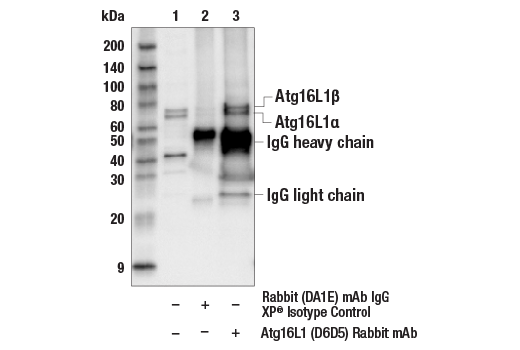

    Immunoprecipitation of Atg16L1 from Jurkat cell extracts. Lane 1 is 10% input, lane 2 is precipitated with Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is Atg16L1 (D6D5) Rabbit mAb, #8089. Western blot was performed using Atg16L1 (D6D5) Rabbit mAb.
    Autophagy Antibody Sampler Kit: Image 3 Expand Image
    Western blot analysis of extracts from RD cells, untreated (-) or Torin 1-treated (250 nM, 4 hr; +), using LC3A/B (D3U4C) XP® Rabbit mAb.
    Autophagy Antibody Sampler Kit: Image 4 Expand Image
    Western blot analysis of extracts from various cell lines using Atg5 (D5F5U) Rabbit mAb.
    Autophagy Antibody Sampler Kit: Image 5 Expand Image
    Western blot analysis of extracts from various cell lines using Atg3 Antibody.
    Autophagy Antibody Sampler Kit: Image 6 Expand Image
    Western blot analysis of extracts from various cell lines using Beclin-1 (D40C5) Rabbit mAb.
    Autophagy Antibody Sampler Kit: Image 7 Expand Image
    Western blot analysis of extracts from various cell lines using Atg12 (D88H11) Rabbit mAb.
    Autophagy Antibody Sampler Kit: Image 8 Expand Image
    After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
    Autophagy Antibody Sampler Kit: Image 9 Expand Image
    Western blot analysis of extracts from various cell lines using Atg16L1 (D6D5) Rabbit mAb.
    Autophagy Antibody Sampler Kit: Image 10 Expand Image
    Western blot analysis of extracts from various cell lines using Atg7 (D12B11) Rabbit mAb.
    Autophagy Antibody Sampler Kit: Image 11 Expand Image
    Western blot analysis of extracts from HeLa, NIH/3T3, and KNRK cells, untreated (-) or chloroquine-treated (50 μM, overnight; +), using LC3A/B (D3U4C) XP® Rabbit mAb.
    Autophagy Antibody Sampler Kit: Image 12 Expand Image
    Western blot analysis of extracts from wild-type MEFs (wt) or MEFs from Atg5 knockouts (Atg5-/-) using Atg5 (D5F5U) Rabbit mAb (upper), or β-Actin (D6A8) Rabbit mAb #8457 (lower). Atg5-/- MEFs were kindly provided by Dr. Ramnik Xavier, Massachusetts General Hospital, Harvard Medical School, Boston, MA.
    Autophagy Antibody Sampler Kit: Image 13 Expand Image
    Western blot analysis of extracts from HeLa cells, mock transfected or transfected with mouse Atg3, using Atg3 Antibody.
    Autophagy Antibody Sampler Kit: Image 14 Expand Image

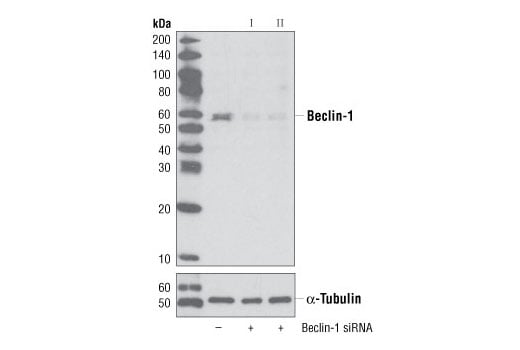

    Western blot analysis of extracts from HeLa cells, transfected with 100 nM SignalSilence® Control siRNA (Unconjugated) #6568 (-), SignalSilence® Beclin-1 siRNA I #6222 (+) or SignalSilence® Beclin-1 siRNA II (+), using Beclin-1 (D40C5) XP® Rabbit mAb #3495 (upper) or α-Tubulin (11H10) Rabbit mAb #2125 (lower). The Beclin-1 (D40C5) XP® Rabbit mAb confirms silencing of Beclin-1 expression, while the α-Tubulin (11H10) Rabbit mAb is used to control for loading and specificity of Beclin-1 siRNA.
    Autophagy Antibody Sampler Kit: Image 15 Expand Image
    Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with either a myc-tagged human Atg16L1β construct (hAtg16L1β-Myc; +) or a mouse Atg16L1α construct (mAtg16L1α; +), using Atg16L1 (D6D5) Rabbit mAb. The myc-tagged human Atg16L1β construct was kindly provided by Dr. Qing Zhong, University of California Berkeley.
    Autophagy Antibody Sampler Kit: Image 16 Expand Image
    Western blot analysis of extracts from HeLa cells, transfected with 100 nM SignalSilence® Control siRNA (Unconjugated) #6568 (-) or SignalSilence® Atg7 siRNA I #6604 (+), using Atg7 (D12B11) Rabbit mAb (upper) or α-Tubulin (11Η10) Rabbit mAb #2125 (lower). The Atg7 (D12B11) Rabbit mAb confirms silencing of Atg7 expression, while the α-Tubulin (11H10) Rabbit mAb is used as a loading control.
    Autophagy Antibody Sampler Kit: Image 17 Expand Image
    Immunohistochemical analysis of paraffin-embedded mouse prostate using LC3A/B (D3U4C) XP® Rabbit mAb.
    Autophagy Antibody Sampler Kit: Image 18 Expand Image
    Immunoprecipitation of Atg5 from PANC-1 cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or Atg5 (D5F5U) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot was performed using Atg5 (D5F5U) Rabbit mAb. Mouse Anti-rabbit IgG (Conformation Specific) (L27A9) mAb #3678 was used as a secondary antibody to avoid cross-reactivity with rabbit IgG.
    Autophagy Antibody Sampler Kit: Image 19 Expand Image
    Confocal immunofluorescent analysis of EBSS-starved PANC-1 cells using Atg16L1 (D6D5) Rabbit mAb (green). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
    Autophagy Antibody Sampler Kit: Image 20 Expand Image
    Immunohistochemical analysis of paraffin-embedded human squamous cell lung carcinoma using LC3A/B (D3U4C) XP® Rabbit mAb in the presence of control peptide (left) or antigen-specific peptide (right).
    Autophagy Antibody Sampler Kit: Image 21 Expand Image
    Immunohistochemical analysis of paraffin-embedded NIH/3T3 cell pellets, control (left) or chloroquine-treated (right), using LC3A/B (D3U4C) XP® Rabbit mAb.
    Autophagy Antibody Sampler Kit: Image 22 Expand Image
    Confocal immunofluorescent analysis of HeLa (upper) and C2C12 (lower) cells, chloroquine-treated (50 μM, overnight; left), nutrient-starved with EBSS (3 hr, middle) or untreated (right) using LC3A/B (D3U4C) XP® Rabbit mAb (green) and β-Actin (13E5) Rabbit mAb (Alexa Fluor® 555 Conjugate) #8046 (red). Blue pseudocolor= DRAQ5® #4084 (fluorescent DNA dye).
    Autophagy Antibody Sampler Kit: Image 23 Expand Image
    Flow cytometric analysis of HeLa cells, untreated (blue) or treated with chloroquine (50 µM, 16 hr; green) using LC3A/B (D3U4C) Rabbit mAb. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 647 Conjugate) #4414 was used as a secondary antibody.
