Revision 4
Cell Signaling Technology

Orders: 877-616-CELL (2355) [email protected]

Support: 877-678-TECH (8324)

Web: [email protected] cellsignal.com

3 Trask LaneDanversMassachusetts01923USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Applications:

WB, W-S, IF-F, IF-IC, FC-FP

REACTIVITY:

All

SENSITIVITY:

Transfected Only

MW (kDa):

150

Source/Isotype:

Rabbit IgG

UniProt ID:

#Q99ZW2

Entrez-Gene Id:

901176

Product Information

Product Usage Information

Application Dilution
Western Blotting 1:1000
Simple Western™ 1:50 - 1:250
Immunofluorescence (Frozen) 1:50 - 1:200
Immunofluorescence (Immunocytochemistry) 1:200
Flow Cytometry (Fixed/Permeabilized) 1:50

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Specificity / Sensitivity

Cas9 (S. pyogenes) (D8Y4K) Rabbit mAb recognizes transfected levels of total Cas9 (S. pyogenes) protein. This antibody does not cross-react with Cas9 (S. aureus), FnCpf1, and AsCpf1 proteins.

Species Reactivity:

All Species Expected

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to residues surrounding Val16 of Cas9 (S. pyogenes) protein.

Background

The CRISPR associated protein 9 (Cas9) is an RNA-guided DNA nuclease and part of the Streptococcus pyogenes CRISPR antiviral immunity system that provides adaptive immunity against extrachromosomal genetic material (1). The CRISPR antiviral mechanism of action involves three steps: (i), acquisition of foreign DNA by host bacterium; (ii), synthesis and maturation of CRISPR RNA (crRNA) followed by the formation of RNA-Cas nuclease protein complexes; and (iii), target interference through recognition of foreign DNA by the complex and its cleavage by Cas nuclease activity (2). The type II CRISPR/Cas antiviral immunity system provides a powerful tool for precise genome editing and has potential for specific gene regulation and therapeutic applications (3). The Cas9 protein and a guide RNA consisting of a fusion between a crRNA and a trans-activating crRNA (tracrRNA) must be introduced or expressed in a cell. A 20-nucleotide sequence at the 5' end of the guide RNA directs Cas9 to a specific DNA target site. As a result, Cas9 can be "programmed" to cut various DNA sites both in vitro and in cells and organisms. CRISPR/Cas9 genome editing tools have been used in many organisms, including mouse and human cells (4,5). Research studies demonstrate that CRISPR can be used to generate mutant alleles or reporter genes in rodents and primate embryonic stem cells (6-8).

  1. Horvath, P. and Barrangou, R. (2010) Science 327, 167-70.
  2. Wiedenheft, B. et al. (2012) Nature 482, 331-8.
  3. Singh, P. et al. (2015) Genetics 199, 1-15.
  4. Cong, L. et al. (2013) Science 339, 819-23.
  5. Mali, P. et al. (2013) Science 339, 823-6.
  6. Li, D. et al. (2013) Nat Biotechnol 31, 681-3.
  7. Shen, B. et al. (2013) Cell Res 23, 720-3.
  8. Niu, Y. et al. (2014) Cell 156, 836-43.

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Western Blot Buffer

IMPORTANT: For western blots, incubate membrane with diluted primary antibody in 5% w/v BSA, 1X TBS, 0.1% Tween® 20 at 4°C with gentle shaking, overnight.

Applications Key

WB: Western Blotting W-S: Simple Western™ IF-F: Immunofluorescence (Frozen) IF-IC: Immunofluorescence (Immunocytochemistry) FC-FP: Flow Cytometry (Fixed/Permeabilized)

Cross-Reactivity Key

H: human M: mouse R: rat Hm: hamster Mk: monkey Vir: virus Mi: mink C: chicken Dm: D. melanogaster X: Xenopus Z: zebrafish B: bovine Dg: dog Pg: pig Sc: S. cerevisiae Ce: C. elegans Hr: horse GP: Guinea Pig Rab: rabbit All: all species expected

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
Alexa Fluor is a registered trademark of Life Technologies Corporation.
All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

Revision 4
#65832

Cas9 (S. pyogenes) (D8Y4K) Rabbit mAb

Western Blotting Image 1: Cas9 (S. pyogenes) (D8Y4K) Rabbit mAb Expand Image
Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with a construct expressing Cas9 (S. pyogenes) (+), using Cas9 (S. pyogenes) Rabbit mAb mAb (upper), Myc-Tag (71D10) Rabbit mAb #2278 (middle), and β-Actin (D6A8) Rabbit mAb #8457 (lower).
Western Blotting Image 1: Cas9 (S. pyogenes) (D8Y4K) Rabbit mAb Expand Image

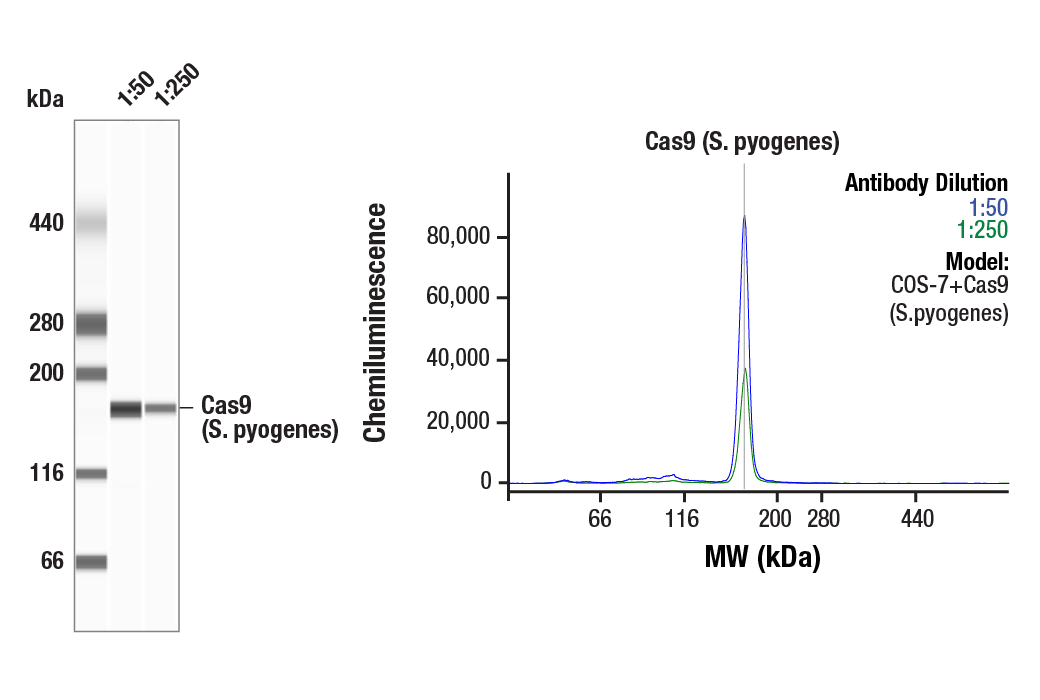

Simple Western™ analysis of lysates (0.001 mg/mL) from COS-7 cells transfected with a construct expressing Cas9 (S. pyogenes) using Cas9 (S. pyogenes) (D8Y4K) Rabbit mAb #65832. The virtual lane view (left) shows a single target band (as indicated) at 1:50 and 1:250 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:50 (blue line) and 1:250 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 66-440 kDa separation module.
Immunofluorescence Image 1: Cas9 (S. pyogenes) (D8Y4K) Rabbit mAb Expand Image
Confocal immunofluorescent analysis of fixed frozen brain from constitutive Cas9 (S. pyogenes)-expressing mice (left, positive) or wild type mice (right, negative), using Cas9 (S. pyogenes) (D8Y4K) Rabbit mAb (green). Samples were mounted in ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
Immunofluorescence Image 1: Cas9 (S. pyogenes) (D8Y4K) Rabbit mAb Expand Image
Confocal immunofluorescent analysis of Cas9-expressing 293T cells (left) and unmodified 293T cells (right) using Cas9 (S. pyogenes) (D8Y4K) Rabbit mAb (green) and β-Actin (8H10D10) Mouse mAb #3700 (red).
Flow Cytometry Image 1: Cas9 (S. pyogenes) (D8Y4K) Rabbit mAb Expand Image

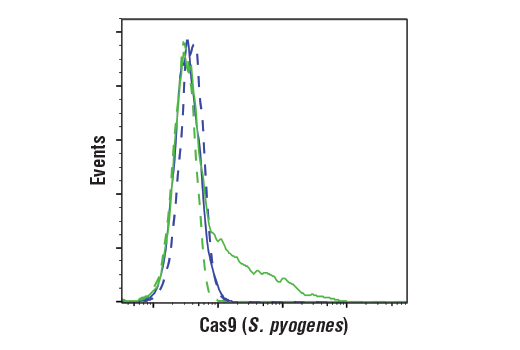

Flow cytometric analysis of 293T cells, untreated (blue) or transfected with S. pyogenes plasmid (green), using Cas9 (S. pyogenes) (D8Y4K) Rabbit mAb (solid lines) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
