Revision 3

#9929Store at -20C

1 Kit

(6 x 20 microliters)

Cell Signaling Technology

Orders: 877-616-CELL (2355) [email protected]

Support: 877-678-TECH (8324)

Web: [email protected] cellsignal.com

3 Trask LaneDanversMassachusetts01923USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Product Includes Product # Quantity Mol. Wt Isotype/Source
Cleaved Caspase-3 (Asp175) (5A1E) Rabbit mAb 9664 20 µl 17, 19 kDa Rabbit IgG
Cleaved Caspase-6 (Asp162) Antibody 9761 20 µl 18 kDa Rabbit
Cleaved Caspase-7 (Asp198) (D6H1) Rabbit mAb 8438 20 µl 18 kDa Rabbit IgG
Cleaved Caspase-9 (Asp330) (E5Z7N) Rabbit mAb 52873 20 µl 37 kDa Rabbit IgG
Cleaved Caspase-9 (Asp315) Antibody 9505 20 µl 35 kDa Rabbit
Cleaved PARP (Asp214) (D64E10) XP® Rabbit mAb 5625 20 µl 89 kDa Rabbit IgG
Anti-rabbit IgG, HRP-linked Antibody 7074 100 µl Goat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Cleaved Caspase Antibody Sampler Kit provides an economical means to evaluate the activation status of caspases by detecting their cleaved forms. The kit contains enough primary and secondary antibodies to perform two western blot experiments with each primary antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Background

Apoptosis is a regulated physiological process leading to cell death. Caspases, a family of cysteine acid proteases, are central regulators of apoptosis. Initiator caspases (including 8, 9, 10, and 12) are closely coupled to proapoptotic signals. Once activated, these caspases cleave and activate downstream effector caspases (including 3, 6, and 7), which in turn cleave cytoskeletal and nuclear proteins like PARP, α-fodrin, DFF, and lamin A and induce apoptosis. Cytochrome c released from mitochondria is coupled to the activation of caspase-9, a key initiator caspase (1). Proapoptotic stimuli include FasL, TNF-α, DNA damage and ER stress. Fas and TNFR activate caspase-8 and -10 (2), DNA damage leads to the activation of caspase-9 and ER stress leads to the calcium-mediated activation of caspase-12 (3). The inhibitor of apoptosis protein (IAP) family includes XIAP and survivin and functions by binding and inhibiting several caspases (4,5). Smac/Diablo, a mitochondrial protein, is released into the cytosol upon mitochondrial stress and competes with caspases for binding of IAPs. The interaction of Smac/Diablo with IAPs relieves the inhibitory effects of IAPs on caspases (6).

  1. Baker, S.J. and Reddy, E.P. (1998) Oncogene 17, 3261-3270.
  2. Budihardjo, I. et al. (1999) Annu. Rev. Cell Dev. Biol. 15, 269-290.
  3. Nakagawa, T. et al. (2000) Nature 403, 98-103.
  4. Deveraux, Q. L. et al. (1998) EMBO J. 17, 2215-2223.
  5. Li, F. et al. (1998) Nature 396, 580-584.
  6. Du, C. et al. (2000) Cell 102, 33-42.

Background References

    Trademarks and Patents

    Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
    All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

    Limited Uses

    Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

    Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

    Revision 3
    #9929

    Cleaved Caspase Antibody Sampler Kit

    Cleaved Caspase Antibody Sampler Kit: Image 1 Expand Image

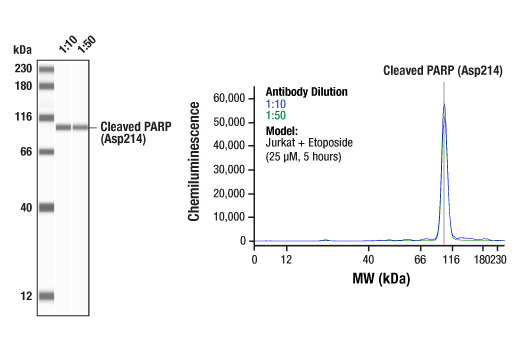

    Simple Western™ analysis of lysates (1 mg/mL) from Jurkat cells treated with Etoposide (25 μM, 5 hours) using Cleaved PARP (Asp214) (D64E10) XP® Rabbit mAb #5625. The virtual lane view (left) shows a single target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
    Cleaved Caspase Antibody Sampler Kit: Image 2 Expand Image
    Simple Western™ analysis of lysates (0.1 mg/mL) from Jurkat cells treated with Cytochrome C using Cleaved Caspase-3 (Asp175) (5A1E) Rabbit mAb #9664. The virtual lane view (left) shows the target bands (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
    Cleaved Caspase Antibody Sampler Kit: Image 3 Expand Image
    Western blot analysis of extracts from HeLa and Jurkat cells, untreated (-) or treated with Staurosporine #9953 (1 μM, 3 hr; +) or Etoposide #2200 (25 μM, overnight; +), using Cleaved Caspase-9 (Asp330) (E5Z7N) Rabbit mAb (upper), Caspase-9 (C9) Mouse mAb #9508 (middle), or β-Actin (D6A8) Rabbit mAb #8457 (lower).
    Cleaved Caspase Antibody Sampler Kit: Image 4 Expand Image
    Western blot analysis of extracts from HeLa cells, untreated or treated with Staurosporine #9953 (1 μM, 3 hr), Jurkat cells, untreated or etoposide-treated (25 μM, overnight), and THP-1 cells, untreated or cycloheximide-treated (CHX, 10 μg/ml, overnight) followed by treatment with TNF-α #8902 (20 ng/ml, 4 hr), using Cleaved PARP (Asp214) (D64E10) XP® Rabbit mAb (upper), or total PARP Antibody #9542 (lower).
    Cleaved Caspase Antibody Sampler Kit: Image 5 Expand Image
    After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
    Cleaved Caspase Antibody Sampler Kit: Image 6 Expand Image
    Western blot analysis of extracts from HeLa, C2C12, and H-4-II-E cells, untreated (-) or treated (+) with Staurosporine #9953 (1 μM, 3 hr), using Cleaved Caspase-7 (Asp198) (D6H1) Rabbit mAb (upper) and Caspase-7 Antibody #9492 (lower).
    Cleaved Caspase Antibody Sampler Kit: Image 7 Expand Image
    Western blot analysis of extracts from Jurkat cells, untreated or cytochrome c-treated (0.25 mg/ml), and HeLa cells, untreated, staurosporine-treated (1 µM), or cytochrome c-treated (0.25 mg/ml), using Cleaved Caspase-9 (Asp315) Antibody (upper) or Caspase-9 Antibody #9502 (lower).
    Cleaved Caspase Antibody Sampler Kit: Image 8 Expand Image
    Western blot analysis of extracts from C6 (rat), NIH/3T3 (mouse), and Jurkat (human) cells, untreated or treated with staurosporine #9953 (1uM, 3hrs) or etoposide #2200 (25uM, 5hrs) as indicated, using Cleaved Caspase-3 (Asp175) (5A1E) Rabbit mAb.
    Cleaved Caspase Antibody Sampler Kit: Image 9 Expand Image
    Western blot analysis of extracts from various cell lines, untreated, cytochrome c (1hr, 0.25 mg/ml in vitro), or raptinal (10 μM, 2 hr) treated using Cleaved Caspase-6 (Asp162) Antibody #9761 (upper), Caspase-6 Antibody #9762 (middle), and β-Actin (D6A8) Rabbit mAb #8457 (lower).
    Cleaved Caspase Antibody Sampler Kit: Image 10 Expand Image
    Confocal immunofluorescent analysis of HeLa cells, untreated (left) or treated with Staurosporine #9953 (1 μM, 3 hr; right), using Cleaved Caspase-9 (Asp330) (E5Z7N) Rabbit mAb (green). Actin filaments were labeled with DyLight 554 Phalloidin #13054 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
    Cleaved Caspase Antibody Sampler Kit: Image 11 Expand Image

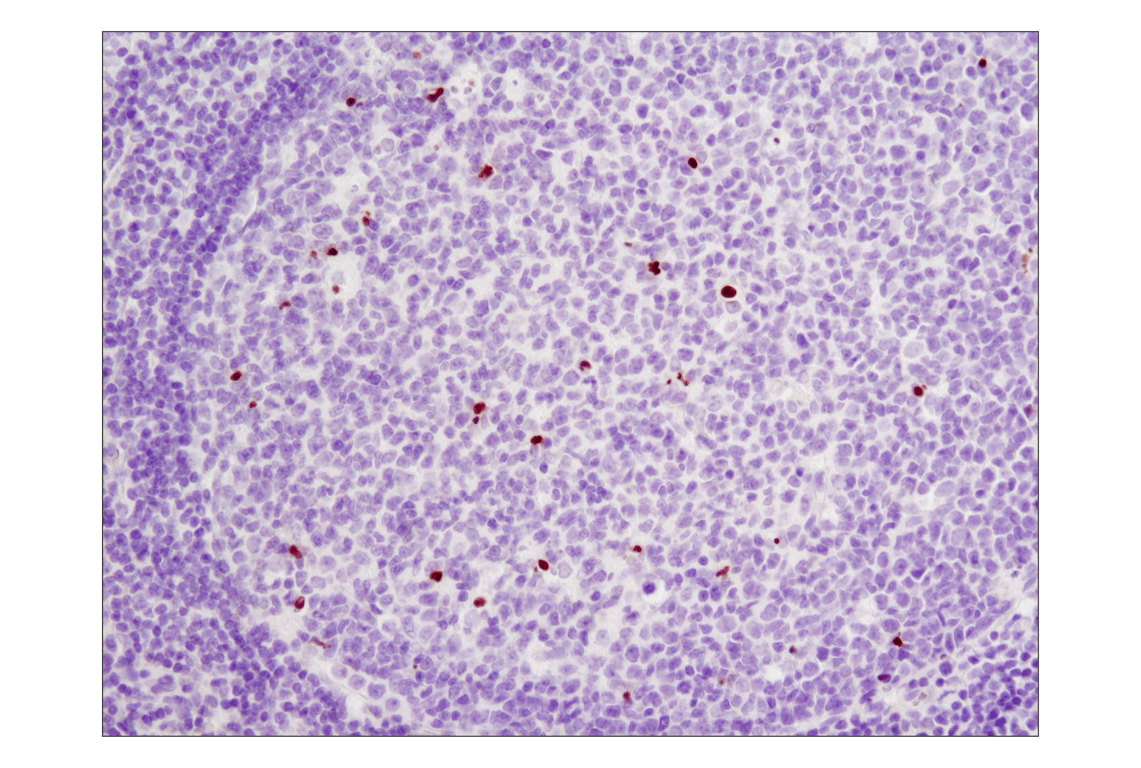

    Immunohistochemical analysis of paraffin-embedded human tonsil using Cleaved PARP (Asp214) (D64E10) XP® Rabbit mAb.
    Cleaved Caspase Antibody Sampler Kit: Image 12 Expand Image

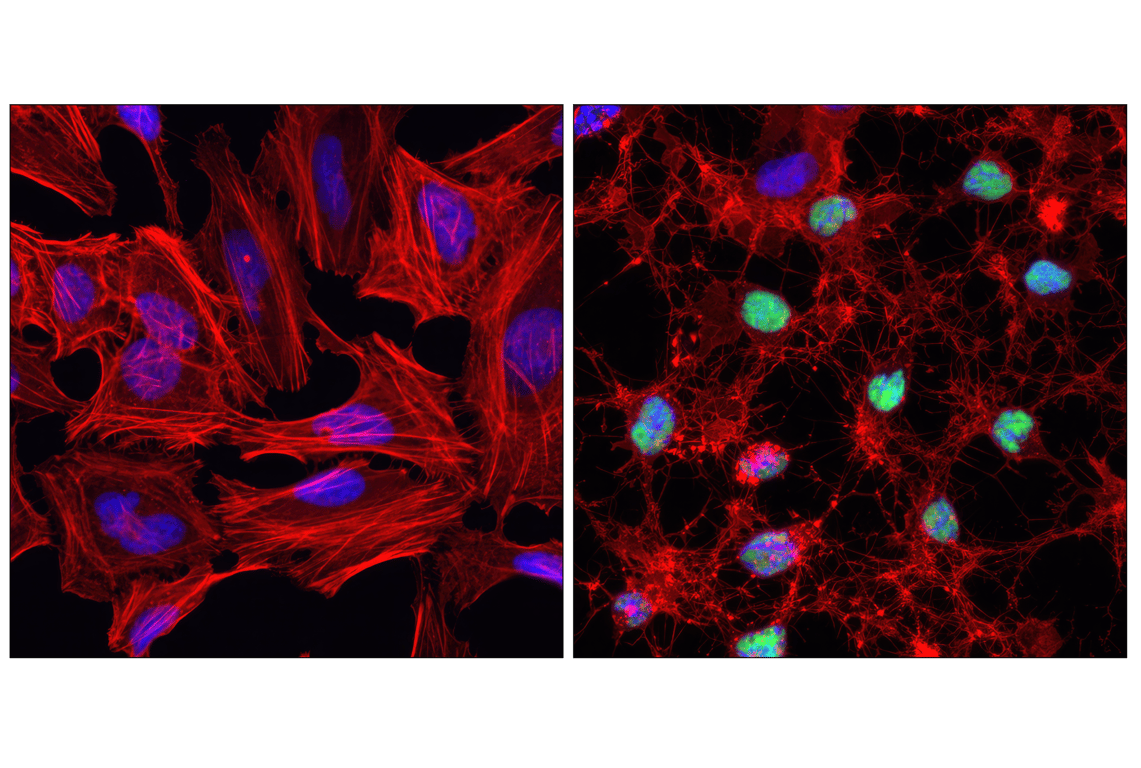

    Confocal immunofluorescent analysis of HeLa cells, untreated (left) or treated with Staurosporine #9953 (1 μM, 3 hr; right), using Cleaved Caspase-7 (Asp198) (D6H1) Rabbit mAb (green). Actin filaments were labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
    Cleaved Caspase Antibody Sampler Kit: Image 13 Expand Image
    Immunoprecipitation of extracts from Jurkat cells, untreated or etoposide-treated (25uM, 5hrs), using Cleaved Caspase-3 (Asp175) (5A1E) Rabbit mAb. Western blot was performed using the same antibody.
    Cleaved Caspase Antibody Sampler Kit: Image 14 Expand Image
    Confocal immunofluorescent analysis of HeLa cells, untreated (left) or treated with Staurosporine #9953 (right), using Cleaved PARP (Asp214) (D64E10) XP® Rabbit mAb (green). Actin filament were labeled with DY-554 phalloidin. Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
    Cleaved Caspase Antibody Sampler Kit: Image 15 Expand Image
    Flow cytometric analysis of Jurkat cells, untreated (blue) or etoposide-treated (green), using Cleaved Caspase-7 (Asp198) (D6H1) Rabbit mAb.
    Cleaved Caspase Antibody Sampler Kit: Image 16 Expand Image

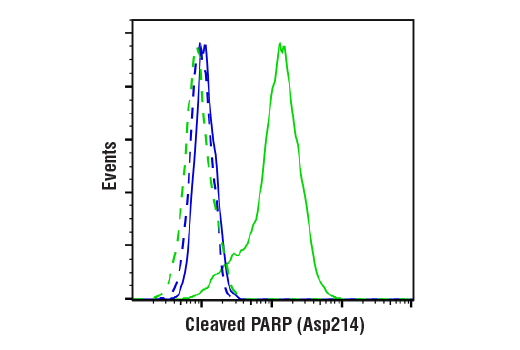

    Flow cytometric analysis of Jurkat cells, untreated (blue) or treated with Etoposide #2200 (25 uM, 18 hr; green) using Cleaved PARP (Asp214) (D64E10) XP® Rabbit mAb (solid lines) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
    Cleaved Caspase Antibody Sampler Kit: Image 17 Expand Image
    Immunohistochemical analysis of paraffin-embedded mouse embryo, using Cleaved Caspase-3 (Asp175) (5A1E) Rabbit mAb in the presence of control peptide (left) or Cleaved Caspase-3 (Asp175) Blocking Peptide (#1050) (right).
    Cleaved Caspase Antibody Sampler Kit: Image 18 Expand Image
    Immunohistochemical analysis using Cleaved Caspase-3 (Asp175) (5A1E) Rabbit mAb on SignalSlide® Cleaved Caspase-3 IHC Controls #8104 (paraffin-embedded Jurkat cells, untreated (left) or etoposide-treated (right)).
    Cleaved Caspase Antibody Sampler Kit: Image 19 Expand Image
    Immunohistochemical staining of paraffin-embedded mouse embryo, showing cytoplasmic localization in apoptotic cells, using Cleaved Caspase-3 (Asp175) (5A1E) Rabbit mAb.
    Cleaved Caspase Antibody Sampler Kit: Image 20 Expand Image
    Confocal immunofluorescent images of HT-29 cells, untreated (left) or Staurosporine #9953 treated (right) labeled with Cleaved Caspase-3 (Asp175) (5A1E) Rabbit mAb (green). Actin filaments have been labeled with Alexa Fluor® 555 phalloidin #8953 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
    Cleaved Caspase Antibody Sampler Kit: Image 21 Expand Image
    Flow cytometric analysis of Jurkat cells, untreated (blue) or treated with etoposide #2200 (green), using Cleaved Caspase-3(Asp175) (5A1E) Rabbit mAb compared to a nonspecific negative control antibody (red).
