Revision 1

#9320

Store at -20C

Src Family Antibody Sampler Kit

1 Kit

(6 x 20 microliters)

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Mol. Wt Isotype/Source
Src (32G6) Rabbit Monoclonal Antibody212320 µl60 kDaRabbit IgG
Csk (C74C1) Rabbit Monoclonal Antibody498020 µl50 kDaRabbit IgG
Fyn Antibody402320 µl59 kDaRabbit
Lck (D88) Rabbit Monoclonal Antibody298420 µl56 kDaRabbit IgG
Lyn (C13F9) Rabbit Monoclonal Antibody279620 µl56 kDaRabbit IgG
Yes Antibody320120 µl60 kDaRabbit
Anti-rabbit IgG, HRP-linked Antibody7074100 µlGoat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Src Family Antibody Sampler Kit provides an economical means of evaluating total levels of Src family member proteins. The kit contains enough primary and secondary antibody to perform two western blots with each antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Background

The Src family of protein tyrosine kinases, which includes Src, Lyn, Fyn, Yes, Lck, Blk, and Hck, are important in the regulation of growth and differentiation of eukaryotic cells (1). Src activity is regulated by tyrosine phosphorylation at two sites, but with opposing effects. While phosphorylation at Tyr416 in the activation loop of the kinase domain upregulates enzyme activity, phosphorylation at Tyr530 in the carboxy-terminal tail by Csk renders the enzyme less active (2).

The kinase Fyn plays a role in T-cell receptor signaling and also helps in memory formation and adhesion mediated signaling (3,4). Lymphocyte specific kinase Lck is essential in the differentiation and activation of T-cells (3). Hematopoietic Lyn kinase, also phosphorylated by Csk, is involved in the regulation of B-cell function, migration and development (5). The ubiquitously expressed kinase Yes acts downstream of several different cell surface receptors, including G-protein-coupled receptors, and is involved in the regulation of angiogenesis, the cell cycle and cell adhesion (6,7).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of cell extracts from various cell lines, using Src (32G6) Rabbit mAb.
undefined Image 1: Src Family Antibody Sampler Kit
Western blot analysis of cell extracts from various cell types using Lyn (C13F9) Rabbit mAb.
undefined Image 2: Src Family Antibody Sampler Kit
Western blot analysis of extracts from Ramos and Jurkat cells using LcK (D88) XP® Rabbit mAb.
undefined Image 3: Src Family Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using Yes Antibody.
undefined Image 4: Src Family Antibody Sampler Kit
Western blot analysis of cell extracts from various cell lines, using Fyn Antibody.
undefined Image 5: Src Family Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using Csk (C74C1) Rabbit mAb.
undefined Image 6: Src Family Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
undefined Image 7: Src Family Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded non-hodgkins lymphoma using Lyn (C13F9) Rabbit mAb.
undefined Image 8: Src Family Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human lung carcinoma using Lck (D88) XP® Rabbit mAb.
undefined Image 9: Src Family Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human tonsil tissue using Lyn (C13F9) Rabbit mAb in the presence of control peptide (left) and antigen specific peptide (right).
undefined Image 10: Src Family Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human lymphoma using Lck (D88) XP® Rabbit mAb.
undefined Image 11: Src Family Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded Colo205 (positive) (left) and HeLa (negative) (right) cell pellets using Lck (D88) XP® Rabbit mAb.
undefined Image 12: Src Family Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human tonsil using Lck (D88) XP® Rabbit mAb.
undefined Image 13: Src Family Antibody Sampler Kit
Immunoprecipitation of Src protein from HeLa cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) Monoclonal Antibody IgG Isotype Control #3900, and lane 3 is Src (32G6) Rabbit Monoclonal Antibody. Western blot analysis was performed using Src (L4A1) Mouse Monoclonal Antibody #2110. Anti-mouse IgG, HRP-linked Antibody #7076 was used as a secondary antibody.
undefined Image 14: Src Family Antibody Sampler Kit
Simple Western™ analysis of lysates (0.1 mg/ml) from Jurkat cells using Lck (D88) XP® Rabbit mAb #2984. The virtual lane view (left) shows the target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230kDa.
undefined Image 15: Src Family Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of Jurkat (left, positive) and K-562 (right, negative) cell pellets using Lck (D88) Rabbit mAb (green) and ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
undefined Image 16: Src Family Antibody Sampler Kit
Flow cytometric analysis of mouse splenocytes using Lck (D88) XP® Rabbit mAb (right) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (left), and co-stained with CD3 (17A2) Rat mAb (violetFluor™ 450 Conjugate) #38527. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 17: Src Family Antibody Sampler Kit
Flow cytometric analysis of K-562 cells (blue, negative) and Jurkat cells (green, positive) using Lck (D88) XP® Rabbit mAb (solid lines) or a concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 18: Src Family Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Flow cytometric analysis of human peripheral blood mononuclear cells using Lck (D88) XP® Rabbit mAb (right) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (left), and co-stained with CD3 (UCHT1) Mouse mAb (violetFluor™ 450 Conjugate) #61347. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 19: Src Family Antibody Sampler Kit

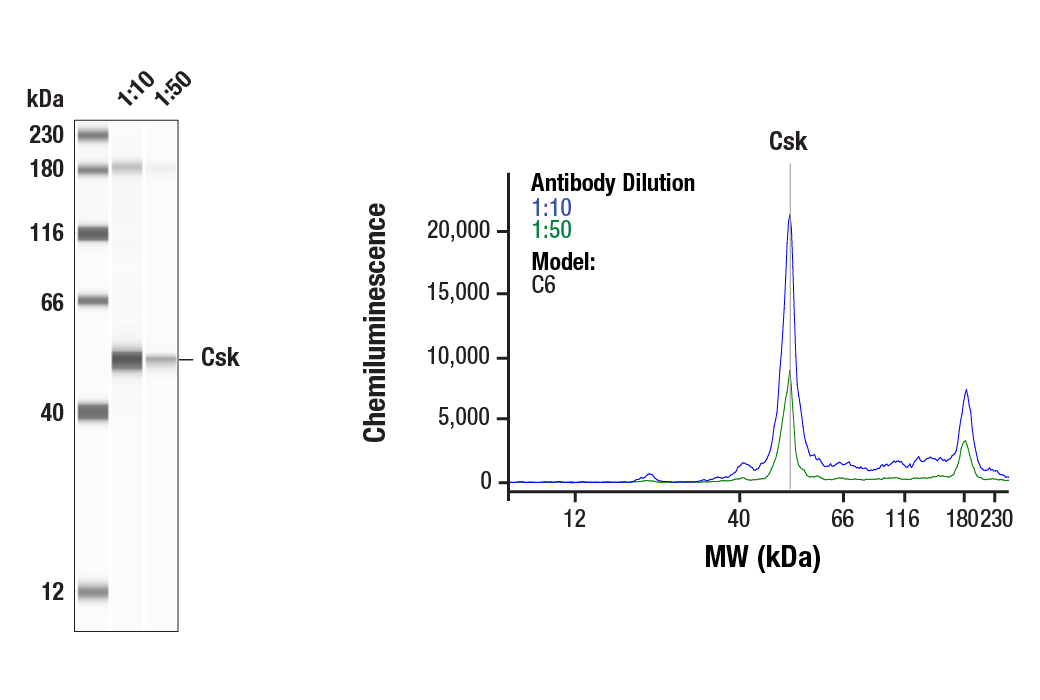

Simple Western™️ analysis of lysates (1mg/mL) from C6 cells using Csk (C74C1) Rabbit mAb #4980. The virtual lane view (left) shows the target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™️ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12 – 230 kDa separation module.
undefined Image 20: Src Family Antibody Sampler Kit
