Arginase-1 (D4E3M™) XP® Rabbit mAb (Alexa Fluor® 488 Conjugate) #66297

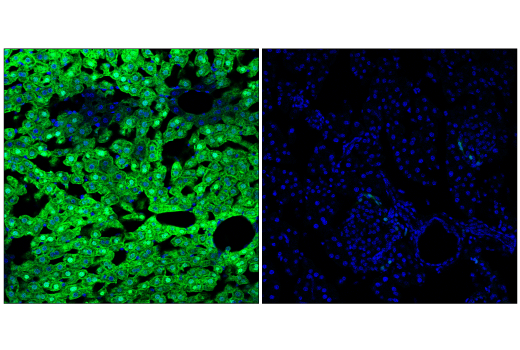

Confocal immunofluorescent analysis of mouse primary bone marrow-derived macrophages (BMDMs) using Arginase-1 (D4E3M™) XP® (Alexa Fluor® 488 Conjugate) Rabbit mAb (green). BMDMs were differentiated with M-CSF (20 ng/ml, 7 days) and activated with either IL-4/cAMP (20 ng/ml, 0.5 mM, 24 hours; left) or LPS/IFNγ (50 ng/ml, 20 ng/ml, 24 hours; right). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).Learn more about how we get our images
Gallery: Arginase-1 (D4E3M™) XP® Rabbit mAb (Alexa Fluor® 488 Conjugate) #66297
A. Solutions and Reagents
NOTE: Prepare solutions with reverse osmosis deionized (RODI) or equivalently purified water.
- 20X Phosphate Buffered Saline (PBS): (9808) To prepare 1L 1X PBS: add 50 ml 20X PBS to 950 ml dH2O, mix. Adjust pH to 8.0.
- Formaldehyde: 16%, methanol free, Polysciences, Inc. (cat# 18814), use fresh and store opened vials at 4°C in dark, dilute in 1X PBS for use.
- Methanol, 100%
- Blocking Buffer (1X PBS / 5% normal goat serum (#5425) / 0.3% Triton™ X-100): To prepare 10 ml: add 0.5 ml normal goat serum and 0.5 ml 20X PBS to 9.0 ml dH2O, mix. While stirring, add 30 µl Triton™ X-100.
- Antibody Dilution Buffer (1X PBS / 1% BSA / 0.3% Triton X-100): To prepare 10 ml, add 30 µl Triton™ X-100 to 10 ml 1X PBS. Mix well then add 0.1 g BSA (9998), mix.
- Prolong® Gold AntiFade Reagent (#9071), Prolong® Gold AntiFade Reagent with DAPI (#8961).
B. Specimen Preparation - Cultured Cell Lines (IF-IC)
NOTE: Cells should be grown, treated, fixed and stained directly in multiwell plates, chamber slides or on coverslips.
- Aspirate liquid, then cover cells to a depth of 2–3 mm with 4% formaldehyde in 1X PBS.
NOTE: Formaldehyde is toxic, use only in fume hood.
- Allow cells to fix for 15 minutes at room temperature.
- Aspirate fixative, rinse three times in 1X PBS for 5 minutes each.
- Proceed with Immunostaining (Section C).
NOTE: All subsequent incubations should be carried out at room temperature unless otherwise noted in a humid light-tight box or covered dish/plate to prevent drying and fluorochrome fading.
- Methanol Permeabilization Step: Cover cells with ice-cold 100% methanol (use enough to cover completely to a depth of 3–5 mm, DO NOT LET DRY), incubate in methanol for 10 minutes at –20°C, rinse in 1X PBS for 5 minutes.
- Block specimen in Blocking Buffer for 60 minutes.
- While blocking, prepare primary antibody by diluting as indicated on datasheet in Antibody Dilution Buffer.
- Aspirate blocking solution, apply diluted primary antibody.
- Incubate overnight at 4°C.
- Rinse three times in 1X PBS for 5 minutes each.
- Coverslip slides with Prolong® Gold Antifade Reagent (#9071), Prolong® Gold AntiFade Reagent with DAPI (#8961).
- For best results examine specimens immediately using appropriate excitation wavelength. For long term storage, store slides flat at 4°C protected from light.
posted November 2006
revised December 2010
Arginase-1 (D4E3M™) XP® Rabbit mAb (Alexa Fluor® 488 Conjugate) recognizes endogenous levels of total arginase-1 protein. This antibody does not cross-react with arginase-2.Species Reactivity: Human, Mouse, Rat
Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to residues surrounding Val47 of human arginase-1 protein.
This Cell Signaling Technology antibody is conjugated to Alexa Fluor® 488 fluorescent dye and tested in-house for direct flow cytometric analysis in human cells. This antibody is expected to exhibit the same species cross-reactivity as the unconjugated Arginase-1 (D4E3M™) XP® Rabbit mAb #93668.
L-arginine plays a critical role in regulating the immune system (1-3). In inflammation, cancer and certain other pathological conditions, myeloid cell differentiation is inhibited leading to a heterogeneous population of immature myeloid cells, known as myeloid-derived suppressor cells (MDSCs). MDSCs are recruited to sites of cancer-associated inflammation and express high levels of arginase-1 (4). Arginase-1 catalyzes the final step of the urea cycle converting L-arginine to L-ornithine and urea (5). Thus MDSCs increase the catabolism of L-arginine resulting in L-arginine depletion in the inflammatory microenvironment of cancer (4, 6). The reduced availability of L-arginine suppresses T-cell proliferation and function and thus contributes to tumor progression (4, 6). Arginase-1 is of great interest to researchers looking for a therapeutic target to inhibit the function of MDSCs in the context of cancer immunotherapy (7). In addition, research studies have demonstrated that Arginase-1 distinguishes primary hepatocellular carcinoma (HCC) from metastatic tumors in the liver, indicating its value as a potential biomarker in the diagnosis of HCC (8, 9).
