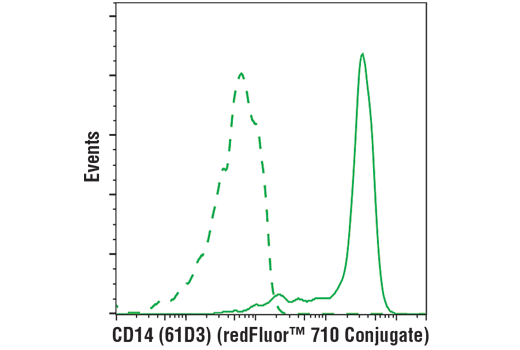

Flow cytometric analysis of live human peripheral blood mononuclear cells using CD14 (61D3) Mouse mAb (redFluor™ 710 Conjugate) (solid line) compared to concentration-matched Mouse (MOPC-21) mAb IgG1 Isotype Control (redFluor™ 710 Conjugate) #35935 (dashed line). Analysis was performed on cells in the monocyte gate.
This Cell Signaling Technology antibody is conjugated to redFluor™ 710 and tested in-house for direct flow cytometry analysis in human cells.
Supplied in 10 mM NaH2PO4, 150 mM NaCl, 0.09% NaN3, 0.1% gelatin, pH 7.2. This product is stable for 6 months when stored at 4ºC. Do not aliquot the antibody. Protect from light. Do not freeze.
NOTE: Prepare solutions with reverse osmosis deionized (RODI) or equivalent grade water.
NOTE: When including fluorescent cellular dyes in your experiment (including viability dyes, DNA dyes, etc.), please refer to the dye product page for the recommended protocol. Visit www.cellsignal.com/flowdyes for a listing of cellular dyes validated for use in flow cytometry.
NOTE: Count cells using a hemocytometer or alternative method.
NOTE: If using whole blood, lyse red blood cells and wash by centrifugation prior to Immunostaining.
NOTE: Optimal centrifugation conditions will vary depending upon cell type and reagent volume. Generally, 150-300g for 1-5 minutes will be sufficient to pellet the cells.
posted June 2017
revised August 2019
Protocol Id: 1504
CD14 (61D3) Mouse mAb (redFluor™ 710 Conjugate) recognizes endogenous levels of total CD14 protein. This antibody detects an epitope within the extracellular domain.Species Reactivity:
This monoclonal antibody was purified from tissue culture supernatant via affinity chromatography. The purified antibody was conjugated under optimal conditions, with unreacted dye removed from the preparation.
CD14 is a leucine-rich repeat-containing pattern recognition receptor with expression largely restricted to the monocyte/macrophage cell lineage (1). Research studies have shown that CD14 is a bacterial lipopolysaccharide (LPS) binding glycoprotein, expressed as either a GPI-linked membrane protein or a soluble plasma protein (2). LPS induces an upregulation of GPI-linked CD14 expression, which facilitates TLR4 signaling and macrophage activation in response to bacterial infection (3-5).
The 61D3 antibody is widely used to identify cells of the monocyte/macrophage lineage (6).
