78944
CD20 (2H7) Mouse mAb (APC-Cy7® Conjugate)
Antibody Conjugates

CD20 (2H7) Mouse mAb (APC-Cy7® Conjugate) #78944

Reviews ()
Citations (0)
Filter:
  1. F

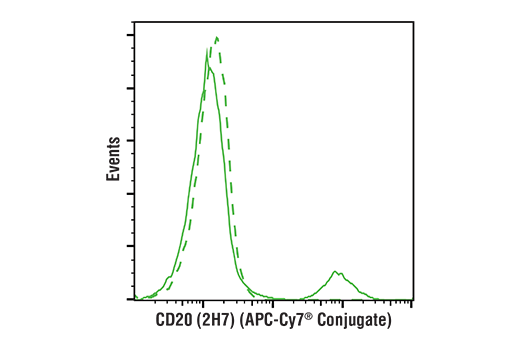

Flow cytometric analysis of live human peripheral blood mononuclear cells using CD20 (2H7) Mouse mAb (APC-Cy7® Conjugate) (solid line) compared to concentration-matched Mouse Isotype Control (APC-Cy7® Conjugate) (dashed line).

To Purchase # 78944S
Product # Size Price
78944S
500 µl  (100 tests) $ 299

Supporting Data

REACTIVITY H
SENSITIVITY Endogenous
MW (kDa)
Isotype Mouse IgG2b, kappa

Application Key:

  • W-Western
  • IP-Immunoprecipitation
  • IHC-Immunohistochemistry
  • ChIP-Chromatin Immunoprecipitation
  • IF-Immunofluorescence
  • F-Flow Cytometry
  • E-P-ELISA-Peptide

Species Cross-Reactivity Key:

  • H-Human
  • M-Mouse
  • R-Rat
  • Hm-Hamster
  • Mk-Monkey
  • Mi-Mink
  • C-Chicken
  • Dm-D. melanogaster
  • X-Xenopus
  • Z-Zebrafish
  • B-Bovine
  • Dg-Dog
  • Pg-Pig
  • Sc-S. cerevisiae
  • Ce-C. elegans
  • Hr-Horse
  • All-All Species Expected

Product Description

This Cell Signaling Technology antibody is conjugated to APC-Cy7® and tested in-house for direct flow cytometric analysis in human cells.

Product Usage Information

Application Dilution
Flow Cytometry 1:20

Storage:

Supplied in 10 mM NaH2PO4, 150 mM NaCl, 0.09% NaN3, 0.1% gelatin, pH 7.2. This product is stable for 6 months when stored at 4ºC. Do not aliquot the antibody. Protect from light. Do not freeze.

Protocol

PRINT

View >Collapse >

Flow Cytometry, Live Cell Protocol for Directly Conjugated Antibodies

A. Solutions and Reagents

NOTE: Prepare solutions with reverse osmosis deionized (RODI) or equivalent grade water.

  1. 1X Phosphate Buffered Saline (PBS): To prepare 1 L 1X PBS: add 100 ml 10X PBS (#12528) to 900 ml water, mix.
  2. Antibody Dilution Buffer: Purchase ready-to-use Flow Cytometry Antibody Dilution Buffer (#13616), or prepare a 0.5% BSA PBS buffer by dissolving 0.5 g Bovine Serum Albumin (BSA) (#9998) in 100 ml 1X PBS. Store at 4°C.

NOTE: When including fluorescent cellular dyes in your experiment (including viability dyes, DNA dyes, etc.), please refer to the dye product page for the recommended protocol. Visit www.cellsignal.com/flowdyes for a listing of cellular dyes validated for use in flow cytometry.

B. Immunostaining

NOTE: Count cells using a hemocytometer or alternative method.

NOTE: If using whole blood, lyse red blood cells and wash by centrifugation prior to Immunostaining.

NOTE: Optimal centrifugation conditions will vary depending upon cell type and reagent volume. Generally, 150-300g for 1-5 minutes will be sufficient to pellet the cells.

  1. Aliquot desired number of cells into tubes or wells. (Generally, 5x105 to 1x106 cells per assay.)
  2. Pellet cells by centrifugation and remove supernatant.
  3. Resuspend cells in 100 µl of diluted primary antibody, prepared in Antibody Dilution Buffer at a recommended dilution or as determined via titration.
  4. Incubate for 30 min to 1 hr on ice. Protect from light.
  5. Wash by centrifugation in Antibody Dilution Buffer. Discard supernatant. Repeat.
  6. Resuspend cells in 200-500 µl of Antibody Dilution Buffer and analyze on flow cytometer.

posted June 2017

revised August 2019

Protocol Id: 1504

Specificity / Sensitivity

CD20 (2H7) Mouse mAb (APC-Cy7® Conjugate) recognizes endogenous levels of total CD20 protein. This antibody detects an epitope within the extracellular domain.

Species Reactivity:

Human

Source / Purification

This monoclonal antibody was purified from tissue culture supernatant via affinity chromatography. The purified antibody was conjugated under optimal conditions, with unreacted dye removed from the preparation.

Background

B-lymphocyte antigen CD20 (also known as MS4A1; Membrane-spanning 4-domains subfamily A member 1) is a cell surface phosphoprotein involved in the regulation of B cell activation and proliferation (1,2). It is commonly used as a marker to identify B cells and is expressed throughout B cell development, up until their differentiation into plasma cells. CD20 has no known ligand, and its expression and function are largely conserved between human and mouse (1-3). Evidence suggests that CD20 is necessary for store operated calcium (SOC) entry, which leads to elevated cytoplasmic calcium levels required for B cell activation (4-5). Anti-CD20 antibody immunotherapy depletes B cells by activation of the innate monocytic network and is a common treatment for B cell lymphomas, leukemias, and autoimmune diseases (6).

The 2H7 antibody is widely used to identify both normal and malignant B cells (7).

  1. Stashenko, P. et al. (1980) J Immunol 125, 1678-85.
  2. Tedder, T.F. et al. (1985) J Immunol 135, 973-9.
  3. Tedder, T.F. et al. (1988) J Immunol 141, 4388-94.
  4. Bubien, J.K. et al. (1993) J Cell Biol 121, 1121-32.
  5. Li, H. et al. (2003) J Biol Chem 278, 42427-34.
  6. Uchida, J. et al. (2004) J Exp Med 199, 1659-69.
  7. Liu, A.Y. et al. (1987) J Immunol 139, 3521-6.

Pathways & Proteins

Explore pathways + proteins related to this product.

For Research Use Only. Not For Use In Diagnostic Procedures.
