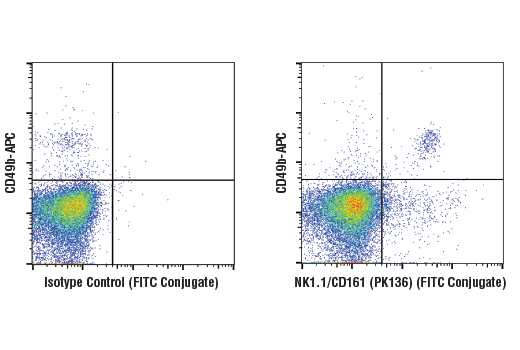

Flow cytometric analysis of live mouse splenocytes using NK1.1/CD161 (PK136) Mouse mAb (FITC Conjugate) and co-stained with CD49b (APC Conjugate) (right), compared to concentration-matched Mouse Isotype Control (FITC Conjugate) (left).
|Isotype||Mouse IgG2a, kappa|
This Cell Signaling Technology antibody is conjugated to FITC and tested in-house for direct flow cytometric analysis in mouse cells.
For optimal flow cytometry results, we recommend 0.5 μg of antibody per test.
Supplied in 10 mM NaH2PO4, 150 mM NaCl, 0.09% NaN3, 0.1% gelatin, pH 7.2. This product is stable for 6 months when stored at 4ºC. Do not aliquot the antibody. Protect from light. Do not freeze.
NOTE: Prepare solutions with reverse osmosis deionized (RODI) or equivalent grade water.
NOTE: When including fluorescent cellular dyes in your experiment (including viability dyes, DNA dyes, etc.), please refer to the dye product page for the recommended protocol. Visit www.cellsignal.com/flowdyes for a listing of cellular dyes validated for use in flow cytometry.
NOTE: Count cells using a hemocytometer or alternative method.
NOTE: If using whole blood, lyse red blood cells and wash by centrifugation prior to Immunostaining.
NOTE: Optimal centrifugation conditions will vary depending upon cell type and reagent volume. Generally, 150-300g for 1-5 minutes will be sufficient to pellet the cells.
posted June 2017
revised August 2019
Protocol Id: 1504
NK1.1/CD161 (PK136) Mouse mAb (FITC Conjugate) recognizes endogenous levels of total NK1.1/CD161 protein. This antibody detects an epitope within the extracellular domain.Species Reactivity:
This monoclonal antibody was purified from tissue culture supernatant via affinity chromatography. The purified antibody was conjugated under optimal conditions, with unreacted dye removed from the preparation.
CD161/KLRB1 (Killer cell lectin-like receptor subfamily B member 1, also known as CLEC5B and NKR-P1A) is a type II transmembrane protein that is expressed on the majority of Natural Killer (NK) cells, NK T cells, and some T lymphocytes (1). CD161/KLRB1 is also expressed on Th17 cells, promotes their generation, and modulates their function (2). Engagement with its ligand lectin-like transcript 1 (LLT1) inhibits NK cell function, while LLT1 and CD161/KLRB1 interaction in the presence of a TCR signal enhances IFN-gamma production by T cells (3,4). There are several different CD161 isoforms in rodents and some function as activating receptors as well (5,6).
There is a family of Klrb1 genes in rodents (7). PK136 antibody recognizes a specific epitope on mouse KLRB1C and is commonly used for detection of mouse NK cells in certain mouse strains (CE, B6, NZB, C58, Ma/My, ST, SJL, FVB). However, the epitope is absent in other mouse strains (BALB/c, AKR, CBA, C3H, DBA, 129) (8).
