REACTIVITY SENSITIVITY MW (kDa) Isotype
H M Endogenous Rabbit IgG

Flow Cytometry

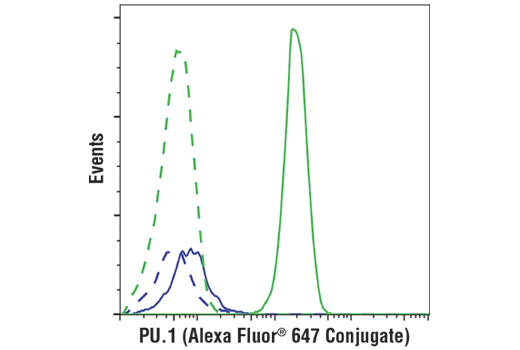

Flow cytometric analysis of MCF-7 cells (blue) and THP-1 cells (green) using PU.1 (9G7) Rabbit mAb (Alexa Fluor® 647 Conjugate) (solid lines) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control (Alexa Fluor® 647 Conjugate) #2985 (dashed lines).

Learn more about how we get our images
Page

Flow Cytometry, Methanol Permeabilization Protocol for Direct Conjugates

A. Solutions and Reagents

NOTE: Prepare solutions with reverse osmosis deionized (RODI) or equivalent grade water.

  1. 20X Phosphate Buffered Saline (PBS): (#9808) To prepare 1 L 1X PBS: add 50 ml 20X PBS to 950 ml dH2O, mix.
  2. 16% Formaldehyde (methanol free).
  3. 100% methanol.
  4. Incubation Buffer: Dissolve 0.5 g Bovine Serum Albumin (BSA) (#9998) in 100 ml 1X PBS. Store at 4°C.

B. Fixation

NOTE: If using whole blood, lyse red blood cells and wash by centrifugation prior to fixation.

  1. Collect cells by centrifugation and aspirate supernatant.
  2. Resuspend cells in 0.5-1 ml 1X PBS. Add formaldehyde to obtain a final concentration of 4%.
  3. Fix for 15 min at room temperature.
  4. Wash by centrifugation with excess 1X PBS. Discard supernatant in appropriate waste container. Resuspend cells in 0.5-1 ml 1X PBS.

C. Permeabilization

  1. Permeabilize cells by adding ice-cold 100% methanol slowly to pre-chilled cells, while gently vortexing, to a final concentration of 90% methanol.
  2. Incubate 30 min on ice.
  3. Proceed with immunostaining (Section D) or store cells at -20°C in 90% methanol.

D. Immunostaining

  1. Aliquot desired number of cells into tubes or wells.
  2. Wash cells by centrifugation in excess 1X PBS to remove methanol. Discard supernatant in appropriate waste container. Repeat if necessary.
  3. Resuspend cells in 100 µl of diluted antibody conjugate (prepared in incubation buffer at the recommended dilution).
  4. Incubate for 1 hr at room temperature. Protect from light.
  5. Wash by centrifugation in incubation buffer. Discard supernatant. Repeat.
  6. Resuspend cells in 1X PBS and analyze on flow cytometer; alternatively, for DNA staining, proceed to optional DNA stain (Section E).

E. Optional DNA Dye

  1. Resuspend cells in 0.5 ml of DNA dye (e.g. Propidium Iodide (PI)/RNase Staining Solution #4087).
  2. Incubate for at least 5 min at room temperature.
  3. Analyze cells in DNA staining solution on flow cytometer.

posted July 2009

revised June 2017

Protocol Id: 407

Product Usage Information

Application Dilutions
Flow Cytometry 1:50

Storage: Supplied in PBS (pH 7.2), less than 0.1% sodium azide and 2 mg/ml BSA. Store at 4°C. Do not aliquot the antibody. Protect from light. Do not freeze.

Specificity / Sensitivity

PU.1 (9G7) Rabbit mAb (Alexa Fluor® 647 Conjugate) detects endogenous levels of total PU.1 protein. The antibody does not cross react with other Ets family members.


Species Reactivity: Human, Mouse
Species predicted to react based on 100% sequence homology: Monkey, Pig

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to the sequence of human PU.1 protein. The antibody was conjugated to Alexa Fluor® 647 under optimal conditions with an F/P ratio of 2-6. The Alexa Fluor® 647 dye is maximally excited by red light (e.g. 633 nm He-Ne laser). Antibody conjugates of the Alexa Fluor® 647 dye produce bright far-red-fluorescence emission, with a peak at 665 nm.

Product Description

This Cell Signaling Technology antibody is conjugated to Alexa Fluor® 647 fluorescent dye and tested in-house for direct flow cytometric analysis of human cells. The unconjugated antibody #2258 reacts with human and mouse PU.1 protein. CST expects that PU.1 (9G7) Rabbit mAb (Alexa Fluor® 647 Conjugate) will also recognize PU.1 in these species.


PU.1 is a member of the Ets family of transcription factors and activates target genes through the purine-rich PU-box (1). PU.1 plays a pivotal role in the differentiation of myeloid cells and lymphocytes and is expressed in several hematopoietic cells including B lymphocytes, macrophages, neutrophils, mast cells, early erythroid cells, and megakaryocytes (1,2). The concentration of PU.1 is critical for both the determination of hematopoietic cell lineage and the regulation of differentiation versus stem cell proliferation (3,4). In addition, PU.1 activity is influenced by phosphorylation and interactions with other hematopoietic transcription factors. Phosphorylation of PU.1 at Ser146 by CK2 promotes binding to IRF4 and synergistic activation through the immunoglobulin κ 3' enhancer (5). Treatment of pro-B cells with IL-3 leads to phosphorylation of PU.1 at Ser140, resulting in increased PU.1 activity and activation of the anti-apoptotic gene MCL-1 (6). GATA1 binding blocks PU.1 activity during erythroid cell development (7). Overexpression of PU.1 resulting from proviral insertion during Friend virus infection can induce erythroleukemia, while reduced expression has been associated with acute myeloid leukemia (8).


1.  Lloberas, J. et al. (1999) Immunol Today 20, 184-9.

2.  Klemsz, M.J. et al. (1990) Cell 61, 113-24.

3.  Dahl, R. and Simon, M.C. (2003) Blood Cells Mol Dis 31, 229-33.

4.  DeKoter, R.P. and Singh, H. (2000) Science 288, 1439-41.

5.  Pongubala, J.M. et al. (1993) Science 259, 1622-5.

6.  Wang, J.M. et al. (2003) Mol Cell Biol 23, 1896-909.

7.  Zhang, P. et al. (1999) Proc Natl Acad Sci U S A 96, 8705-10.

8.  Moreau-Gachelin, F. et al. (1988) Nature 331, 277-80.


Entrez-Gene Id 6688
Swiss-Prot Acc. P17947


For Research Use Only. Not For Use In Diagnostic Procedures.
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
The Alexa Fluor dye antibody conjugates in this product are sold under license from Life Technologies Corporation for research use only, except for use in combination with DNA microarrays. The Alexa Fluor® dyes (except for Alexa Fluor® 430 dye) are covered by pending and issued patents. Alexa Fluor® is a registered trademark of Molecular Probes, Inc.
U.S. Patent No. 7,429,487, foreign equivalents, and child patents deriving therefrom.

2240
PU.1 (9G7) Rabbit mAb (Alexa Fluor® 647 Conjugate)
