REACTIVITY SENSITIVITY MW (kDa) Isotype
H Endogenous Rabbit IgG

Flow Cytometry

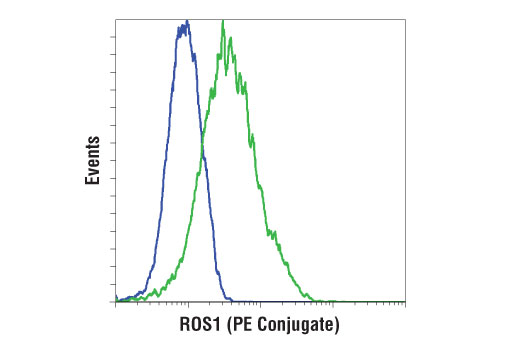

Flow cytometric analysis of HeLa (blue) and HCC78 (green) cells using ROS1 (D4D6®) Rabbit mAb (PE Conjugate).

Learn more about how we get our images
Page

Flow Cytometry General Protocol

If using whole blood, please follow the Flow Cytometry Whole Blood Protocol.

A. Solutions and Reagents

NOTE: Prepare solutions with reverse osmosis deionized (RODI) or equivalent grade water.

  1. 20X Phosphate Buffered Saline (PBS): (#9808) To prepare 1 L 1X PBS: add 50 ml 20X PBS to 950 ml dH2O, mix.
  2. 16% Formaldehyde (methanol free).
  3. 100% methanol.
  4. Incubation Buffer: Dissolve 0.5 g Bovine Serum Albumin (BSA) (#9998) in 100 ml 1X PBS. Store at 4°C.

B. Fixation

  1. Collect cells by centrifugation and aspirate supernatant.
  2. Resuspend cells in 0.5–1 ml 1X PBS. Add formaldehyde to obtain a final concentration of 4%.
  3. Fix for 10 min at 37°C.
  4. Chill tubes on ice for 1 min.
  5. For extracellular staining with antibodies that do not require permeabilization, proceed to immunostaining (Section D) or store cells in PBS with 0.1% sodium azide at 4°C; for intracellular staining, proceed to permeabilization (Section C).

C. Permeabilization

NOTE: This step is critical for many CST antibodies.

  1. Permeabilize cells by adding ice-cold 100% methanol slowly to pre-chilled cells, while gently vortexing, to a final concentration of 90% methanol. Alternatively, remove fix prior to permeabilization by centrifugation and resuspend in 90% methanol as described above.
  2. Incubate 30 min on ice.
  3. Proceed with immunostaining (Section D) or store cells at -20°C in 90% methanol.

D. Immunostaining

NOTE: Account for isotype matched controls for monoclonal antibodies or species matched IgG for polyclonal antibodies. Count cells using a hemocytometer or alternative method.

  1. Aliquot 0.5–1 x 106 cells into each assay tube (by volume).
  2. Add 2–3 ml incubation buffer to each tube and wash by centrifugation. Repeat.
  3. Resuspend cells in 100 µl of diluted primary antibody (prepared in incubation buffer at the recommended dilution).
  4. Incubate for 1 hr at room temperature.
  5. Wash by centrifugation in 2–3 ml incubation buffer.
  6. Resuspend cells in 0.5 ml PBS and analyze on flow cytometer; alternatively, for DNA staining, proceed to optional DNA stain (Section E).

E. Optional DNA Dye

  1. Resuspend cells in 0.5 ml of DNA dye (e.g. Propidium Iodide (PI)/RNase Staining Solution #4087).
  2. Incubate for at least 30 min at room temperature.
  3. Analyze cells in DNA staining solution on flow cytometer.

posted July 2009

revised September 2013

Flow Cytometry Whole Blood Protocol

If using cell lines, please follow the Flow Cytometry General Protocol.

A. Solutions and Reagents

NOTE: Prepare solutions with reverse osmosis deionized (RODI) or equivalent grade water.

  1. 20X Phosphate Buffered Saline (PBS): (#9808) To prepare 1 L 1X PBS: add 50 ml 20X PBS to 950 ml dH2O, mix.
  2. 16% Formaldehyde (methanol free).
  3. Triton™ X-100: To prepare 50 ml of 0.1% Triton™ X-100 add 50 μl Triton™ X-100 to 50 ml 1 X PBS and mix well.
  4. 50% methanol.
  5. Incubation Buffer: Dissolve 0.5 g Bovine Serum Albumin (BSA) (#9998) in 100 ml 1X PBS. Store at 4°C.

B. Preparation of Whole Blood (fixation, lysis, and permeabilization) for Immunostaining

  1. Aliquot 100 μl fresh whole blood per assay tube.
  2. OPTIONAL: Place tubes in rack in 37°C water bath for short-term treatments with ligands, inhibitors, drugs, etc.
  3. Add 65 μl of 10% formaldehyde to each tube.
  4. Vortex briefly and let stand for 15 min at room temperature.
  5. Add 1 ml of 0.1% Triton™ X-100 to each tube.
  6. Vortex and let stand for 30 min at room temperature.
  7. Add 1 ml incubation buffer.
  8. Pellet cells by centrifugation and aspirate supernatant.
  9. Repeat steps 7 and 8.
  10. Resuspend cells in ice-cold 50% methanol in PBS (store methanol solution at -20°C until use).
  11. Incubate at least 10 min on ice.
  12. Proceed with staining or store cells at -20°C in 50% methanol.

C. Staining Using Conjugated Primary Antibodies

NOTE: Account for isotype-matched controls for monoclonal antibodies or species matched IgG for polyclonal antibodies.

  1. Add 2–3 ml incubation buffer to each tube and rinse by centrifugation. Repeat.
  2. Add primary antibodies diluted as recommended on datasheet or product webpage in incubation buffer.
  3. Incubate for 1 hr at room temperature.
  4. Wash by centrifugation in 2–3 ml incubation buffer.
  5. Resuspend cells in 0.5 ml PBS and analyze on flow cytometer.

Reference: Chow S, Hedley D, Grom P, Magari R, Jacobberger JW, Shankey TV (2005) Whole blood fixation and permeabilization protocol with red blood cell lysis for flow cytometry of intracellular phosphorylated epitopes in leukocyte subpopulations. Cytometry A 67(1), 4–17.

posted November 2008

revised September 2013

Protocol Id: 407

Product Usage Information

Application Dilutions
Flow Cytometry 1:50

Storage: Supplied in PBS (pH 7.2), less than 0.1% sodium azide and 2 mg/ml BSA. Store at 4°C. Do not aliquot the antibodies. Protect from light. Do not freeze.

Specificity / Sensitivity

ROS1 (D4D6®) Rabbit mAb (PE Conjugate) recognizes endogenous levels of total ROS1 protein. The unconjugated antibody does not cross-react with other related proteins when analyzed by western blot. Please note that staining may be observed in ROS1 rearranged lung carcinomas, macrophages/giant cells, reactive type II pneumocyte hyperplasia, and the epithelium in areas of bronchiolar metaplasia. Staining of unknown specificity has been observed in cholangiocarcinoma, hepatocellular carcinoma, and kidney tissues.


Species Reactivity: Human

Source / Purification

Monoclonal antibody is produced by immunizing animals with a protein corresponding to residues in the carboxy terminal domain of the human ROS1 protein.

Product Description

This Cell Signaling Technology antibody is conjugated to phycoerythrin (PE) and tested in-house for direct flow cytometry analysis in human cells. This antibody is expected to exhibit the same species cross-reactivity as the unconjugated ROS1 (D4D6®) Rabbit mAb #3287.


ROS1, an orphan receptor tyrosine kinase of the insulin receptor family, was initially identified as a homolog of v-ros from the UR2 sarcoma virus (1). ROS1 consists of a large extracellular domain that is composed of six fibronectin repeats, a transmembrane domain, and an intracellular kinase domain. While the function of ROS1 is undefined, it has been shown to play an important role in differentiation of epididymal epithelium (2). The first oncogenic fusion of ROS1, FIG-ROS1, was initially identified by research studies in glioblastoma (3), and subsequent studies have found this fusion in cholangiocarcinoma (4), ovarian cancer (5) and non-small cell lung cancer (NSCLC) (6). Investigators have found additional oncogenic ROS1 fusion proteins in NSCLC (at a frequency of ~1.6%), where the ROS1 kinase domain is fused to the amino-terminal region of a number of different proteins, including CD74 and SLC34A2 (6-8). ROS1 fusion proteins activate the SHP-2 phosphatase, PI3K/Akt/mTOR, Erk, and Stat3 pathways (3,4,9).


1.  Matsushime, H. et al. (1986) Mol Cell Biol 6, 3000-4.

2.  Yeung, C.H. et al. (1999) Biol Reprod 61, 1062-9.

3.  Charest, A. et al. (2003) Genes Chromosomes Cancer 37, 58-71.

4.  Gu, T.L. et al. (2011) PLoS One 6, e15640.

5.  Birch, A.H. et al. (2011) PLoS One 6, e28250.

6.  Rimkunas, V.M. et al. (2012) Clin Cancer Res 18, 4449-57.

7.  Rikova, K. et al. (2007) Cell 131, 1190-203.

8.  Stumpfova, M. and Jänne, P.A. (2012) Clin Cancer Res 18, 4222-4.

9.  Jun, H.J. et al. (2012) Cancer Res 72, 3764-74.


Entrez-Gene Id 6098
Swiss-Prot Acc. P08922


For Research Use Only. Not For Use In Diagnostic Procedures.
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
D4D6 is a registered trademark of Cell Signaling Technology, Inc.

35550
ROS1 (D4D6®) Rabbit mAb (PE Conjugate)
