Upstream / Downstream
Explore pathways related to this product.
To Purchase # 77358S
|77358S||100 µl (50 tests)||$329.00.0|
Find answers on our FAQs page.
- Additional protein information
- Analytical tools
VISTA (D1L2G™) XP® Rabbit mAb (Alexa Fluor® 488 Conjugate) #77358

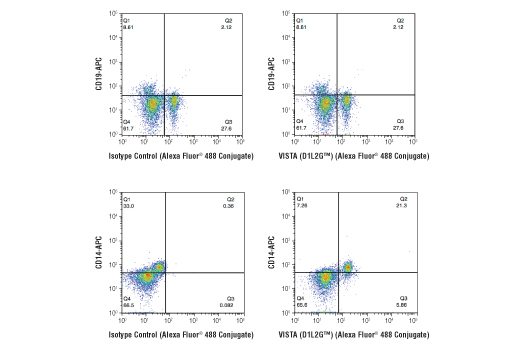

Flow cytometric analysis of human whole blood cells stained with VISTA (D1L2G™) XP® Rabbit mAb (Alexa Fluor® 488 Conjugate) and co-stained with CD19-APC and CD14-APC. VISTA is present on CD14+ Monocytes (bottom right; upper right quadrant) and shows an increase in intensity when compared to the isotype control (bottom left; upper left quadrant). CD19+ B cells are negative for VISTA (top right; upper left quadrant) and do not show an increase in intensity when compared to the isotype control (top left; upper left quadrant).Learn more about how we get our images
Gallery: VISTA (D1L2G™) XP® Rabbit mAb (Alexa Fluor® 488 Conjugate) #77358
Flow Cytometry, Methanol Permeabilization Protocol for Direct Conjugates
A. Solutions and Reagents
NOTE: Prepare solutions with reverse osmosis deionized (RODI) or equivalent grade water.
- 20X Phosphate Buffered Saline (PBS): (#9808) To prepare 1 L 1X PBS: add 50 ml 20X PBS to 950 ml dH2O, mix.
- 16% Formaldehyde (methanol free).
- 100% methanol.
- Incubation Buffer: Dissolve 0.5 g Bovine Serum Albumin (BSA) (#9998) in 100 ml 1X PBS. Store at 4°C.
NOTE: If using whole blood, lyse red blood cells and wash by centrifugation prior to fixation.
- Collect cells by centrifugation and aspirate supernatant.
- Resuspend cells in 0.5-1 ml 1X PBS. Add formaldehyde to obtain a final concentration of 4%.
- Fix for 15 min at room temperature.
- Wash by centrifugation with excess 1X PBS. Discard supernatant in appropriate waste container. Resuspend cells in 0.5-1 ml 1X PBS.
- Permeabilize cells by adding ice-cold 100% methanol slowly to pre-chilled cells, while gently vortexing, to a final concentration of 90% methanol.
- Incubate 30 min on ice.
- Proceed with immunostaining (Section D) or store cells at -20°C in 90% methanol.
- Aliquot desired number of cells into tubes or wells.
- Wash cells by centrifugation in excess 1X PBS to remove methanol. Discard supernatant in appropriate waste container. Repeat if necessary.
- Resuspend cells in 100 µl of diluted antibody conjugate (prepared in incubation buffer at the recommended dilution).
- Incubate for 1 hr at room temperature. Protect from light.
- Wash by centrifugation in incubation buffer. Discard supernatant. Repeat.
- Resuspend cells in 1X PBS and analyze on flow cytometer; alternatively, for DNA staining, proceed to optional DNA stain (Section E).
E. Optional DNA Dye
- Resuspend cells in 0.5 ml of DNA dye (e.g. Propidium Iodide (PI)/RNase Staining Solution #4087).
- Incubate for at least 5 min at room temperature.
- Analyze cells in DNA staining solution on flow cytometer.
posted July 2009
revised June 2017
VISTA (D1L2G™) XP® Rabbit mAb (Alexa Fluor® 488 Conjugate) recognizes endogenous levels of total VISTA protein.Species Reactivity: Human, Monkey
Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to residues near the carboxy terminus of human VISTA protein.
This Cell Signaling Technology antibody is conjugated to Alexa Fluor® 488 fluorescent dye and tested in-house for direct flow cytometric analysis in human cells. This antibody is expected to exhibit the same species cross-reactivity as the unconjugated VISTA (D1L2G™) XP® Rabbit mAb #64953.
VISTA (V-Domain Ig Suppressor of T Cell Activation) is a negative checkpoint control protein that regulates T cell activation and immune responses. VISTA, which contains a single Ig-like V-type domain, a transmembrane domain, and an intracellular domain, has sequence similarity to both the B7 and CD28 family members. Although primarily expressed by myeloid cells, VISTA is also expressed by CD4+, CD8+, and FoxP3+ T-cells. Thus, VISTA is described as both a ligand and a receptor (1-3). Blocking VISTA induces T-cell activation and proliferation, and potentiates disease severity in the EAE model (1). Furthermore, genetic deletion of VISTA in mice leads to spontaneous T-cell activation and chronic inflammation (4,5). In mouse models of cancer, neutralization of VISTA enhances T-cell proliferation and effector function and increases tumor infiltration, suggesting VISTA blockade could be an effective strategy for tumor immunotherapy (6,7).
