DRAQ7 #7406

Citations (2)
  1. F

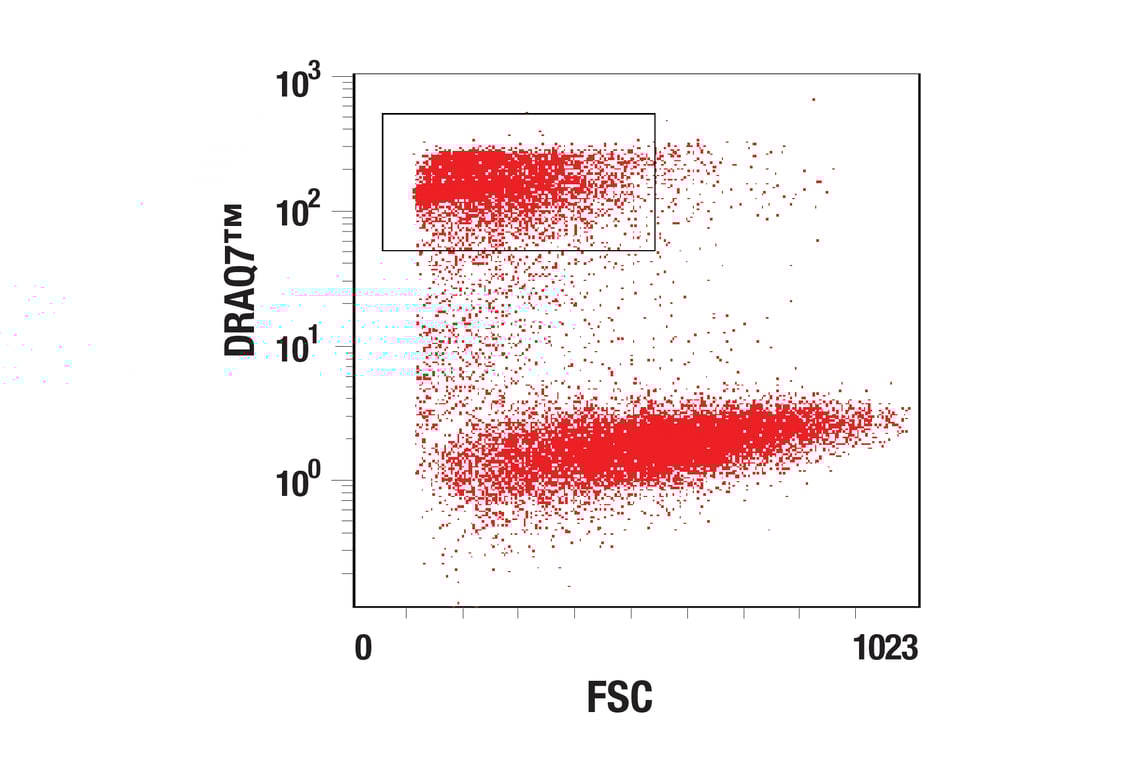

Flow cytometric analysis of live Jurkat cells treated with Staurosporine #9953. Gated population represents DRAQ7-positive apoptotic cells.
DRAQ7® emission spectra when excited at various wavelengths.

Product Usage Information

Flow Cytometry: Prepare cells for DRAQ7 staining by resuspending cells in PBS at a concentration of no more than 5 x 105 cells/ml. For each 0.5 ml of cell suspension, dilute DRAQ7 1:100 by adding 5 μl to suspended cells, achieving a final concetration of 3 μM. Gently mix and incubate for 10 minutes on ice. Cells should be analyzed directly in the presence of DRAQ7.


DRAQ7 is provided as a 0.3 mM stock.


Store at 4°C, protected from light. Do not freeze.

Fluorescent Properties

  • Exλmax599/644 nm
  • Emλmax678/694 nm
  • DRAQ7™ may be excited by a wide range of wavelengths from 488-647 nm. Despite low absorbance at 488 nm, this excitation source allows for convenient combination with FITC and PE conjugates as well as EGFP.


DRAQ7 is a far-red fluorescent DNA dye that only stains the nuclei in dead and permeabilized cells. It can be used in combination with GFP, FITC, and PE labels.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

For Research Use Only. Not for Use in Diagnostic Procedures.
