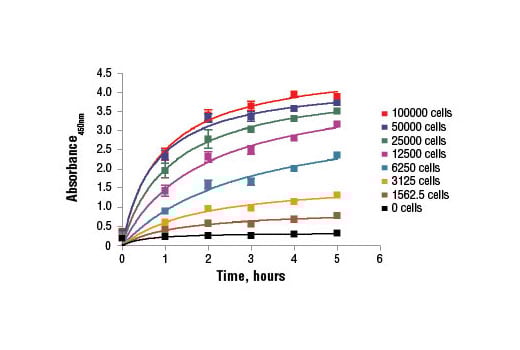

Figure 1. C2C12 cells were seeded at varying density in a 96-well plate and incubated overnight. The XTT assay solution was added to the plate and cells were incubated. The absorbance at 450 nm was measured at 1.0, 2.0, 3.0, 4.0, and 5.0 hours.Learn more about how we get our images
Figure 2. C2C12 cells were seeded at 2x104 cells/well in a 96-well plate and incubated overnight. Cells were then treated with various concentrations of doxorubicin overnight. The cytotoxicity was measured using XTT Cell Viability Kit (red) and BrdU Cell Proliferation Assay Kit #6813 (blue) as shown in the left panel. The percentage inhibition in each assay was calculated and plotted in the right panel. Doxorubicin treatment can lead to cell DNA damage followed by cell cycle arrest.Learn more about how we get our images
Figure 3. HeLa cells were seeded at 1x104 cells/well in a 96-well plate and incubated overnight. Cells were then treated with various concentrations of staurosporine overnight. The cytotoxicity was measured using XTT Cell Viability Kit (red) and BrdU Cell Proliferation Assay Kit #6813 (blue) as shown in the left panel. The percentage inhibition in each assay was calculated and plotted in the right panel. Staurosporine is a nonspecific kinase inhibitor and induces cellular apoptosis.Learn more about how we get our images
NOTE: Precipitation may occur when reagents are stored at −20°C. Make sure reagents are clear prior to use. If necessary, warm reagents to 37°C to reconstitute.
NOTE: The optimal incubation time for this assay depends on experimental setup, such as: cell type, cell number, and treatment. Optimization of incubation time can be determined by reading one plate at various time points after addition of XTT detection solution (featured below).
posted October 2012
|Product Includes||Quantity (with Count)||Solution Color|
|XTT Reagent||2 x 25 ml|
|Electron Coupling Solution||2 x 0.5 ml||Yellow|
The XTT Cell Viability Assay Kit is a colorimetric assay that detects the cellular metabolic activities. During the assay, the yellow tetrazolium salt XTT is reduced to a highly colored formazan dye by dehydrogenase enzymes in metabolically active cells. This conversion only occurs in viable cells and thus, the amount of the formazan produced is proportional to viable cells in the sample. The formazan dye formed in the assay is soluble in aqueous solution and can be quantified by measuring the absorbance at wavelength 450 nm using a spectrophotometer. An electron coupling reagent, such as PMS (N-Methylphenazonium methyl sulfate), can significantly improve the efficiency of XTT reduction in cells.
The XTT Cell Viability Kit detects formazan dye produced from XTT conversion by mitochondrial enzymes in cells. Because these mitochondrial enzymes are inactivated shortly after cell death, the orange colored formazan dye only appears in viable cells. This XTT Cell Viability Kit is expected to work in most cells lines. Variable with cell type and incubation time employed in the assay, 0.2-2x104 cells/well should be sufficient for most experiments. For the best result, a cell number titration (as shown in Figure 1) is recommended.
Cell viability and proliferation assays are widely used in drug discovery for the study of growth factors, cytokines, and cytotoxic agents. High throughput screening, in early drug discovery compound screening and in later drug safety and toxicity studies, requires a reliable, sensitive, and simple assay with the ability to analyze a large number of samples. Colorimetric cell viability assays using tetrazolium salt, such as MTT, XTT, WST-1, etc. were developed based on live cells reduction of tetrazolium salt into highly colored formazan compounds (1,2). In contrast to cell proliferation assays, such as radioactive thymidine or BrdU labeling of DNA in live cells followed by quantification of the incorporated thymidine (by quantifying sample radioactivity) or BrdU (using anti-BrdU antibody), the XTT assay doesn’t require radioactive materials, cell fixing, or cell permeabilization. Thus, unlike alternative cellular analysis assays, cells examined in the XTT assay may be used for further analysis.
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
Discover what’s going on at CST, receive our latest application notes and tips, read our science features, and learn about our products.
|9095S||1 Kit (1000 assays (96 well format))||$ 276.0|
