PhosphoPlus® Chk2 (Thr68) Antibody Duet

PhosphoPlus® Chk2 (Thr68) Antibody Duet #12298

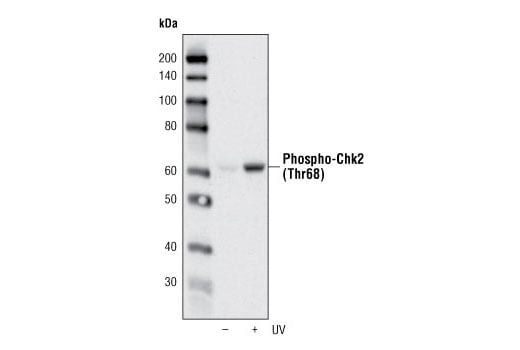

Western Blotting Image 1

Western blot analysis of extracts from HeLa cells, untreated or UV-treated, using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb.

Learn more about how we get our images
Western Blotting Image 2

Western blot analysis of extracts from various cell lines using Chk2 (D9C6) XP® Rabbit mAb.

Learn more about how we get our images
IP Image 3

Immunoprecipitation of phospho-chk2 from UV-treated HT29 cells using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb followed by western blot using the same antibody.

Learn more about how we get our images
IP Image 4

Immunoprecipitation of Chk2 from 293 cell extracts using Chk2 (D9C6) XP® Rabbit mAb (lane 2). Western blot detection was performed using the same antibody. Lane 1 is 10% input.

Learn more about how we get our images
IHC-P (paraffin) Image 5

Immunohistochemical analysis of paraffin-embedded human breast carcinoma using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb.

Learn more about how we get our images
IHC-P (paraffin) Image 6

Immunohistochemical analysis of paraffin-embedded human lung carcioma using Chk2 (D9C6) XP® Rabbit mAb.

Learn more about how we get our images
IHC-P (paraffin) Image 7

Immunohistochemical analysis of paraffin-embedded human colon carcinoma, control (left) or λ phosphatase-treated (right), using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb.

Learn more about how we get our images
IHC-P (paraffin) Image 8

Immunohistochemical analysis of paraffin-embedded human ovarian serous adenocarcinoma using Chk2 (D9C6) XP® Rabbit mAb.

Learn more about how we get our images
IHC-P (paraffin) Image 9

Immunohistochemical analysis of paraffin-embedded human lung carcinoma using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb.

Learn more about how we get our images
IHC-P (paraffin) Image 10

Immunohistochemical analysis of paraffin-embedded cell pellets, HCT 116 (left) or MDA-MB-231 (right), using Chk2 (D9C6) XP® Rabbit mAb.

Learn more about how we get our images
IHC-P (paraffin) Image 11

Immunohistochemical analysis of paraffin-embedded HT-29 cell pellets, control (left) or UV-treated (right), using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb.

Learn more about how we get our images
IF-IC Image 12

Confocal immunofluorescent analysis of HCT 116 (left) and HCT-15 (right) cells using Chk2 (D9C6) XP® Rabbit mAb (green). Actin filaments were labeled with DY-554 phalloidin (red).

Learn more about how we get our images
Flow Cytometry Image 13

Flow cytometric analysis of untreated Jurkat cells, using Phospho-Chk2 (Thr68) (C13C1) Rb mAb versus propidium iodide (DNA content). The boxed population indicates phospho-Chk2 (Thr68)-positive cells.

Learn more about how we get our images
Product Includes Quantity Applications Reactivity MW(kDa) Isotype
Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb 2197 100 µl
  • WB
  • IP
  • IHC
  • F
H 62 Rabbit IgG
Chk2 (D9C6) XP® Rabbit mAb 6334 100 µl
  • WB
  • IP
  • IHC
  • IF
H 62 Rabbit IgG

PhosphoPlus® Duets from Cell Signaling Technology (CST) provide a means to assess protein activation status. Each Duet contains an activation-state and total protein antibody to your target of interest. These antibodies have been selected from CST's product offering based upon superior performance in specified applications.

Chk2 is the mammalian orthologue of the budding yeast Rad53 and fission yeast Cds1 checkpoint kinases (1-3). The amino-terminal domain of Chk2 contains a series of seven serine or threonine residues (Ser19, Thr26, Ser28, Ser33, Ser35, Ser50, and Thr68) each followed by glutamine (SQ or TQ motif). These are known to be preferred sites for phosphorylation by ATM/ATR kinases (4,5). After DNA damage by ionizing radiation (IR), UV irradiation, or hydroxyurea treatment, Thr68 and other sites in this region become phosphorylated by ATM/ATR (5-7). The SQ/TQ cluster domain, therefore, seems to have a regulatory function. Phosphorylation at Thr68 is a prerequisite for the subsequent activation step, which is attributable to autophosphorylation of Chk2 at residues Thr383 and Thr387 in the activation loop of the kinase domain (8).

  1. Allen, J.B. et al. (1994) Genes Dev. 8, 2401-2415.
  2. Weinert, T.A. et al. (1994) Genes Dev. 8, 652-665.
  3. Murakami, H. and Okayama, H. (1995) Nature 374, 817-819.
  4. Kastan, M.B. and Lim, D.S. (2000) Nat. Rev. Mol. Cell Biol. 1, 179-186.
  5. Matsuoka, S. et al. (2000) Proc. Natl. Acad. Sci. USA 97, 10389-10394.
  6. Melchionna, R. et al. (2000) Nat. Cell Biol. 2, 762-765.
  7. Ahn, J.Y. et al. (2000) Cancer Res. 60, 5934-5936.
  8. Lee, C.H. and Chung, J.H. (2001) J. Biol. Chem. 276, 30537-30541.
Entrez-Gene Id
11200
Swiss-Prot Acc.
O96017
