Keratin 17/19 (D32D9) XP® Rabbit mAb
Primary Antibodies
Monoclonal Antibody

Keratin 17/19 (D32D9) XP® Rabbit mAb #3984

Reviews ()
Citations (6)
Filter:
  1. WB
  2. IHC

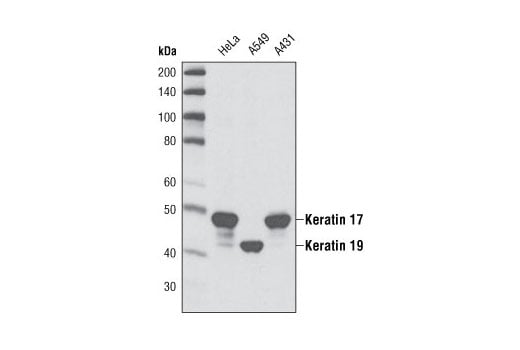

Western Blotting Image 1 - Keratin 17/19 (D32D9) XP® Rabbit mAb

Western blot analysis of extracts of HeLa, A549 and A431 cells using Keratin 17/19 (D32D9) XP® Rabbit mAb. As expected, keratin 17 is detected in HeLa and A431 cells while keratin 19 is found in A549 cells.

Immunohistochemistry Image 1 - Keratin 17/19 (D32D9) XP® Rabbit mAb

Immunohistochemical analysis of paraffin-embedded HeLa cells (keratin 17 positive) (left), A549 cells (keratin 19 positive) (middle), and Jurkat cells (keratin 17/19 negative) (right) using Keratin 17/19 (D32D9) XP® Rabbit mAb.

Immunohistochemistry Image 2 - Keratin 17/19 (D32D9) XP® Rabbit mAb

Immunohistochemical analysis of paraffin-embedded human breast carcinoma using Keratin 17/19 (D32D9) XP® Rabbit mAb.

Immunohistochemistry Image 3 - Keratin 17/19 (D32D9) XP® Rabbit mAb

Immunohistochemical analysis of paraffin-embedded human colon carcinoma using Keratin 17/19 (D32D9) XP® Rabbit mAb.

To Purchase # 3984S
Product # Size Price
3984S
100 µl $ 302

Supporting Data

REACTIVITY H M R Mk
SENSITIVITY Endogenous
MW (kDa) 48/41
Source/Isotype Rabbit IgG

Application Key:

  • W-Western
  • IP-Immunoprecipitation
  • IHC-Immunohistochemistry
  • ChIP-Chromatin Immunoprecipitation
  • IF-Immunofluorescence
  • F-Flow Cytometry
  • E-P-ELISA-Peptide

Species Cross-Reactivity Key:

  • H-Human
  • M-Mouse
  • R-Rat
  • Hm-Hamster
  • Mk-Monkey
  • Mi-Mink
  • C-Chicken
  • Dm-D. melanogaster
  • X-Xenopus
  • Z-Zebrafish
  • B-Bovine
  • Dg-Dog
  • Pg-Pig
  • Sc-S. cerevisiae
  • Ce-C. elegans
  • Hr-Horse
  • All-All Species Expected

Product Usage Information

Application Dilution
Western Blotting 1:1000
Immunohistochemistry (Paraffin) 1:300

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Protocol

PRINT

View >Collapse >

Western Blotting Protocol

For western blots, incubate membrane with diluted primary antibody in 5% w/v BSA, 1X TBS, 0.1% Tween® 20 at 4°C with gentle shaking, overnight.

NOTE: Please refer to primary antibody product webpage for recommended antibody dilution.

A. Solutions and Reagents

From sample preparation to detection, the reagents you need for your Western Blot are now in one convenient kit: #12957 Western Blotting Application Solutions Kit

NOTE: Prepare solutions with reverse osmosis deionized (RODI) or equivalent grade water.

  1. 20X Phosphate Buffered Saline (PBS): (#9808) To prepare 1 L 1X PBS: add 50 ml 20X PBS to 950 ml dH2O, mix.
  2. 10X Tris Buffered Saline (TBS): (#12498) To prepare 1 L 1X TBS: add 100 ml 10X to 900 ml dH2O, mix.
  3. 1X SDS Sample Buffer: Blue Loading Pack (#7722) or Red Loading Pack (#7723) Prepare fresh 3X reducing loading buffer by adding 1/10 volume 30X DTT to 1 volume of 3X SDS loading buffer. Dilute to 1X with dH2O.
  4. 10X Tris-Glycine SDS Running Buffer: (#4050) To prepare 1 L 1X running buffer: add 100 ml 10X running buffer to 900 ml dH2O, mix.
  5. 10X Tris-Glycine Transfer Buffer: (#12539) To prepare 1 L 1X Transfer Buffer: add 100 ml 10X Transfer Buffer to 200 ml methanol + 700 ml dH2O, mix.
  6. 10X Tris Buffered Saline with Tween® 20 (TBST): (#9997) To prepare 1 L 1X TBST: add 100 ml 10X TBST to 900 ml dH2O, mix.
  7. Nonfat Dry Milk: (#9999).
  8. Blocking Buffer: 1X TBST with 5% w/v nonfat dry milk; for 150 ml, add 7.5 g nonfat dry milk to 150 ml 1X TBST and mix well.
  9. Wash Buffer: (#9997) 1X TBST.
  10. Bovine Serum Albumin (BSA): (#9998).
  11. Primary Antibody Dilution Buffer: 1X TBST with 5% BSA; for 20 ml, add 1.0 g BSA to 20 ml 1X TBST and mix well.
  12. Biotinylated Protein Ladder Detection Pack: (#7727).
  13. Prestained Protein Marker, Broad Range (11-190 kDa): (#13953).
  14. Blotting Membrane and Paper: (#12369) This protocol has been optimized for nitrocellulose membranes. Pore size 0.2 µm is generally recommended.
  15. Secondary Antibody Conjugated to HRP: Anti-rabbit IgG, HRP-linked Antibody (#7074).
  16. Detection Reagent: SignalFire™ ECL Reagent (#6883).

B. Protein Blotting

A general protocol for sample preparation.

  1. Treat cells by adding fresh media containing regulator for desired time.
  2. Aspirate media from cultures; wash cells with 1X PBS; aspirate.
  3. Lyse cells by adding 1X SDS sample buffer (100 µl per well of 6-well plate or 500 µl for a 10 cm diameter plate). Immediately scrape the cells off the plate and transfer the extract to a microcentrifuge tube. Keep on ice.
  4. Sonicate for 10–15 sec to complete cell lysis and shear DNA (to reduce sample viscosity).
  5. Heat a 20 µl sample to 95–100°C for 5 min; cool on ice.
  6. Microcentrifuge for 5 min.
  7. Load 20 µl onto SDS-PAGE gel (10 cm x 10 cm).

    NOTE: Loading of prestained molecular weight markers (#13953, 5 µl/lane) to verify electrotransfer and biotinylated protein ladder (#7727, 10 µl/lane) to determine molecular weights are recommended.

  8. Electrotransfer to nitrocellulose membrane (#12369).

C. Membrane Blocking and Antibody Incubations

NOTE: Volumes are for 10 cm x 10 cm (100 cm2) of membrane; for different sized membranes, adjust volumes accordingly.

I. Membrane Blocking

  1. (Optional) After transfer, wash nitrocellulose membrane with 25 ml TBS for 5 min at room temperature.
  2. Incubate membrane in 25 ml of blocking buffer for 1 hr at room temperature.
  3. Wash three times for 5 min each with 15 ml of TBST.

II. Primary Antibody Incubation

  1. Incubate membrane and primary antibody (at the appropriate dilution and diluent as recommended in the product webpage) in 10 ml primary antibody dilution buffer with gentle agitation overnight at 4°C.
  2. Wash three times for 5 min each with 15 ml of TBST.
  3. Incubate membrane with Anti-rabbit IgG, HRP-linked Antibody (#7074 at 1:2000) and anti-biotin, HRP-linked Antibody (#7075 at 1:1000–1:3000) to detect biotinylated protein markers in 10 ml of blocking buffer with gentle agitation for 1 hr at room temperature.
  4. Wash three times for 5 min each with 15 ml of TBST.
  5. Proceed with detection (Section D).

D. Detection of Proteins

Directions for Use:

  1. Wash membrane-bound HRP (antibody conjugate) three times for 5 minutes in TBST.
  2. Prepare 1X SignalFire™ ECL Reagent (#6883) by diluting one part 2X Reagent A and one part 2X Reagent B (e.g. for 10 ml, add 5 ml Reagent A and 5 ml Reagent B). Mix well.
  3. Incubate substrate with membrane for 1 minute, remove excess solution (membrane remains wet), wrap in plastic and expose to X-ray film.

* Avoid repeated exposure to skin.

posted June 2005

revised June 2020

Protocol Id: 10

Immunohistochemistry (Paraffin)

A. Solutions and Reagents

  1. Xylene
  2. Ethanol, anhydrous denatured, histological grade (100% and 95%)
  3. Deionized water (dH2O)
  4. Hematoxylin (optional)
  5. Wash Buffer:
    1. 1X Tris Buffered Saline with Tween® 20 (TBST): To prepare 1L 1X TBST add 100 ml 10X Tris Buffered Saline with Tween® 20 (#9997) to 900 ml dH20, mix.
  6. SignalStain® Antibody Diluent (#8112).
  7. 1X Citrate Unmasking Solution: To prepare 250 mL of 1X citrate unmasking solution, dilute 25 ml of SignalStain® Citrate Unmasking Solution (10X) (#14746) with 225 mL of dH2O.
  8. 3% Hydrogen Peroxide: To prepare, add 10 ml 30% H2O2 to 90 ml dH2O.
  9. Blocking Solution: TBST/5% Normal Goat Serum or 1X Animal-Free Blocking Solution.
    1. TBST/5% Normal Goat Serum: to 5 ml 1X TBST, add 250 µl Normal Goat Serum (#5425).
    2. 1X Animal-Free Blocking Solution: to 4 mL of dH2O add 1 ml of Animal-Free Blocking Solution (5X) (#15019).
  10. Detection System: VECTASTAIN® Elite ABC, including biotinylated secondary antibody (Vector Laboratories).
  11. Substrate: Vector® NovaRED™ (Vector Laboratories).
  12. Hematoxylin: Hematoxylin (#14166).
  13. Mounting Medium: SignalStain® Mounting Medium (#14177).

B. Deparaffinization/Rehydration

NOTE: Do not allow slides to dry at any time during this procedure.

  1. Deparaffinize/hydrate sections:
    1. Incubate sections in three washes of xylene for 5 minutes each.
    2. Incubate sections in two washes of 100% ethanol for 10 minutes each.
    3. Incubate sections in two washes of 95% ethanol for 10 minutes each.
  2. Wash sections twice in dH2O for 5 minutes each.

C. Antigen Unmasking

For Citrate: Heat slides in a microwave submersed in 1X citrate unmasking solution until boiling is initiated; follow with 10 min at a sub-boiling temperature (95°-98°C). Cool slides on bench top for 30 min.

D. Staining

  1. Wash sections in dH2O three times for 5 minutes each.
  2. Incubate sections in 3% hydrogen peroxide for 10 minutes.
  3. Wash sections in dH2O twice for 5 minutes each.
  4. Wash sections in wash buffer for 5 minutes.
  5. Block each section with 100-400 µl of preferred blocking solution for 1 hour at room temperature.
  6. Remove blocking solution and add 100-400 µl primary antibody diluted in SignalStain® Antibody Diluent (#8112) to each section. Incubate overnight at 4°C.
  7. Prepare ABC solution per manufacturer's recommendations.
  8. Remove primary antibody and wash section three times with wash buffer for 5 minutes each.
  9. Add 100-400 µl biotinylated secondary antibody, diluted in TBST per manufacturer’s recommendation, to each section. Incubate 30 minutes at room temperature.
  10. Remove secondary antibody solution and wash sections three times with wash buffer for 5 minutes each.
  11. Cover sections with 100-400 µl pre-mixed ABC solution as needed and incubate in a humidified chamber for 30 min at room temperature.
  12. Wash section three times with wash buffer for 5 min each.
  13. Prepare Vector® NovaRED™ per manufacturer's recommendations.
  14. Apply 100-400 µl substrate to each section and monitor closely. 1-10 minutes generally provides an acceptable staining intensity.
  15. If desired, counterstain sections with hematoxylin (#14166).
  16. Wash sections in dH2O two times for 5 minutes each.
  17. Dehydrate sections:
    1. Incubate sections in 95% ethanol two times for 10 seconds each.
    2. Repeat in 100% ethanol, incubating sections two times for 10 seconds each.
    3. Repeat in xylene, incubating sections two times for 10 seconds each.
  18. Mount sections with coverslips and mounting medium (#14177).

DETECTION REAGENT/SUBSTRATE COMPATIBILITY
RECOMMENDED
DETECTION REAGENTS
SignalStain® Boost IHC Detection Reagent (HRP, Rabbit) #8114 SignalStain® Boost IHC Detection Reagent (AP, Rabbit) #18653
COMPATIBLE
CHROMOGEN
SignalStain® DAB Substrate Kit #8059 SignalStain® Vibrant Red Alkaline Phosphatase Substrate Kit #76713
SignalStain® Vivid Purple Peroxidase Substrate Kit #96632

NOTE: Use of detection reagents other than those specified in this protocol may require further optimization of the primary antibody to account for the different sensitivities of the detection reagents.


posted June 2005

revised June 2020

Protocol Id: 303

Specificity / Sensitivity

Keratin 17/19 (D32D9) XP® Rabbit mAb detects endogenous levels of keratin 17 and keratin 19 proteins.

Species Reactivity:

Human, Mouse, Rat, Monkey

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to amino acids near the amino terminus of human keratin 17 and human keratin 19.

Background

Keratins (cytokeratins) are intermediate filament proteins that are mainly expressed in epithelial cells. Keratin heterodimers composed of an acidic keratin (or type I keratin, keratins 9 to 23) and a basic keratin (or type II keratin, keratins 1 to 8) assemble to form filaments (1,2). Keratin isoforms demonstrate tissue- and differentiation-specific profiles that make them useful as research biomarkers (1). Research studies have shown that mutations in keratin genes are associated with skin disorders, liver and pancreatic diseases, and inflammatory intestinal diseases (3-6).

Keratin 17 is involved in wound healing and cell growth, two processes that require rapid cytoskeletal remodeling (7). Keratinocytes deficient in keratin 17 exhibit abnormal Akt/mTOR signaling and fail to produce an increase in translation, cell size, or growth; these cells also exhibit abnormal 14-3-3σ localization. As 14-3-3σ typically associates with keratin 17, these results imply that Akt/mTOR signaling results in sequestration of 14-3-3σ with keratin 17 in the cytosol, which is required for translation and cell growth. Phosphorylation of keratin 17 on Ser44 may provide a docking site for 14-3-3σ binding (8).

  1. Moll, R. et al. (1982) Cell 31, 11-24.
  2. Chang, L. and Goldman, R.D. (2004) Nat Rev Mol Cell Biol 5, 601-13.
  3. Ramaekers, F.C. and Bosman, F.T. (2004) J Pathol 204, 351-4.
  4. Lane, E.B. and McLean, W.H. (2004) J Pathol 204, 355-66.
  5. Zatloukal, K. et al. (2004) J Pathol 204, 367-76.
  6. Owens, D.W. and Lane, E.B. (2004) J Pathol 204, 377-85.
  7. Paladini, R.D. et al. (1996) J Cell Biol 132, 381-97.
  8. Kim, S. et al. (2006) Nature 441, 362-5.
