|H M R Mk||Endogenous||97||Rabbit IgG|

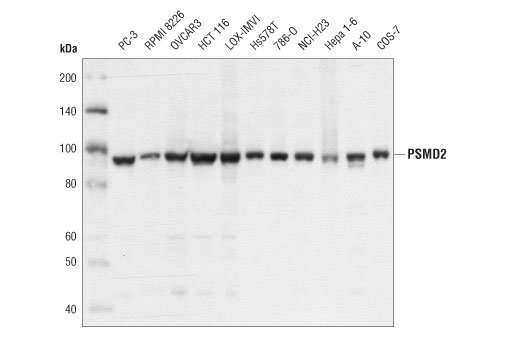

Western blot analysis of extracts from various cell lines using PSMD2 (D6W7G) Rabbit mAb.Learn more about how we get our images
Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with a construct expressing Myc/DDK-tagged full-length human PSMD2 protein (hPSMD2-Myc/DDK; +), using PSMD2 (D6W7G) Rabbit mAb.Learn more about how we get our images
For western blots, incubate membrane with diluted primary antibody in 5% w/v nonfat dry milk, 1X TBS, 0.1% Tween® 20 at 4°C with gentle shaking, overnight.
NOTE: Please refer to primary antibody datasheet or product webpage for recommended antibody dilution.
NOTE: Prepare solutions with reverse osmosis deionized (RODI) or equivalent grade water.
Load 20 µl onto SDS-PAGE gel (10 cm x 10 cm).
NOTE: Volumes are for 10 cm x 10 cm (100 cm2) of membrane; for different sized membranes, adjust volumes accordingly.
* Avoid repeated exposure to skin.
posted June 2005
revised November 2013
Reprobing of an existing membrane is a convenient means to immunoblot for multiple proteins independently when only a limited amount of sample is available. It should be noted that for the best possible results a fresh blot is always recommended. Reprobing can be a valuable method but with each reprobing of a blot there is potential for increased background signal. Additionally, it is recommended that you verify the removal of the first antibody complex prior to reprobing so that signal attributed to binding of the new antibody is not leftover signal from the first immunoblotting experiment. This can be done by re-exposing the blot to ECL reagents and making sure there is no signal prior to adding the next primary antibody.
NOTE: Prepare solutions with reverse osmosis deionized (RODI) or equivalently purified water.
posted June 2005
revised June 2016
Protocol Id: 263
Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.
PSMD2 (D6W7G) Rabbit mAb recognizes endogenous levels of total PSMD2 protein.
Human, Mouse, Rat, Monkey
Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to residues surrounding Lys350 of human PSMD2 protein.
The 26S proteasome is a highly abundant proteolytic complex involved in the degradation of ubiquitinated substrate proteins. It consists largely of two sub-complexes, the 20S catalytic core particle (CP) and the 19S/PA700 regulatory particle (RP) that can cap either end of the CP. The CP consists of two stacked heteroheptameric β-rings (β1-7) that contain three catalytic β-subunits and are flanked on either side by two heteroheptameric α-rings (α1-7). The RP includes a base and a lid, each having multiple subunits. The base, in part, is composed of a heterohexameric ring of ATPase subunits belonging to the AAA (ATPases Associated with diverse cellular Activities) family. The ATPase subunits function to unfold the substrate and open the gate formed by the α-subunits, thus exposing the unfolded substrate to the catalytic β-subunits. The lid consists of ubiquitin receptors and DUBs that function in recruitment of ubiquitinated substrates and modification of ubiquitin chain topology (1,2). Other modulators of proteasome activity, such as PA28/11S REG, can also bind to the end of the 20S CP and activate it (1,2).
Regulatory particle non-ATPase 1 (RPN1, PSMD2) is a subunit of the 19S/PA700 regulatory particle base subcomplex. The PSMD2 protein acts as part of the scaffold for assembly of the 19S/PA700 RP base subcomplex (3). Research studies demonstrate that PSMD2 binds the intracellular domain of type I TNF receptor, indicating that the 26S proteasome may play a role in the TNF signaling pathway (4,5). PSMD2 expression correlates with poor prognosis in lung cancer patients, and induced inhibition of PSMD2 results in decreased proteasome activity and increased apoptosis in lung cancer cells (6).
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc. Tween is a registered trademark of ICI Americas, Inc.
Explore pathways related to this product.
|25430S||100 µl (10 western blots)||$ 255.0|
