Activators & Inhibitors

PD184352 #12147

Western Blotting

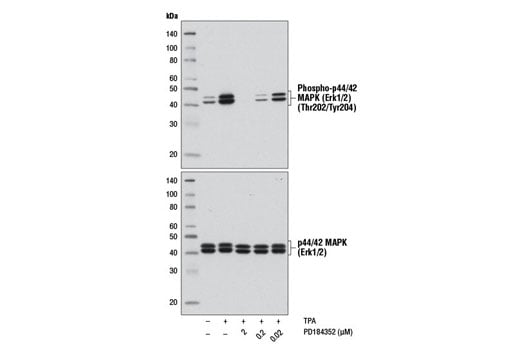

Western blot analysis of extracts from HeLa cells, serum-starved overnight and untreated or treated with TPA #4174 (200 nM, 20 min) either with or without PD184352 pretreatment (1 hr) at the indicated concentrations, using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb #4370 (upper) or p44/42 MAPK (Erk1/2) (137F5) Rabbit mAb #4695 (lower).

Learn more about how we get our images

Chemical structure of PD184352.

Learn more about how we get our images

PD184352 is supplied as a lyophilized powder. For a 10 mM stock, reconstitute the 5 mg in 1044.6 µl DMSO. Working concentrations and length of treatment can vary depending on the desired effect, but it is typically used as a pretreatment at 0.1-10 µM for 0.5-1 hr prior to treating with a stimulator or is used alone with varying treatment times lasting up to 24 hr. Soluble in DMSO at 25 mg/ml and ethanol at 8 mg/ml with warming; poorly soluble in water with maximum solubility in water at ~5-10 µM.


Store lyophilized or in solution at -20ºC, desiccated. Protect from light. In lyophilized form, the chemical is stable for 24 months. Once in solution, use within 3 months to prevent loss of potency. Aliquot to avoid multiple freeze/thaw cycles.

Molecular Weight:

478.66 g/mol

Molecular Formula:


PD184352 (CI-1040) is a highly potent and selective noncompetitive MEK inhibitor with an IC50 of 17 nM for MEK1 (1). Treatment of cells with PD184352 leads to suppression of MAPK activation (1-4) and potently inhibits the proliferation of cells harboring the B-Raf mutation V600E (2,3). Researchers have shown that PD184352 effectively inhibits MEK5, although not as potently as MEK1 (4).

  1. Sebolt-Leopold, J.S. et al. (1999) Nat Med 5, 810-6.
  2. Liu, D. et al. (2007) J Clin Endocrinol Metab 92, 4686-95.
  3. Solit, D.B. et al. (2006) Nature 439, 358-62.
  4. Mody, N. et al. (2001) FEBS Lett 502, 21-4.
For Research Use Only. Not For Use In Diagnostic Procedures.

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

News from the Bench

Discover what’s going on at CST, receive our latest application notes and tips, read our science features, and learn about our products.


To Purchase # 12147S

View sizes
Product # Size Price
5 mg $ 103.0
