PhosphoSitePlus® Resource

  • Additional protein information
  • Analytical tools

LEARN MORE

REACTIVITY SENSITIVITY MW (kDa) Isotype
H Endogenous Rabbit IgG

Flow Cytometry

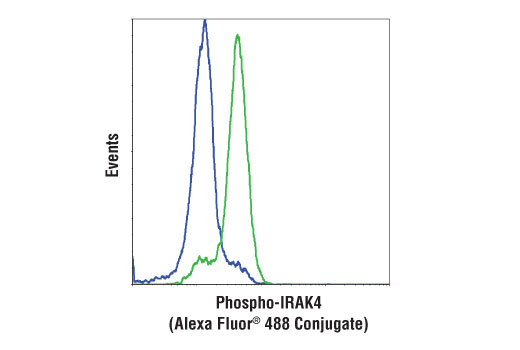

Flow cytometric analysis of KARPAS-299 cells, untreated (blue) or treated with Human Interleukin-1β (hIL-1β) #8900 (50 ng/ml, 15 min) (green), using Phospho-IRAK4 (Thr345/Ser346) (D6D7) Rabbit mAb (Alexa Fluor® 488 Conjugate). KARPAS cell line source: Dr. Abraham Karpas at the University of Cambridge.

Learn more about how we get our images
Page

Flow Cytometry, Methanol Permeabilization Protocol for Direct Conjugates

A. Solutions and Reagents

NOTE: Prepare solutions with reverse osmosis deionized (RODI) or equivalent grade water.

  1. 20X Phosphate Buffered Saline (PBS): (#9808) To prepare 1 L 1X PBS: add 50 ml 20X PBS to 950 ml dH2O, mix.
  2. 16% Formaldehyde (methanol free).
  3. 100% methanol.
  4. Incubation Buffer: Dissolve 0.5 g Bovine Serum Albumin (BSA) (#9998) in 100 ml 1X PBS. Store at 4°C.

B. Fixation

NOTE: If using whole blood, lyse red blood cells and wash by centrifugation prior to fixation.

  1. Collect cells by centrifugation and aspirate supernatant.
  2. Resuspend cells in 0.5-1 ml 1X PBS. Add formaldehyde to obtain a final concentration of 4%.
  3. Fix for 15 min at room temperature.
  4. Wash by centrifugation with excess 1X PBS. Discard supernatant in appropriate waste container. Resuspend cells in 0.5-1 ml 1X PBS.

C. Permeabilization

  1. Permeabilize cells by adding ice-cold 100% methanol slowly to pre-chilled cells, while gently vortexing, to a final concentration of 90% methanol.
  2. Incubate 30 min on ice.
  3. Proceed with immunostaining (Section D) or store cells at -20°C in 90% methanol.

D. Immunostaining

  1. Aliquot desired number of cells into tubes or wells.
  2. Wash cells by centrifugation in excess 1X PBS to remove methanol. Discard supernatant in appropriate waste container. Repeat if necessary.
  3. Resuspend cells in 100 µl of diluted antibody conjugate (prepared in incubation buffer at the recommended dilution).
  4. Incubate for 1 hr at room temperature. Protect from light.
  5. Wash by centrifugation in incubation buffer. Discard supernatant. Repeat.
  6. Resuspend cells in 1X PBS and analyze on flow cytometer; alternatively, for DNA staining, proceed to optional DNA stain (Section E).

E. Optional DNA Dye

  1. Resuspend cells in 0.5 ml of DNA dye (e.g. Propidium Iodide (PI)/RNase Staining Solution #4087).
  2. Incubate for at least 5 min at room temperature.
  3. Analyze cells in DNA staining solution on flow cytometer.

posted July 2009

revised June 2017

Protocol Id: 407

Product Usage Information

Application Dilutions
Flow Cytometry 1:50

Storage: Supplied in PBS (pH 7.2), less than 0.1% sodium azide and 2 mg/ml BSA. Store at 4°C. Do not aliquot the antibody. Protect from light. Do not freeze.

Specificity / Sensitivity

Phospho-IRAK4 (Thr345/Ser346) (D6D7) Rabbit mAb (Alexa Fluor® 488 Conjugate) recognizes endogenous levels of IRAK4 protein only when phosphorylated at Thr345 and Ser346. This antibody does not react with single phosphorylated proteins.


Species Reactivity: Human
Species predicted to react based on 100% sequence homology: Mouse, Rat, Bovine, Dog

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic phosphopeptide corresponding to residues surrounding Thr345/Ser346 of human IRAK4 protein.

Product Description

This Cell Signaling Technology antibody is conjugated to Alexa Fluor® 488 fluorescent dye and tested in-house for direct flow cytometric analysis in human cells. This antibody is expected to exhibit the same species cross-reactivity as the unconjugated Phospho-IRAK4 (Thr345/Ser346) (D6D7) Rabbit mAb #11927.


Interleukin-1 (IL-1) receptor-associated kinase (IRAK) is a serine/threonine-specific kinase that can be coprecipitated in an IL-1-inducible manner with the IL-1 receptor (1). The mammalian family of IRAK molecules contains four members (IRAK1, IRAK2, IRAK3/IRAK-M, and IRAK4). The binding of IL-1 to IL-1 receptor type I (IL-1RI) initiates the formation of a complex that includes IL-1RI, AcP, MyD88, and IRAKs (2). IRAK undergoes autophosphorylation shortly after IL-1 stimulation. The subsequent events involve IRAK dissociation from the IL-1RI complex, its ubiquitination, and its association with two membrane-bound proteins: TAB2 and TRAF6. The resulting IRAK-TRAF6-TAB2 complex is then released into the cytoplasm where it activates protein kinase cascades, including TAK1, IKKs, and the stress-activated kinases (3).


1.  Dinarello, C.A. (1996) Blood 87, 2095-147.

2.  Takaesu, G. et al. (2001) Mol Cell Biol 21, 2475-84.

3.  Janssens, S. and Beyaert, R. (2003) Mol Cell 11, 293-302.


Entrez-Gene Id 51135
Swiss-Prot Acc. Q9NWZ3


For Research Use Only. Not For Use In Diagnostic Procedures.
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
Alexa Fluor is a registered trademark of Life Technologies Corporation.
KARPAS cell line source: Dr. Abraham Karpas at the University of Cambridge.
This product is provided under an intellectual property license from Life Technologies Corporation. The transfer of this product is contingent on the buyer using the purchased product solely in research, including use with HCS or other automated imaging applications but excluding use in combination with DNA microarrays. The buyer must not sell or otherwise transfer this product or its components for (a) diagnostic, therapeutic or prophylactic purposes; (b) testing, analysis or screening services, or information in return for compensation on a per-test basis; (c) manufacturing or quality assurance or quality control, or (d) resale, whether or not resold for use in research. For information on purchasing a license to this product for purposes other than as described above, contact Life Technologies Corporation, 5791 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@lifetech.com.

80738
Phospho-IRAK4 (Thr345/Ser346) (D6D7) Rabbit mAb (Alexa Fluor® 488 Conjugate)
