Caspase-3 Activity Assay Kit
Cellular Assay Kits
Assay Kit

Caspase-3 Activity Assay Kit #5723

Citations (2)

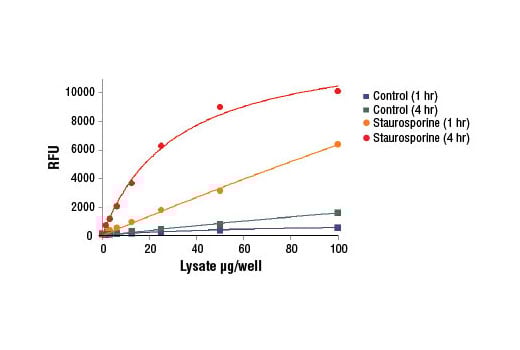

Figure 1. NIH/3T3 cells were treated with Staurosporine #9953 (5 μM, 5 hr) and then lysed in PathScan® Sandwich ELISA Lysis Buffer (1X) #7018 (supplied with kit). Various amounts of cell lysate were added to assay plates containing the substrate solution, and plates were incubated at 37ºC in the dark. Relative fluorescent units (RFUs) were acquired at 1 and 4 hr.
Figure 2. NIH/3T3 cells were seeded in a 96-well plate at 1x105 cells/well or 5x104 cells/well, and then treated with Staurosporine #9953 (5 μM, 5 hr) and then lysed in 30 μl PathScan® Sandwich ELISA Lysis Buffer (1X) #7018 (supplied with kit). Cell lysate was added to assay plates containing the substrate solution, and plates were incubated at 37ºC in the dark. Relative fluorescent units (RFUs) were acquired at 0, 1, 2, 4, and 6 hr.
Figure 3. HeLa cells were seeded at 1x105 cells/well in a 96-well plate and incubated overnight. Cells were treated with various concentrations of Staurosporine #9953 (5 hr) and then lysed in 30 μL of PathScan® Sandwich ELISA Lysis Buffer (1X) #7018 (supplied with kit). Cell lysate was mixed with substrate solution and incubated at 37ºC in the dark for 2 hr and relative fluorescent units (RFUs) were acquired.
To Purchase # 5723
Cat. # Size Qty. Price
1 Kit  (200 assays)

Product Includes Quantity (with Count)
Ac-DEVD-AMC 1 x 1 mg
AMC (7-amino-4-methylcoumarin) 1 x 250 µl
PathScan® Sandwich ELISA Lysis Buffer (1X) 7018 1 x 30 ml
Caspase Assay Buffer (2x) 1 x 30 ml
DTT (Dithiothreitol) 7016 1 x 192.8 mg



View >Collapse >

Caspase-3 Activity Assay Kit Protocol

A. Reagent Preparation

  1. Reconstitute Ac-DEVD-AMC in 1 ml DMSO.
  2. Thaw out reagents (DTT, Ac-DEVD-AMC) just before experiment.

NOTE: Precipitation may occur when reagents are stored at −20°C. Warm reagents to 37°C if necessary to dissolve precipitate.

  1. Mix one part Assay buffer (2X) with one part dH2O, and add DTT (1:200 dilution, final concentration of 5 mM) to make 1X assay buffer A.
  2. Dilute Ac-DEVD-AMC (1:40 dilution) in 1X assay buffer A to make substrate solution B.

B. Cell Lysate Preparation: Collect lysate from 96-well plate

  1. 1. Plate cells in 96-well plate and incubate with respective test substance for appropriate time. Typical cell count is 5x104 – 2x105 cells/well.
  2. Following treatment, spin plate at 300xg for 10 min, remove the medium, rinse cells with ice-cold PBS, spin plate at 300xg for 10 min, remove PBS.
  3. Add 30 μl/well of cell lysis buffer (#7018) and leave plate on ice for 5 min.

NOTE: Cell lysate plate can be stored at −80°C for future use.

Collect lysate from petri dish:

  1. Check cell adhesion following treatment. If cells detach from the plate or are only loosely attached to plate, proceed to step b; if cells are tightly adhered to plate, proceed to step c.
  2. Rinse plate with existing medium to collect all cells in a centrifuge tube. Spin at 1000xg cpm for 5 min, remove supernatant, and add cell lysis buffer (#7018) (0.5 ml/10 cm plate) to cell pellet. Pipette up and down a few times to break up the cells. Keep on ice and proceed to step d.
  3. Rinse cells with ice-cold PBS, then add cell lysis buffer (#7018) (0.5 ml/10 cm plate) to plate and leave on ice for 5 min. Scrape cells off the plate and transfer to an appropriate tube. Keep on ice and proceed to step d.
  4. Sonicate lysates on ice.
  5. Microcentrifuge for 10 min at 4°C and transfer the supernatant to a tube. The supernatant is the cell lysate. Store at −80°C in single-use aliquots.

C. Caspase Activity Assay

  1. Dilute cell lysate in 1X assay buffer A to desired concentration (0.5–4 mg/ml is recommended). If cell lysates are from a 96-well plate, no dilution is necessary.
  2. (Optional) Mix 25 µl of positive control AMC (supplied with kit) with 200 μl 1X assay buffer A to serve as a positive control.
  3. Mix 200 µl of substrate solution B and 25 µl lysate solution in a black plate appropriate for fluorescent assay.

NOTE: We recommend reading the plate immediately and recording RFU reading at time 0 hr. This will help determine if there is significant change in RFU at the end of incubation.

NOTE: This protocol has been tested in 384-well plate format, please adjust the volume proportionally based on the plate capacity. For example, if using 384-low volume plate, use 20 µl substrate solution B and 2.5 µl lysate.

  1. Incubate plates at 37°C in the dark.
  2. Read RFU on a fluorescence plate reader with excitation at 380 nm and emission at 420–460 nm.

NOTE: We recommend reading plates after 1 hr incubation. If the signal is too weak, increase incubation period to observe significant change in signal strength. If significant increase is signal strength is not observed, more lysate may be necessary.

posted October 2012

Protocol Id: 74

Product Description

The Caspase-3 Activity Assay Kit is a fluorescent assay that detects the activity of caspase-3 in cell lysates. It contains a fluorogenic substrate (N-Acetyl-Asp-Glu-Val-Asp-7-amino-4-methylcoumarin or Ac-DEVD-AMC) for caspase-3. During the assay, activated caspase-3 cleaves this substrate between DEVD and AMC, generating highly fluorescent AMC that can be detected using a fluorescence reader with excitation at 380 nm and emission between 420 - 460 nm. Cleavage of the substrate only occurs in lysates of apoptotic cells; therefore, the amount of AMC produced is proportional to the number of apoptotic cells in the sample.

Specificity / Sensitivity

Caspase-3 Activity Assay Kit detects fluorescent AMC dye produced from cleavage of Ac-DEVD-AMC by activated caspase-3 in apoptotic cells. This kit is expected to work in most species. Depending on the cell type and the incubation time applied in the assay, 0.5 - 2x105 cells/well (or 100 μg/well of total lysate protein) is sufficient for most experimental setups. For best results, cell number or lysate concentration titrations are recommended (see Figures 1 and 2). Because caspase-7 shares the same susbtrate sequence as caspase-3, this kit also detects caspase-7 activity.

Species Reactivity:

All Species Expected


Caspase-3 (CPP-32, Apopain, Yama, SCA-1) is a critical executioner of apoptosis, as it is either partially or totally responsible for the proteolytic cleavage of many key proteins, such as the nuclear enzyme poly (ADP-ribose) polymerase (PARP) (1). Activation of caspase-3 requires proteolytic processing of its inactive zymogen into activated p17 and p12 fragments. Cleavage of caspase-3 requires the aspartic acid residue at the P1 position (2).

Caspase-7 (CMH-1, Mch3, ICE-LAP3) has been identified as a major contributor to the execution of apoptosis (3-6). Caspase-7, like caspase-3, is an effector caspase that is responsible for cleaving downstream substrates, such as PARP (3,5). During apoptosis, caspase-7 is activated by upstream caspases through proteolytic processsing at Asp23, Asp198, and Asp206, thereby producing the mature subunits (3,5). Similar to caspases-2 and -3, caspase-7 preferentially cleaves substrates following the recognition sequence DEVD (7).
