CUT&Tag pAG-Tn5 (Loaded)
CUT&Tag Kits & Reagents
Enzyme
  1. Products
  2. CUT&Tag Kits & Reagents
  3. CUT&Tag pAG-Tn5 (Loaded)

CUT&Tag pAG-Tn5 (Loaded) #79561

Citations (0)
Filter:
  1. C&T

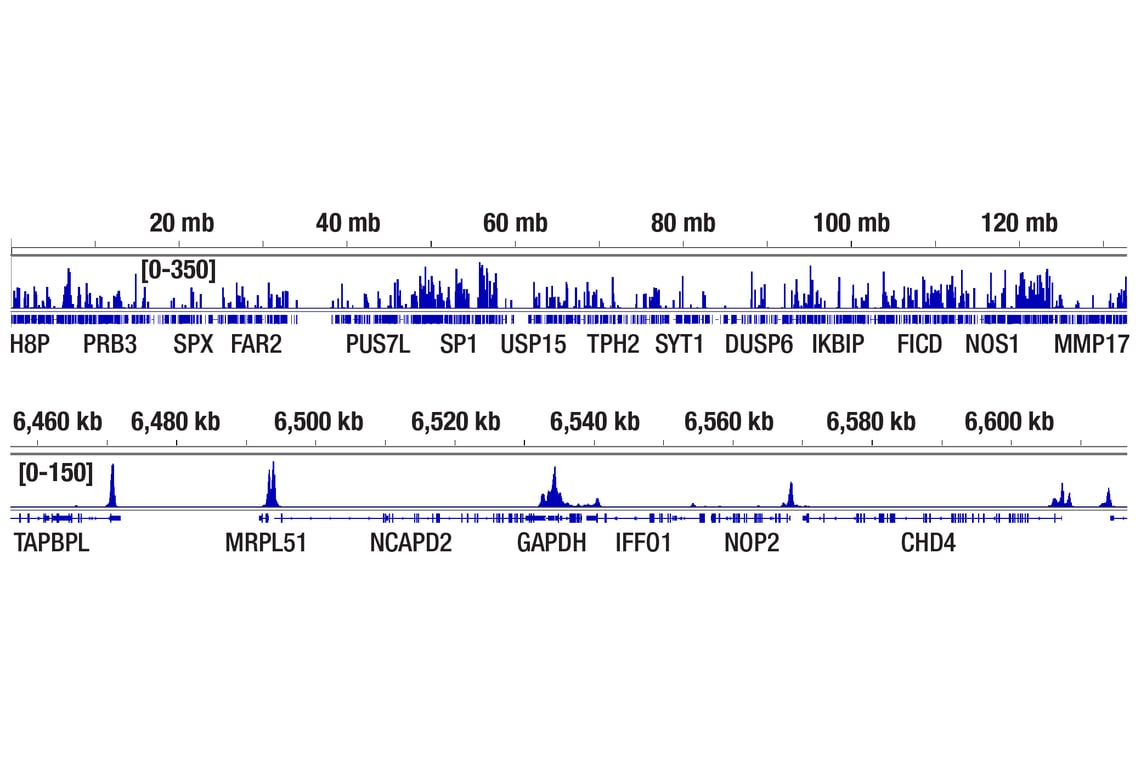

Figure 1. CUT&Tag was performed with HCT 116 cells and Tri-Methyl-Histone H3 (Lys4) (C42D8) Rabbit mAb #9751, using CUT&Tag pAG-Tn5 (Loaded) and CUT&Tag Assay Kit #77552. The DNA library was prepared using CUT&Tag Dual Index Primers and PCR Master Mix for Illumina Systems #47415. The figure shows binding across chromosome 12 (upper), including GAPDH (lower), a known target gene of H3K4me3.
Figure 2. CUT&Tag was performed with HCT 116 cells and TCF4/TCF7L2 (C48H11) Rabbit mAb #2569, using CUT&Tag pAG-Tn5 (Loaded) and CUT&Tag Assay Kit #77552. The DNA library was prepared using CUT&Tag Dual Index Primers and PCR Master Mix for Illumina Systems #47415. The figure shows binding across chromosome 8 (upper), including MYC (lower), a known target gene of TCF4.
Figure 3. CUT&Tag was performed with NCCIT cells and JARID2 (D6M9X) Rabbit mAb #13594, using CUT&Tag pAG-Tn5 (Loaded) and CUT&Tag Assay Kit #77552. The DNA library was prepared using CUT&Tag Dual Index Primers and PCR Master Mix for Illumina Systems #47415. The figure shows binding across HOXA (upper) and HOXD (lower), known target genes of JARID2.
Image Gallery
Learn more about how we get our images

Product Usage Information

Please refer to CUT&Tag Assay Kit #77552 for detailed use of this enzyme in the CUT&Tag assay. After cell permeabilization and primary and secondary antibody binding, resuspend cells in 50 μL of High Salt Digitonin Buffer containing 2 μL of pAG-Tn5 Enzyme (1:25 dilution). Incubate cell samples at room temperature for 1 hour, wash cells with High Salt Digitonin Buffer, and then perform the chromatin tagmentation.

Storage

Supplied in 22 mM HEPES pH 7.4, 44 mM NaCl, 44 μM EDTA, 0.4 mM DTT, 0.04% Triton X-100, and 50% glycerol. Store at –20°C and do not aliquot. This product is stable for 6 months.

Product Description

The CUT&Tag pAG-Tn5 (Loaded) enzyme provides enough enzyme to support 50 CUT&Tag assays. It is a fusion of Protein A and Protein G to Tn5, and is recombinantly produced in E. coli. This pAG-Tn5 has been loaded with the adaptor oligo that is compatible with NG-Sequencing for Illumina systems, so the genomic DNA fragments tagmented by CUT&Tag pAG-Tn5 (Loaded) are ready for PCR amplification and NG-seq. This enyzme is compatible with multiple species of antibodies, including both rabbit and mouse. This enzyme is validated using CUT&Tag Assay Kit #77552.

Specificity / Sensitivity

Species Reactivity:

All Species Expected

Background

Similar to Cleavage Under Targets and Release Using Nuclease (CUT&RUN), Cleavage Under Targets and Tagmentation (CUT&Tag) is a powerful technique used for probing protein-DNA interactions within the natural chromatin context of the cell (1-3). CUT&Tag has many of the same advantages as the CUT&RUN assay in that it provides a rapid, robust, and true low cell number protocol for detection of protein-DNA interactions in the cell. In addition, the CUT&Tag assay adds an in situ adaptor DNA ligation step carried out by the pAG-Tn5 enzyme, in which an adaptor DNA is ligated directly to antibody-targeted chromatin DNA fragments in the cell. As a result, subsequent DNA library preparation is much faster and easier than library preparation following the CUT&RUN assay, free from DNA end repair, A-tailing, and adaptor ligation in vitro. CUT&Tag works very well for analyzing histone modifications, in addition to mapping some transcription factor and cofactor binding.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

For Research Use Only. Not for Use in Diagnostic Procedures.
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
XP is a registered trademark of Cell Signaling Technology, Inc.
Licensed from Active Motif, Inc. under certain pending and granted patents. For purchasers internal research use only. May not be used for resale, services or other commercial use.
U.S. Patent No. 11,733,248, foreign equivalents, and child patents deriving therefrom.
U.S. Patent No. 7,429,487, foreign equivalents, and child patents deriving therefrom.
All other trademarks are the property of their respective owners. Visit our Trademark Information page.
To Purchase # 79561
Cat. # Size Qty. Price
79561S		 100 µl  (50 assays)

Custom Formulation
