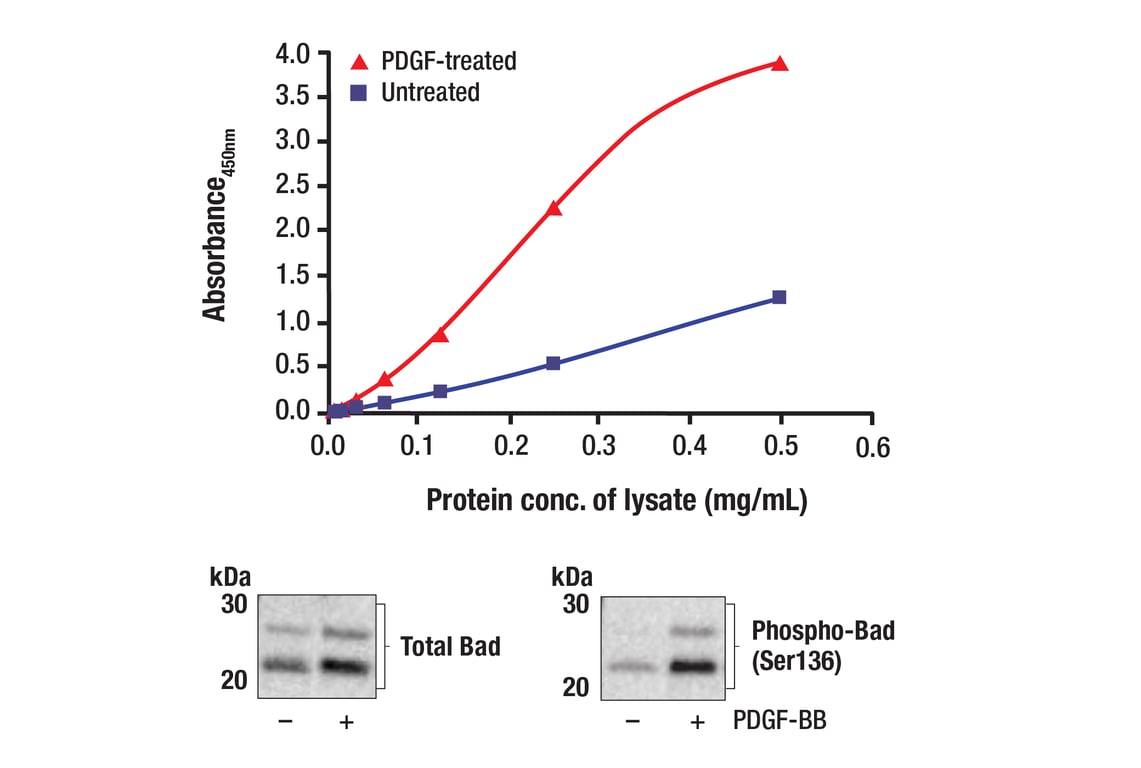

Figure 1. Treatment of NIH/3T3 cells with PDGF-BB stimulates phosphorylation of Bad at Ser136 but does not affect the level of total Bad. The relationship between lysate protein concentration from untreated and PDGF-BB-treated NIH/3T3 cells and the absorbance at 450 nm using the FastScan™ Phospho-Bad (Ser136) ELISA Kit #45057 is shown in the upper figure. The corresponding western blots using Bad antibody (left panel) and phospho-Bad (Ser136) antibody (right panel) are shown in the lower figure. Serum starved NIH/3T3 cells were treated with 100 ng/ml PDGF-BB #8912 for 40 minutes at 37°C, then lysed.Learn more about how we get our images
|Product Includes||Volume (with Count)||Solution Color|
|FastScan™ ELISA Microwell Strip Plate, 96 Well 53257||1 x 96 tests|
|Bad Rabbit Capture mAb||1 x 1 ea||Green (Lyophilized)|
|Phospho-Bad (Ser136) Rabbit HRP-linked mAb||1 x 1 ea||Red (Lyophilized)|
|FastScan™ ELISA Capture Antibody Diluent||1 x 3 ml||Green|
|FastScan™ ELISA HRP Antibody Diluent||1 x 3 ml|
|TMB Substrate 7004||1 x 11 ml|
|STOP Solution 7002||1 x 11 ml|
|Sealing Tape||1 x 1 ea|
|ELISA Wash Buffer (20X) 9801||1 x 25 ml|
|FastScan™ ELISA Cell Extraction Buffer (5X) 69905||1 x 10 ml|
|FastScan™ ELISA Cell Extraction Enhancer Solution (50X) 25243||1 x 1 ml|
|FastScan™ ELISA Kit #45057 Positive Control||2 x 1 ea|
NOTE: Prepare solutions with deionized/purified water or equivalent.
Prepare only as much reagent as needed on the day of the experiment.
*IMPORTANT: The provided FastScan™ ELISA Cell Extraction Enhancer Solution (50X) may precipitate when stored at 4°C. To dissolve, warm briefly at 37°C and mix gently. The FastScan™ ELISA Cell Extraction Enhancer Solution (50X) can be stored at room temperature to avoid precipitation.
NOTE: The 1X Cell Extraction Buffer contains phosphatase inhibitors. Protease inhibitors should be added to the 1X Cell Extraction Buffer immediately prior to lysing cells. Additional phosphatase inhibitors can also be added (e.g. Protease/Phosphatase Inhibitor Cocktail (100X) #5872, not supplied).
For adherent cells
For suspension cells
NOTE: Equilibrate all materials and prepared reagents to room temperature prior to running the assay.
*NOTE: Certain FastScan™ ELISA Kits may require additional washes at this step. Any requirements for additional washes will be specifically noted in the product “Description” of the kit’s datasheet.
NOTE: Initial color of positive reaction is blue, which changes to yellow upon addition of STOP Solution.
posted May 2018
revised November 2018
The FastScan™ Phospho-Bad (Ser136) ELISA Kit is a sandwich enzyme-linked immunosorbent assay (ELISA) that detects endogenous levels of Bad when phosphorylated at Ser136. To perform the assay, sample is incubated with a capture antibody conjugated with a proprietary tag and a second detection antibody linked to HRP, forming a sandwich with phospho-Bad (Ser136) in solution. This entire complex is immobilized to the plate via an anti-tag antibody. The wells are then washed to remove unbound material. TMB is then added. The magnitude of observed signal is proportional to the quantity of phospho-Bad (Ser136). Antibodies in kit are custom formulations specific to kit.
The FastScan™ Phospho-Bad (Ser136) ELISA Kit detects endogenous levels of Bad when phosphorylated at Ser136 as shown in Figure 1. This kit detects proteins from the indicated species, as determined through in-house testing, but may also detect homologous proteins from other species.
Human, Mouse, Rat, Monkey
Bad is a proapoptotic member of the Bcl-2 family that promotes cell death by displacing Bax from binding to Bcl-2 and Bcl-xL (1,2). Survival factors, such as IL-3, inhibit the apoptotic activity of Bad by activating intracellular signaling pathways that result in the phosphorylation of Bad at Ser112 and Ser136 (2). Phosphorylation at these sites promotes binding of Bad to 14-3-3 proteins to prevent an association between Bad with Bcl-2 and Bcl-xL (2). Akt phosphorylates Bad at Ser136 to promote cell survival (3,4). Bad is phosphorylated at Ser112 both in vivo and in vitro by p90RSK (5,6) and mitochondria-anchored PKA (7). Phosphorylation at Ser155 in the BH3 domain by PKA plays a critical role in blocking the dimerization of Bad and Bcl-xL (8-10).
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc. FastScan™ ELISA is a trademark of Cell Signaling Technology, Inc. U.S. Patents 9,086,407, 9,261,500, and 9,476,874, foreign equivalents, and child patents deriving therefrom.
Explore pathways related to this product.
|45057C||1 Kit (96 assays)||$ 499|
