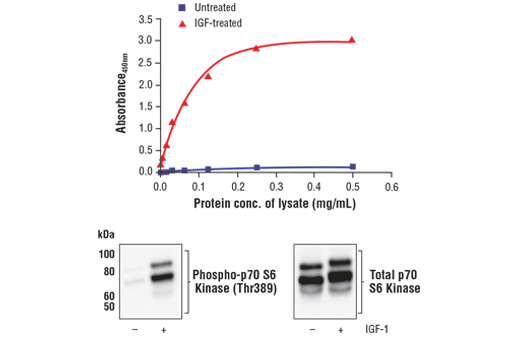

Figure 1. Treatment of MCF7 cells with IGF-1 stimulates phosphorylation of p70 S6 kinase at Thr389 but does not affect the level of total p70 S6 kinase. The relationship between lysate protein concentration from untreated and IGF-1-treated MCF7 cells and the absorbance at 450 nm using the FastScan™ Phospho-p70 S6 Kinase (Thr389) ELISA Kit #54164 is shown in the upper figure. The corresponding western blots using phospho-p70 S6 Kinase (Thr389) antibody (left panel) and p70 S6 Kinase antibody (right panel) are shown in the lower figure. After serum starvation, MCF7 cells were treated with 100 ng/ml hIGF-I #8917 for 20 minutes at 37°C and then lysed.
|REACTIVITY||H M R Mk|
|Product Includes||Volume (with Count)||Solution Color|
|FastScan™ ELISA Microwell Strip Plate, 96 Well 53257||1 x 96 tests|
|p70 S6 Kinase Rabbit Capture mAb||1 x 1 ea||Green (Lyophilized)|
|Phospho-p70 S6 Kinase (Thr389) Mouse HRP-linked mAb||1 x 1 ea||Red (Lyophilized)|
|FastScan™ ELISA Capture Antibody Diluent||1 x 3 ml||Green|
|FastScan™ ELISA HRP Antibody Diluent||1 x 3 ml|
|TMB Substrate 7004||1 x 11 ml|
|STOP Solution 7002||1 x 11 ml|
|Sealing Tape||1 x 1 ea|
|ELISA Wash Buffer (20X) 9801||1 x 25 ml|
|FastScan™ ELISA Cell Extraction Buffer (5X) 69905||1 x 10 ml|
|FastScan™ ELISA Cell Extraction Enhancer Solution (50X) 25243||1 x 1 ml|
|FastScan™ ELISA Kit #54164 Positive Control Type 1||1 x 1 ea|
NOTE: Prepare solutions with deionized/purified water or equivalent.
Prepare only as much reagent as needed on the day of the experiment.
*IMPORTANT: The provided FastScan™ ELISA Cell Extraction Enhancer Solution (50X) may precipitate when stored at 4°C. To dissolve, warm briefly at 37°C and mix gently. The FastScan™ ELISA Cell Extraction Enhancer Solution (50X) can be stored at room temperature to avoid precipitation.
NOTE: The 1X Cell Extraction Buffer contains phosphatase inhibitors. Protease inhibitors should be added to the 1X Cell Extraction Buffer immediately prior to lysing cells. Additional phosphatase inhibitors can also be added (e.g. Protease/Phosphatase Inhibitor Cocktail (100X) #5872, not supplied).
NOTE: A select number of FastScan™ ELISA kits do not contain a positive control, please refer to Product Includes table on the datasheet for a list of included reagents. Should you need support on how to generate a positive control for those kits, contact CST technical support at [email protected].
For adherent cells
For suspension cells
NOTE: Equilibrate all materials and prepared reagents to room temperature prior to running the assay.
*NOTE: Certain FastScan™ ELISA Kits may require additional washes at this step. Any requirements for additional washes will be specifically noted in the product “Description” of the kit’s datasheet.
NOTE: Initial color of positive reaction is blue, which changes to yellow upon addition of STOP Solution.
posted May 2018
revised November 2019
Protocol Id: 1924
The FastScan™ Phospho-p70 S6 Kinase (Thr389) ELISA Kit is a sandwich enzyme-linked immunosorbent assay (ELISA) that detects endogenous levels of phospho-p70 S6 Kinase (Thr389). To perform the assay, sample is incubated with a capture antibody conjugated with a proprietary tag and a second detection antibody linked to HRP, forming a sandwich with phospho-p70 S6 Kinase (Thr389) in solution. This entire complex is immobilized to the plate via an anti-tag antibody. The wells are then washed to remove unbound material. TMB is then added. The magnitude of observed signal is proportional to the quantity of phospho-p70 S6 Kinase (Thr389). Antibodies in kit are custom formulations specific to kit.
The FastScan™ Phospho-p70 S6 Kinase (Thr389) ELISA Kit detects endogenous levels of p70 S6 kinase when phosphorylated at Thr389, as shown in Figure 1. This kit is predicted to cross-react with the p85 isoform of S6 kinase. This kit detects proteins from the indicated species, as determined through in-house testing, but may also detect homologous proteins from other species.
Human, Mouse, Rat, Monkey
p70 S6 kinase is a mitogen activated Ser/Thr protein kinase that is required for cell growth and G1 cell cycle progression (1,2). p70 S6 kinase phosphorylates the S6 protein of the 40S ribosomal subunit and is involved in translational control of 5' oligopyrimidine tract mRNAs (1). A second isoform, p85 S6 kinase, is derived from the same gene and is identical to p70 S6 kinase except for 23 extra residues at the amino terminus, which encode a nuclear localizing signal (1). Both isoforms lie on a mitogen activated signaling pathway downstream of phosphoinositide-3 kinase (PI-3K) and the target of rapamycin, FRAP/mTOR, a pathway distinct from the Ras/MAP kinase cascade (1). The activity of p70 S6 kinase is controlled by multiple phosphorylation events located within the catalytic, linker and pseudosubstrate domains (1). Phosphorylation of Thr229 in the catalytic domain and Thr389 in the linker domain are most critical for kinase function (1). Phosphorylation of Thr389, however, most closely correlates with p70 kinase activity in vivo (3). Prior phosphorylation of Thr389 is required for the action of phosphoinositide 3-dependent protein kinase 1 (PDK1) on Thr229 (4,5). Phosphorylation of this site is stimulated by growth factors such as insulin, EGF and FGF, as well as by serum and some G-protein-coupled receptor ligands, and is blocked by wortmannin, LY294002 (PI-3K inhibitor) and rapamycin (FRAP/mTOR inhibitor) (1,6,7). Ser411, Thr421 and Ser424 lie within a Ser-Pro-rich region located in the pseudosubstrate region (1). Phosphorylation at these sites is thought to activate p70 S6 kinase via relief of pseudosubstrate suppression (1,2). Another LY294002 and rapamycin sensitive phosphorylation site, Ser371, is an in vitro substrate for mTOR and correlates well with the activity of a partially rapamycin resistant mutant p70 S6 kinase (8).
