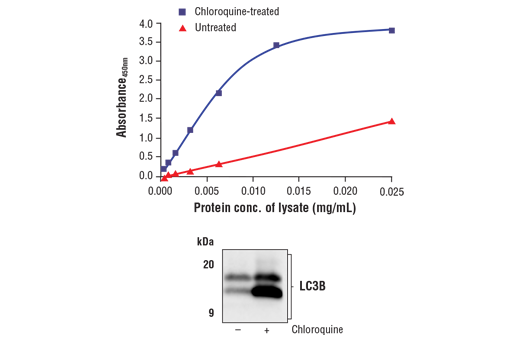

Figure 1: LC3B protein from untreated and chloroquine-treated HeLa cells is detected by FastScan™ Total LC3B ELISA kit. A much lower signal of LC3B protein is seen in the untreated lysate. The relationship between lysate protein concentration from untreated and chloroquine-treated cells and the absorbance at 450 nm using the FastScan™ Total LC3B ELISA Kit #35172 is shown in the upper figure. The corresponding western blot using a LC3B antibody is shown in the lower figure. Unstarved HeLa cells (80-90% confluence) were treated with chloroquine (50 μM, overnight), and then lysed.
|REACTIVITY||H M R Mk|
|Product Includes||Volume (with Count)||Solution Color|
|FastScan™ ELISA Microwell Strip Plate, 96 Well 53257||1 x 96 tests|
|LC3B Rabbit Capture mAb||1 x 1 ea||Green (Lyophilized)|
|LC3B Mouse HRP-linked mAb||1 x 1 ea||Red (Lyophilized)|
|FastScan™ ELISA Capture Antibody Diluent||1 x 3 ml||Green|
|FastScan™ ELISA HRP Antibody Diluent||1 x 3 ml|
|TMB Substrate 7004||1 x 11 ml|
|STOP Solution 7002||1 x 11 ml|
|ELISA Wash Buffer (20X) 9801||1 x 25 ml|
|FastScan™ ELISA Cell Extraction Buffer (5X) 69905||1 x 10 ml|
|FastScan™ ELISA Cell Extraction Enhancer Solution (50X) 25243||1 x 1 ml|
|FastScan™ ELISA Kit #35172 Positive Control Type 2||1 x 1 ea|
|Sealing Tape||1 x 1 ea|
NOTE: Prepare solutions with deionized/purified water or equivalent.
Prepare only as much reagent as needed on the day of the experiment.
*IMPORTANT: The provided FastScan™ ELISA Cell Extraction Enhancer Solution (50X) may precipitate when stored at 4°C. To dissolve, warm briefly at 37°C and mix gently. The FastScan™ ELISA Cell Extraction Enhancer Solution (50X) can be stored at room temperature to avoid precipitation.
NOTE: The 1X Cell Extraction Buffer contains phosphatase inhibitors. Protease inhibitors should be added to the 1X Cell Extraction Buffer immediately prior to lysing cells. Additional phosphatase inhibitors can also be added (e.g. Protease/Phosphatase Inhibitor Cocktail (100X) #5872, not supplied).
NOTE: A select number of FastScan™ ELISA kits do not contain a positive control, please refer to Product Includes table on the datasheet for a list of included reagents. Should you need support on how to generate a positive control for those kits, contact CST technical support at [email protected].
For adherent cells
For suspension cells
NOTE: Equilibrate all materials and prepared reagents to room temperature prior to running the assay.
*NOTE: Certain FastScan™ ELISA Kits may require additional washes at this step. Any requirements for additional washes will be specifically noted in the product “Description” of the kit’s datasheet.
NOTE: Initial color of positive reaction is blue, which changes to yellow upon addition of STOP Solution.
posted May 2018
revised November 2019
Protocol Id: 1924
The FastScan™ Total LC3B ELISA Kit is a sandwich enzyme-linked immunosorbent assay (ELISA) that detects endogenous levels of LC3B. To perform the assay, sample is incubated with a capture antibody conjugated with a proprietary tag and a second detection antibody linked to HRP, forming a sandwich with LC3B in solution. This entire complex is immobilized to the plate via an anti-tag antibody. The wells are then washed to remove unbound material. TMB is then added. The magnitude of observed signal is proportional to the quantity of LC3B. Antibodies in kit are custom formulations specific to kit.
IMPORTANT: This FastScan™ ELISA Kit requires 4 washes at Step 6 of the protocol.
The FastScan™ Total LC3B ELISA Kit detects endogenous levels of LC3B as shown in Figure 1. This kit detects proteins from the indicated species, as determined through in-house testing, but may also detect homologous proteins from other species.
Human, Mouse, Rat, Monkey
Autophagy is a catabolic process for the autophagosomic-lysosomal degradation of bulk cytoplasmic contents (1,2). Autophagy is generally activated by conditions of nutrient deprivation, but it has also been associated with a number of physiological processes including development, differentiation, neurodegenerative diseases, infection, and cancer (3). Autophagy marker Light Chain 3 (LC3) was originally identified as a subunit of microtubule-associated proteins 1A and 1B (termed MAP1LC3) (4) and subsequently found to contain similarity to the yeast protein Apg8/Aut7/Cvt5 critical for autophagy (5). Three human LC3 isoforms (LC3A, LC3B, and LC3C) undergo post-translational modifications during autophagy (6-9). Cleavage of LC3 at the carboxy terminus immediately following synthesis yields the cytosolic LC3-I form. During autophagy, LC3-I is converted to LC3-II through lipidation by a ubiquitin-like system involving Atg7 and Atg3 that allows for LC3 to become associated with autophagic vesicles (6-10). The presence of LC3 in autophagosomes and the conversion of LC3 to the lower migrating form, LC3-II, have been used as indicators of autophagy (11).
