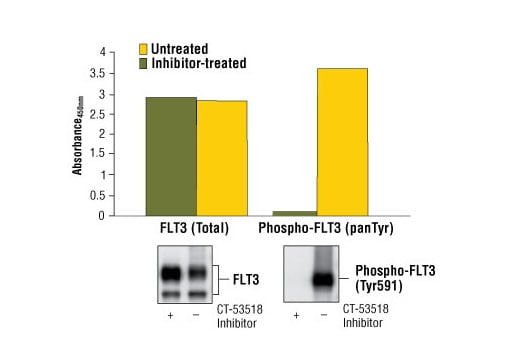

Figure 1: Constitutive phosphorylated of FLT3 in SEM cells is detected by PathScan® Phospho-FLT3 (panTyr) Sandwich ELISA kit #7761. In contrast, only a low level of phospho-FLT3 protein is detected in SEM cells treated with CT-53518, an inhibitor of FLT3 tyrosine phosphorylation. The inhibitor does not affect the level of total FLT3 protein detected by PathScan® Total FLT3 Sandwich ELISA kit #7202. Absorbance at 450 nm is shown in the top figure, while the corresponding western blots using Phospho-FLT3 (Tyr591) Antibody #3461 (right panel) or FLT3 Rabbit mAb #3462 (left panel), is shown in the bottom figure.Learn more about how we get our images
Figure 2: The relationship between total protein concentration of the lysate from untreated or inhibitor-treated SEM cells and absorbance at 450 nm is shown. Unstarved SEM cells (10-6 cells/ml) were left untreated or treated with CT-53518 (50 ng/ml) for 120 min and then lysed.Learn more about how we get our images
|Product Includes||Volume||Solution Color|
|FLT3 Rabbit mAb Coated Microwells||96 tests|
|Phospho Tyrosine Mouse Detection mAb||1 ea||Green (Lyophilized)|
|Anti-mouse IgG, HRP-linked Antibody (ELISA Formulated)||1 ea||Red (Lyophilized)|
|Detection Antibody Diluent||11 ml||Green|
|HRP Diluent||11 ml||Red|
|TMB Substrate 7004||11 ml|
|STOP Solution 7002||11 ml|
|ELISA Wash Buffer (20X)||25 ml|
|ELISA Sample Diluent||25 ml||Blue|
|Sealing Tape||2 ea|
|Cell Lysis Buffer (10X) 9803||15 ml|
NOTE: Prepare solutions with purified water.
*NOTE: Some PathScan® ELISA Kits may include HRP-Linked Streptavidin in place of HRP-Linked Antibody.
NOTE: Initial color of positive reaction is blue, which changes to yellow upon addition of STOP Solution.
posted November 2013
CST's PathScan® Phospho-FLT3 (panTyr) Sandwich ELISA Kit is a solid phase sandwich enzyme-linked immunosorbent assay (ELISA) that detects endogenous levels of tyrosine-phosphorylated FLT3 protein. A FLT3 rabbit antibody has been coated on the microwells. After incubation with cell lysates, FLT3 protein (phospho and nonphospho) is captured by the coated antibody. Following extensive washing, a phospho-tyrosine mouse detection antibody is added to detect captured tyrosine-phosphorylated FLT3 protein. Anti-mouse IgG, HRP-linked antibody is then used to recognize the bound detection antibody. HRP substrate TMB is added to develop color. The magnitude of the absorbance for this developed color is proportional to the quantity of FLT3 protein phosphorylated on tyrosine.
Antibodies in kit are custom formulations specific to kit.
PathScan® Phospho-FLT3 (panTyr) Sandwich ELISA Kit #7761 detects endogenous levels of FLT3 protein phosphorylated at Tyr residues in human cells, as shown in Figure 1. The kit sensitivity is shown in Figure 2.
FMS-related tyrosine kinase 3 (FLT3, also called Flk2), is a member of the type III receptor tyrosine kinase family, which includes c-Kit, PDGFR and M-CSF receptors. FLT3 is expressed on early hematopoietic progenitor cells and supports growth and differentiation within the hematopoietic system (1,2). FLT3 is activated after binding with its ligand FL, which results in a cascade of tyrosine autophosphorylation and tyrosine phosphorylation of downstream targets (3). The p85 subunit of PI3 kinase, SHP2, GRB2 and Shc are associated with FLT3 after FL stimulation (4-6). Tyr589/591 is located in the juxtamembrane region of FLT3 and may play an important role in regulation of FLT3 tyrosine kinase activity. Somatic mutations of FLT3 consisting of internal tandem duplications (ITDs) occur in 20% of patients with acute myeloid leukemia (7).
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc. PathScan is a trademark of Cell Signaling Technology, Inc. U.S. Patent No. 7,429,487, foreign equivalents, and child patents deriving therefrom.
Explore pathways related to this product.
|7761C||1 Kit (96 assays)||$489.00.0|
