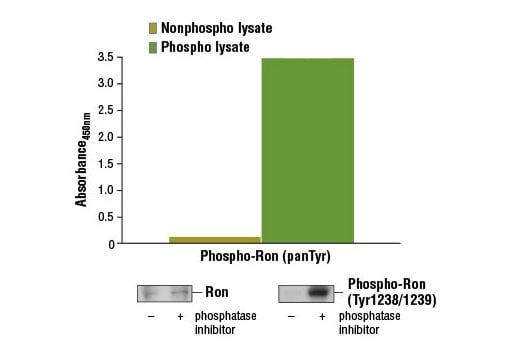

Figure 1. Constitutive phosphorylation of Ron in HCC827 cells lysed in the presence of phosphatase inhibitors* (phospho lysate) is detected by PathScan® Phospho-Ron (panTyr) Sandwich ELISA Kit. In contrast, a low level of phospho-Ron protein is detected in HCC827 cells lysed in the absence of phosphatase inhibitors* (nonphospho lysate). Absorbance at 450 nm is shown in the top figure while corresponding western blots using Ron (81H9) Rabbit mAb #2654 (left) and a Phospho-Ron (Tyr1238/1239) antibody (right) are shown in the bottom figure. *Phosphatase inhibitors include sodium pyrophosphate, β-glycerophosphate, and sodium orthovanadate.
Figure 2. The relationship between protein concentration of phospho or nonphospho lysates and the absorbance at 450 nm is shown. Unstarved HCC827 cells were cultured (85% confluence) and lysed with or without addition of phosphatase inhibitors to the lysis buffer (phospho or nonphospho lysate, respectively).
|Product Includes||Volume||Solution Color|
|Ron Rabbit mAb Coated Microwells||96 tests|
|Phospho Tyrosine Mouse Detection mAb||1 ea||Green (Lyophilized)|
|Anti-mouse IgG, HRP-linked Antibody (ELISA Formulated)||1 ea||Red (Lyophilized)|
|Detection Antibody Diluent||11 ml||Green|
|HRP Diluent||11 ml||Red|
|TMB Substrate 7004||11 ml|
|STOP Solution 7002||11 ml|
|Sealing Tape||2 ea|
|ELISA Wash Buffer (20X) 9801||25 ml|
|ELISA Sample Diluent||25 ml||Blue|
|Cell Lysis Buffer (10X) 9803||15 ml|
PathScan® Phospho-Ron (panTyr) Sandwich ELISA Kit is a solid phase sandwich enzyme-linked immunosorbent assay (ELISA) that detects endogenous levels of tyrosine-phosphorylated Ron proteins. A Ron Rabbit mAb has been coated onto the microwells. After incubation with cell lysates, Ron protein (phospho and nonphospho) is captured by the coated antibody. Following extensive washing, Phospho-Tyrosine Mouse Detection Antibody is added to detect captured tyrosine-phosphorylated Ron protein. Anti-mouse IgG, HRP-linked Antibody is then used to recognize the bound detection antibody. HRP substrate, TMB, is added to develop color. The magnitude of absorbance for the developed color is proportional to the quantity of tyrosine-phosphorylated Ron protein.
Antibodies in kit are custom formulations specific to kit.
NOTE: Prepare solutions with purified water.
*NOTE: Some PathScan® ELISA Kits may include HRP-Linked Streptavidin in place of HRP-Linked Antibody.
NOTE: Initial color of positive reaction is blue, which changes to yellow upon addition of STOP Solution.
posted November 2013
Protocol Id: 204
PathScan® Phospho-Ron (panTyr) Sandwich ELISA Kit detects endogenous levels of Ron protein when phosphorylated at Tyr residues in human cells, as shown in Figure 1. The kit sensitivity is shown in Figure 2. This kit detects proteins from the indicated species, as determined through in-house testing, but may also detect homologous proteins from other species.Species Reactivity:
Ron is a member of the Met protooncogene family of receptor tyrosine kinases, which also includes Stk, c-Met, and c-Sea. The functional Ron is a heterodimer composed of a 40 kDa α chain and a 150 kDa β chain. Ron is initially synthesized in the cells as a single-chain, pro-Ron precursor that is cleaved into the two active chains. The α chain is completely extracellular, whereas the β chain traverses the cell membrane and contains the intracellular tyrosine kinase and regulatory elements (1,2). Ron mediates multiple signaling cascades that involve cell motility, adhesion, proliferation, and apoptosis. The signaling pathways activated downstream of Ron include the ras/mitogen-activated protein kinase (MAPK), phosphatidyl inositol-3 kinase (PI3K)/Akt, and focal adhesion kinase (FAK) pathways. Ron activation can also significantly increase c-Src activity, a signaling intermediate involved in cell cycle progression, motility, angiogenesis and survival (3,4). The function of Ron has been shown to be important for embryological development as well as implicated in the progression and metastasis of tumors (5).
